help to know what is this ground wire of my lx470 1999 (1 Viewer)

[MiguelDelgado20]

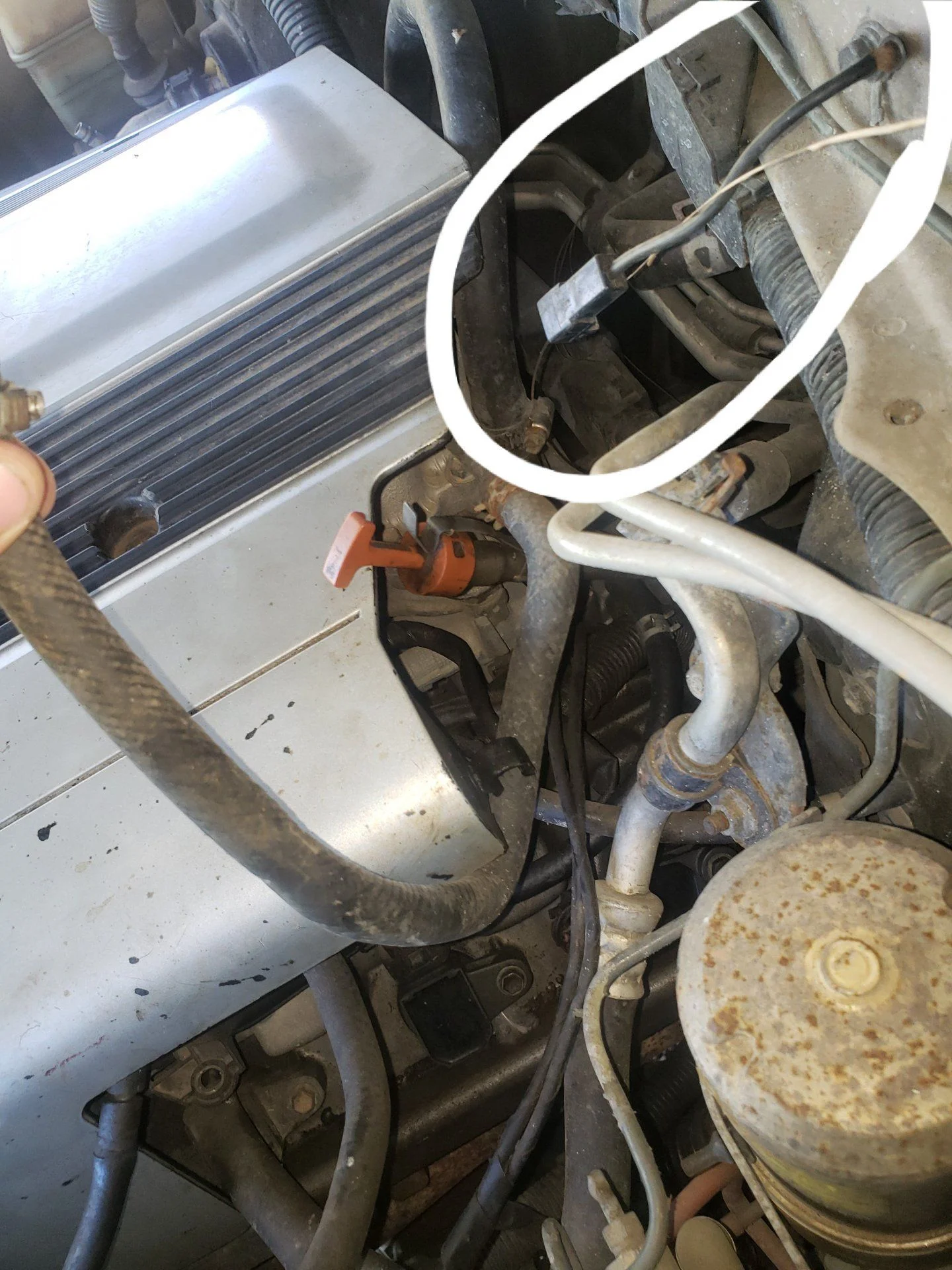

Acabo de comprar mi lx470 1999 y noté que este cable de tierra no está conectado y no puedo encontrar el otro extremo del cableado.

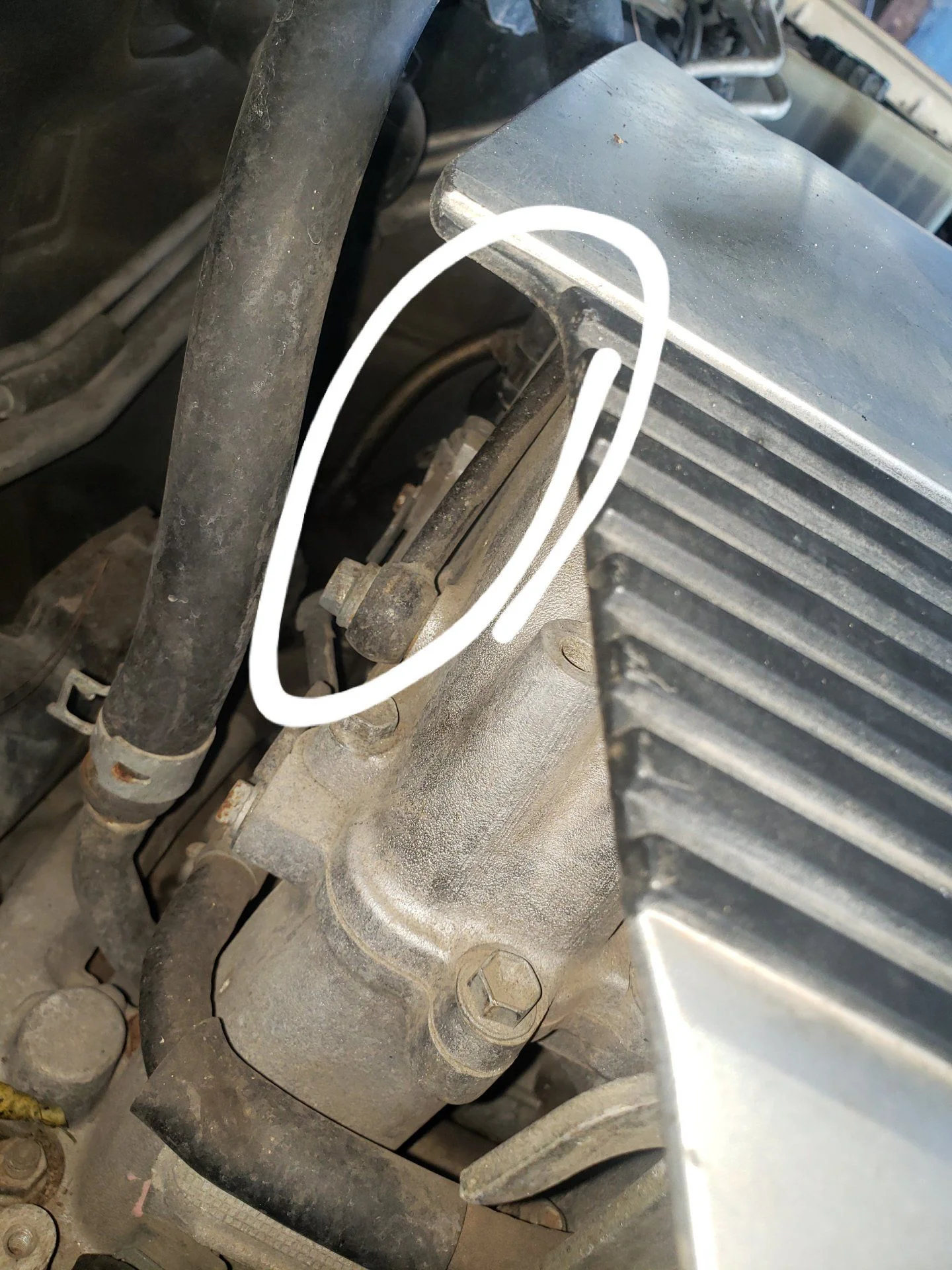

También tiene esta tubería desconectada y no veo dónde ponerla.



[rrc swb]

Saludos Miguel,

Enhorabuena por la compra de la camioneta.

Trata de buscar informacion en los libros. Aqui lo llaman "FSM".

Cambian por año, pero este puede que te sirva.

2004 Toyota Land Cruiser FSM

Shared with Dropbox

www.dropbox.com

Tienes algun problema o codigo?



[MiguelDelgado20]

Saludos Miguel,

Enhorabuena por la compra de la camioneta.

Trata de buscar informacion en los libros. Aqui lo llaman "FSM".

Cambian por año, pero este puede que te sirva.

[URL unfurl = "true"] 2004 Toyota Land Cruiser FSM - https://www.dropbox.com/sh/08oqld8tayg9j0b/AABxiu4r40xg-HNbMbqs4k7Da?dl=0 [/ URL]

¿Tienes algún problema o codigo?

muchas gracias buscaré lo que me enviaste a ver si encuentro el cableado



Todavía no lo he escaneado para ver si da un código de error, pero el motor de verificación está apagado



[rrc swb]

Mañana miro a ver la mía y te dejo saber.

Hoy hacía mucho frío. Jaja



[MiguelDelgado20]

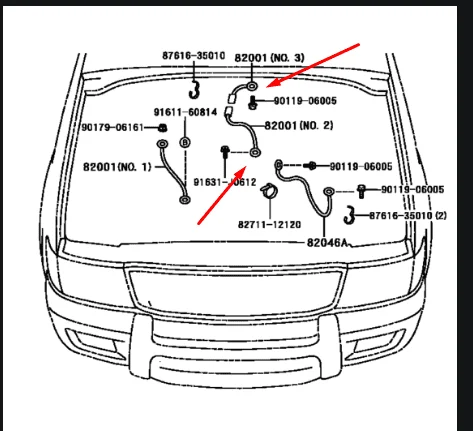

Muchas gracias por su ayuda, pude identificar un diagrama pero no pude ver el cable de flecha verde en mi lx470



[fjcruising]

Todavía le funciona el AHC?



[medtro]

Thank you very much for your help, I was able to identify a diagram but couldn't see the green arrow wire on my lx470

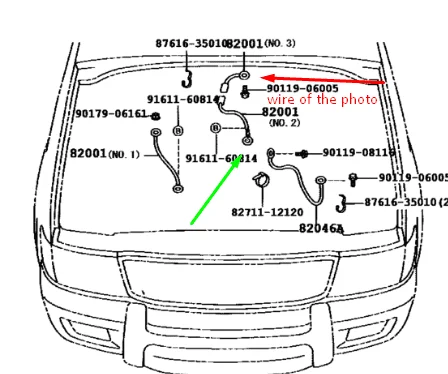

View attachment 2573926

View attachment 2573924

Green arrow wire goes to the back of intake manifold.



[MiguelDelgado20]

¿Todavía le funciona el AHC?

yes



[MiguelDelgado20]

El cable de flecha verde va a la parte posterior del colector de admisión.

now I'm going to remove the plastic cover from the motor, to see if I can find the other part of the cable and not if I can't find it, can I attach it to any part of the inkate manifold?



[MiguelDelgado20]

El cable de flecha verde va a la parte posterior del colector de admisión.

and you don't know anything about the pipe in the photo above? the one that is connected to the inkate manifold



[medtro]

now I'm going to remove the plastic cover from the motor, to see if I can find the other part of the cable and not if I can't find it, can I attach it to any part of the inkate manifold?

Yes, you can.



[MiguelDelgado20]

Thank you, I will do that and regarding the inkate manifold pipe

Yes, you can.

Thank you, I will do that and regarding the inkate manifold pipe, you know where it is connected



[medtro]

I don't remember how it is routed. I don't have my car with me now.



[fjcruising]

Hi Miguel,

is the car experiencing any symptoms of things not working?

in my experience, my 2000 LC is wired for AHC, however doesn’t have any of the components for it. In different parts of the world, the LC/LX had different standard equipment and options. It is possible that yours is wired for something but doesn’t necessarily have the full equipment.

can you share if anything doesn’t currently work or is suspect? That may help in finding the root cause. I’m starting to think the dreaded “night vision” if indeed everything is working with your truck.



[MiguelDelgado20]

Hi Miguel,

is the car experiencing any symptoms of things not working?

in my experience, my 2000 LC is wired for AHC, however doesn’t have any of the components for it. In different parts of the world, the LC/LX had different standard equipment and options. It is possible that yours is wired for something but doesn’t necessarily have the full equipment.

can you share if anything doesn’t currently work or is suspect? That may help in finding the root cause. I’m starting to think the dreaded “night vision” if indeed everything is working with your truck.

So far I do not feel any symptoms, the lx 470 came with many loose cables and uncooked pipes but little by little with the help of forums I have been connecting things, today I bought a cheap obd2 scanner to see if it had any code but the scanner does not connect to vehicle ECU



[MiguelDelgado20]

Hola miguel

¿El coche está experimentando algún síntoma de que las cosas no funcionan?

en mi experiencia, mi LC 2000 está cableado para AHC, sin embargo, no tiene ninguno de los componentes para ello. En diferentes partes del mundo, el LC / LX tenía diferentes equipos y opciones estándar. Es posible que el tuyo esté conectado para algo, pero no necesariamente tenga el equipo completo.

¿Puede compartir si algo no funciona actualmente o es sospechoso? Eso puede ayudar a encontrar la causa raíz. Estoy empezando a pensar en la temida "visión nocturna" si de hecho todo funciona con su camión.

I think this model does not have this night vision system



[fjcruising]

So far I do not feel any symptoms, the lx 470 came with many loose cables and uncooked pipes but little by little with the help of forums I have been connecting things, today I bought a cheap obd2 scanner to see if it had any code but the scanner does not connect to vehicle ECU

whrre are you trying to connect, under the steering wheel or in the engine bay?

in the engine bay there is a scanner plug in (labeled on mine) but only the one under the steering wheel fits the standard obd2. gotta get under there with a flashlight to find



[MiguelDelgado20]

whrre are you trying to connect, under the steering wheel or in the engine bay?

in the engine bay there is a scanner plug in (labeled on mine) but only the one under the steering wheel fits the standard obd2. gotta get under there with a flashlight to find

the one under the steering wheel



[fjcruising]

Yeah, sorry I am puzzled. Hopefully bumping this up will find some answers
