HDJ81 Injection Pump to Fuel Filter Hose

Discussion in 'Diesel Tech / 24 volts' started by carbon60, Apr 16, 2018 at 8:14 AM.

  1. carbon60

    carbon60 SILVER Star

    Messages:
    312
    Likes Received:
    110
    Joined:
    Sep 30, 2012
    Probably applies to the HDJ80, as well? (Mine is a 1994 JDM HDJ81V.)

    The hose from the injection pump to the fuel filter is getting brittle, and the clamp is not exerting sufficient force for it not to move. That part is discontinued:

    23271-17080
    HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

    My choices are to either get a length of matching hose or just put host clamps on it. Thoughts on either approach? (Future reliability is everything to me.)

    What type of clamp is "best"?

    Anyone know the ID of this hose?

  2. IanB

    IanB SILVER Star

    Messages:
    3,578
    Likes Received:
    1,240
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    The hose will be metric sized, and difficult to find even in Canada. I want to say it's 10mm ID, but you'll need to verify elsewhere.

    BCR4619 likes this.
  3. Douglas S

    Douglas S

    Messages:
    2,722
    Likes Received:
    1,059
    Joined:
    Mar 21, 2010
    Location:
    SK, Canada
    3/8 fit ok on mine. I used fuel injection style hose clamps.

  4. carbon60

    carbon60 SILVER Star

    Messages:
    312
    Likes Received:
    110
    Joined:
    Sep 30, 2012
    Thanks. Guess I'll have to take it off and measure it.

  5. carbon60

    carbon60 SILVER Star

    Messages:
    312
    Likes Received:
    110
    Joined:
    Sep 30, 2012

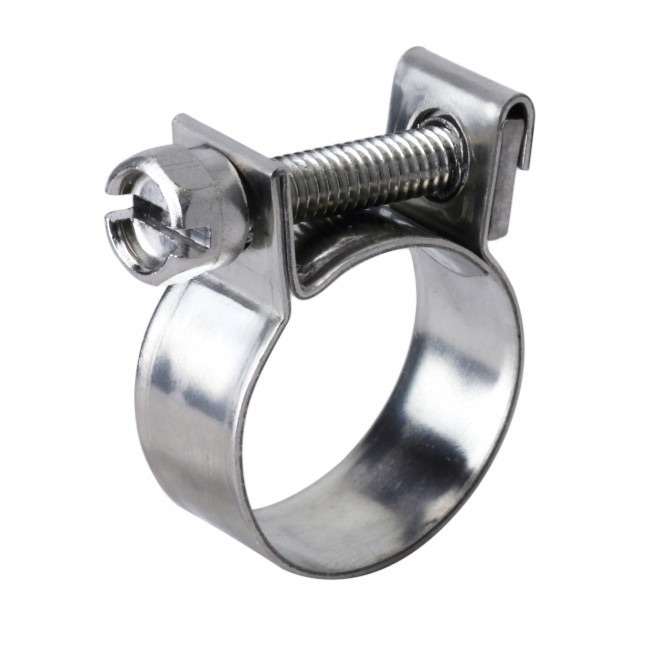

    Is this what you mean?

    [​IMG]

  6. Mookies

    Mookies

    Messages:
    152
    Likes Received:
    186
    Joined:
    Feb 7, 2011
    Location:
    PORTLAND, OR
    Can confirm 3/8" aftermarket fuel line and that style clamp works fine on my 1PZ.

    carbon60 likes this.
  7. Douglas S

    Douglas S

    Messages:
    2,722
    Likes Received:
    1,059
    Joined:
    Mar 21, 2010
    Location:
    SK, Canada
    Yes that's what I used. I prefer that style of clamp over the standard worm type.

  8. roscoFJ73

    roscoFJ73

    Messages:
    15,065
    Media:
    3
    Albums:
    1
    Likes Received:
    1,409
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    Are imported Japanese trucks metric? I'm sure most of them in the 4-5litre class would have the same size fuel lines.
    Otherwise ebay has it by the klm.
    You know it fits when its fits firmly over the barb.
    On the earlier 1HZ it was 8mm and this will probably be for the 1PZ also. Some time later everything went to 10mm, probably after 99.
    What size do FZJ80/100 or 4Rnners use? There is no diesel or petrol hose, its all fuel hose.
    Ive been using normal style hose clamps with no problems for years. Its not under pressure like a radiator hose, there is only 2-3 psi in a fuel line.

  9. mudgudgeon

    mudgudgeon

    Messages:
    2,457
    Likes Received:
    1,386
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    1HD-T used 12mm hard fuel lines. I found 3/8 tight and used 7/16.
    If hose size is correct, you don't need a huge amount of clamping force from hose clamps

  10. IanB

    IanB SILVER Star

    Messages:
    3,578
    Likes Received:
    1,240
    Joined:
    Jan 23, 2010
    Location:
    Winnipeg, MB
    I've read on here that early 1HD-T used 10mm, later trucks used 12mm now that you mention that. Definitely measure yours to confirm what you should be replacing with I guess.

  11. roscoFJ73

    roscoFJ73

    Messages:
    15,065
    Media:
    3
    Albums:
    1
    Likes Received:
    1,409
    Joined:
    Jul 22, 2003
    Location:
    Perth Western Australia
    I thought they went to 12mm with the 1HD FTE but I could be wrong. The 12HT used 10mm and the 3F was 6mm, which is odd because the 3F could use easily use 25 litres/100klm.
    When I put the 1HZ into my FJ73 , I left the 6mm fuel lines in there on the advice of a diesel mechanic and it was quite adequate.

  12. mudgudgeon

    mudgudgeon

    Messages:
    2,457
    Likes Received:
    1,386
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    Yes, you are partly correct.
    There was a factory recall/warranty program replacing fuel injector lines on early HDJ80s to try and overcome a midrange fuel surge issue.
    My May '90 HDJ81 had 12 mm hard lines, so I would guess all HDJ80,81 had 12mm lines, but assumption is the mother of all f ck ups

    IanB likes this.
  13. mudgudgeon

    mudgudgeon

    Messages:
    2,457
    Likes Received:
    1,386
    Joined:
    Dec 17, 2007
    Location:
    Sydney, Australia
    My HZJ105 has smaller fuel lines (10mm?) right to the IP

  14. carbon60

    carbon60 SILVER Star

    Messages:
    312
    Likes Received:
    110
    Joined:
    Sep 30, 2012
  15. VK3FHDJ

    VK3FHDJ

    Messages:
    42
    Likes Received:
    15
    Joined:
    Apr 10, 2012
    Location:
    Melbourne, Australia
    My 1996 HDJ80 with 1HDFT is 12mm from the tanks to the filter head, then 10mm from filter head to the injection pump. Inlet to the injection pump is 10mm, so its not an incorrect filter head.

  16. carbon60

    carbon60 SILVER Star

    Messages:
    312
    Likes Received:
    110
    Joined:
    Sep 30, 2012
    is it a different part number than for my 1994?

  17. Squash

    Squash SILVER Star

    Messages:
    1,110
    Media:
    8
    Albums:
    1
    Likes Received:
    98
    Joined:
    Dec 8, 2006
    Location:
    Sudbury, Ont. CA
    Go to your nearest hardware store and purchase clear hose. If it 's a tight fit warm the hose up!
    Beauty of clear hose is to check for air being sucked into your system.
    Yes you can carry spare regular hose.
