H55/Splitcase into 02/79-40 Series

Discussion in '40- & 55-Series Tech' started by Poser, Feb 26, 2007.

  1. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN

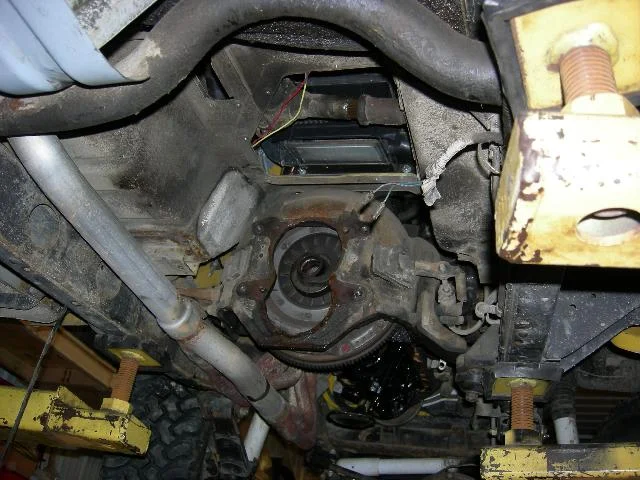

    Pulled the H42/onepiece case from this on Saturday. The oil pan gasket/pan was leaking so that was dropped as well and will make it really easy to swap out the rear main seal, when the clutch and flywheel assembly are removed.
    jk01.jpg jk02.jpg

  2. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN

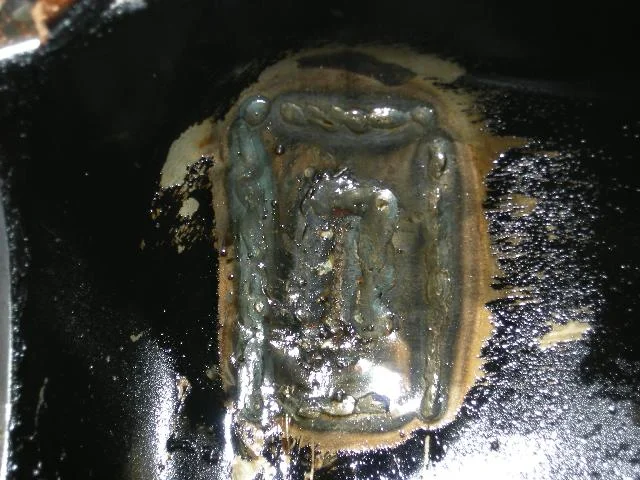

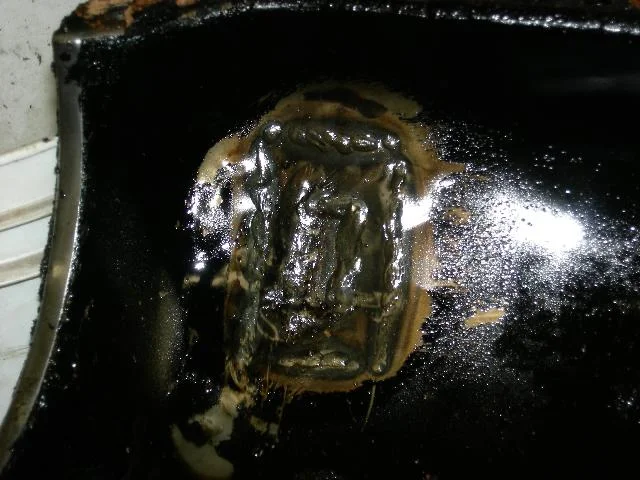

    Looks like the oil pan failed to keep all the engine parts inside at one time....
    pan01.jpg pan02.jpg

  3. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN

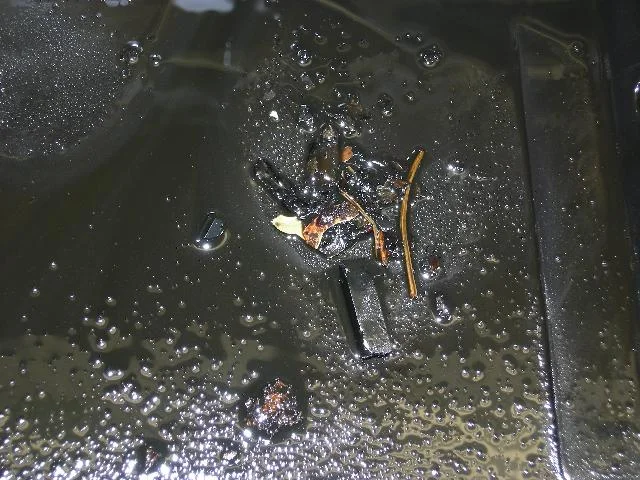

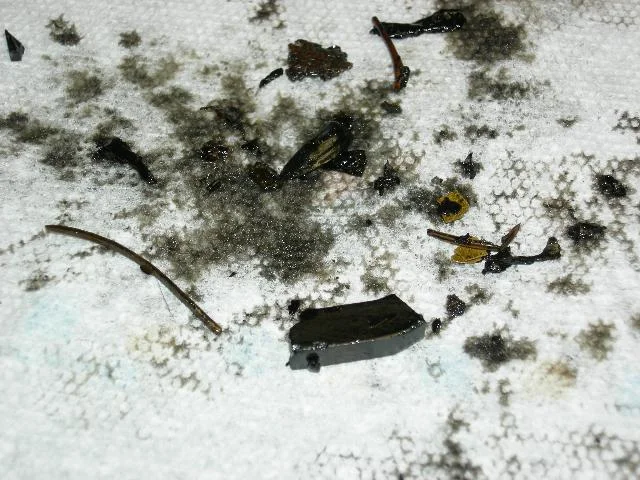

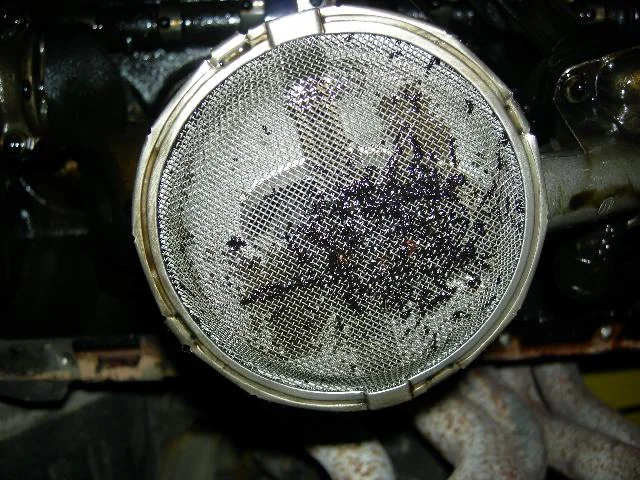

    With the pan down I found an interesting collection of sunflower seed shells, pine needles and other little pieces of debris collected just under the oil pump screen.

    The screen also has an interesting collection of hard plastic-like substance attached to it.
    panjunk01.jpg panjunk02.jpg sump01.jpg

  4. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN

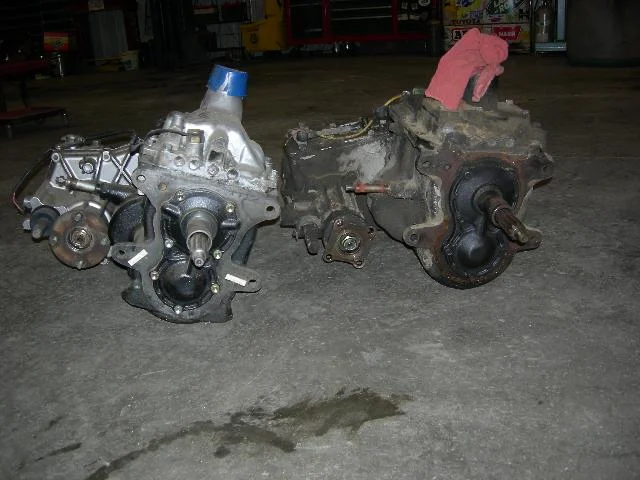

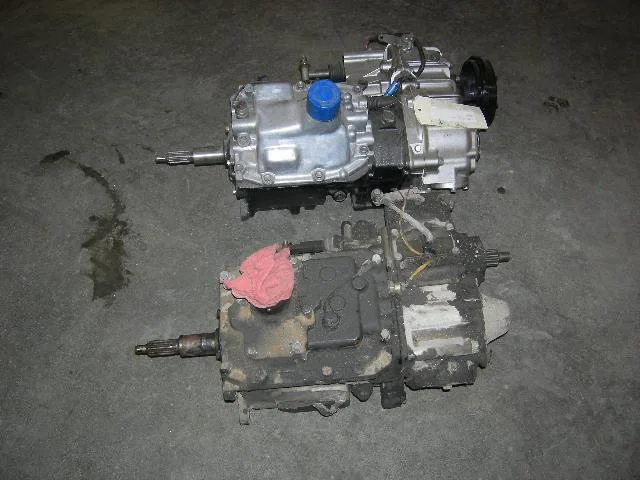

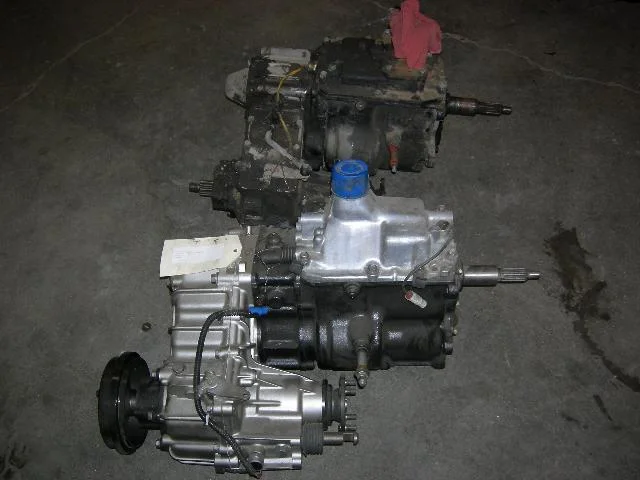

    Here are a few pictures of the H55/splitcase next to the H42/onepiece case that was removed.
    H5501.jpg H5502.jpg H5503.jpg

  5. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN

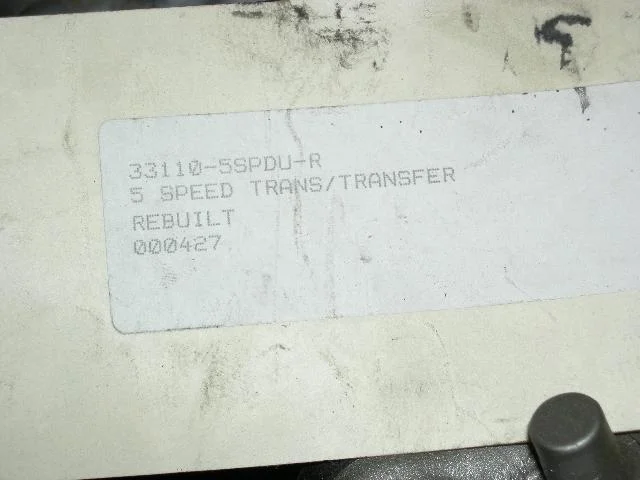

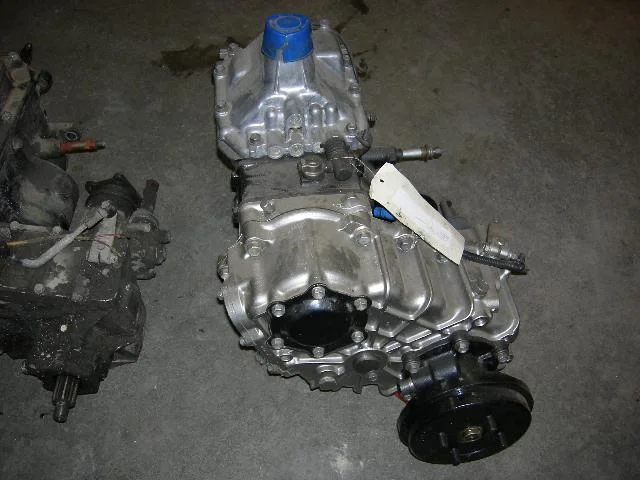

    More of the H55, the box of shifter linkage pieces that came with the assembly from MAF and the tag with the part number on it.
    H5506.jpg H5504.jpg H5505.jpg

  6. 72cruiser

    72cruiser

    Messages:
    2,709
    Likes Received:
    0
    Joined:
    Dec 29, 2002
    Location:
    nashville, tn
    did you get the splitcase from MAF, too?

    looks sooo clean. i guess that's kind of expected from your shop though, ha ha.

    plans for a trick xmember/skid like the one on your 40?


    malphrus

  7. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN
    The H55/splitcase came from MAF with the mainshaft and different rear bearing retainer changed so that the parking brake from the one piece case could be used on it.


    The guy that owns this truck does not intend to pound rocks with this vehicle. After the trans is installed, I will look at the skid plate and see what can be done, but as of right now, he does not see the need for a 40MPH rock rated skid plate. ;) There will be something under there protecting this though.

  8. John Smith

    John Smith In the garage

    Messages:
    4,172
    Media:
    6
    Albums:
    2
    Likes Received:
    207
    Joined:
    Jun 7, 2004
    Location:
    Maryland
    Steve, does the H55 shift real smooth like a minitruck 5 speed or is more like a H41/2 with an extra gear? Not that the H41/2 is not smooth, but compared to my minitruck it is like a tractor tranny as far a throw and feel. I would love to know how sunflower seed shells and the rest of that mystery stuff got in the oil pan, weird...

  9. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN


    The only H55 I ever operated was one that a customer had me install into an FJ-60 back in 1999, and it shifted smooth, just like any Land Cruiser four speed transmission, and worked really well.

    The Mini-truck four and five speeds are completely different animals, and not anywhere near as heavy duty as a Land Cruiser four or five speed.




    Engine was open outside for a period of time is the only thing that I can think of...

    That smaller black, non-magnetic, non-metallic chunk has me baffled...I have no idea what that is or where it could have come from....it is not gasket material...it looks like cam chain follower material that you would find in the pan of a 20/22R/RE.... :confused:

  10. jeffery_1965

    jeffery_1965

    Messages:
    211
    Likes Received:
    1
    Joined:
    Jan 17, 2005
    Location:
    Vancouver, Washington
    Yeah, but where's the paper towel????

    You aren't allowed to post Drool inducing pictures like that without appropriate support material! :crybaby:

    Looks nice, except for the material in the pan.


    Jeff

  11. DaveWest5150

    DaveWest5150

    Messages:
    571
    Likes Received:
    5
    Joined:
    Mar 29, 2005
    Location:
    Las Vegas, NV
    Steve, are you gonna swap the top pates on the trans or drill another hole in the floor?

  12. apeterson

    apeterson SILVER Star

    Messages:
    3,848
    Likes Received:
    178
    Joined:
    Jul 20, 2006
    Location:
    Pequot Lakes MN
    looks great... can not wait to see how it comes out!

  13. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,225
    Media:
    17
    Albums:
    1
    Likes Received:
    494
    Joined:
    Oct 1, 2003
    Location:
    MN


    I am just going to modify the floor. I think that is far more realistic and would be applicable to others wanting to see how this is done, since the top plate for this transmission to suit a 40 series is pretty much non-existent. I have been searching for one for over a year now, and they are not that easy to come by.

  14. DaveWest5150

    DaveWest5150

    Messages:
    571
    Likes Received:
    5
    Joined:
    Mar 29, 2005
    Location:
    Las Vegas, NV
    You could always tell him to put a V8 in it then the hole would match up.

  15. Josie'sLandCruiser

    Josie'sLandCruiser Stop calling it a "FJ."

    Messages:
    5,149
    Media:
    10
    Albums:
    1
    Likes Received:
    168
    Joined:
    Feb 4, 2005
    Location:
    Seattle, USA
    Hi All:

    Great thread Steve! Thanks for sharing.

    So, how much longer is the H55F & split t-case in comparision to the H42 & one piece t-case?

    What are your plans for the frame crossmember that will have to be removed? Simply re-locate it rearward a bit, or ??

    Regards,

    Alan

  16. mel lowe

    mel lowe Cruiserjunktion@gmail.com Supporting Vendor GOLD Star

    Messages:
    4,671
    Albums:
    1
    Likes Received:
    1,150
    Joined:
    May 19, 2005
    Location:
    North Florida
    Will a t-case from a 62 work with the h55?

  17. DaveWest5150

    DaveWest5150

    Messages:
    571
    Likes Received:
    5
    Joined:
    Mar 29, 2005
    Location:
    Las Vegas, NV
    you would have to drill a hole in the front half of the case and install an oiler(small little plastic piece)in it ...but yes it could work. Alan.. the cross member stay's in the same place

  18. yotanut

    yotanut

    Messages:
    285
    Likes Received:
    0
    Joined:
    May 15, 2004
    Location:
    Tucson
    The H55 esentially is a H41/42 with the addition of a 5th gear. See the pic in post #5, where the tag is. That black section behind the main box holds the fith gear, the tag is attached to the shift linkage. Of course the other major differences is the different main shaft, length and gearing. They all should be able to attach to any split case 40,60,62.

  19. grant5127

    grant5127

    Messages:
    5,025
    Likes Received:
    15
    Joined:
    Oct 31, 2003
    Location:
    Meridian,TEXAS

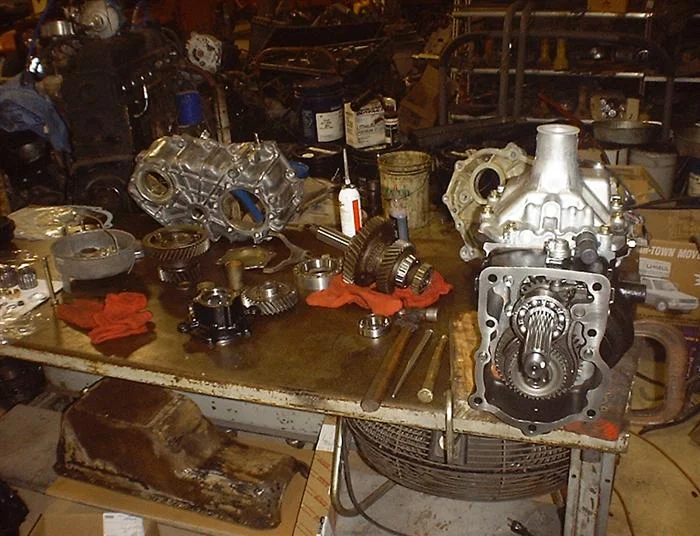

    Here is a rear view of 5th gear.........
    SD801041 (Custom).JPG

  20. Josie'sLandCruiser

    Josie'sLandCruiser Stop calling it a "FJ."

    Messages:
    5,149
    Media:
    10
    Albums:
    1
    Likes Received:
    168
    Joined:
    Feb 4, 2005
    Location:
    Seattle, USA
    Hi All:

    I'm sorry, "DaveWest5150," but I don't see how that could work!

    No disrespect intended, but there is simply not enough room to squeeze in a F Series engine, H55F, and "split" t-case in between the front motor mounts and the mid-chassis crossmember on a FJ40 that came with the H41/42 four speed tranny!

    Sure, if it was a B Series engine and H55F and t-case drivetrain it might fit. But, there will definitely be clearance issues with a 2F and a H55f and that mid-chassis crossmember!

    Regards,

    Alan

    --------------------------------------------------------------------------
