Fusible Link Question

Discussion in '60-Series Wagons' started by Spike Strip, Dec 26, 2008.

  1. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Installing new Urban Land Cruisers Battery Cables and I find the Fusible Link is kinda buggered. (green arrow - missing link)

    Looks like the PO bypassed the blown link with a regular wire (RED arrow)

    Question is, anyone know what the black lead (in the FL link combo) goes to? And can I just replace the spliced wire with an appropriate FL piece ?

    Wiring diagram anyone ? FSM diagram is vague (at least to me:rolleyes:)

    I'm :crybaby: 'cuz I can't :steer: it yet.

  2. donny paradise

    donny paradise

    Messages:
    613
    Likes Received:
    0
    Joined:
    Jan 3, 2006
    Location:
    Paradise
    I used fuse link (25a) from my local parts store on both.

  3. Dynosoar

    Dynosoar Slightly Disturbed SILVER Star

    Messages:
    3,672
    Likes Received:
    333
    Joined:
    Feb 4, 2006
    Location:
    SoCal
    A new link is only $20.00 or so. I would put a new one in, and fix and keep the old for a spare.

    Dynosoar:zilla:

    NeverGiveUpYota likes this.
  4. 3pits

    3pits

    Messages:
    2,168
    Likes Received:
    16
    Joined:
    Jan 14, 2005
    Location:
    NE GA
    this is by memory so dont kill me when someone corrects me,,,

    one is for lights, one is for fuel injectors, and goes to the ignition switch

    I used either 12ga or 10 ga fusible link I got from a friend that owns a garage,

    from a thread on mud I think you are supposed to go 1 gauge larger than the wire it protects, and they reccomend a minimum of 6 inches this might be in the tech sticky section

    NeverGiveUpYota likes this.
  5. 3pits

    3pits

    Messages:
    2,168
    Likes Received:
    16
    Joined:
    Jan 14, 2005
    Location:
    NE GA
    cdan sells the new links for 12-13$ plus shipping,

    he has them in stock

  6. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Links are $32.76 now... Price has evidently gone up...

    But that won't help me. In the above pic, you can see the lead into the green connector (female side attached to the loom) was cut also, so I'd have to repair that first -- just replacing the link won't solve the issue.

  7. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    95
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    The wiring diagrams I have suggest the following:

    There are three fusible link wires, two green (0.5 sq. mm) and one red (0.85 sq. mm). These connect to three wires in the wiring harness, one black, one red and one white. (The red fusible link wire does not connect to the red harness wire). The black wire (fused by one of the green fusible links) goes to the ignition switch. The red wire (fused by the other green fusible link) goes to headlights and horns. The white wire (fused by the red fusible link) goes to some of the engine circuits, heater, AC, taillights, etc.

    A manual I have that covers the 6x series including options such as power locks and windows substiutes a yellow (1.0 sq. mm) fusible link for the red fusible link used in the earlier 60 series.

    Last edited: Dec 27, 2008
    Steve83 and NeverGiveUpYota like this.
  8. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Hmmm... it's that black wire they by-passed... I'm repairing the harness and connector to restore it to stock, so I can use a stock FL

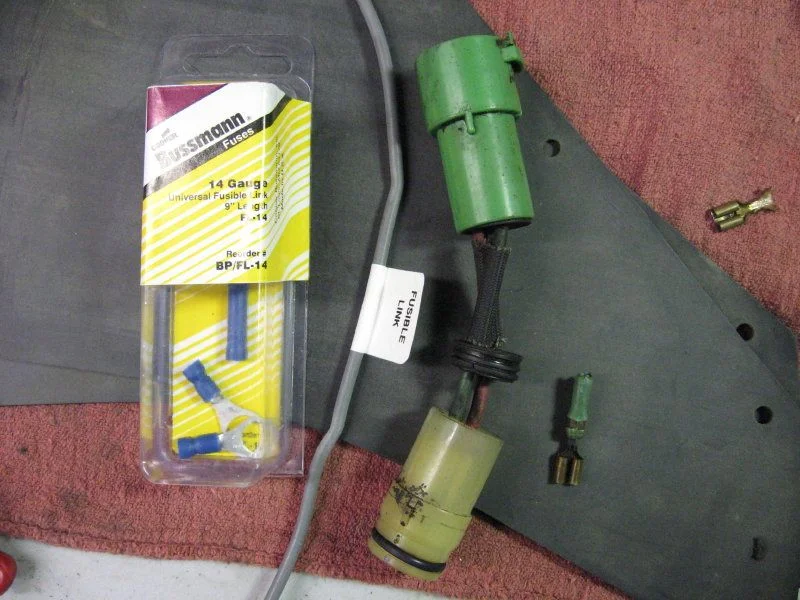

    Pic 1 - 14g Universal Fusible Link from Vato Zone and Toyo FL with Spade Terminals removed from burnt FL.

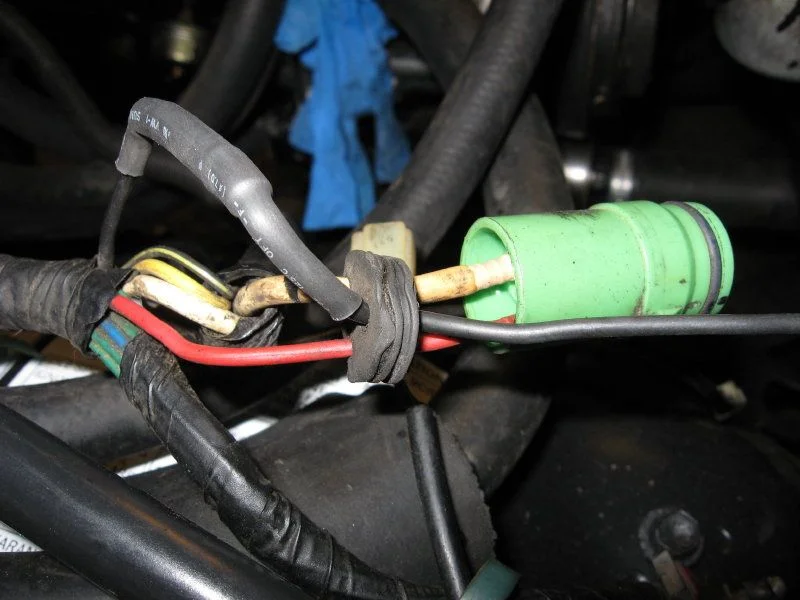

    Pic 2 - Packing removed from connector at harness and wire butt spliced and heat-shrink onto loom.

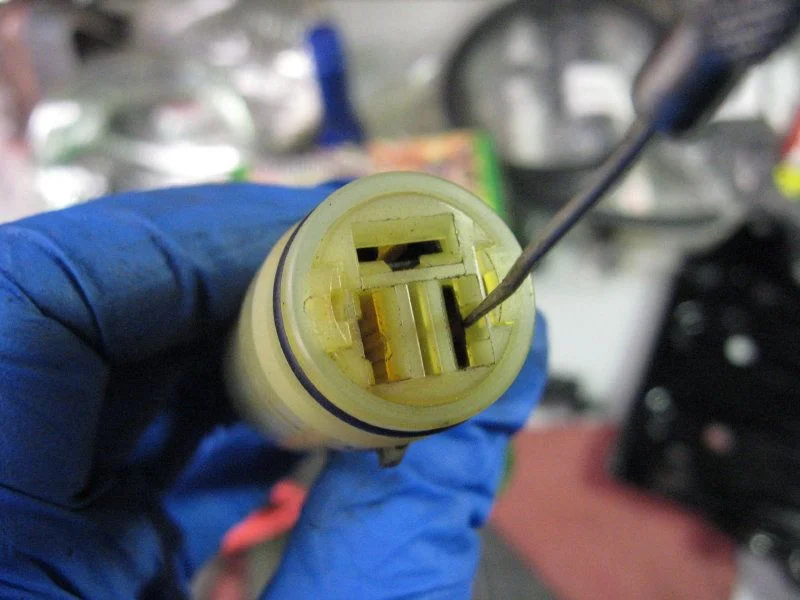

    pic 3 - Removing spade terminals from connector. There's a little prong that once flattened allows easy removal of the terminal.

    I'm going to sleep. More tomorrow... :)
    connector0001.jpg connector0002.jpg connector0003.jpg

  9. 3pits

    3pits

    Messages:
    2,168
    Likes Received:
    16
    Joined:
    Jan 14, 2005
    Location:
    NE GA
    http://www.toyodiy.com/parts/p_U_1988_TOYOTA_LAND+CRUISER_FJ62LG-PNEA_8202.html

    WOW, I was quoted the 12$ something just 2 months ago from CDAN,,, when I had custom cables made I also redid the FL, I got rid of the stock connector at the battery, I installed a buss bar so when I took the battery cable off it did not cause undo wear to the FL

    but you were asking what it went to and could you replace the spliced wire with the apropriate FL, so I was trying to help in regards to the question,

    NAPA sells the female clips that fit into the engine side connector

    Doesn't the UL kit come with a new fusible link section?


    do you already have the UL battery cables in hand?

  10. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    3pits-

    Yeah, the UL does come with a new one, but since I had to repair the connector at the loom, I'm gonna repair the FL too, use it a back up.

    I checked the ToyoDIY link above for my '85 FJ60 and they list the link at $53.10 !! The one you posted is for an FJ62 --

    http://www.toyodiy.com/parts/p_U_198410_TOYOTA_LAND+CRUISER_FJ60LG-KA_8202.html

    Part # 90982‑08135

    2mbb listed above the black wire (burnt FL) goes to the Ignition Switch.

    Do you have a pic of how you mounted the Buss Bar ?

    Thanks !

  11. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    95
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Here's some more information on fusible links. the metric sizing is in square millimeters (cross sectional area) not millimeters (diameter). According to the link below, you should use a 20g fusible link to replace the green one that is missing. The 14g you are using may be too large to protect the wiring harness. The fusible link is sized to prevent the wiring harness from burning up when a short occurs.

    Fusible Links

  12. ElliottB

    ElliottB

    Messages:
    743
    Likes Received:
    5
    Joined:
    Dec 13, 2008
    Location:
    Denver, CO
    Thanks for this info... I've got to fix my hobbled together FL.

  13. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Thanks, 2mbb- I was looking for that info before I went to buy the FL, but couldn't find it... Well, back to NAPA 'cuz I think you're right: 14g would probably be too large. OEM call for 0.5g Metric, so off to get the AWG 20g as stated above...

  14. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    I'm finding 20g FL to be hard to find... Anybody have a source, or will the 18g be ok ?

    Spoke too soon:

    20 ga, Dorman product 10' spool, part # 85758 or a 9" link, part # 85626

    Last edited: Dec 27, 2008
  15. 3pits

    3pits

    Messages:
    2,168
    Likes Received:
    16
    Joined:
    Jan 14, 2005
    Location:
    NE GA


    ohh you have a 60, then one of the wires does NOT go to the fuel injectors:grinpimp:

    I have a 62, :cheers:

    In my experience the only time a FL burns is when a wire has a short.

  16. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia

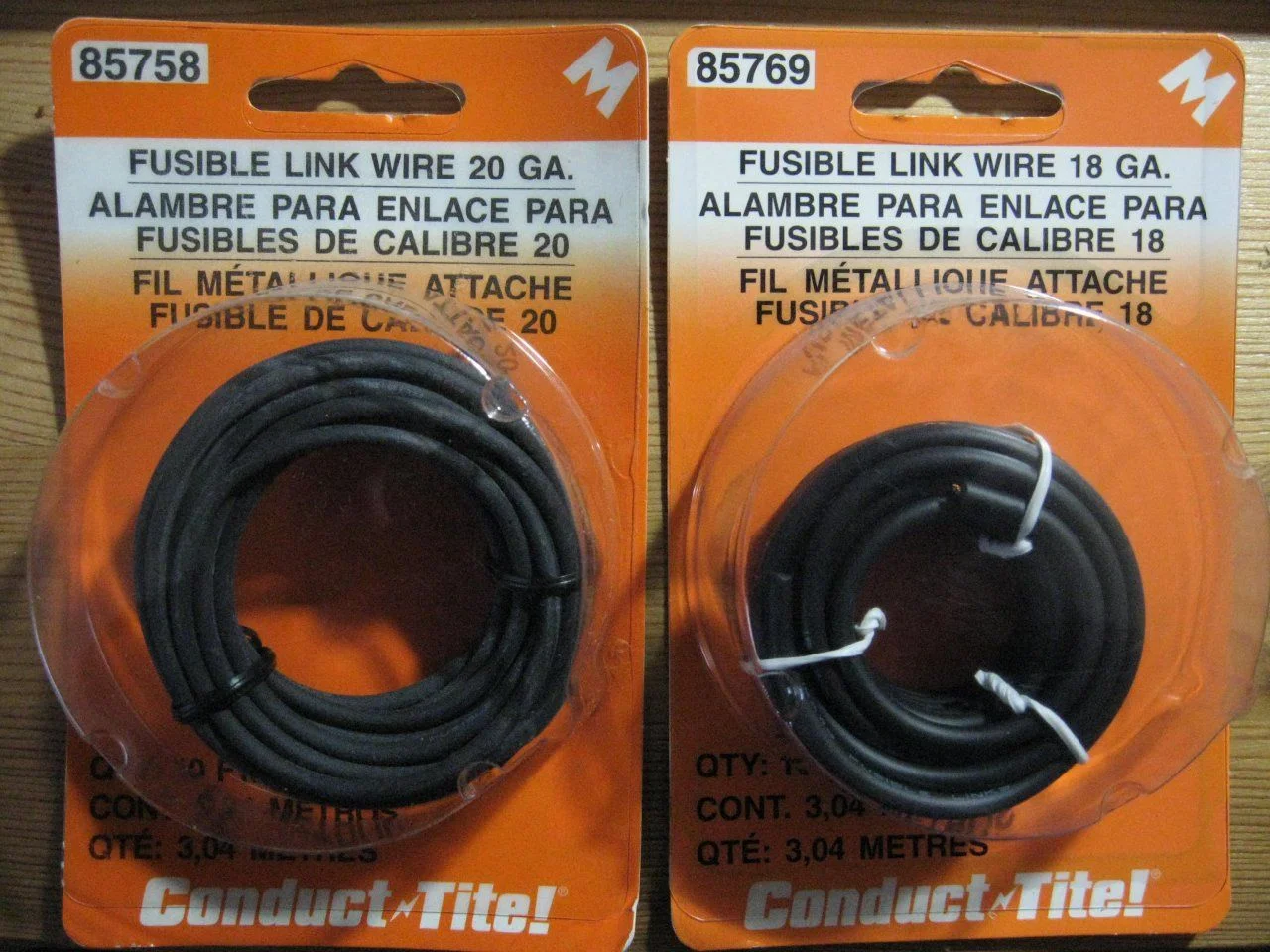

    Part #s for Dorman Fusible link wire:

    Dorman 85769 10' 18 Ga. Fusible Link Wire

    Dorman 85758 Fusible Link 20 Ga

    You might be able to find different brands and smaller quantities, but what is needed is 20 gauge FL to replace the GREEN and 18 gauge FL to replace the RED in the Toyota Fusible Link assy.

    Small quantities of FL wire, bottom of page:


    Attached Files:

    Last edited: Jan 14, 2014
  17. mrt6644

    mrt6644

    Messages:
    370
    Likes Received:
    10
    Joined:
    Mar 11, 2013
    Location:
    Treasure Coast, FL
    I tried ordering a set of fusible links but I was told that they are no longer available.
    I know Im late to this discussion but I noticed a few things.
    The gauge of the wire between the fusible link plug/connector and battery is very small in comparison to the wire on the other side of the plug/connector. This in addition to age/corrosion must be a real bottleneck.
    I recently burned one out due to a mistake while removing the alternator. Wonder what this bottleneck does to the charging ability.
    I see no reason not to just replace the fusible links with inline fuses with 8-10 gauge wires.

  18. Fj moneypit

    Fj moneypit Cubic Zirconia Member

    Messages:
    599
    Media:
    17
    Albums:
    3
    Likes Received:
    231
    Joined:
    May 11, 2013
    Location:
    SoCal
    Since this topic has been popping up, I wonder what the po was thinking with this rig job. Still have to deal with this but have avoided until now. Anyone know the gauge wire and what it goes to?

    [​IMG]

  19. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,102
    Likes Received:
    2,130
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
  20. Output Shaft

    Output Shaft SILVER Star

    Messages:
    4,524
    Likes Received:
    2,576
    Joined:
    Mar 31, 2014
    Location:
    Gone
    If you are referring to the black wire with the foil on it, in THIS pic, it connects to the battery positive terminal IF it is connected to the green fusible link plug. It's just regular 8 AWG wire.
    If you want to replace burnt fuse-link wires connected to the green plug, then the wires Spike mentioned are the ones.
