Fuel Tank Innards

[sneaky]

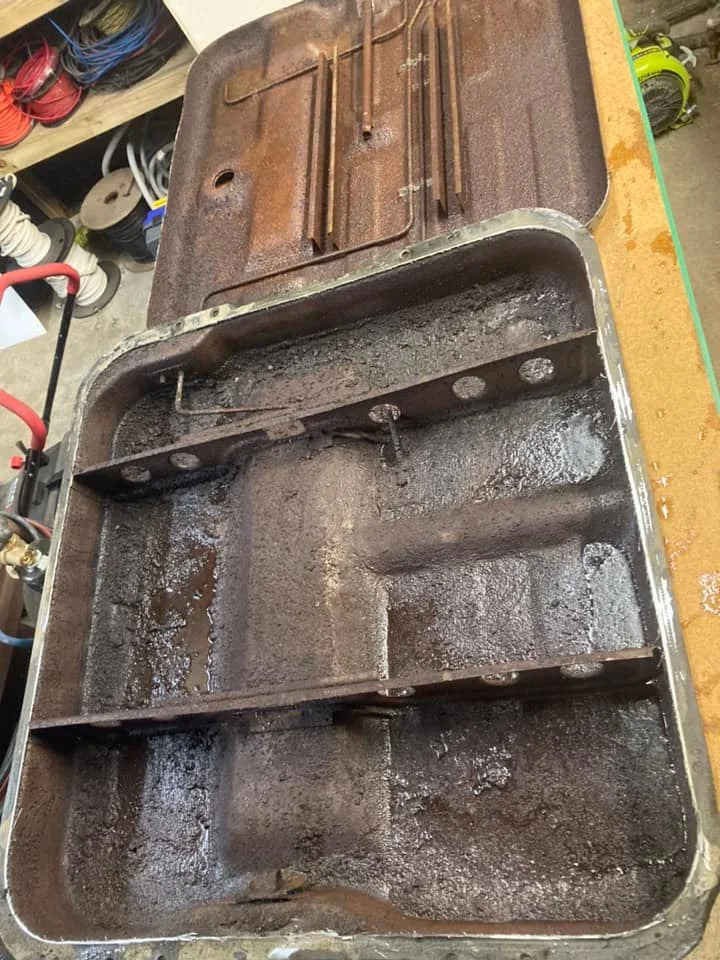

I've been searching fuel tank threads lately and have seen a few people asking about what the inside looks like for baffles, pickups and breathers.

I found this pic on the Australian 55 facebook group, hope it helps some one else!



[scrapdaddy]

Wow, that needed a good scrub.



[PabloCruise]

Very cool!!!



[riderjgs]

Now we know why it's a good idea to carry a spare fuel filter or two.



[ToyotaMatt]



[PabloCruise]

View attachment 3098336​

Wow! Is that your inventory?
Beautiful



[PabloCruise]

I've been searching fuel tank threads lately and have seen a few people asking about what the inside looks like for baffles, pickups and breathers.

I found this pic on the Australian 55 facebook group, hope it helps some one else!View attachment 3097292

This answers my biggest question - where is the fuel picked up? Looks like R hand side, to the rear of the indentation for the tire winch crossmember.

Fuel return line just drops right in at the nipple - no extra plumbing inside.



[PabloCruise]

I've been searching fuel tank threads lately and have seen a few people asking about what the inside looks like for baffles, pickups and breathers.

I found this pic on the Australian 55 facebook group, hope it helps some one else!View attachment 3097292

@sneaky - any idea what year tank this is?



[ToyotaMatt]

Wow! Is that your inventory?
Beautiful

that is some of my UNICORN inventory items , yes


now this is Beautiful :



[sneaky]

@sneaky - any idea what year tank this is?

No idea , looks the same as my 77 though
