SOLD Fredericksburg, Va 1974 Toyota FJ40 1.5F 4 Speed W/ Sniper EFI

Year
1974
Vehicle Model
  1. 40 Series
Mileage
23415
Color
Red
Price: 17.5k

12,451 miles

STC soft top and Bestop Soft Doors are included. No pics of them installed, but you are welcome to take some after you buy it.

*** No hardtop or doors.***

*Buyer has exhaust routing option and is included with purchase price.

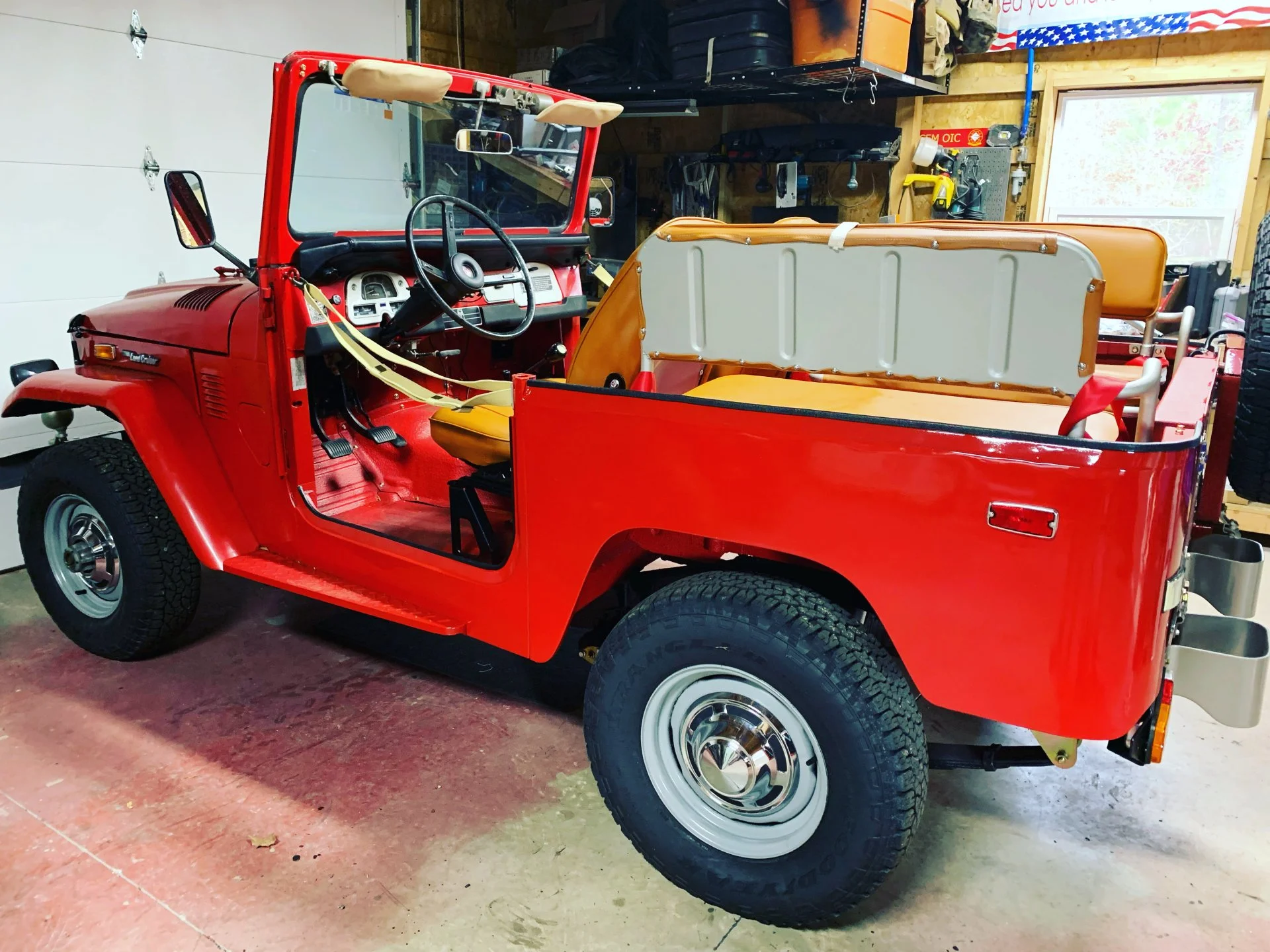

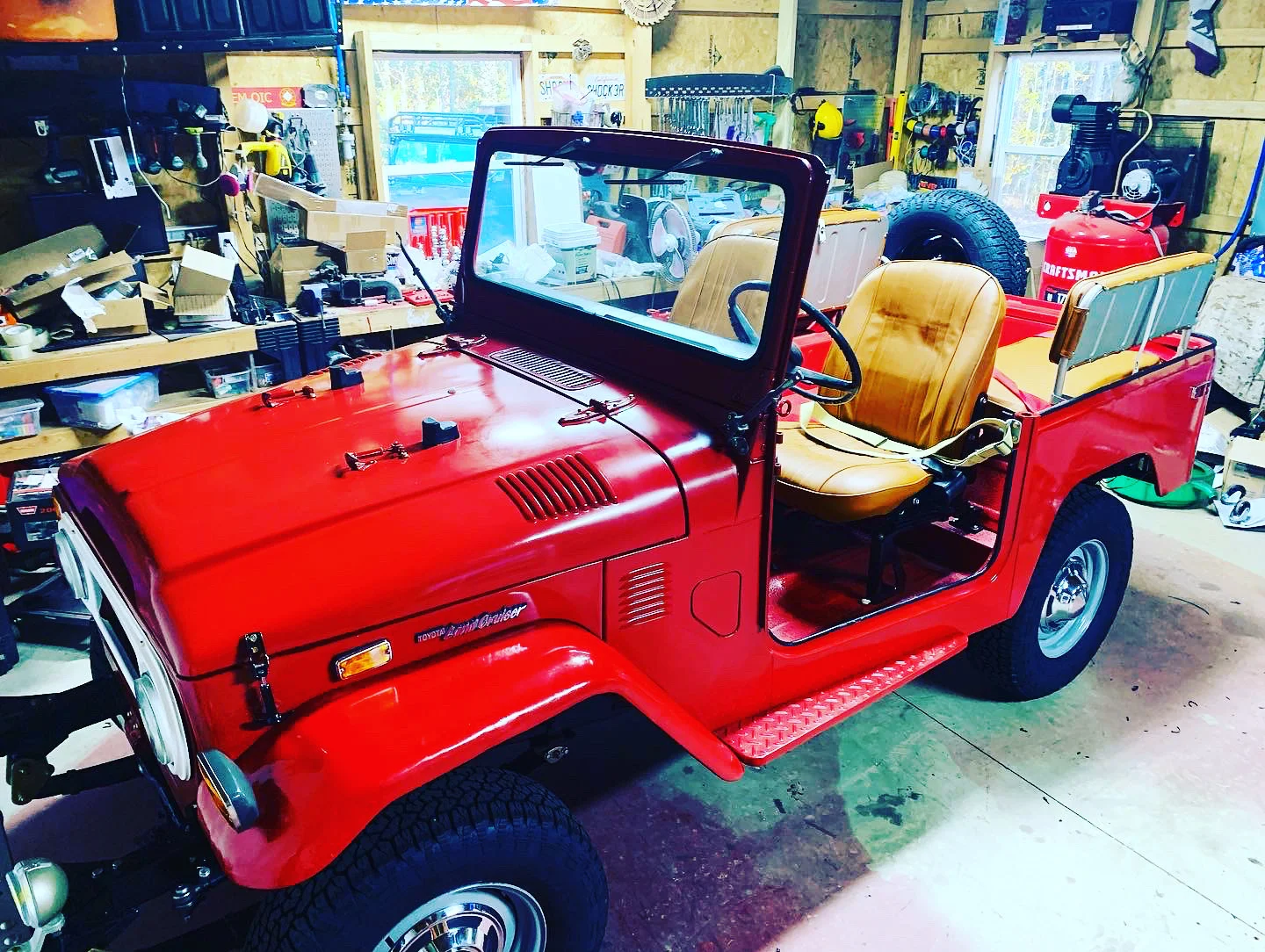

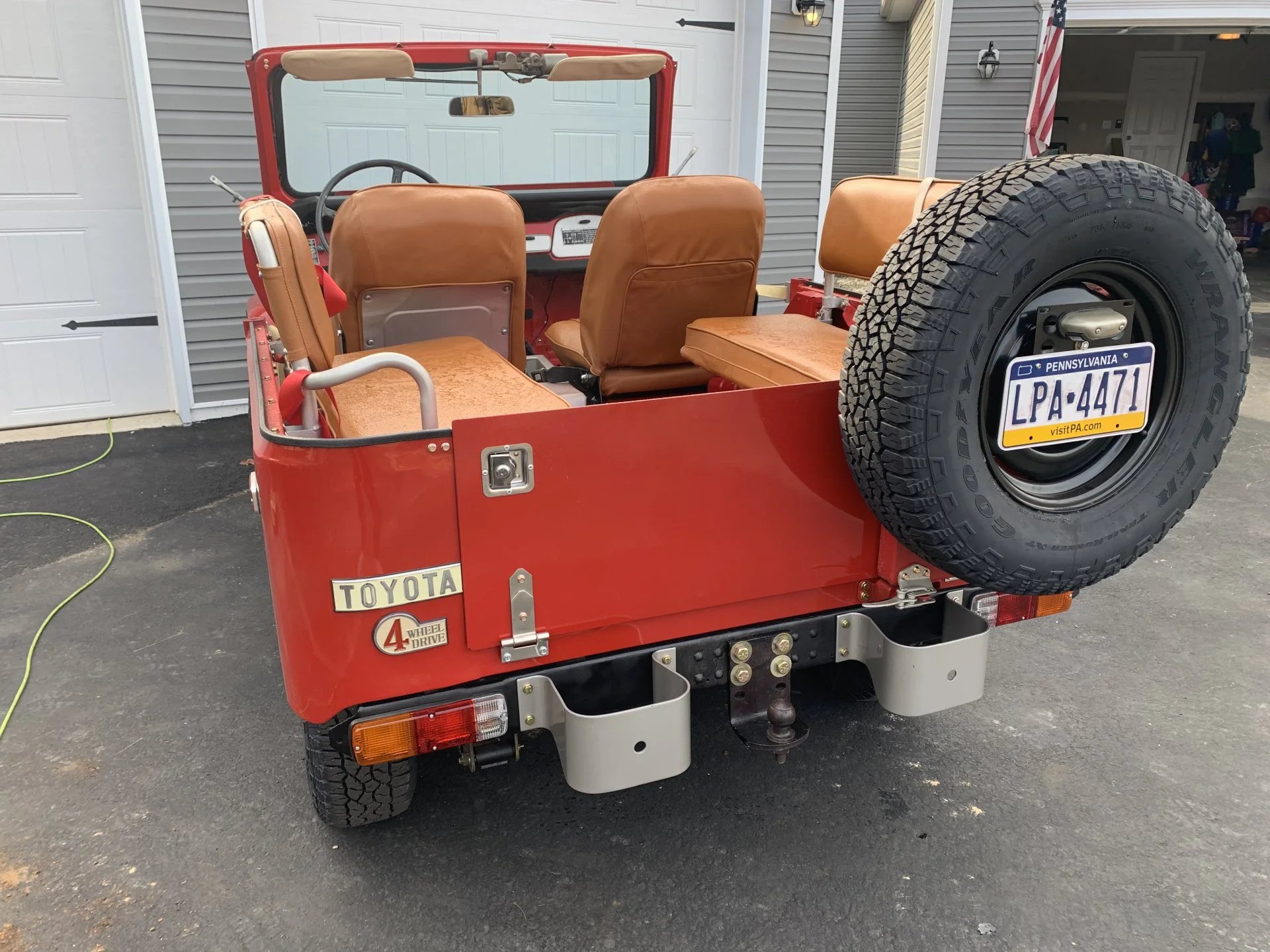

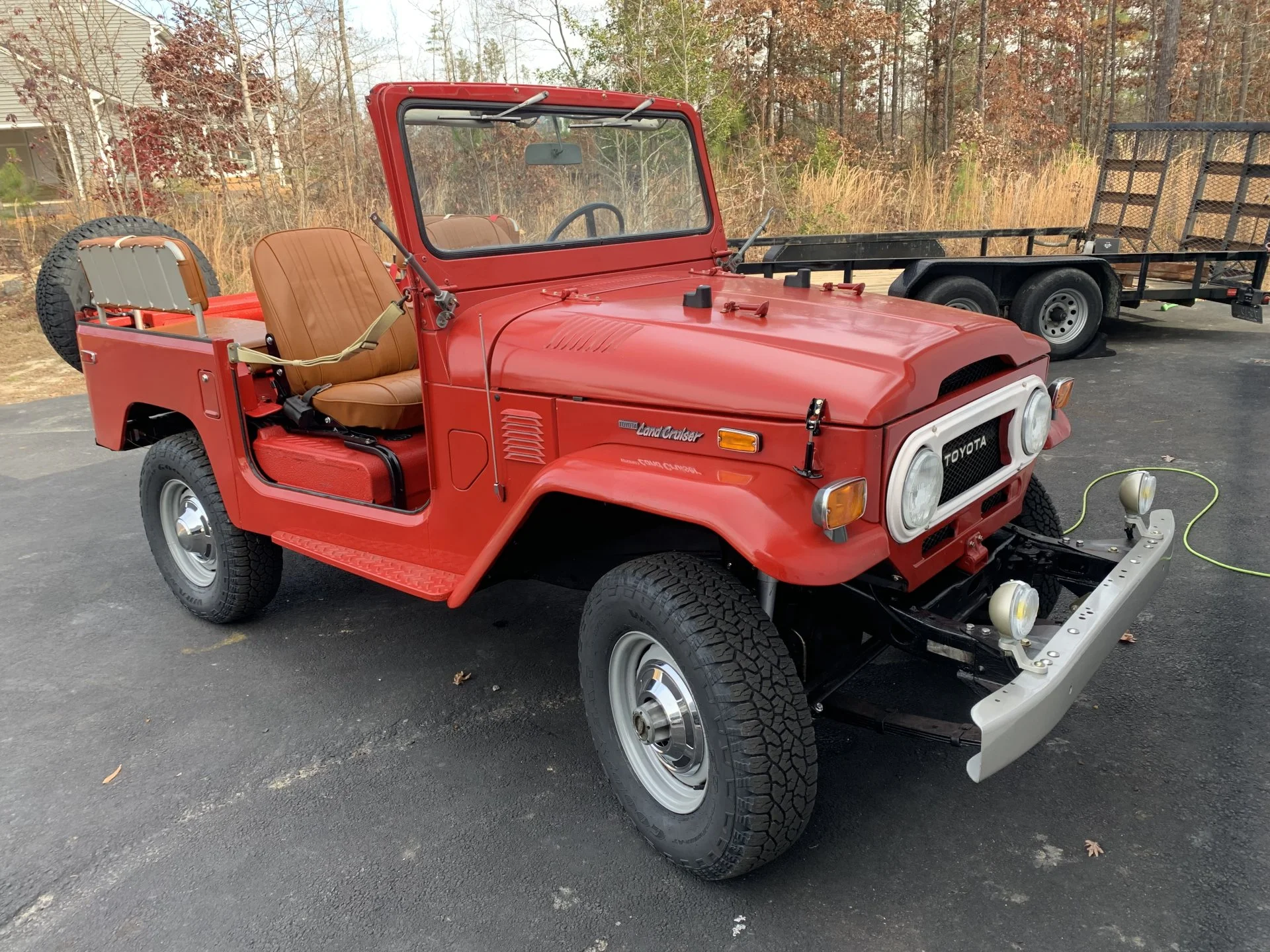

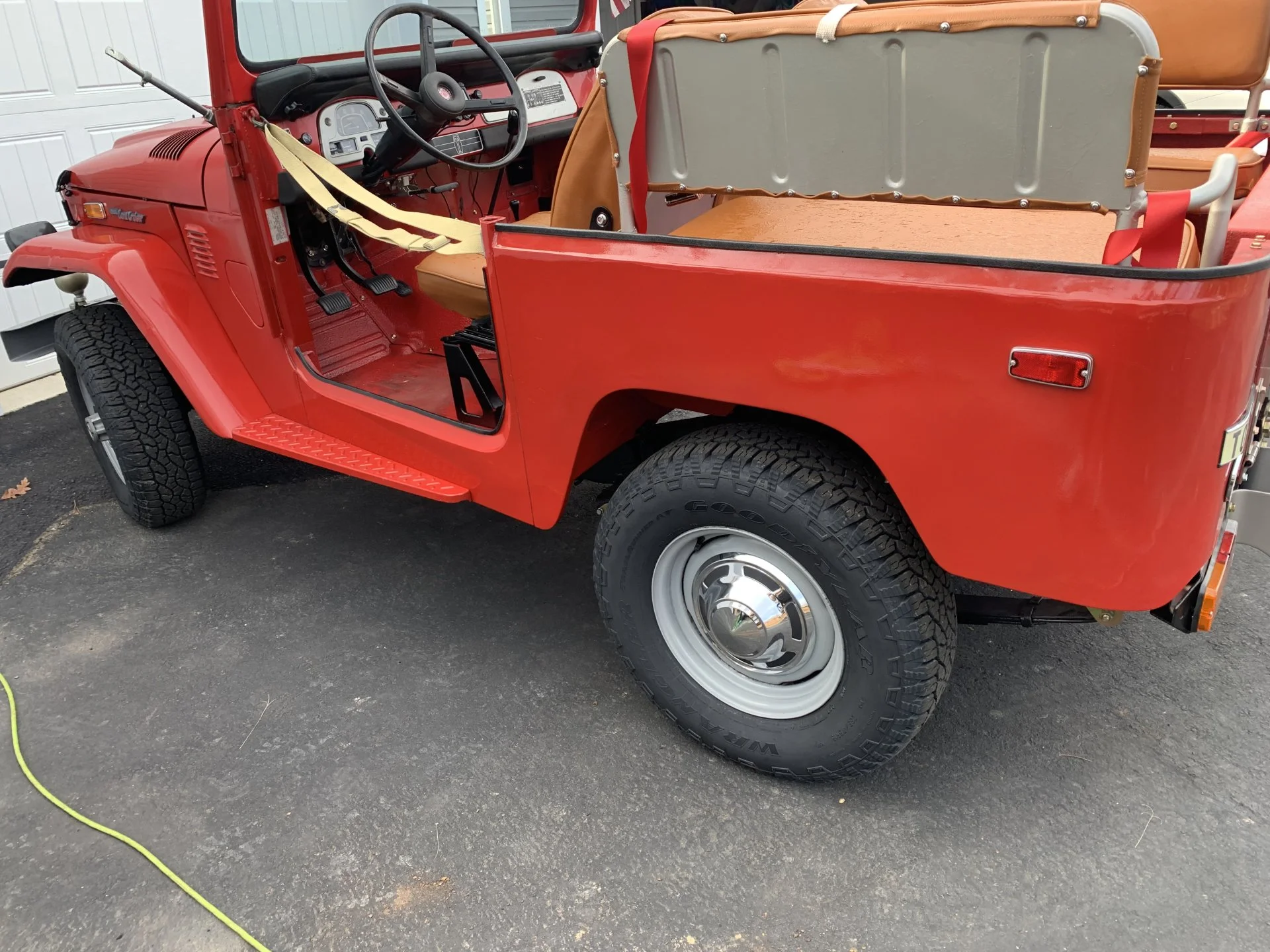

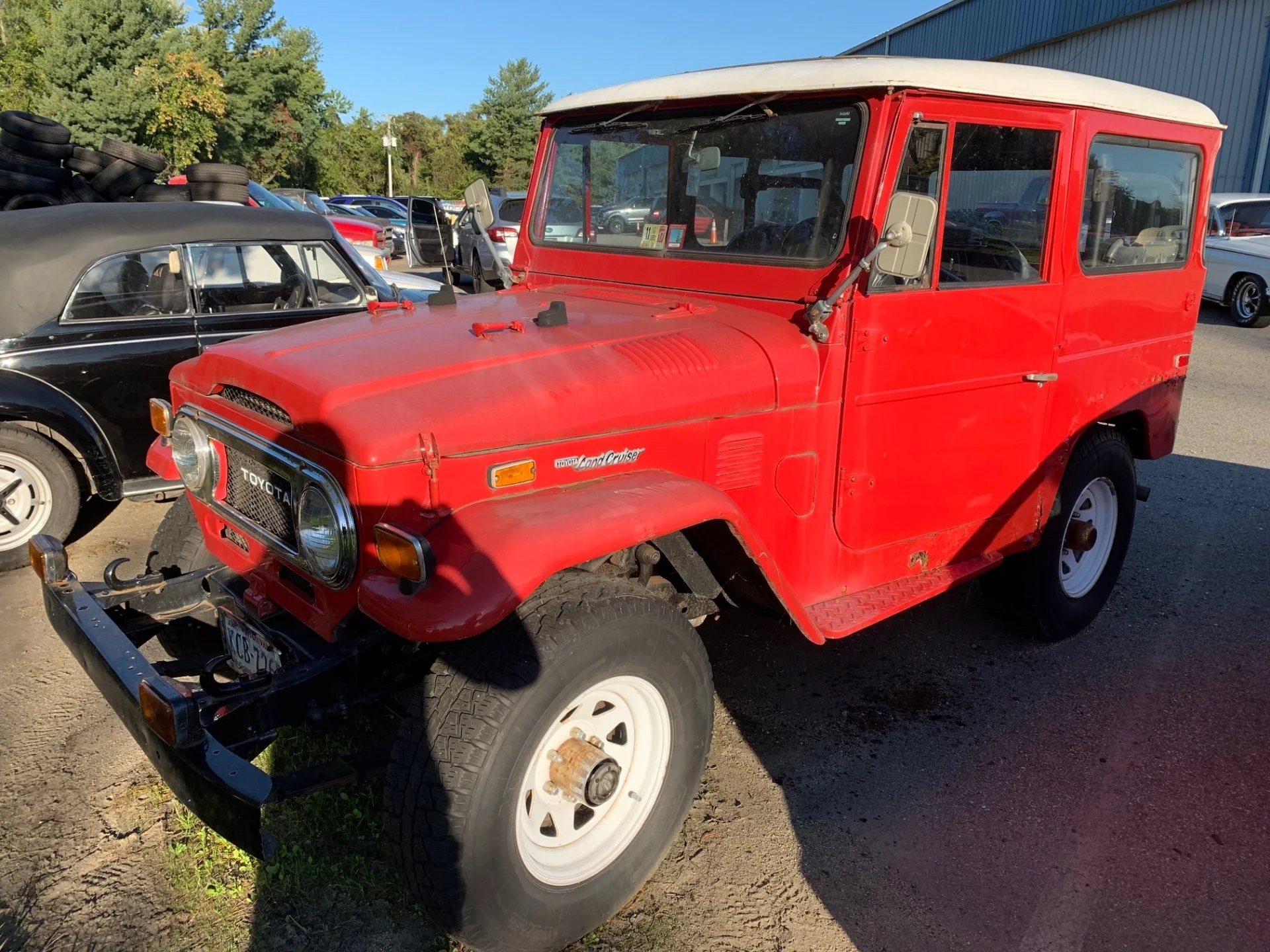

1974 Toyota Land Cruiser FJ40. 1.5F engine mated to the stock 4 speed. Sniper EFI and Rob Mc power surge installed so the fuel system remained stock while also upgrading to EFI. Fuel Tank is unmodified. Most of the tub has brand new panels from CCOT. Inside and underneath tub have been Bedlined in color matched Monstaliner. There isn’t any part of the truck that hasn’t been rebuild or improved upon. Clean Pennsylvania title in my name. No trades.










Last edited:
Joined
May 22, 2018
Messages
1,754
Location
Fredericksburg, Va
Some of the items used with this refresh:

quarter panels - fj40 - 10/'69 -12/'78 - (pair) ccot
wheel well top '64 to '78 (pair) ccot
wheel well side '64 to '78 (pair) ccot
wheel well support channel ~ set of 4 ea. ccot
hood - windshield bumper blocks 2ea - 9/71-1/75 - free nuts - aft mrkt ccot
pedal and hood pad kit fj & bj series - 1958 to 1978 ccot
hood hook - black powder coat - side hook kit w/hrdwr - pair ccot
toyota pn 4260160072 wheel (set of 2) sheehy toyota of fredericksburg
toyota pn 426216001086 wheel cap (closed) (set of 3) sheehy toyota of fredericksburg
toyota pn 426216002086 wheel cap (open) (set of 2) sheehy toyota of fredericksburg
center console assembly (oem) ebay
side turn signal markers (OEM Toyota)
anti inversion medium duty w/ greasable spring pins and u-bolts/ manafre
outside rocker panel (real steel cruiser parts)
front and rear seat covers (coral color) cruiser corps
monstaliner (2 gallons tintable)
bestway foam
jump seat straps
filter assembly, fuel (vescovo toyota) pn 2303060030
dust proof assembly, transfer control lever (vescovo toyota) pn 5828090305
lamp assembly, license plate (vescovo toyota) pn 8127060020
fastener rear side seat band; seat (for side seat); vinyl top. (vescovo toyota) pn 6592860010
rubber, rear seat cushion base (vescovo toyota) pn 7188260010
lamp assembly front turn signal, left; front turn signal, right. (vescovo toyota) pn 8151060200
lamp assembly, rear side marker, left (vescovo toyota) pn 8176060020
lamp assembly, rear side marker, right (vescovo toyota) pn 8175060030
holley sniper efi 2300 self-tuning kit - shiny finish (www.holley.com)
robbie mc powersurge fuel system
nut, castle(for tie rod end) qty 6 pn 9008017220 (vescovo toyota)
nut, pn 9414641200 (vescovo toyota) qty 8
bolt stud(for manifold to cylinder head); stud(for manifold to exhaust pipe). pn 9011610042 qty 6 (vescovo toyota)
nut, hexagon pn 9017012211 (vescovo toyota) qty 4
bolt, with washer pn 9011910038 (vescovo toyota) qty 8
muffler assembly pn 1751060070 (vescovo toyota) qty 1
sheehy toyota order #7884593. pn 9034553007 (plug), pn 9034551025 (plug), pn 9034554005 (plug) qty 2, pn 9111151090 (bolt), pn 9021008010 (washer, seal for cylinder head cover) qty 4.
valve cover acorns and straight coolant fitting (rising sun mechanical)
coupling, rag joint, 73-84 fj4# bj4# hj4# (45230-36010-j) (fjparts.com)
doorway safety eyelet pair
safety door straps tan (btb products)
  • 9643253828 cock, drain
  • 9048046032 grommet
  • 9095004010 shim (for radiator support)
  • 8503560050 nozzle, windshield washer
  • 1640049356 radiator
  • 1530160031 gage sub-assembly, oil level
  • 9091901056 plug, spark
design engineering 10591 black titanium 0.5" id x 72" protect-a-sleeve with lr technology
acdelco professional 32103 25 ft bulk reel of 5/16 in fuel line/pcv/eec hose / 2 pack hei distributor pigtail wire harness 12 volts battery and tachometer connector compatible with rv chevy gm hei 170072
earl's -6 90 deg. to 3/8 vapor guard hose end
earl's performance plumbing 3/8 vapor guard fuel filter-10 micron-efi / lunati earls hose and tubing separator (72910-16) / earl's 3/8 i.d. efi vapor guard hose - bulk / earl's 3/8 vapor guard hose clamp screw type
earl's -6 45 deg. to 3/8 vapor guard hose end
remflex 7009 exhaust gasket for toyota l6 engine
fel-pro vs 26102 c valve cover gasket set
outlet, water qty: 1:1633156010
housing, water outlet qty: 1:1633160040
gasket, water outlet qty: 1:1634160020
gasket, water outlet qty: 1:1634360011
fan qty: 1:1636160090
knob, shift lever qty: 1: 3630360020
bolt, stud(for manifold to carburetor) qty: 2:9011608042
gasket, thermostat qty: 1:9043040058
thermostat qty: 1:9091603014
bolt, with washer qty: 2:91611b0845
bolt (for control shaft cover qty: 2:9161261025
clamp; clamp or clip qty: 2:9611110500
clamp or clip qty: 2:9611210330
belt, v, fan/alternatr qty: 1:993431126577
fog light wiring harness
3/8' side post battery terminals
custom bt knob
toyota headlight kit pn 8111060p70
water outlet pn 1633360070
goodyear wrangler trailrunner 235/75/15 (discount tire)
oem fog light kit (nos)
  • red line holley sniper 2f efi manifold adapter item #: rlsnefima2f
  • lokar midnight series 24" throttle cable
  • sniper 2f manifold adapter gasket- carb60011
  • red line holley sniper firewall throttle cable adapter bracket

Last edited:
Joined
May 22, 2018
Messages
1,754
Location
Fredericksburg, Va

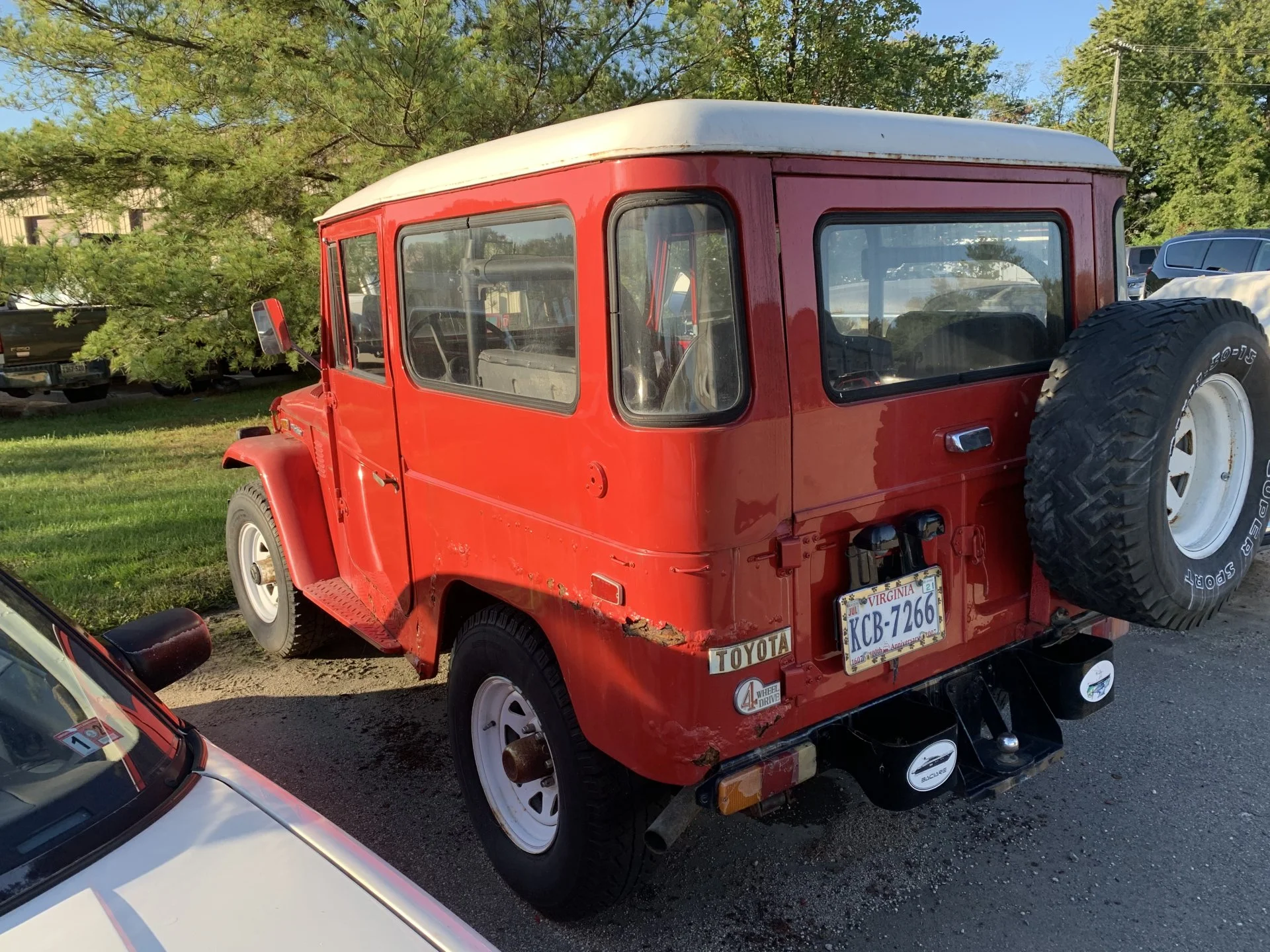

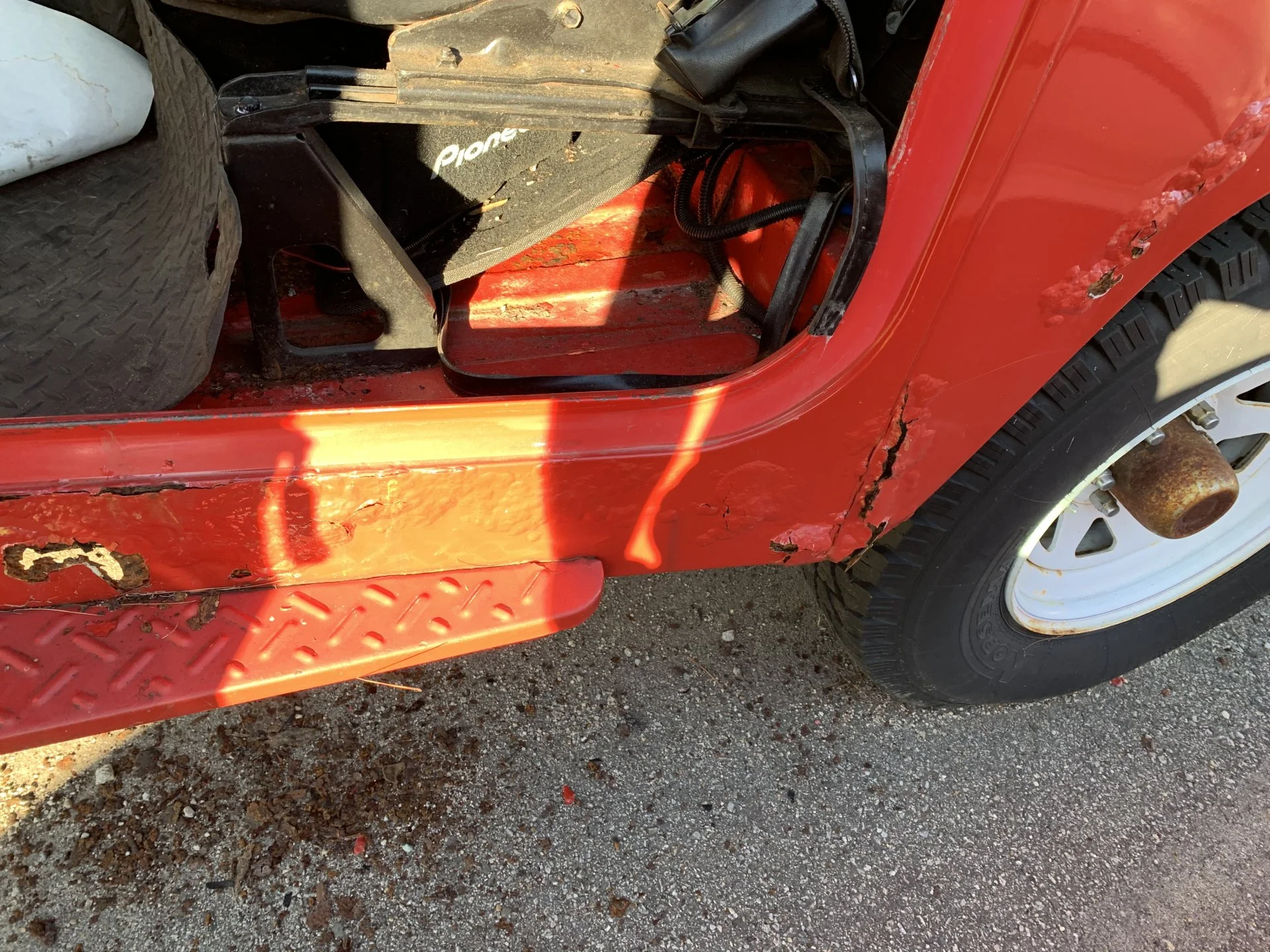

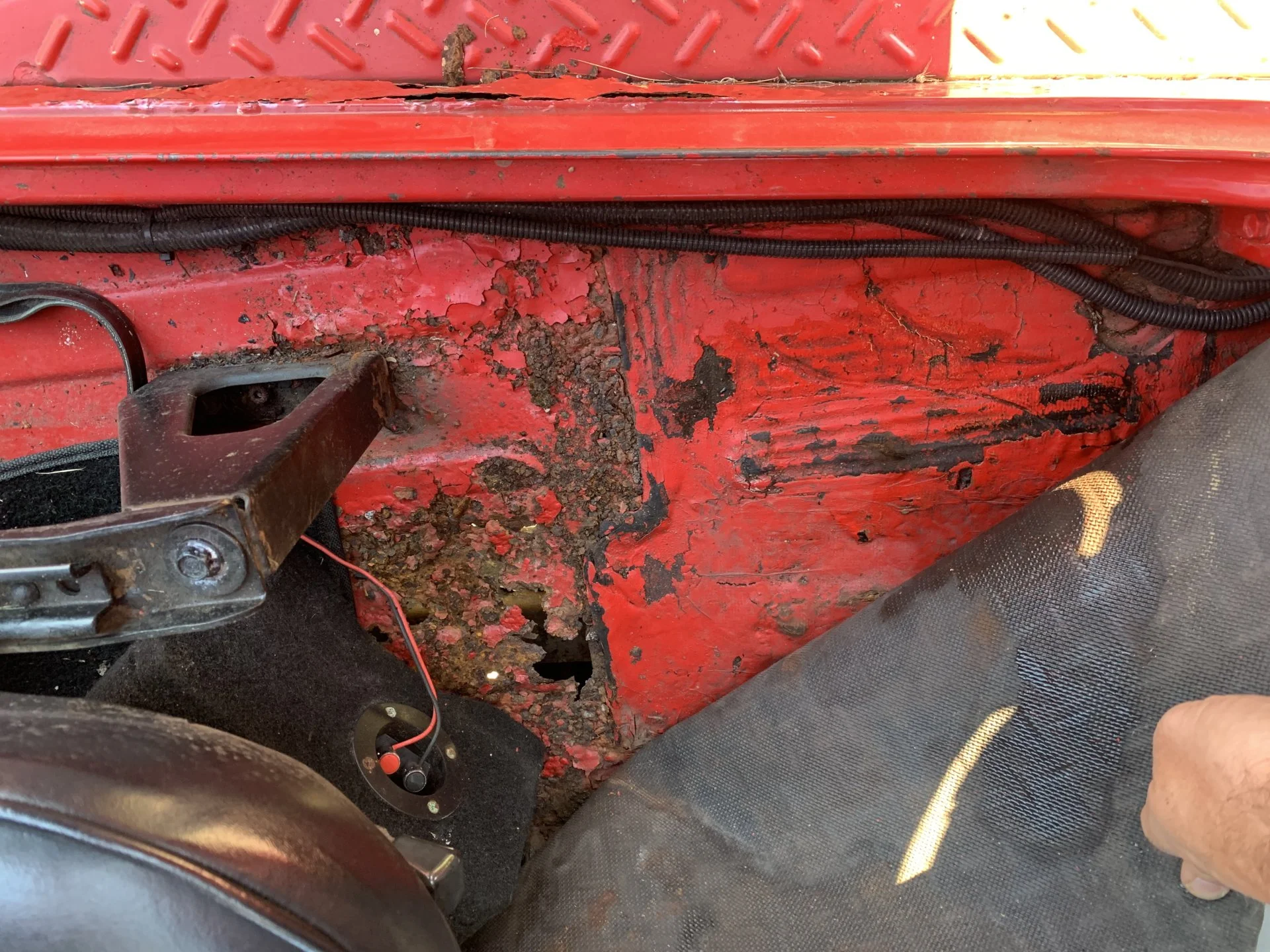

Hi, do you happen to have any pics before and during the metal panel replacement?

Thanks,
Blake

Sure. There is a whole thread that details most if not all the work.










777Gage

SILVER Star
Joined
Nov 29, 2010
Messages
841
Location
Santa Clarita CA
How about this I’ll split the shipping cost…..
That's a very generous offer, and greatly appreciated. I'm currently, working on my "needs vs wants" and my 17yo "needs" his first vehicle (3rd or 4th gen 4Runner most likely) more than I need another 40.

My "wants" would be another 40 in my driveway and let him figure it out!

Thanks again
