FJ40 Brake light switch- diagram?

[GAbuildit]

Good evening! Working on updating my FJ40 and while putting in a new OEM brake light switch the green wires came off the back of the switch. When I tried to put them back on, the terminals pushed into the housing. I then tried to take the housing apart to get everything put back together but all the pieces came out in no specific order.

Does anyone have a diagram, photo, drawing, etc. of how each piece fits together inside the housing?

Thank you in advance!



[nabbasi]

Closest I’ve seen:

Brake Warning Lamp

Post in thread 'testing brake light switch'

Aug 9, 2011

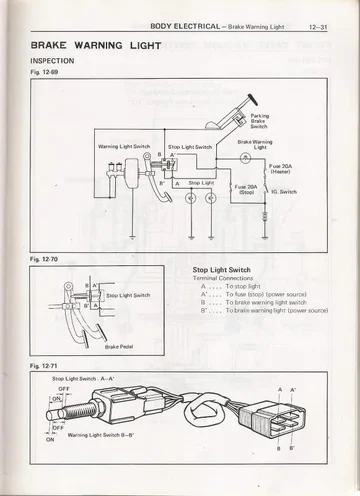

Here is a page from my FSM.
It's a double switch (2 steps) the first step activates the brake lights, when you push harder/deeper on your pedal the break warning system is activated. When you have no oil pressure the warning light will come on. There are also other wiring set ups with this same switch but this one is the most common.


Good luck

Rudi

• bj40green

Good luck and add some pictures for us as you go!
