$18k obo for buggy & open trailer - Located Danville, PA 17821 I'll also offer a $250 bird-dog fee for someone who refers a buyer.

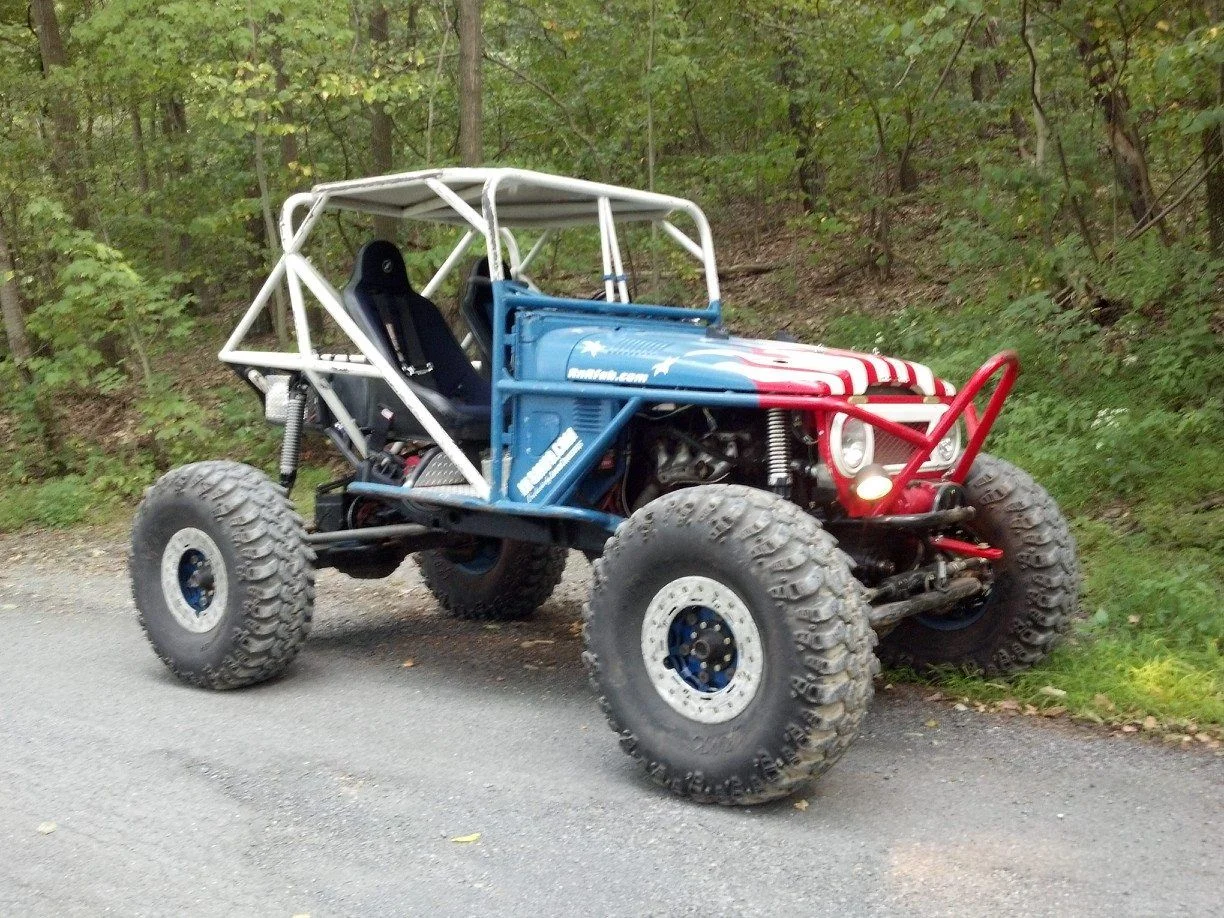

1973 / 2007 Toyota FJ-40 Buggy for sale

This buggy weighs 4600lbs ready to hit the trail - 50% of that is axles and tires alone, giving it a very low center of gravity. It was built to be comfortable, durable, and safe, leaving plenty of room between the occupants and the outside of the roll cage.

Stored in a climate-controlled garage, and 100% ready to hit the trail. We just don’t have the time to enjoy it anymore. Build thread: Keeping it low with Rockwells (a.k.a. under the knife again) | IH8MUD Forum

Drivetrain:
--Chevy 5.3L LM7 from 2004 Tahoe, approx. 325hp, 360lb-ft. Engine had 50k when installed. Programming & wiring harness by Jim's Performance. Corvette oil pan.
--145amp alternator, Optima Red top
--700R4 trans w/ TCI reverse full-manual valve body, Modified Art Carr shifter.
--NP205 transfer case, DD machine clocking ring, cable operated twin-stick shifters. Custom 2-piece front driveshaft, 1410 rear driveshaft by Universal Driveshaft (Concord, NC)
--Dual flowmaster hushpower mufflers into single bullet. Throaty but not overly loud!
--Aluminum radiator with Taurus electric fan, controlled by PCM (with on-off override).

Steering:
--Full hydraulic 4-wheel.
--PSC Motorsports pump, replaced in 2013
--9.7 cu. in Performance Offroad orbital
--Performance Offroad Reservoir/filter (drilled)
--Double-ended front and rear 2.5" bore, 1.5" shaft cylinders.
--.250” DOM steering links with ⅞” Heims
--Rear steer via PSC hydraulic joystick, 12"x12" stacked plate cooler w/fan.

Axles:
--Rockwell 2.5 ton military steering, narrowed 7". Hubs out. (Spare axle shafts incl.)
--~84" wide sidewall to sidewall
--⅜” knuckle guards under all 4
--CNC high-steer arms that tie into the factory arm - you won’t break this.
--Wheel brakes with 12" rotors and 4-piston Wilwood calipers front, pinion brake rear, wilwood 4-piston caliper
--Ouverson Engineering locker front / Ouverson spool rear

F&R Suspension:
--Dual triangulated 4-link using 1.75" solid 7075 aluminum upper and 2.0" solid 7075 aluminum lowers. (Spares incl.) Anti-squat adjustable on front axle.
--Currie Forged Johnny joints all around. (Spares incl.)
--ORI ST 14” travel struts, setup for 4-6” uptravel, 8-10” downtravel (Nitrogen fill kit avail. - negotiable)
--Suspension brackets are no less than ¼”, with many being ⅜” thick.

Wheels & tires:
--Trailready 17x9 steel with AL outer ring, 6.5" backspacing.
--Stazworks 3/8" pressed centers in Rockwell 6x8.5” pattern.
--42x14" Super Swamper IROK bias-ply tires

Misc:

--Chassis - 1.75” .120 wall DOM
--Corbeau Ultra SS seats
--Warn 9.0RC front winch with ⅜” synthetic rope, Warn 1700 rear winch
--H4 headlight conversion
--Front, left-center, and rear rock lights
--Walbro pickups in fuel cell to prevent starvation
--Electric cooler (keeps drinks 25-30° below ambient without ice)
--Aluminum toolbox mounted at rear
--All switches are high-quality waterproof rockers.
--The factory windshield is easily removable with 2 pins.


TRAILER INCLUDED-
1999 Rhea 16’ wood deck car hauler. Wood is in very good condition.
--All leaf spring bushings, shackles, bolts, brake shoes, backing plates, drums, seals, and bearings were replaced in 2013.
--Breakaway system was replaced in 2013. Battery has a built-in charger.
--Full-LED lighting, including side markers between the wheels.
--Tires are radial, balanced in 2013, and rated for 10,400lbs of load.
--Aluminum wheels
--Flip-up jack
--New spare wheels 2013.
--Reinforced fenders allow you to drive over them during loading / unloading
--Trailer is wired to allow the buggy’s running/stop/turn lights to function with the trailer’s while being towed - adds safety and a visual assurance that the connection to the tow rig is intact.

Photos:
https://www.facebook.com/media/set/?set=a.1036807317878.2007781.1156324300&type=1&l=6d0b19bde8




Joined
Apr 20, 2003
Messages
6,453
Location
NE PA coal region
This is of course an extremely capable and well built rig. Watched it in action at Rausch Creek and she was pretty impressive. Last time I saw it she was looking pretty to boot............Gary S


Eskimo

SILVER Star
Joined
Sep 6, 2002
Messages
1,358
Location
Danville, PA
Hey Dan, sorry I didn't get back to you more quickly, I was on a vacation.

I'm 6', 32" inseam.
