Brake pedal adjust out

[Kschep]

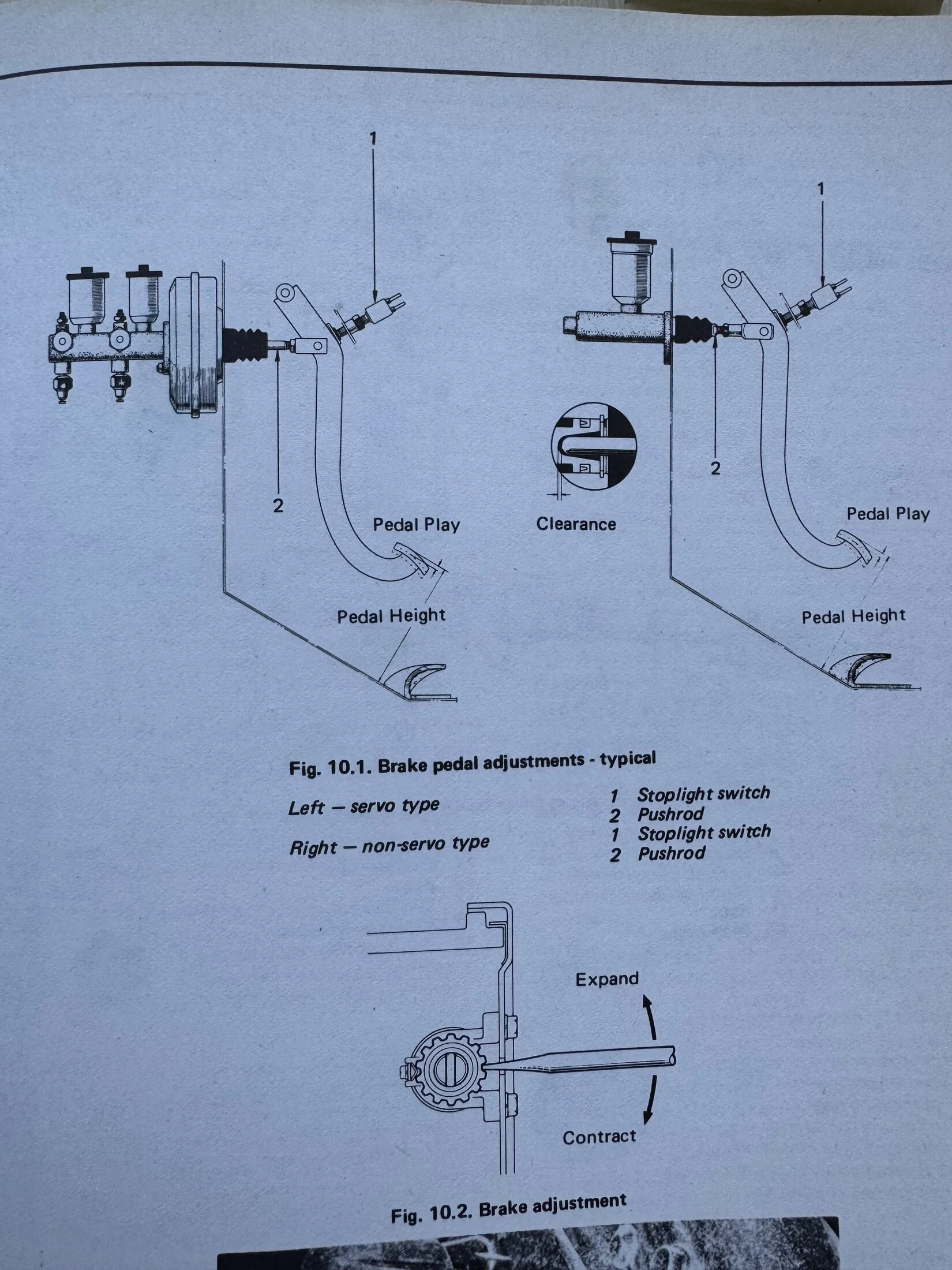

I looked through my Haynes and I’m not finding where it says anything about being able to adjust how much the brake pedal pushes back into regular sitting position (after being depressed when braking of course).

I need to adjust it so that it has more push back to get back to sitting position. My brakes wanna stay in the on position ever so slightly after braking and I need it to pop back better. How do I do that?

As I type this I realize I should have done a thread search because someone has definitely probably already asked this…my bad on that note..



[B y r o n]

Maybe the info here will help.



[pb4ugo]

Have recently replaced the master cylinder?



[73FJ40]

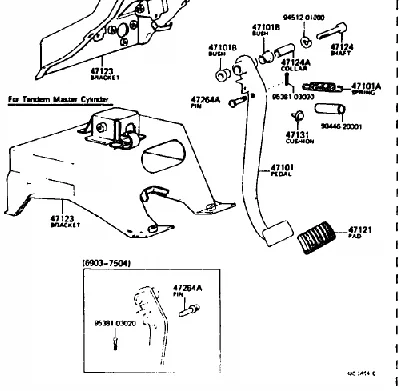

Spring return? 47101A below:



[Kschep]

Have recently replaced the master cylinder?

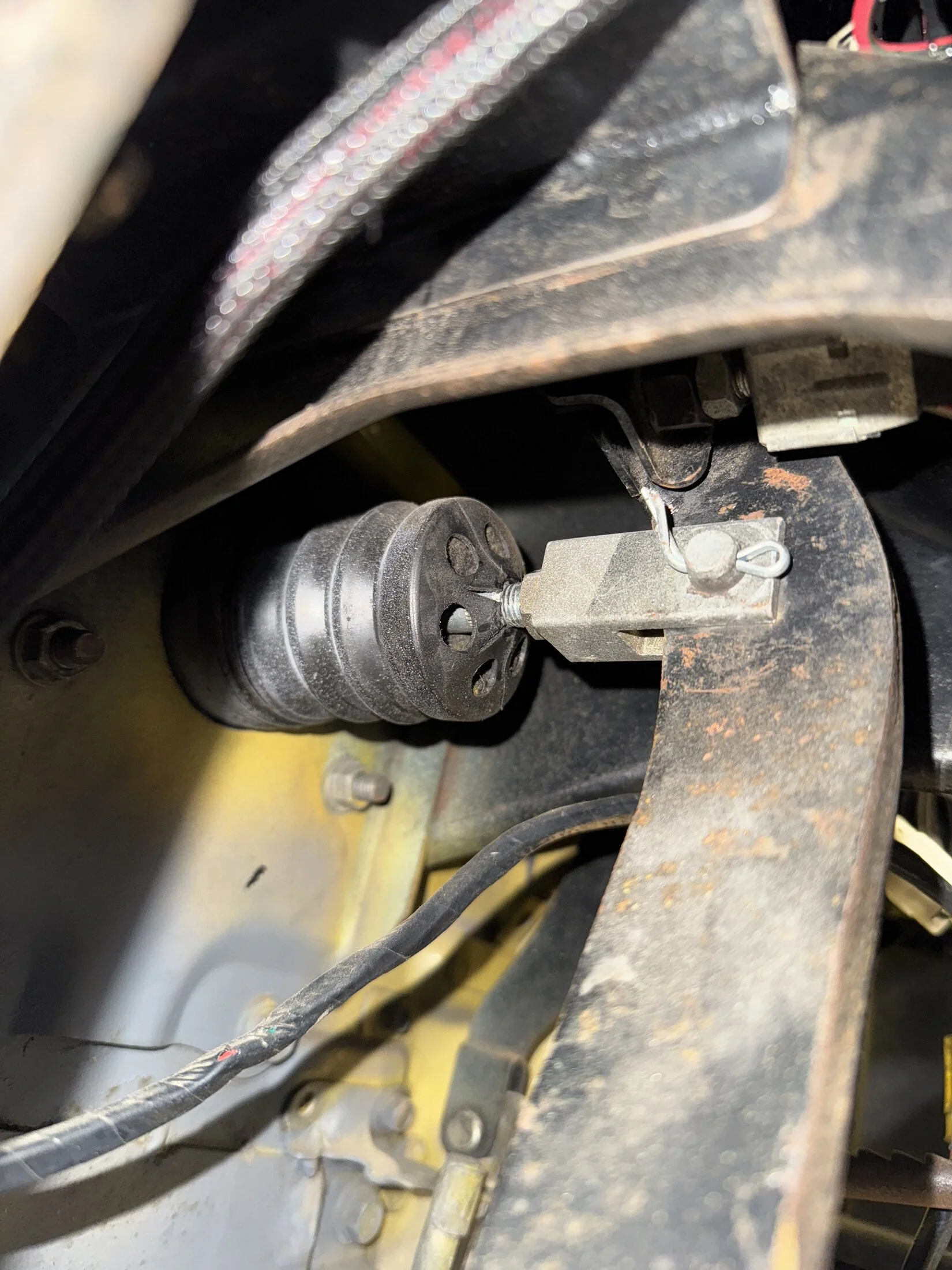

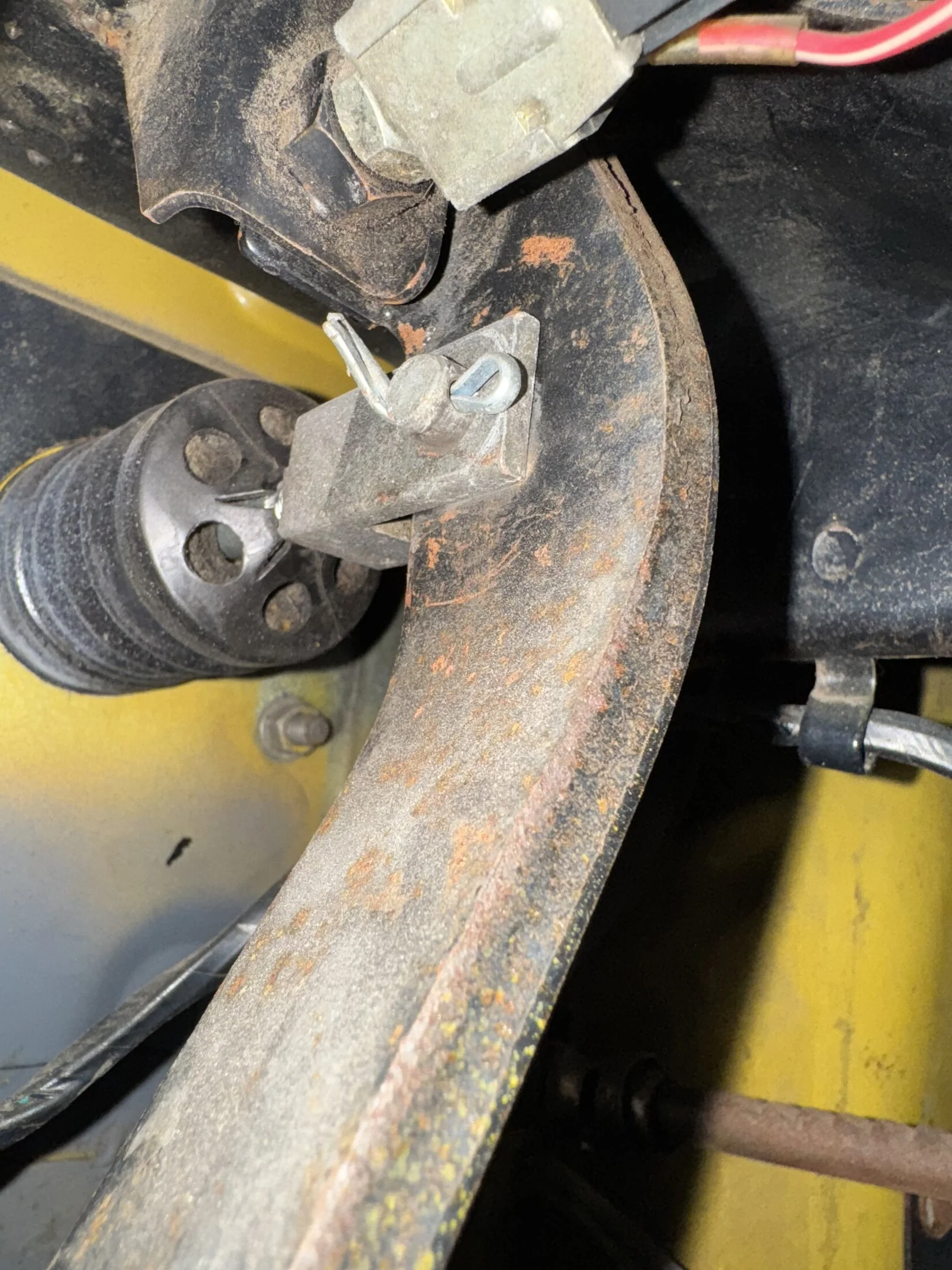

Recent is relative but since I purchased vehicle yes I did - which was like 2-3 years ago - but yes i replaced master cylinder and reran-ed my brake booster…I did not check adjustments when reinstalling - I just reinstalled as it was before thinking everything would just work the same as it did previously.



[Kschep]

Spring return? 47101A below:

View attachment 3835947

Ok awesome let me check that out .. much appreciated. I’ll report back



[73FJ40]

@Kschep
Pictures:



[Kschep]

@Kschep
Pictures:

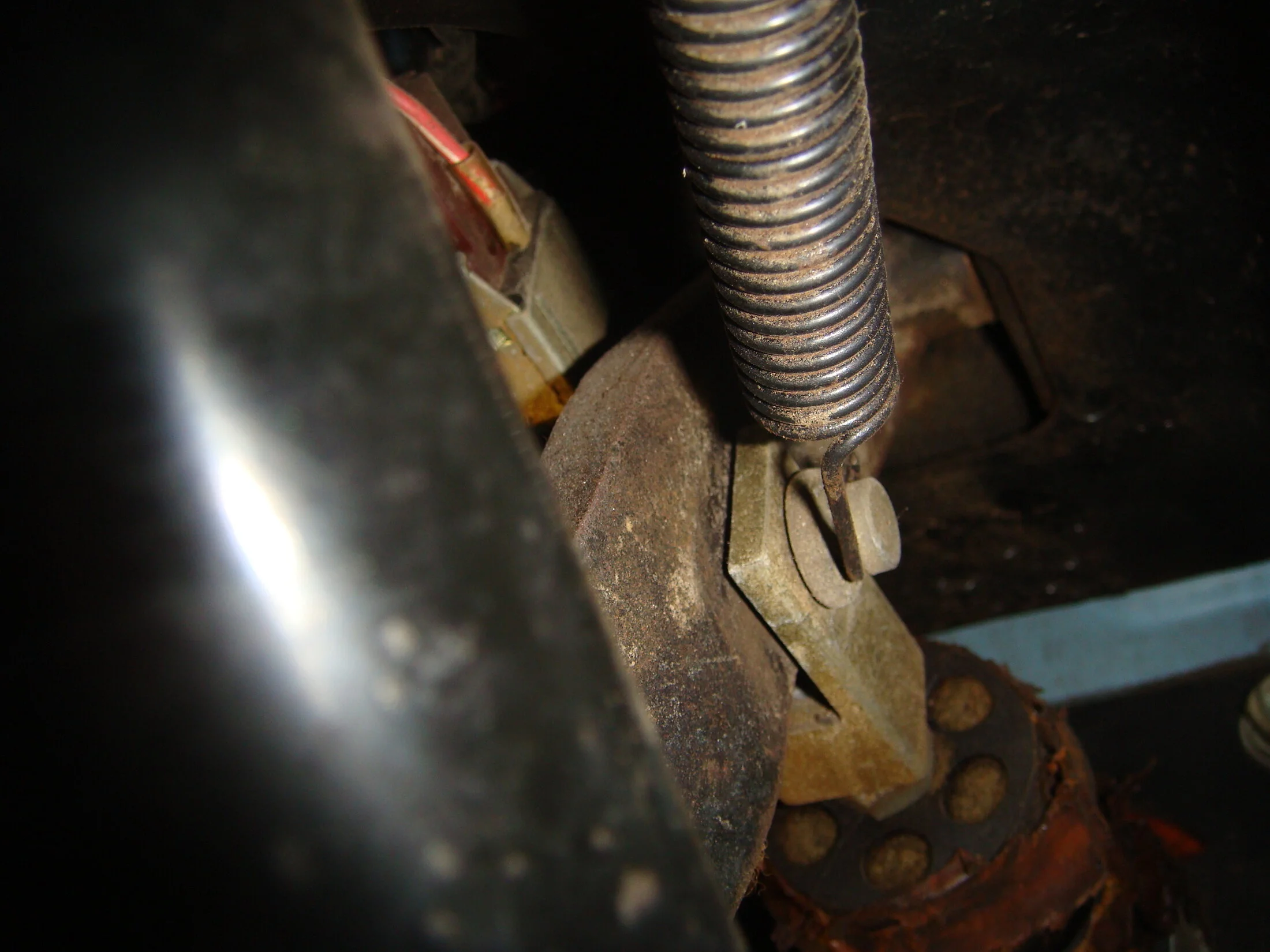

View attachment 3836022

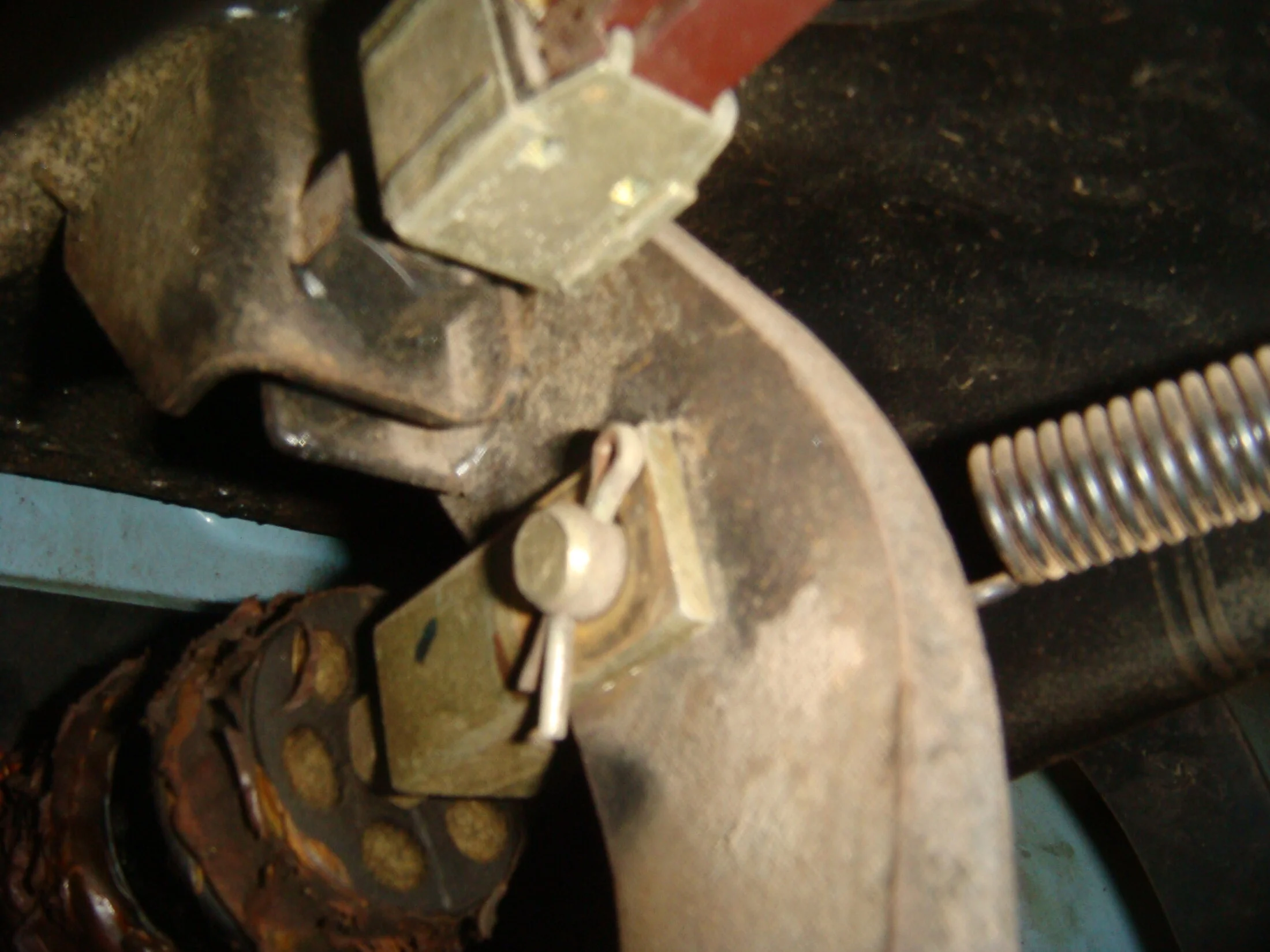

View attachment 3836023

Yup. I’m missing the spring , must have fallen off when I was messing with stuff … or wasn’t there.
Anyways I found a couple springs that it could be that have come off … I see where to connect it in your pic but where is the other connection in the opposite side - side on steering wheel side?
