Boost Guage question

[krumby]

So I got a glow shift 3 in one gauge with EGT ,Water Temp ,and Boost got eh EGT and Water Temp hooked up and want to hook up the boost. Now I know I can hook a vacuum line up to the usual spot but this is not a vacuum gauge unit. My question is what is the best pipe to drill and tap to hook this unit up too.
Thanks guys
David



[bj70bc]

what do you mean not a vacuum gauge unit



[mjw4]

Is this the gauge you're referring too?

My boost gauge is a typical one plumbed to a nipple on my intake elbow, however my intake elbow before my manifold has provisions for a 1/8 NPT fitting. In my case I used 1/8 NPT to vacuum line adapter.

I reckon you can do something similar with the one in this kit. Just tap a 1/8 NPT hole in your manifold or somewhere right before it.

Not sure what your setup looks like so sharing a picture of your engine bay/intake would probably help in finding a solution faster as well as other options for where to tap a hole.

It's interesting the type of interface they used, although I suppose it declutters the space by having the fitting directly attached to the sensor.



[mjw4]

what do you mean not a vacuum gauge unit

If it's the kit I linked to in my other comment it doesn't use a vacuum line from intake manifold to boost sensor. It uses a threaded sensor instead, removing the need to run a vacuum line, just the wires to the gauge itself.



[bj70bc]

manifold is the best place to see what the cylinders are seeing, but in the turbo housing or right after will tell you what the turbo is actually pushing.... these two numbers arent always the same, so it depends on what you think is more important to monitor.... cylinder pressure or the work the turbo is doing



[mattressking]

You want it off the manifold to measure manifold pressure, so find a port that’s open to manifold and run the line off that. If it’s an electric sensor you might have to drill and tap for pipe thread.



[krumby]

Is this the gauge you're referring too?

My boost gauge is a typical one plumbed to a nipple on my intake elbow, however my intake elbow before my manifold has provisions for a 1/8 NPT fitting. In my case I used 1/8 NPT to vacuum line adapter.

I reckon you can do something similar with the one in this kit. Just tap a 1/8 NPT hole in your manifold or somewhere right before it.

Not sure what your setup looks like so sharing a picture of your engine bay/intake would probably help in finding a solution faster as well as other options for where to tap a hole.

It's interesting the type of interface they used, although I suppose it declutters the space by having the fitting directly attached to the sensor.

Yes that’s the gauge I have here is the boost sensor that comes with the kit. Motor is a 3.0 1kztz



[mjw4]

Yes that’s the gauge I have here is the boost sensor that comes with the kit. Motor is a 3.0 1kztz

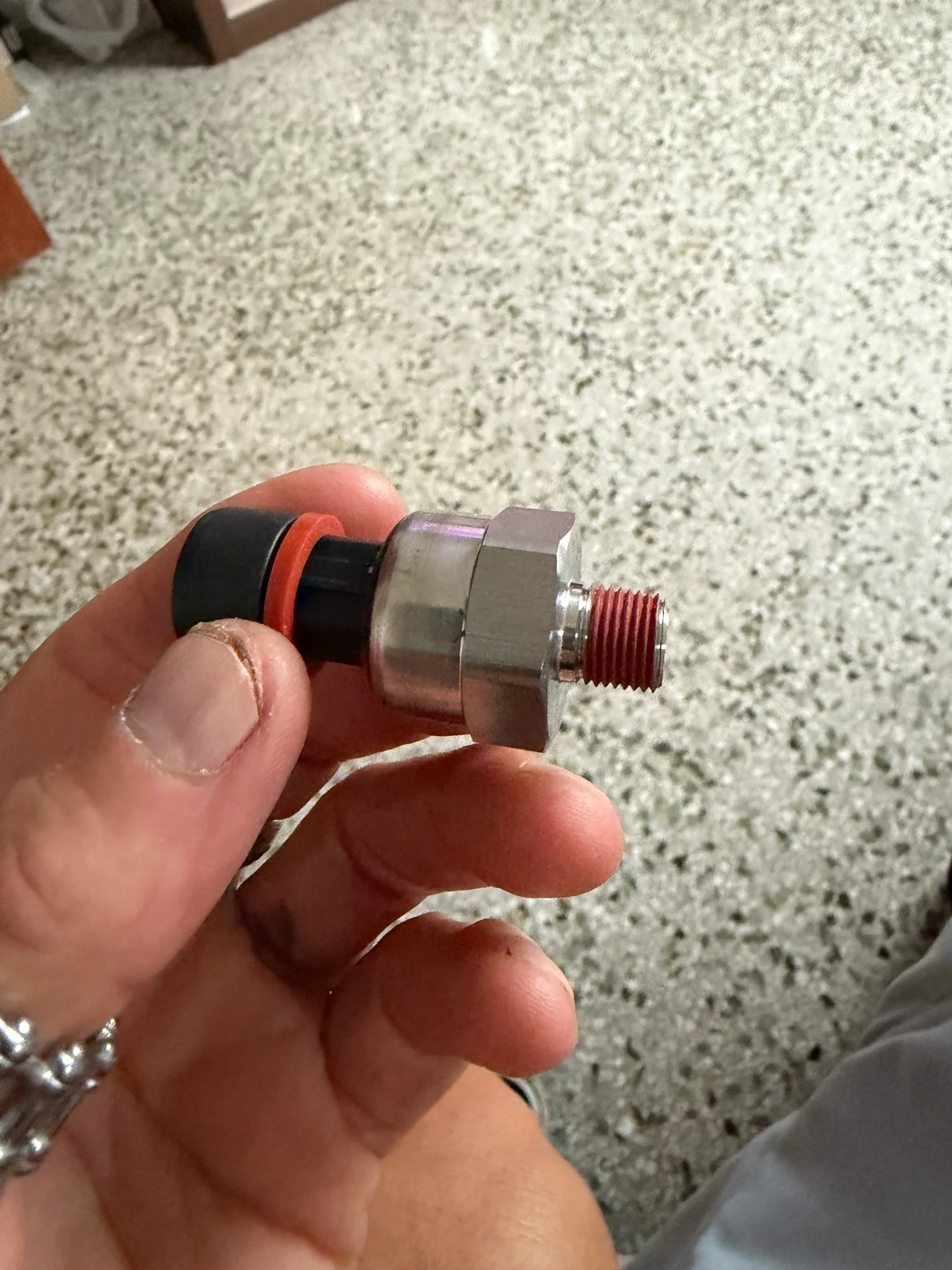

View attachment 4000934

Probably best to mock it up on the truck to see where you can fit it, and then pull the manifold off and tap a hole for the fitting.

Looking at pictures, seems like maybe on the manifold towards the front of the truck between where the crossover pipe attaches to the manifold and the bracket for the throttle cable is.



[Dprio34]

@krumby , did you remove your EGR system from your intake manifold? If you did or plan on removing it, that area will provide amble room to install the boost sensor.



[krumby]

Yes My EGR is gone can you send some pictures of your boost installs to the 1kzte motor ?
Mahalo
David



[Dprio34]

@krumby , the pic above is on a 2L-T. The EGR "tube" entered the Intake manifold where the Boost Sensor now is. Use the stainless tube mount as your template for a "block off plate". Use existing holes in the manifold to mount. If you post some pics of your KZ Intake manifold w/o EGR, I'm sure other forum members will give you some ideas.

If you don't like that idea, or there isn't enough room on the KZ Engine, you can always do the fast work around and "tee" into a hose.
