ARB RD1045 drawers on FZJ80 (1 Viewer)

Joined
Oct 8, 2020
Messages
72
Location
Argentina
hi guys.

Just installed the ARB drawers in my 80. Pretty straight forward. I didn't drill the holes on the anchor points, as suggested by ARB. I used the original hole instead.
I believe the instructions say that that hole needs to be bigger in diameter in order to take the provided bolts, stating that the original bolt is not "strong enough.

Also, It wasn't clear to me if the carpet needed to be removed, so I installed the drawers with the original carpet ON. So when I tightened the bolts on the original anchor points on the back, I noticed that the drawers don't sit completely straight. They sit higher in the middle, where both drawers meet. Will that cause any damage to the system or the truck? Should I remove the carpet in order to have a clean setup?

pd. My son is already loving the Cruiser :cool:

Thanks in advance.
Cheers

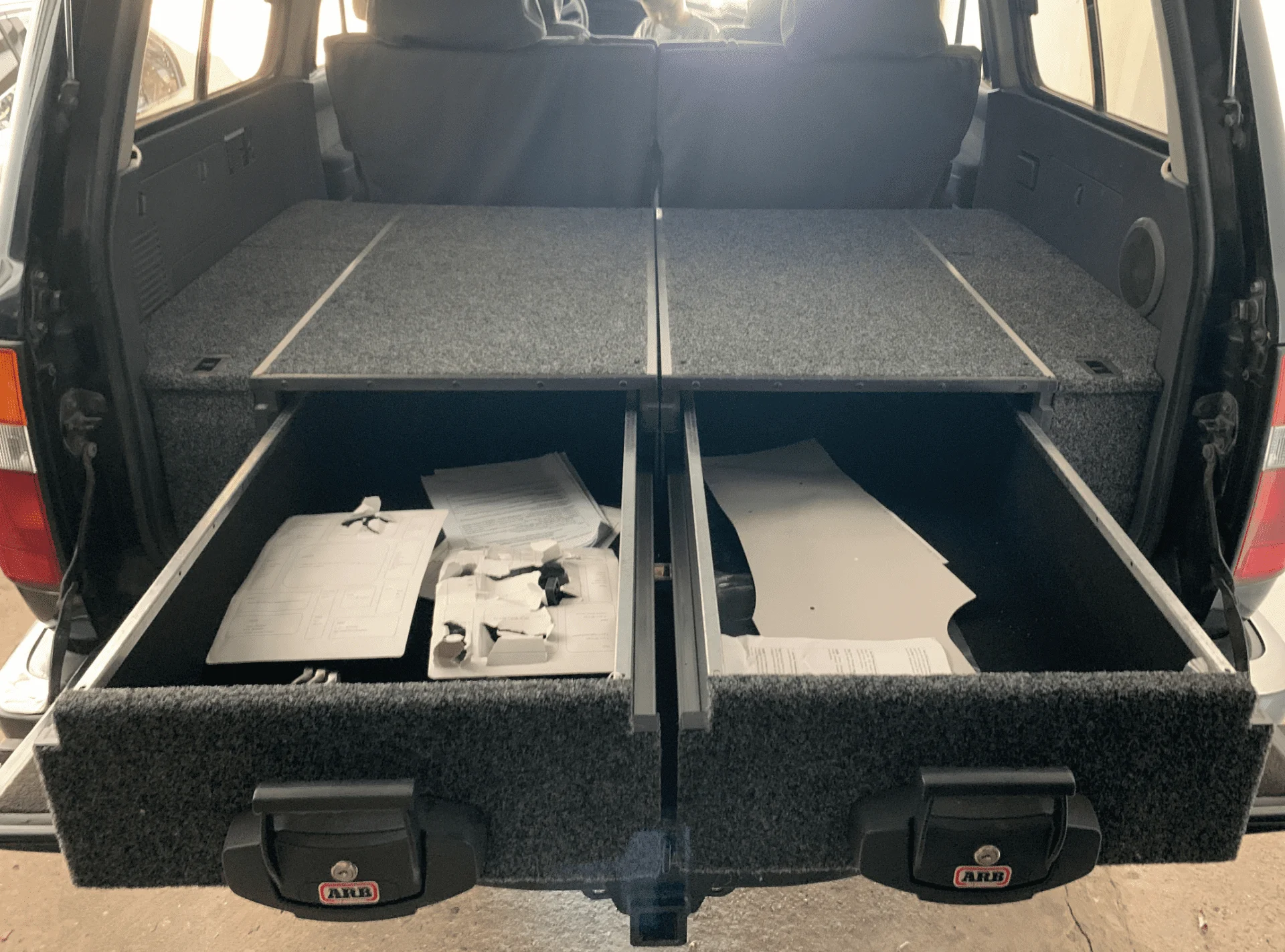

Screen Shot 2021-03-10 at 11.44.34.png

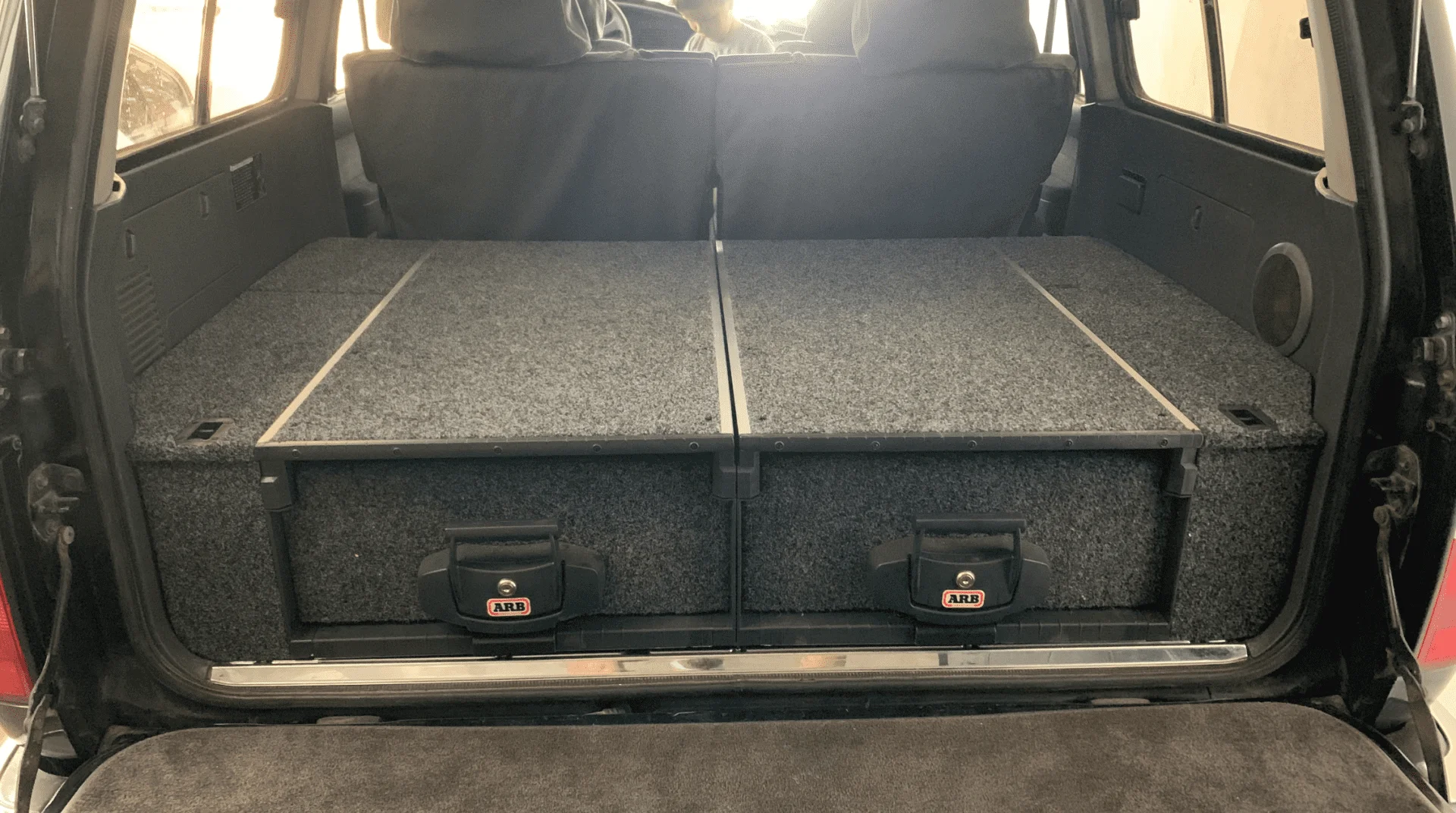

Screen Shot 2021-03-10 at 11.44.54.png

Joined
Oct 8, 2020
Messages
72
Location
Argentina
hi guys.

Just installed the ARB drawers in my 80. Pretty straight forward. I didn't drill the holes on the anchor points, as suggested by ARB. I used the original hole instead.
I believe the instructions say that that hole needs to be bigger in diameter in order to take the provided bolts, stating that the original bolt is not "strong enough.

Also, It wasn't clear to me if the carpet needed to be removed, so I installed the drawers with the original carpet ON. So when I tightened the bolts on the original anchor points on the back, I noticed that the drawers don't sit completely straight. They sit higher in the middle, where both drawers meet. Will that cause any damage to the system or the truck? Should I remove the carpet in order to have a clean setup?

pd. My son is already loving the Cruiser :cool:

Thanks in advance.
Cheers
View attachment 2609478View attachment 2609479
Anyone did this install?

Joined
Sep 3, 2019
Messages
127
Location
Erie, Colorado
I can’t speak to long term issues with the raised center, but I have the same drawers installed over the carpet and it’s perfectly flat. It sounds like the installation might not be correct. I drilled out the holes FWIW.

Joined
Oct 8, 2020
Messages
72
Location
Argentina
I can’t speak to long term issues with the raised center, but I have the same drawers installed over the carpet and it’s perfectly flat. It sounds like the installation might not be correct. I drilled out the holes FWIW.
Thanks for the reply.
The holes that need to be extended are the ones on the anchor points right? 2 holes. The other holes are from the third row seat anchor point. So a total of four bolts are used to secure the drawers to the body. I used the things supplied to attach both drawers together. But is there anything to make the attachment tighter, like bolting the "walls" of both drawers together?
Maybe I need to loosen the bolts on the anchor points?
Cheers

Joined
Oct 8, 2020
Messages
72
Location
Argentina
I can’t speak to long term issues with the raised center, but I have the same drawers installed over the carpet and it’s perfectly flat. It sounds like the installation might not be correct. I drilled out the holes FWIW.
Have you used the provided spacers?

I am also thinking of moving the rear crossmember of the drawers, to match the rearmost anchor point of the third row seats. Do you think it is a good idea?

Cheers

Joined
Jan 11, 2020
Messages
559
Location
Texas
Does the rd1045 come with the side wings? I'm guessing not. what did you purchase in total? How is it working out for you?

Joined
Oct 8, 2020
Messages
72
Location
Argentina
Does the rd1045 come with the side wings? I'm guessing not. what did you purchase in total? How is it working out for you?
No, you have to order them apart, I believe part Number is FK80.
So far, I am happy with them. ARB quality is real good. An I'm not using them for heavy off-road/overlanding. So it fit my needs pretty well.
I had an issue installing them, my bad. Just fixed it the other day and now it looks much better than before!
Cheers

Joined
Jan 11, 2020
Messages
559
Location
Texas
No, you have to order them apart, I believe part Number is FK80.
So far, I am happy with them. ARB quality is real good. An I'm not using them for heavy off-road/overlanding. So it fit my needs pretty well.
I had an issue installing them, my bad. Just fixed it the other day and now it looks much better than before!
Cheers
did you end up taking the carpet out?

Joined
Oct 8, 2020
Messages
72
Location
Argentina
did you end up taking the carpet out?
carpet is still on. Just added the provided spacers (I believe the 15 mm ones). It now seems more tight and leveled, because there is a solid surface to which the frame rests on, instead of being on top of the soft carpet and sound deadening.
