Another Rear Sill repair by a novice!

[OutbackBob]

Having viewed the various posts on this subject I'm giving this repair a try.
I've ordered quarter panel patches, rear sill from Cool Cruisers.
Expecting parts this week.

Thanks for looking!



[78fj40mg]

Looking good Bob!



[fj401978]

Looks like you're off to a good start! Keep at it and keep the pictures coming!!


Skip



[rkymtnflyfisher]

Can't wait to see this! I'm in line for the same repair.



[David70FJ40]

How sad it is that a PO would simply let a fine vehicle simply rust away. My '70 looks almost as bad and will go to a body shop soon for this repair. I simply don't have the skill set or welding tools.



[TCSTARK]

Here is a tech tip,... Use a copper backing plate when tack welding the panels together. It will prevent blow thru and absorb some of the heat and prevent panel warping.

You can clean up the tack welds with a bit of grinding and try again. Have fun!



[DougAustinTx]

I did this repair on my kid's '77. Did the inner and outer in STAINLESS STEEL. Will never have that particular problem again.



[OutbackBob]

Any tips on aligning the door hinge holes would be appreciated. I'll be using a rear quarter patch panel as a replacement.
I had to cut out the spot welds on the lower right inner bracket to remove 3 of the 4 bolts that broke off.
Nothing like a spot weld removal bit, heat, vice grips and Kroil oil!



[OutbackBob]

I did this repair on my kid's '77. Did the inner and outer in STAINLESS STEEL. Will never have that particular problem again.

Did you fabricate the SS members?



[40Wanted]

Subscribed, about to do this same thing to the 1976 I just picked up. Look forward to seeing how you like the CCOT sill and patches, I'm currently trying to decide who to go with for replacement panels.



[78fj40mg]

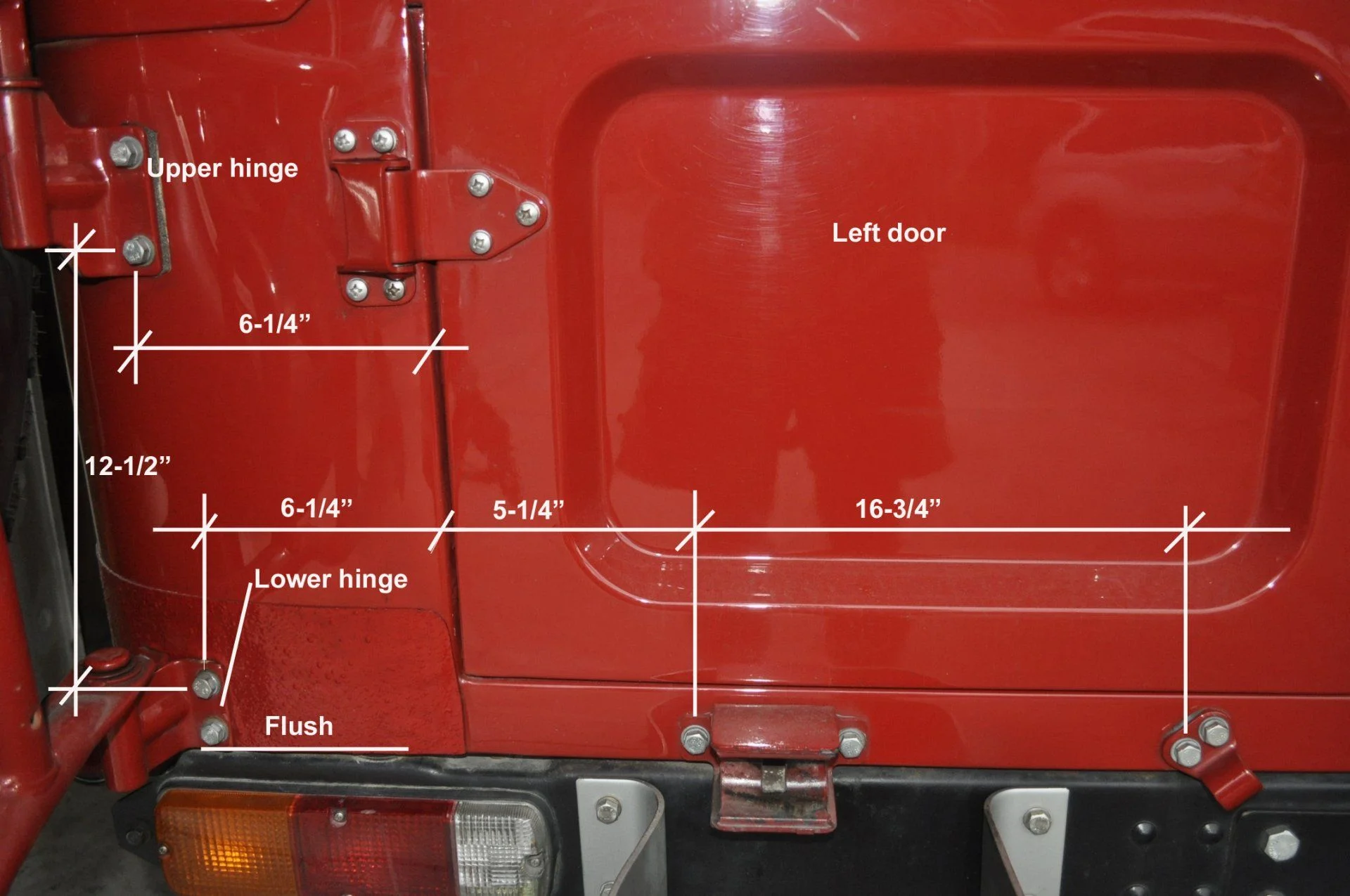

Bob, here's my '78 spare tire hanger location dimensions, hope this helps.



[rkymtnflyfisher]

Bob, here's my '78 spare tire hanger location dimensions, hope this helps.

I would assume that those measurements are mirrored for the passenger side tire carrier?



[78fj40mg]

I would assume that those measurements are mirrored for the passenger side tire carrier?

My only frame of reference is the '78 I hope someone with a passenger carrier will chime in and verify dimensions.



[rkymtnflyfisher]

Is the 78 a tube style carrier or the plate style?



[TCSTARK]

Bob, here's my '78 spare tire hanger location dimensions, hope this helps.

These measurements saved my butt when I installed my tire carrier on my 81. Thanks @78fj40mg

@rkymtnflyfisher - this is for the tubular style carrier



[78fj40mg]

These measurements saved my butt when I installed my tire carrier on my 81. Thanks @78fj40mg

@rkymtnflyfisher - this is for the tubular style carrier

You are very welcome TC!



[78fj40mg]

Is the 78 a tube style carrier or the plate style?

Tube style.



[Tancruiser]

I just did one on a 1964 fj40 and I had to cut way into the corners . I was wondering if you are planning on doing the same i think I got mine from real steel .



[rkymtnflyfisher]

@78fj40mg, @TCSTARK Thanks!



[tls3601]

'78 if OEM is tube style
