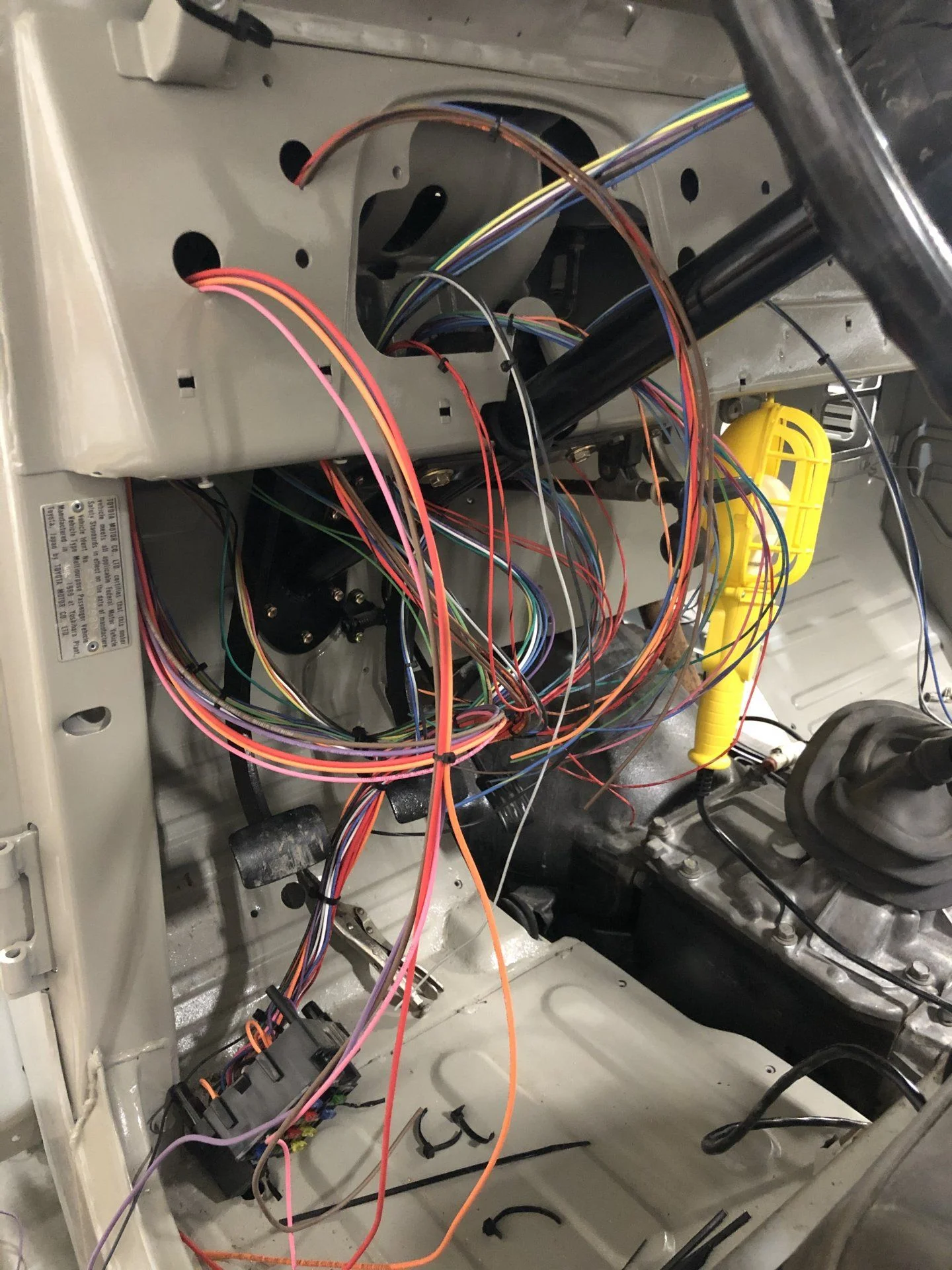

Another FJ40 to FJ45ish Thread

Joined
May 19, 2017
Messages
71
Location
Missoula Montana

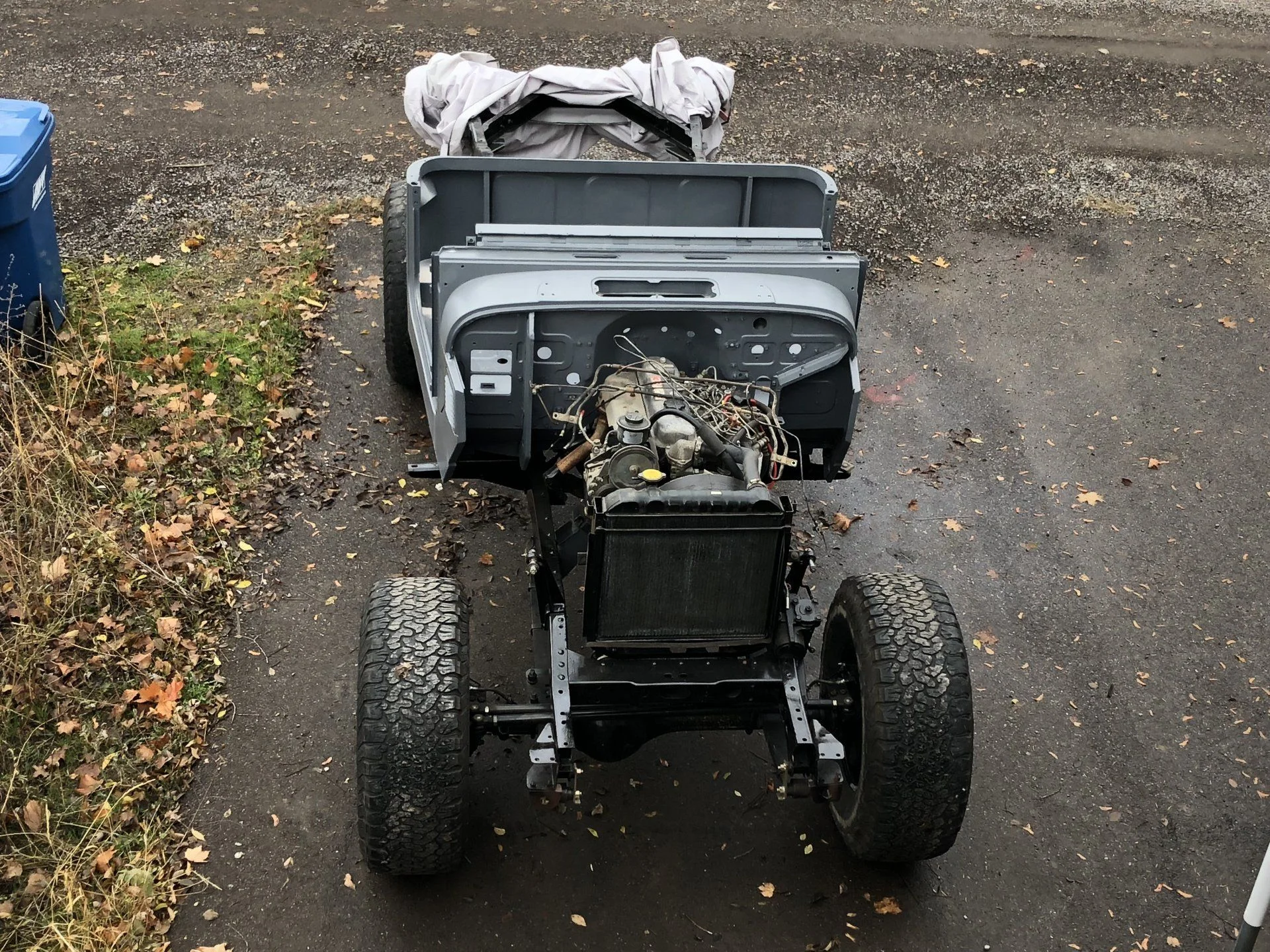

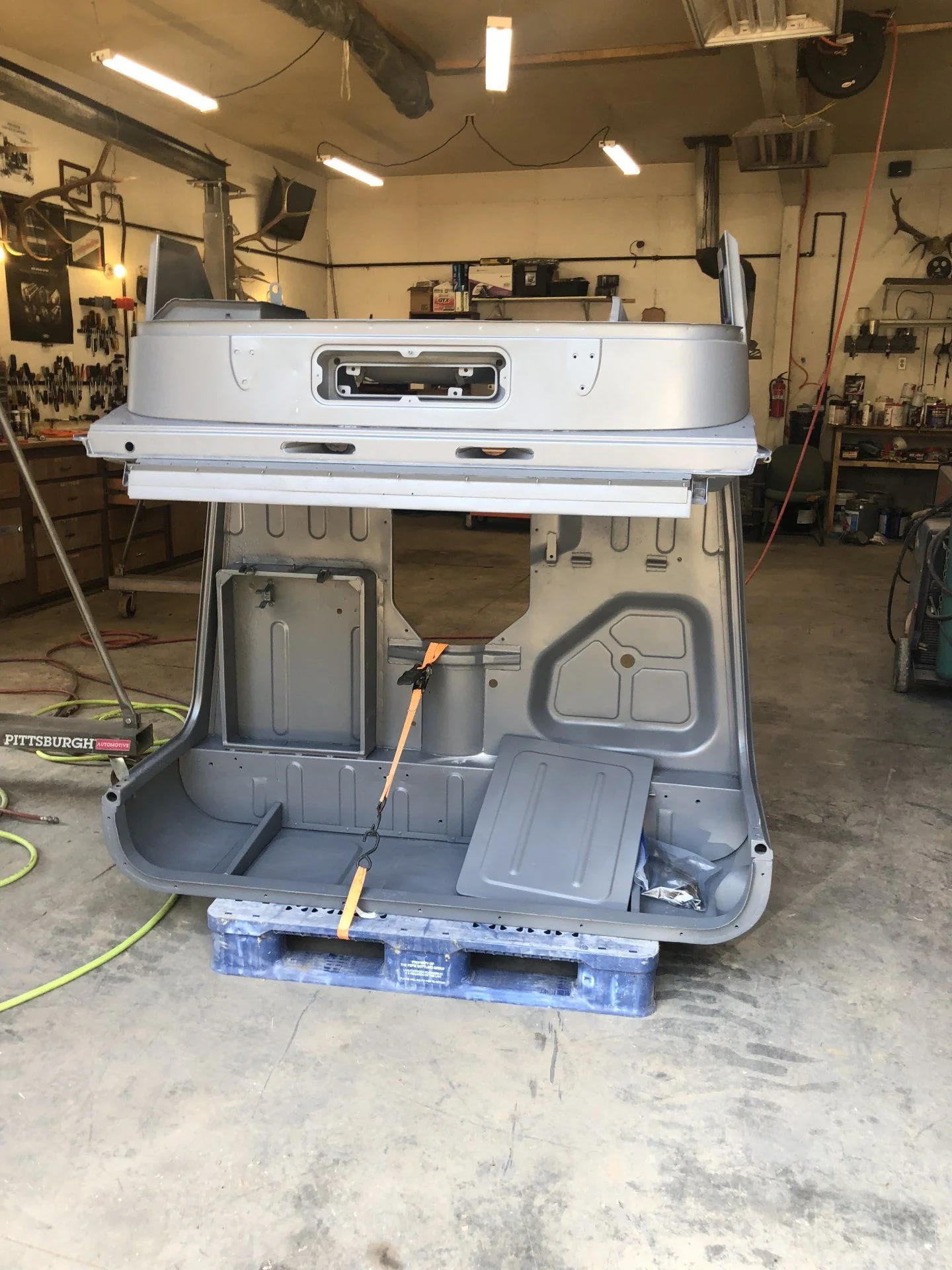

Thanks! It s a fun build for sure and further along than I have had time to post. The guy who did the wet blasting actually did the the first coat of primer in the picture. It was a deal I couldn't turn down. I think he charged me like 60 or 80 bucks more to shoot it with primer on top of what it cost to wet blast it. I was really happy with his work and with the price. I have a sand blaster but I hate sand blasting and so this was a no brainer for this part of the project.
Looking forward to putting those new seats in the rig. Measured them tonight and I think they are going to work pretty well with the setup for my full roll cage. Thanks for meeting today to make the handoff on those seats.

Last edited:
Joined
May 19, 2017
Messages
71
Location
Missoula Montana

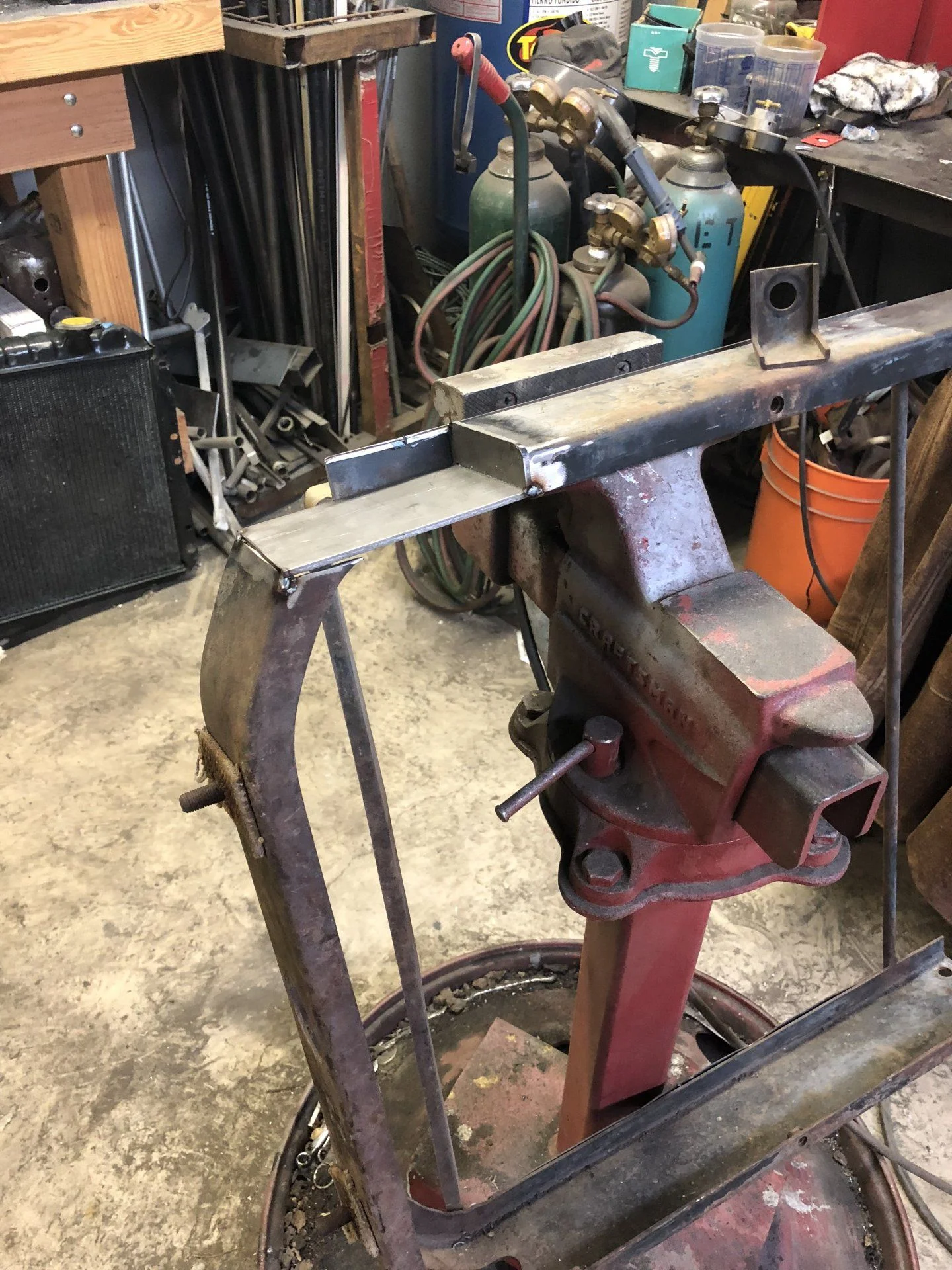

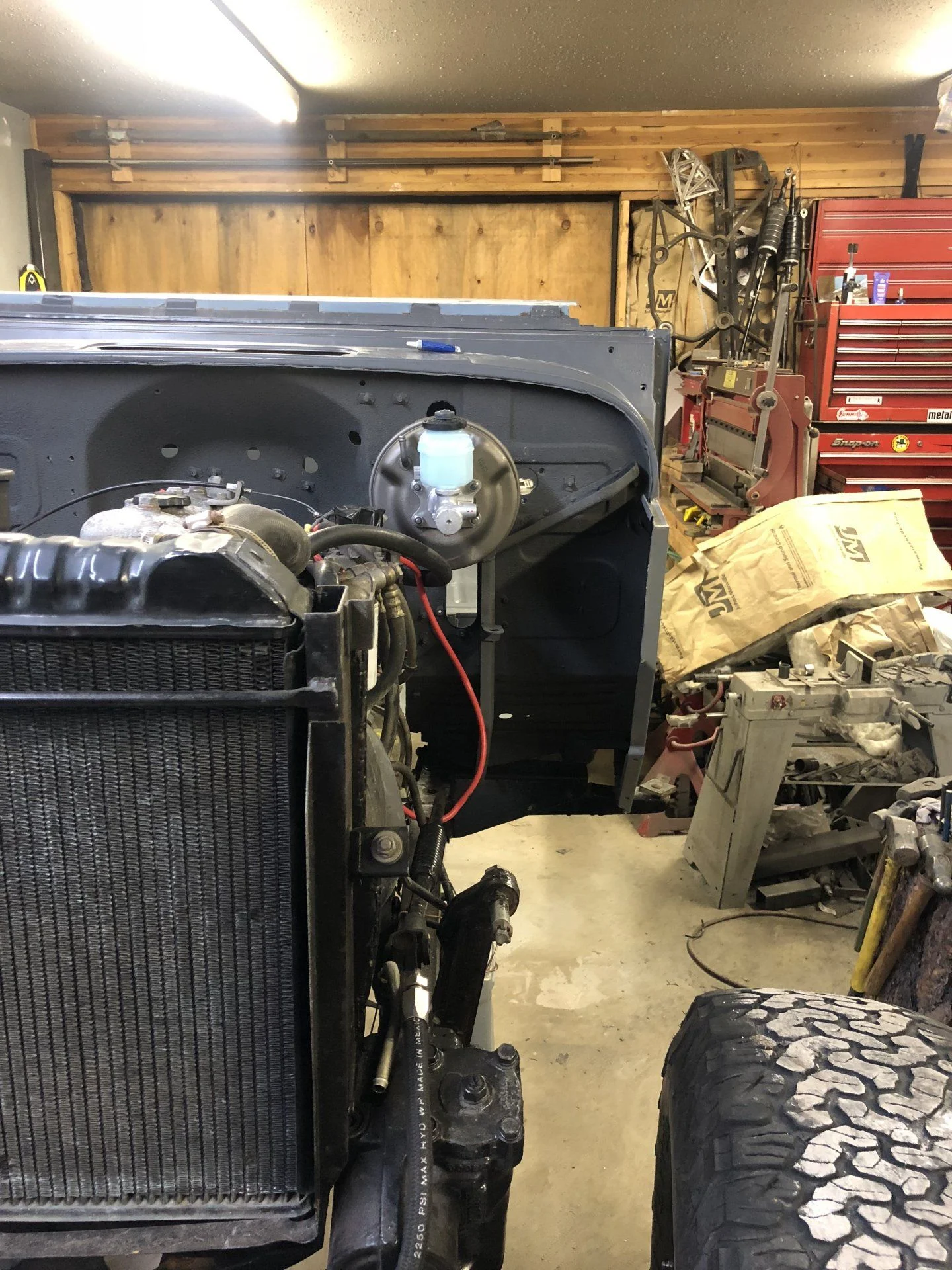

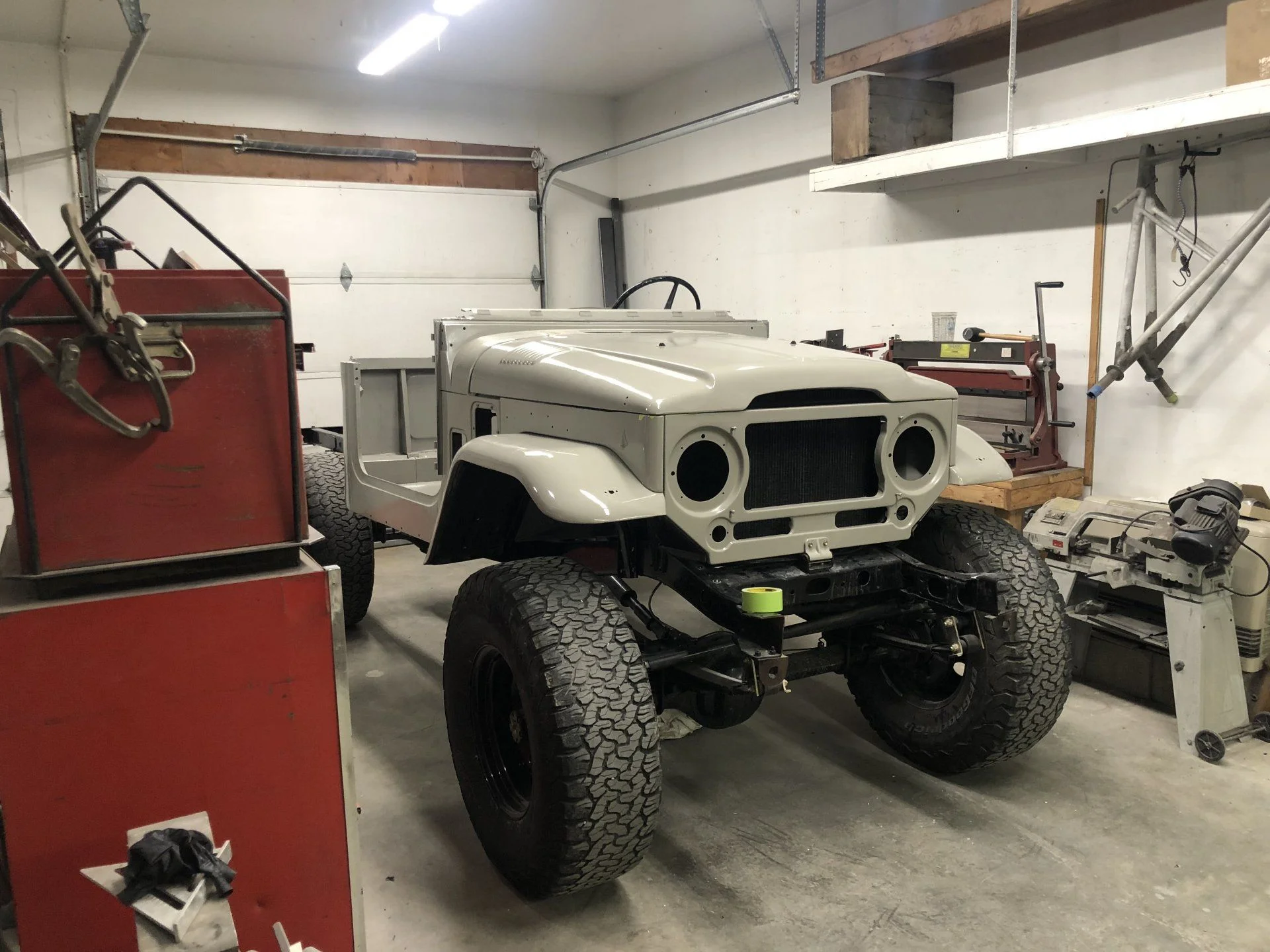

I realized there are some details that I probably should have posted as reference related to the modifications to the radiator bracket for use with the FJ80 power steering box. As you can see I had to relieve the radiator bracket and then weld in new support structure. I used 4130 chromoly for the modification for extra strength.








Joined
May 19, 2017
Messages
71
Location
Missoula Montana

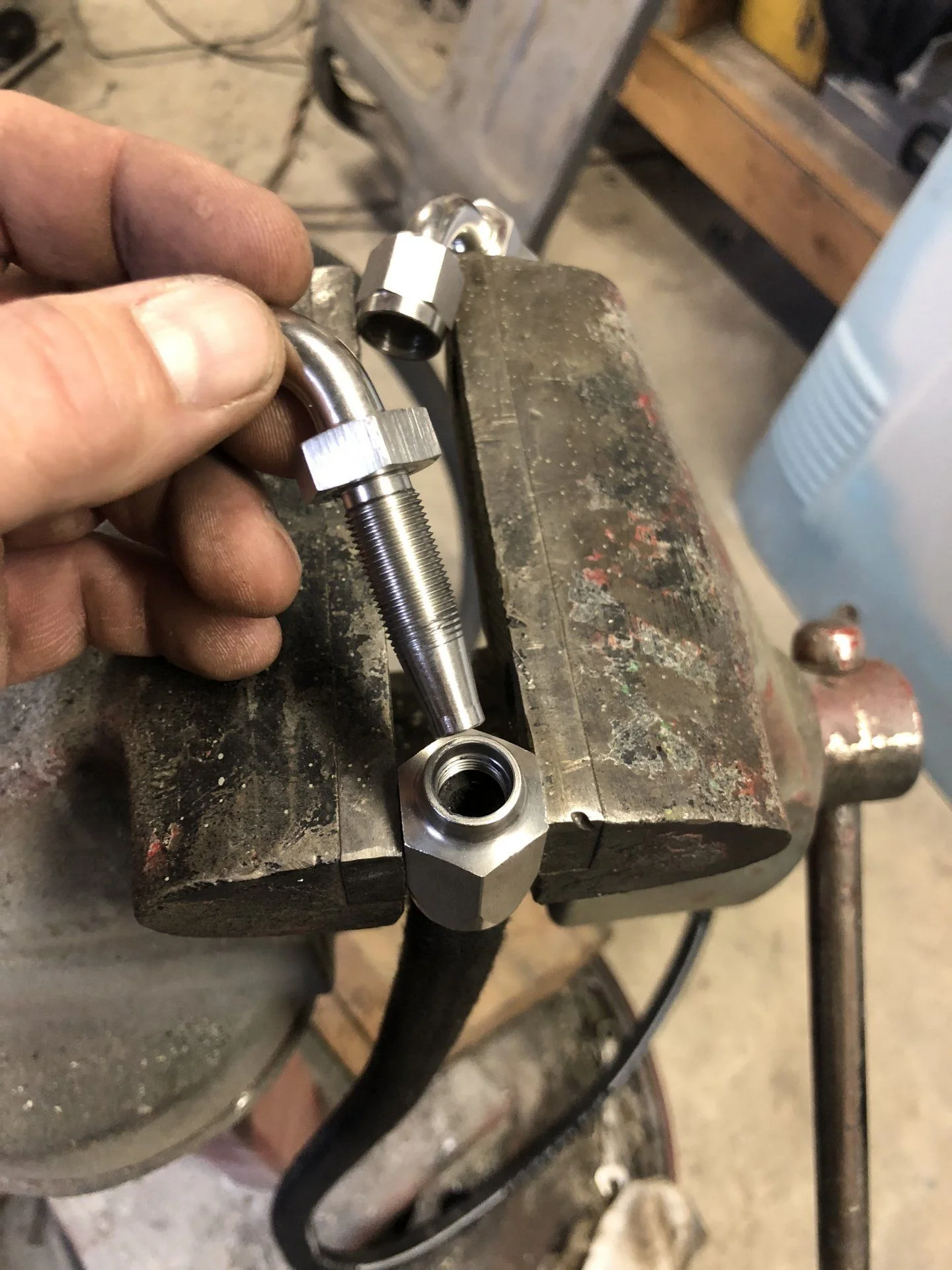

Here is my solution for plumbing the pressure side of the Toyota 3b power steering pump to the later FJ80 power steering box. I could not locate a factory hose for this application so I bought aeroquip hose and the appropriate fittings from Earls and fabricated my own pressure side hose. For some reason it took me a while to come to this obvious solution so I’m posting it here as one example of how to deal with the problem..



ceylonfj40nut

Waiting for Barn Time
SILVER Star
Joined
Jan 11, 2015
Messages
2,786
Location
TX

Here is my solution for plumbing the pressure side of the Toyota 3b power steering pump to the later FJ80 power steering box. I could not locate a factory hose for this application so I bought aeroquip hose and the appropriate fittings from Earls and fabricated my own pressure side hose. For some reason it took me a while to come to this obvious solution so I’m posting it here as one example of how to deal with the problem..

View attachment 2313411
Awesome build. Can you pls share part numbers on fittings?

Joined
May 19, 2017
Messages
71
Location
Missoula Montana
I don't see that I have the part numbers right now but its pretty easy stuff to find. JEGS, Summit and Earls should all have this stuff at decent prices.I used steel AN6 hardware for the line and connected that to an AN6 to 16x1.5mm inverted flare fitting which was identified specifically as a power steering adapter. The hose was identified as high pressure power steering hose by Earls. There appear to be at least two styles of these adapter fittings. One has a rubber O ring and one just has a hard seat inverted flare. You want the one with the regular inverted flare without the O ring. I had to use a 90 degree AN fitting on both ends to route my hoses the way I wanted them routed. You pretty much have to use at least one 90 degree fitting at the pump due to clearance issues. I tried to find these locally at my local hydraulic shops and it was a waste of time. Best to just take these specs and order what you need from your favorite speed parts seller. I hope this helps.

Joined
May 19, 2017
Messages
71
Location
Missoula Montana

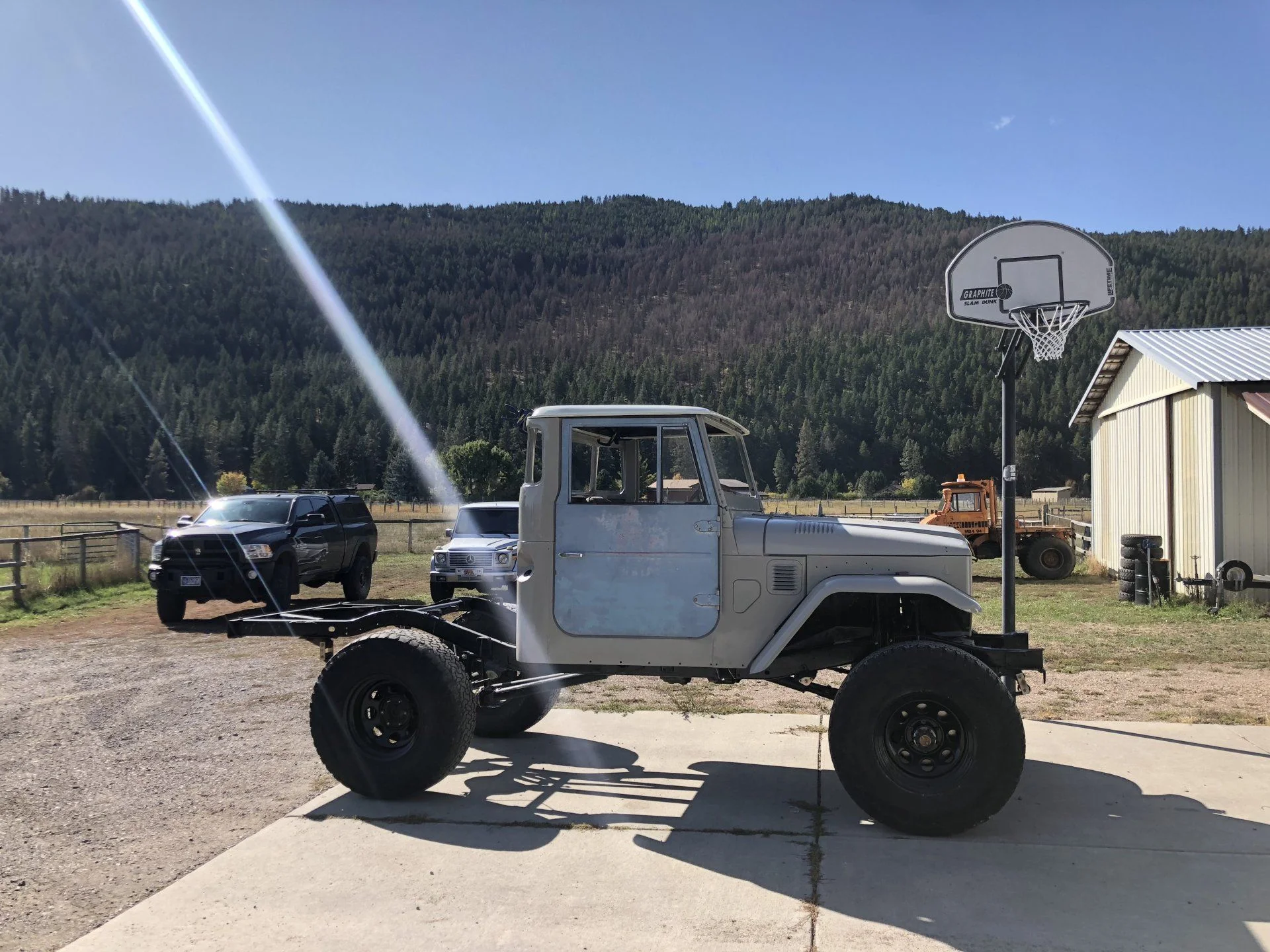

32 inches from the ground to the actual floor board. The roll cage has a grab handle. I just finished welding that up. I’ll post a pic when I take one.


SKULLYOTA

Always needs a nap
Joined
Mar 13, 2009
Messages
857
Location
Middle Oregon


nice build. i moved from Missoula to Oregon a couple years ago. I think i remember the craigslist ad for the blue cruiser you bought for this, that was a helluva deal!


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,465
Location
Nor Cal, Richvale,Ca

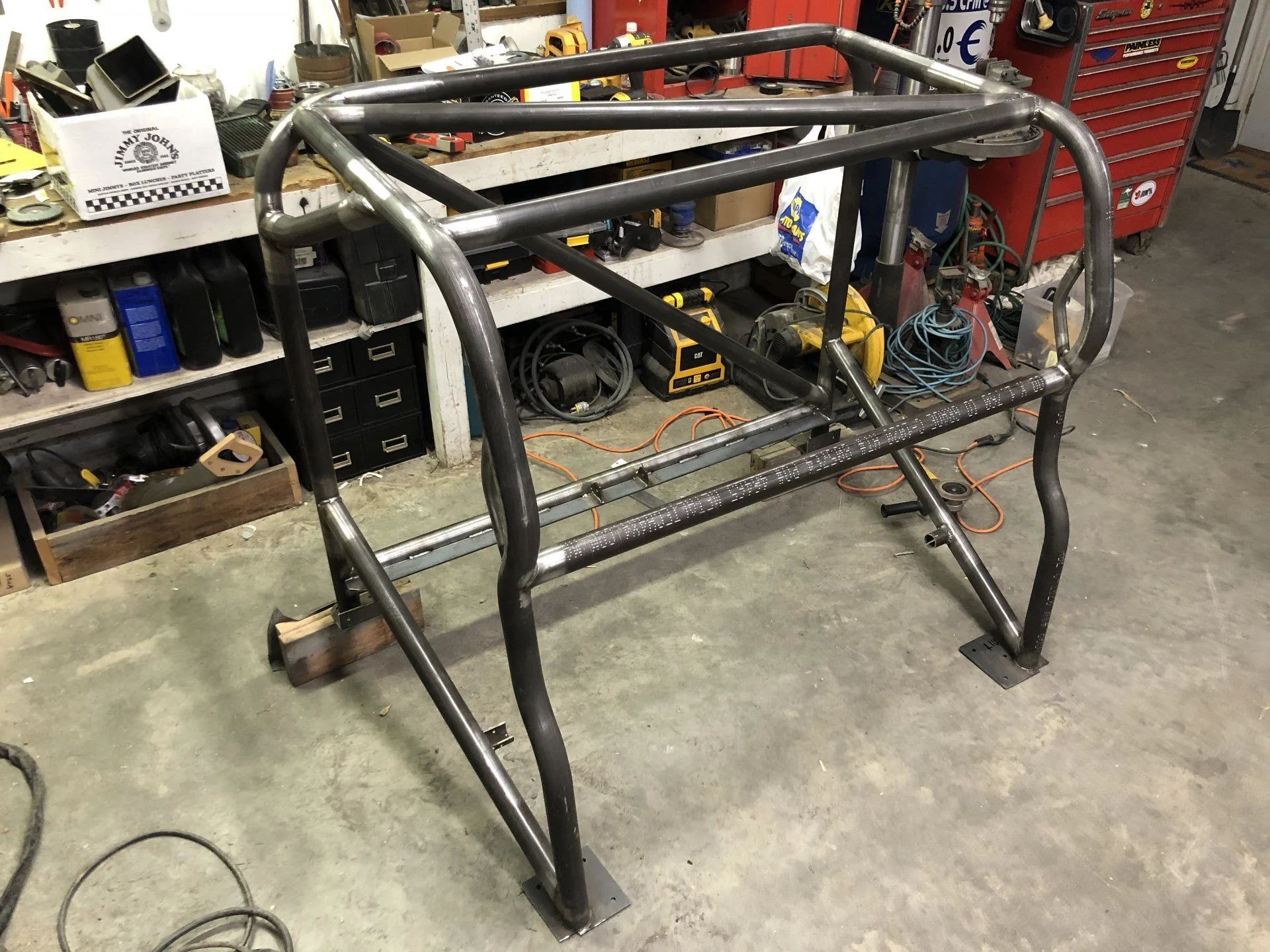

Here is the roll cage before paint. For those that wondered about get into the truck you can see the grab handles I mentioned. They work nicely.

View attachment 2318037
TNX for the reply, mine is 35 with no running trans or motor. I have guesstimated to add about 1200# in that process with all of the things to Complete it. Ran I t across the scales yesterday and so far it comes in at 2440# so it should be under 4K in weight. The question with that number of added weight aprox 1200# what is your opinion on the spring crunch may see. 60 rear in front and a Chev 63” in the rear springs. I also have a handle to assist in getting in.

Joined
May 19, 2017
Messages
71
Location
Missoula Montana
I honestly have no real idea about how much the truck might drop with the extra 1200 pounds. I put my engine into the truck fairly early to get the weight on the frame. Hard to really say but it sounds like you must have a spring over as well so you have a lot of lift any way you cut it. Best of luck with your bulid.


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,465
Location
Nor Cal, Richvale,Ca

I honestly have no real idea about how much the truck might drop with the extra 1200 pounds. I put my engine into the truck fairly early to get the weight on the frame. Hard to really say but it sounds like you must have a spring over as well so you have a lot of lift any way you cut it. Best of luck with your bulid.
Ya it is spring over, calculating changing to spring under it may get it to low. So the things I will do is 4” with weight possible of reaching the springs a bit maybe get a inch or two if I am lucky, shorter shackles get me a little. Let’s say a total of 6” overall. That will got me to 29” from ground to cab, and I was hoping for 24 maybe I can live with that, and TNX’s for your input.


47coeman

Love those 45's
Joined
Jan 2, 2012
Messages
1,465
Location
Nor Cal, Richvale,Ca

Wondering if you could get me some measurements off of your windshield if it is the stock one. I have been told the 66-75 were the same. My rig was a 70 so I am in your ball park. What I need is the placement of the windshield motors and the exact measurements of the holes that the motors go through the windshield. Of course the spread or distance between them center to center. Second where they are layed out as to distance from the edge of frame where the glass goes in. I sold mine W/O taking that into consideration. I have a safari window I am using and want to use the original set up because of my roll cage has been fabed with the units I had. Your help would be really appreciated. My rig is Skips 35 in this section if you are interested.
Best Skip
