Alternator bolt stripped. 1993, LC, 80series

Joined
Jun 28, 2021
Messages
8
Location
85226
Hello, I am replacing the alternator in my 80 series and I'm having trouble removing the bottom Alan key bolt. I believe the bolt is stripped.
See images below. Does anyone have any recommendation on how I can get this bolt removed? I was thinking of cutting the V-belts and using a nut extractor.

Also, any other tips on removing the alternator? Should I remove the fan shroud? I actually removed the battery and disconnected the top radiator hose.

Cheers
George

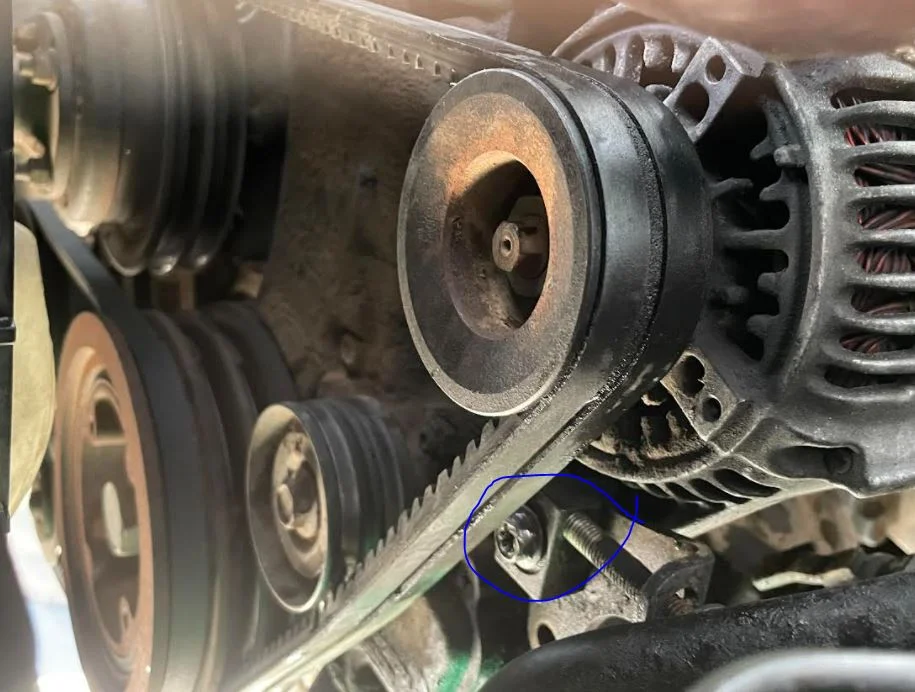

alternator bolt.jpg

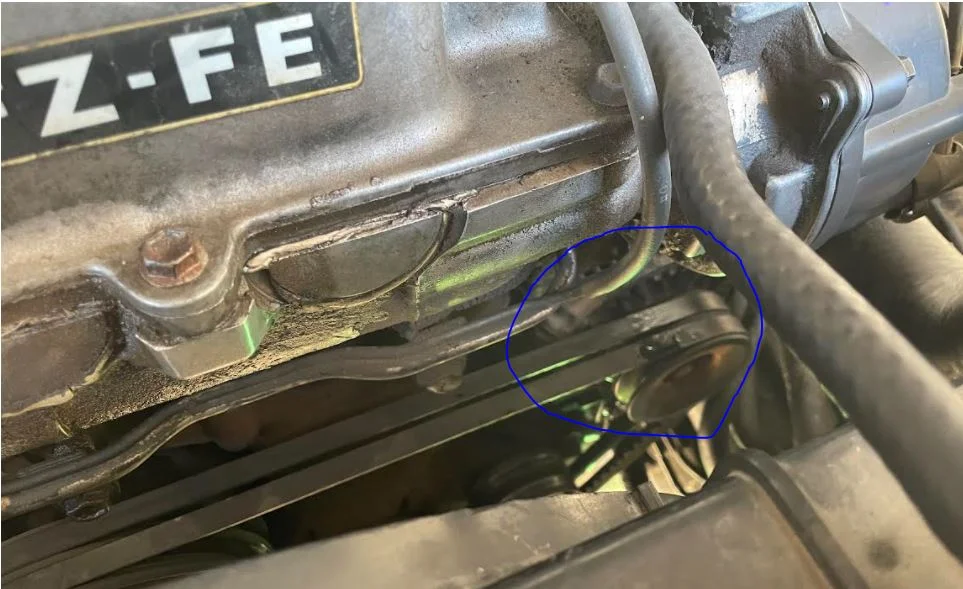

alternator location.jpg

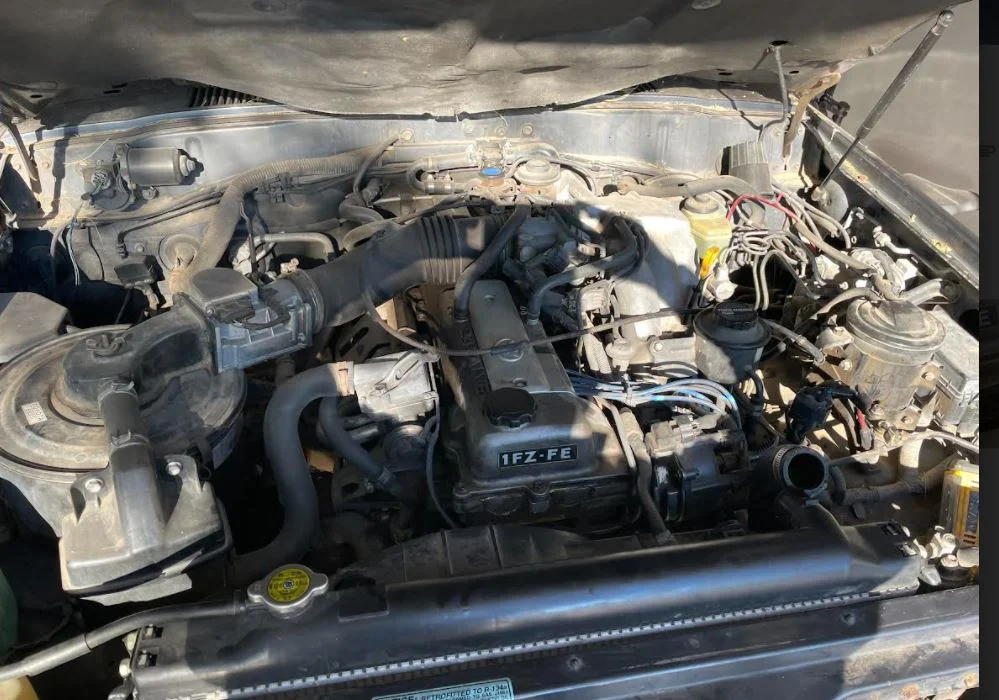

Engine bay.jpg

Joined
Nov 18, 2019
Messages
570
Location
Albuquerque NM
That bolt is Torx (star) not Allen key (hex). The correct Torx bit may still be able to get it out, depending on how bad it is stripped out.

If you have the OEM Denso alternator, often you can just replace the alternator brushes: 27370-75060 for much cheaper than replacing the whole alternator. Easiest to still remove the alternator though, but it can be done without removal, see Alternator brush replacement - https://forum.ih8mud.com/threads/alternator-brush-replacement.592472/#post-13580022.

EDIT: Looks like a T40 bit fits.

Last edited:
Joined
Oct 2, 2008
Messages
632
Location
Newport, OR

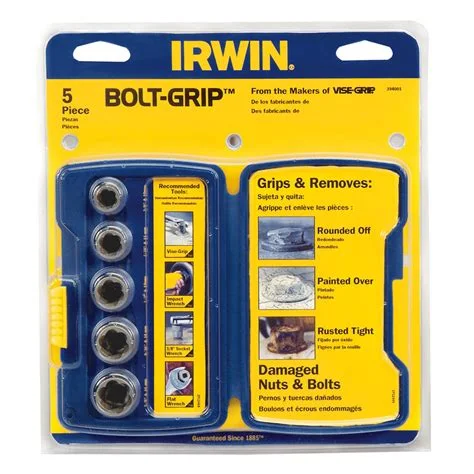

I can second that Irwin recommendation, I have the same set. But after you cut those belts off, if you still have trouble getting a stripped nut extractor on that bolt, try vice grips. I'd recommend a good sized pair, but if you can get the angle and grip the head of that thing very tightly, you may just be able to break it loose. And yes, loosen everything else that you can and remove the fan shroud if it gives you more room.

Joined
Oct 2, 2008
Messages
632
Location
Newport, OR
I will also add that the ~$20 alternator brush replacement is probably all you need to do to service that alternator. Unless you are upgrading your wiring and changing brackets to get a larger alternator, the 80 amp Toyota unit is practically a lifetime part with just brushes alone.

Joined
Jun 28, 2021
Messages
8
Location
85226

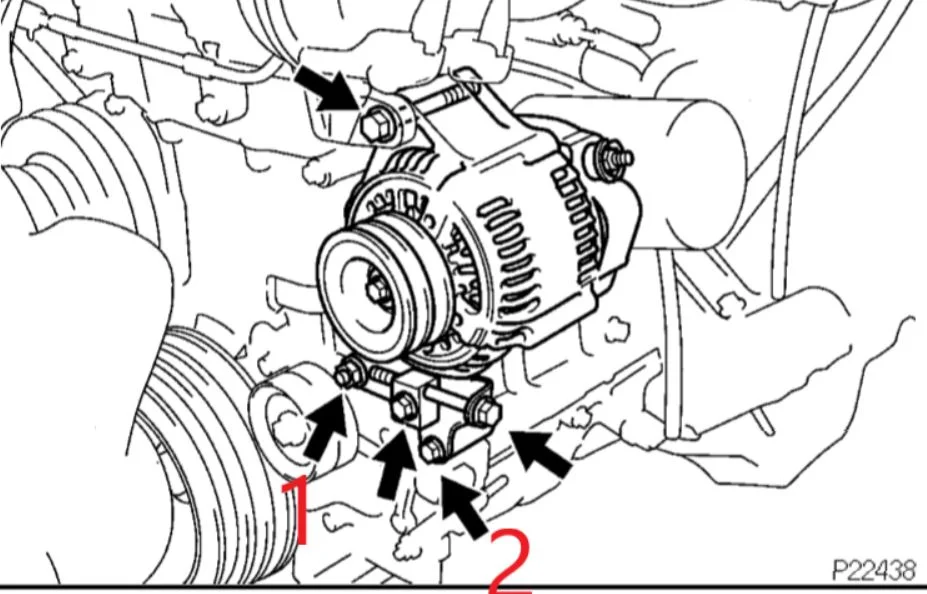

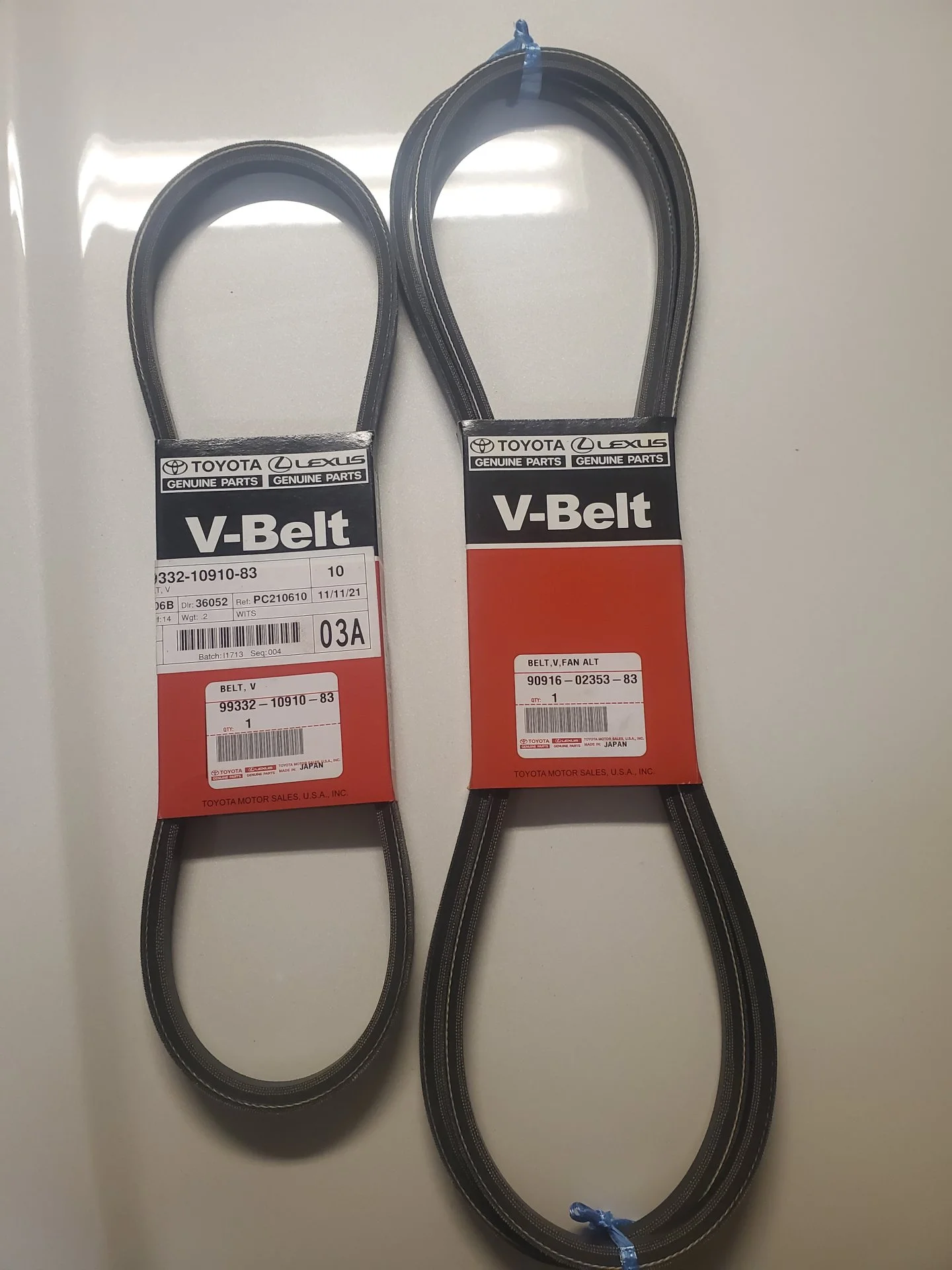

I had a hard time taking off the stripped Torx bolt. The easiest way is to take the off the alternator with the lower bracket. 1 is a 12mm nut and my Landcruiser did not have the number 2 bolt. To gain access to the nut you will need to unfasten the tensioner pulley bolt (14mm).

Now I need to get the alternator out of the engine bay. Seems like I would need to remove the fan shroud so I can take the alternator out? any suggestions?

Thank you all for the help!

Joined
Dec 6, 2018
Messages
80
Location
Gateway, CO
I had a hard time taking off the stripped Torx bolt. The easiest way is to take the off the alternator with the lower bracket. 1 is a 12mm nut and my Landcruiser did not have the number 2 bolt. To gain access to the nut you will need to unfasten the tensioner pulley bolt (14mm).

Now I need to get the alternator out of the engine bay. Seems like I would need to remove the fan shroud so I can take the alternator out? any suggestions?

Thank you all for the help!
View attachment 2883504
Removing the fan shroud may make it easier, though not necessary. Keep in mind that to remove the shroud you'll also need to remove the fan. No big deal, but an extra step. IIRC, I didn't remove anything other than the radiator hose when I replaced my alternator a few months ago. But I could be mis-remembering.


Irish Reiver

SILVER Star
Joined
Oct 24, 2015
Messages
2,106
Location
Orlando, Florida
I removed a failed alternator in an Autozone car park earlier in the year. Pull the battery and battery tray. Disconnect the cables at the back of the alternator. Remove the pivot bolt at the top and the lock bolt on the adjusting bracket. You don't need to remove the coolant pipe or hoses. Alternator will slide out with a bit of wiggling.


Vector courtesy of @NLXTACY

Joined
Jun 28, 2021
Messages
8
Location
85226
Removing the fan shroud may make it easier, though not necessary. Keep in mind that to remove the shroud you'll also need to remove the fan. No big deal, but an extra step. IIRC, I didn't remove anything other than the radiator hose when I replaced my alternator a few months ago. But I could be mis-remembering.
Awesome. I Probably just need to wiggle it out. Thanks!
I removed a failed alternator in an Autozone car park earlier in the year. Pull the battery and battery tray. Disconnect the cables at the back of the alternator. Remove the pivot bolt at the top and the lock bolt on the adjusting bracket. You don't need to remove the coolant pipe or hoses. Alternator will slide out with a bit of wiggling.

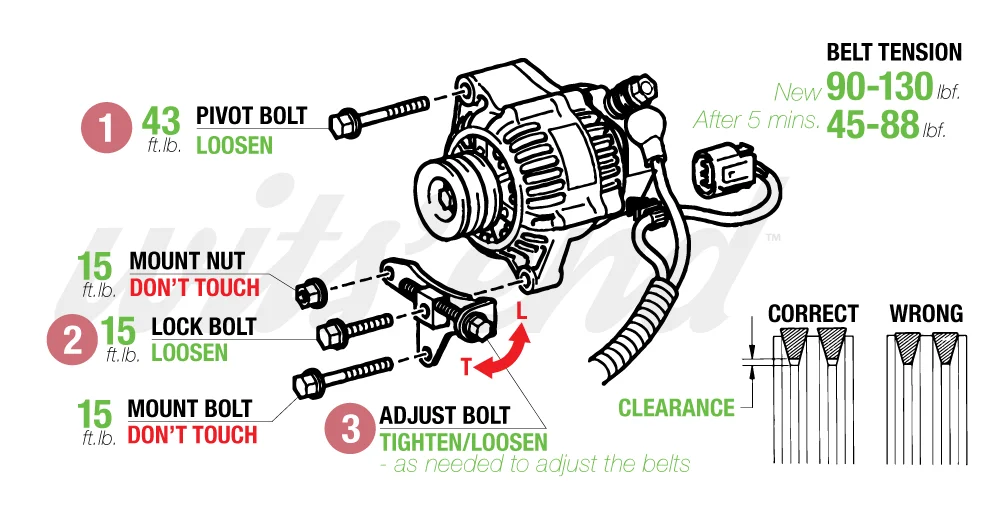

View attachment 2883566
Vector courtesy of @NLXTACY
Great information! thank you so much!
