Hi Forum,

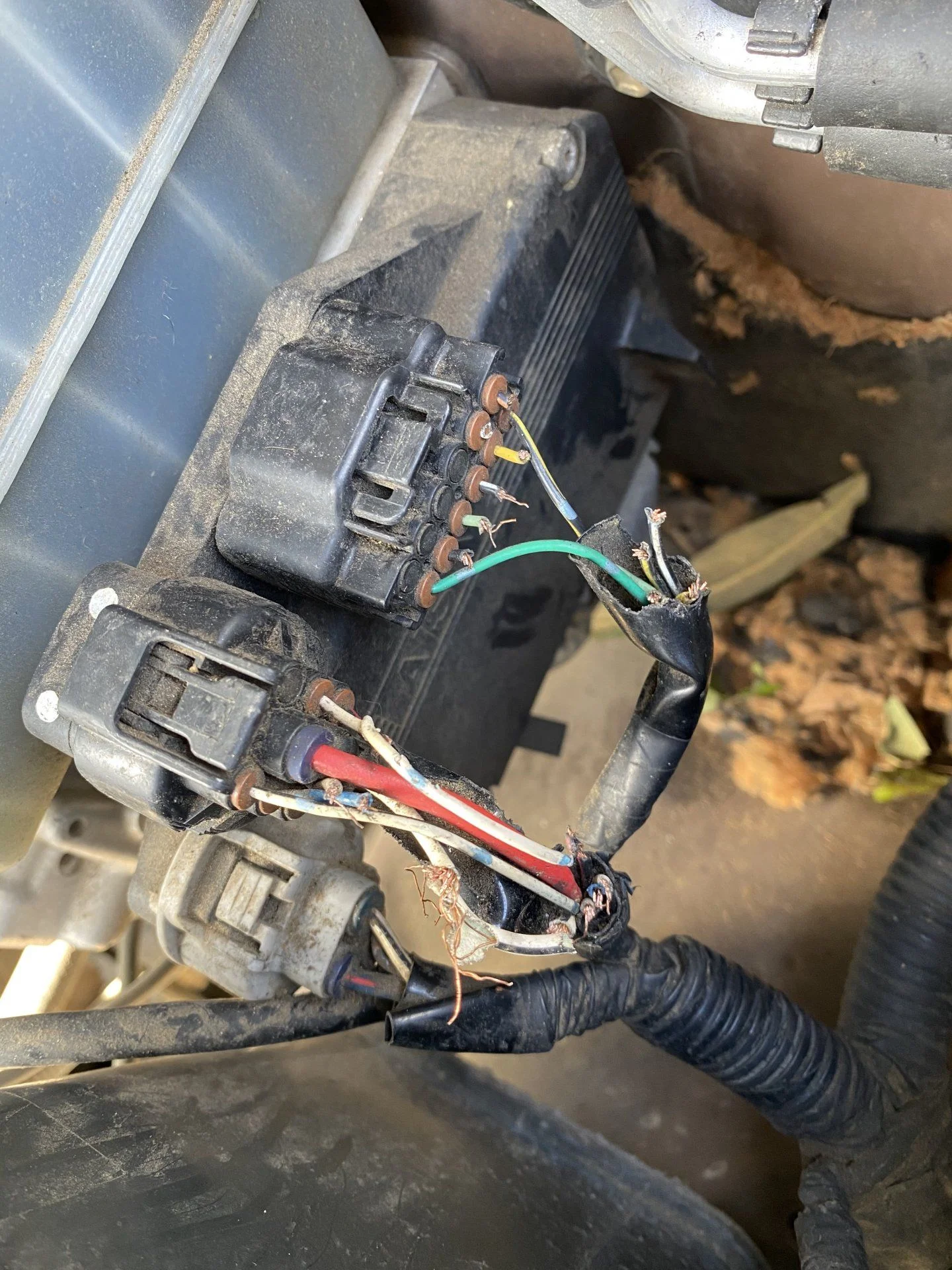

The wires to the ABS controller on our 99 LC were chewed by a rodent trying to get warm. Does anyone have any experience with the wiring harness in this area?

Joined
Aug 25, 2008
Messages
1,351
Location
Sacramento area, CA
Wow that rodent was rude, down to the nubs on one connector, going to need at least a new connector.
Not sure what pieces Toyota sells for this wiring. I have replaced the entire engine/trans wiring harness on an 80 series, it was hard to get from Toyota as I think it was discontinued.


saucebox

Slobivius Americanus
Joined
Jan 24, 2009
Messages
2,204
Location
SLC, UT
The connector itself should have 5 digits printed on it. In Toyotaland, the part number will be 90980-xxxxx, where the last part is the 5 digits on your current one. Toyota may also sell a connector pigtail with short lengths of wires already in it. That's probably the best option, since it looks like you need some additional length to make good splices.

It's also not so hard to replace the terminals. With the Toyota part number (and probably your photo), contact Ballenger Motorsports and they'll get you sorted with the proper terminals and insulators, and you should be able to restore it back to new. You'll need a terminal release tool. You'd still end up having to splice wires somewhere though, so the Toyota connector with pigtail is likely your best option.

Joined
Feb 1, 2020
Messages
3
Location
Austin, TX
The connector itself should have 5 digits printed on it. In Toyotaland, the part number will be 90980-xxxxx, where the last part is the 5 digits on your current one. Toyota may also sell a connector pigtail with short lengths of wires already in it. That's probably the best option, since it looks like you need some additional length to make good splices.

It's also not so hard to replace the terminals. With the Toyota part number (and probably your photo), contact Ballenger Motorsports and they'll get you sorted with the proper terminals and insulators, and you should be able to restore it back to new. You'll need a terminal release tool. You'd still end up having to splice wires somewhere though, so the Toyota connector with pigtail is likely your best option.
Excellent info, thank you!
