92 fj80 shift lock solenoid (1 Viewer)

Joined
May 5, 2016
Messages
15
Location
Austin, TX
I am not able to shift into reverse/N/Drive when sitting in Park unless i use the override switch. I do have the shop manual, and i checked for signals at the various wires on the shift lock ECU. I get a 12v signal when the brake is pressed from the wire designated for that. I get 12V for acc as well as ignition. The keylock solenoid seems to function as intended, can't remove key except when in Park with acc off.

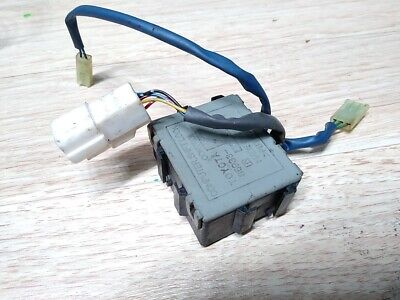

The shift ECU box had some crusty black stuff on the electrical board when i disassembled it, so i am somewhat blaming that (discontinued) box 85933-60010. Intermittently the shift lock solenoid will get 12v and click back and for, like it's "trippin out" but not consistently. The signal off the shift ECU seems to be 1 or 2v when it's not working, and bumps up to 12v when it is. IS this the way that unit normally fails?

Has anyone rewired 85933-60050 that is more readily available with their existing plug to use it instead of the existing unit? Bad idea? I only have the diagram for 1992 model, any way someone could compare theirs to mine?

Attached is the plug i'm most interested in, since i saw another guy a year or 10 back who said it would not fit.


Joined
Feb 10, 2013
Messages
245
My truck is currently doing the same thing so I'll be watching to see what your fix is.

Joined
May 5, 2016
Messages
15
Location
Austin, TX
Oh, and as a follow up....if anyone has an 85933-60050 would it be possible for you to open it up and take a photo of the board? that would really help me track down if i can make it work or not....in addition to maybe comparing your service manual from a 93+ 80 series to mine and making sure all the electrical stuff "matches".

Joined
May 5, 2016
Messages
15
Location
Austin, TX
I bought a 100 series shift lock ECU, going to wire that up to use it and see what happens. I got the wiring diagram from both, and it looks like they do the exact same thing...so we shall see.

Joined
Nov 26, 2015
Messages
147
Location
San Diego, California
Could you post some close up pics of your damaged board, both sides if possible?

Partial voltage is an unusual failure mode but maybe we can spot some bad components that could just be replaced.

Joined
May 5, 2016
Messages
15
Location
Austin, TX
Here's the board, just for fun. I went ahead and replaced it with one out of a 2000 LC using my little home made cord.






Joined
May 5, 2016
Messages
15
Location
Austin, TX
So, as for results, it appears that this one works identically to the original. Power goes to the shiftlock solenoid under the same scenarios according to the 2000 manual i checked, as well as the Key-Lock Solenoid. The true test is obviously over time if it continues to work. The 2000 model manual says "20-28 ohms" and my 91 manual says "21-27 ohms"...that's the only difference i can see.


Joined
Feb 10, 2013
Messages
245
This ended up being my issue too. After replacing brake lights and checking grounds/trailer harness it still wasn't shifting out of park. Got a used one off here from a part out and all is good now.
