80 series steering box porting for hydro assist

Joined
Oct 7, 2004
Messages
2,589
first remove the tre from pitman

next remove pitman from sector shaftialready has factory match marks so dont worry

next remove the most distal bolt from ujoint going to input shaft. you must remove the bolt not just loosen. put matcmarks prior to pulling the ujoint off the input shaft

remove the 2 oil lines from the box

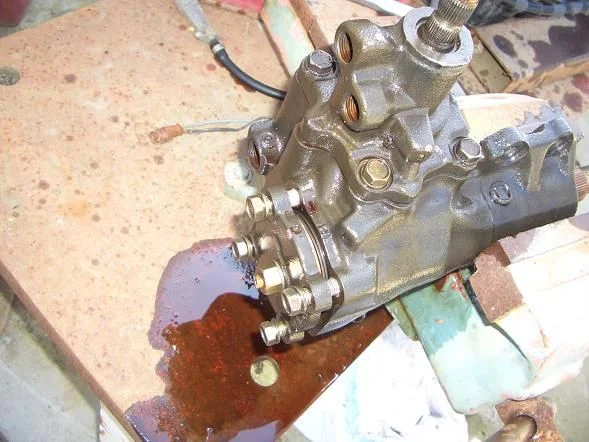

now unbolt the box and put it on the bench in a vice

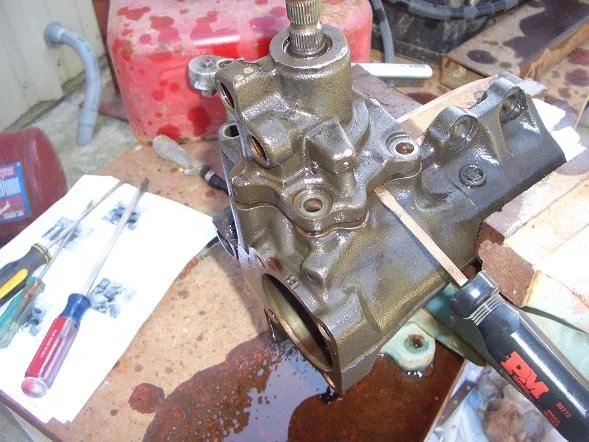

now remove the 4 bolts holding down the scector shaft cover and remove the shaft

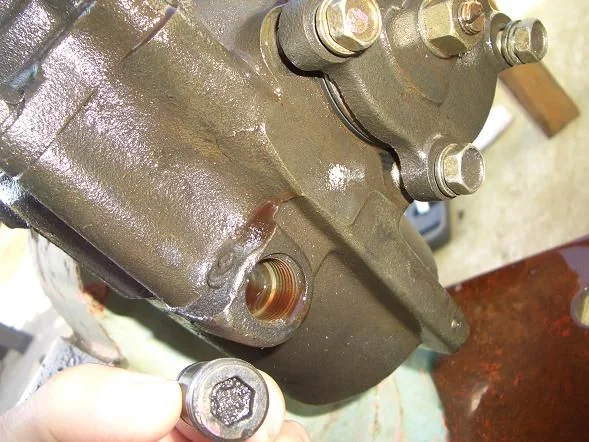

now take a 10 mm allen head and remove this thing in pic

now go to the input shaft and turn it clockwise till it bottoms out. remove the 4 bolts holting on its cover and pull the input shaft assembly out. the o-ring at the cover is tight so you may need a screw driver to get it started

Last edited:
Joined
Oct 7, 2004
Messages
2,589

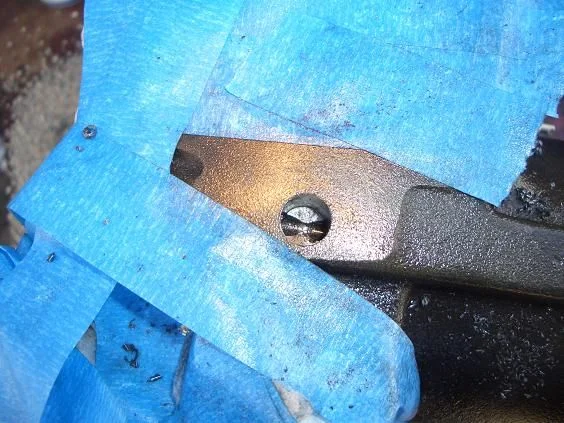

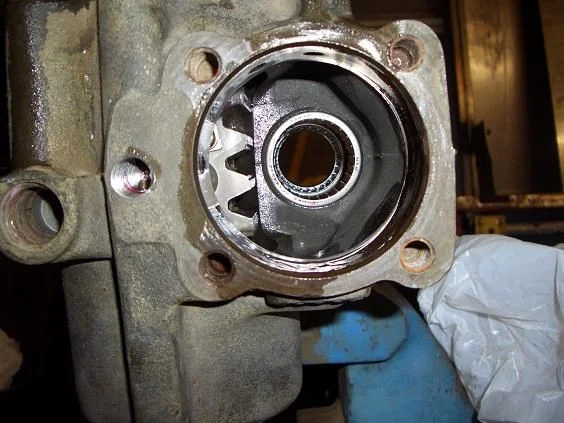

you can see the second hole better here. dont be afraid to drill. take the hole (7/16) a little deeper than I did in the pic. if you dont your 1/4npt tap wont go in deep enough to get a good bite on the fitting and you will need to use one of those shallow taps or cut the bottom off your tap like I did

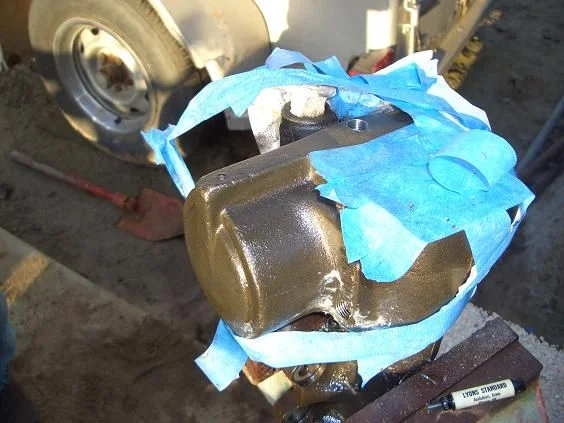

now waste 2 bottles of brake cleaner on your box to clean out all the shavings (fill the housing with papertowels as you drill to minimize the mess)

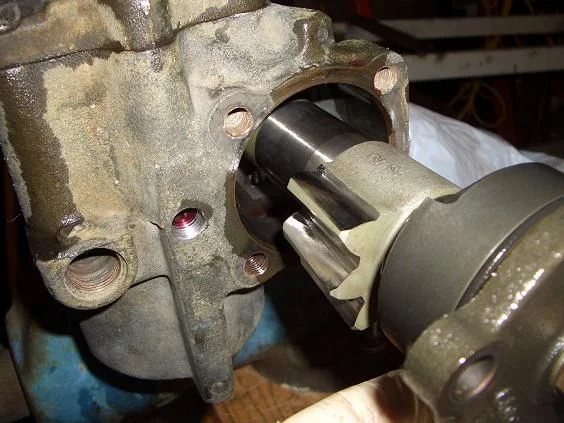

now just put it together. put the input shaft assembly in first and torque to 45 lbs. now put the scector shaft back in. note that the scector shaft has 3 teeth and the middle toth should mesh with the middle tooth of the input shaft assembly

Joined
Sep 6, 2003
Messages
3,185
Location
Tulsa, OK
sweet write up! on my wish list for sure.

Joined
Sep 13, 2003
Messages
2,152
Location
Wichita, KS
Dusty is running a Dana 60 on the front which uses an 8" ram so it isn't an apples to apples comparison. You'll need a 10" ram to work with the stock steering parts.

Joined
Nov 16, 2006
Messages
2,106
Location
Aspen, CO
Dusty is running a Dana 60 on the front which uses an 8" ram so it isn't an apples to apples comparison. You'll need a 10" ram to work with the stock steering parts.

Is that 10" rear mounted? I thought I remembered someone saying that 8" would be needed if mounted on the front.

Joined
Sep 13, 2003
Messages
2,152
Location
Wichita, KS
Is that 10" rear mounted? I thought I remembered someone saying that 8" would be needed if mounted on the front.

That's a good one however unintended.

At any rate I know you'll need at least a 10" cylinder if mounted to the tie rod behind the axle. So as not to hammer the piston it may be necessary to use a 12" ram and shim it to the required length. If you're using the stock steering arms w/o Slee's high-steer I know of no way to mount a cylinder to the front side of the axle. I most certainly would not mount anything to the drag link or in place of the steering damper. That would be a recipe for major breakage.

That's bound to end up in somebody's sig line

I may be an ass but I'm not that mean to immortalize it in a signature.


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,645
Location
Panamá
Website
www.4x4panama.com
Dusty is running a Dana 60 on the front which uses an 8" ram so it isn't an apples to apples comparison. You'll need a 10" ram to work with the stock steering parts.

but you will keep the 1.5" bore in the piston ?

Joined
Sep 13, 2003
Messages
2,152
Location
Wichita, KS
but you will keep the 1.5" bore in the piston ?

Stay with the 1.5" bore. Anything more than that and the PS pump won't be able to flow enough to keep up resulting in steering issues.


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,645
Location
Panamá
Website
www.4x4panama.com
Stay with the 1.5" bore. Anything more than that and the PS pump won't be able to flow enough to keep up resulting in steering issues.

thanks .. I will take this advice as a rule ..


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,650
Location
Las Vegas

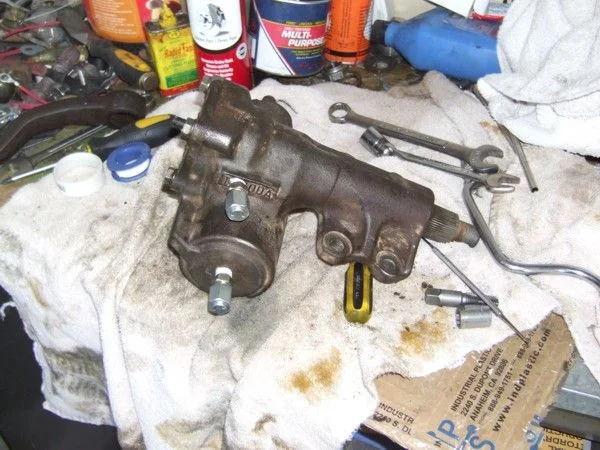

Is there something in the way of the 80 series setup that prevents the mounting of the line to the physical end of the box??

Basicaly like this instead of the way you have it set up.

attachment.php

Joined
Oct 7, 2004
Messages
2,589
im not sure if that way works or not. i know that plumbing it like that would make it difficult to run in an 80 without changing the oe brakeline position.

anyone else know?

i would not use larger than 1.5" ram as the 1.5 is almost too limiting for quick turning such as desert running. my ram still has no leaks and works great-and i didnt change a single seal. do it.


2fpower

SILVER Star
Joined
Sep 5, 2007
Messages
11,851
Location
lenexa, ks
This is an old thread, but does anyone have pics of the mounting of the ram?
