80 Series LED Madness!!!

pfran42

Supporting Vendor
Joined
Apr 28, 2010
Messages
2,578
Location
Atlanta, GA
Edit: Due to many request to tone down the brightness of the front map light, I have sourced new front panel 20 LED front panels. These are still much brighter than the OEM bulbs but are less of a distraction when on while the vehicle is in motion.



I have a very successful LED thread (https://forum.ih8mud.com/100-series-cruisers/467075-led-madness.html) in the 100 section and I would like to bring you guys in on it.

Basically, I have sourced the LED bulbs necessary to outfit the 80s series at a very attractive price point and I am ready to start shipping (if you guys are interested).

I have been doing testing on the 80s series using the great staff at ACC Toyota in Atlanta, GA and Brian has been a huge help (letting me climb around in his 80).


As I understand it, the 80 comes in four interior lighting configurations. Here are the kits.

Note that each includes one spare of each bulb type.

Kit #1: Front Dome, Middle Dome


Kit #2: Front Dome, Middle Dome, Rear Dome


Kit #3: Front Dome, Middle Dome, Rear Dome, Door Lights


Kit #4: Front Dome, Middle Dome, Door Lights


PRICING (this includes USPS small flat rate box shipping to addresses in the United States):

80-KIT #1 - $29
80-KIT #2 - $37
80-KIT #3 - $54
80-KIT #4 - $46


ORDERING INSTRCTIONS

1. Receive my PayPal email address
2. In PayPal, go to notes to seller (Message) section
3. Enter your Mud name
4. Enter your real name
5. Enter your address
6. Enter your kit #

This keeps me from having to jump back and forth between PMs, email and Paypal trying to figure out who is who and what they ordered.


Please PM me for Paypal details. Also, Make sure you include which kit# you are requesting.

NOTE: It makes it WAY easier on my if your Paypal profile information is updated as all I have to do is press one button to print a shipping label!

I'll add more to this initial post as I think of it. Thanks!

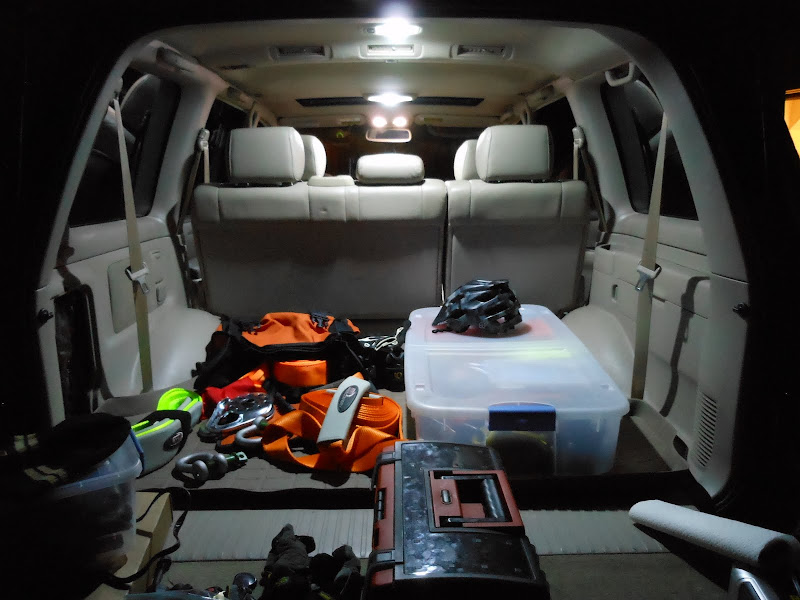

Here are some pics of the LEDs installed on Brian's (ACC Co-owner) 80...

Front dome (stock):


Front dome after 48 LED panel install:


Front dome ON:


Center dome LED:


10 LED door bulbs:


Here are some pictures of the newer type panels and bulbs:




10 LED bulbs (for doors)



PLEASE READ:

A lot of people are sending PayPal payments that just contain the buyers real name. I have no idea what you want, what your Mud name is, and where you want it shipped. There is a section on the buyer side for notes to seller. You need to enter the following information in this area::

-Mud name
-Real Name
-kit number (80 #3)
-Ship to address

With the amount of volume I am working with, it is a royal pain to play detective and comb through multiple threads, forums, PM inboxes, personal email and Paypal transactions trying to figure out that John Smith is really MudLVR69 and that he wants the 80s kit #3 shipped to 305 Nitto Trail, Mudville, LA 71432

...And don't come back at me with the "you should know what kit it is by the amount sent" response. Payments come through in varying amounts depending on how the user tags the payment. I am also selling kits for different makes and models and there is some overlap with kit pricing.

Other than that, thanks for making this a successful thread! I look forward to providing you all with as many kits as necessary. I am also looking into the whole rear exterior thing and have samples en-route.

Last edited:
Joined
Jan 31, 2010
Messages
1,250
Location
US
I have those 48 LED array things in all three domes same color temp.. love them though not cheap $25 or something a piece


sdnative

SILVER Star

Joined
Oct 28, 2007
Messages
3,950
Location
San Diego
Do these arrays have some form of voltage regulation? It is my understanding that voltage spikes in the vehicle will shorten the lifespan of LED arrays considerably.

Joined
Apr 8, 2011
Messages
59
Location
Virginia
From what I've seen the Chinese suppliers include a fuse for each. The LX450 has the #3 configuration I think. Depending on price I might be interested.


pfran42

Supporting Vendor
Joined
Apr 28, 2010
Messages
2,578
Location
Atlanta, GA
I have those 48 LED array things in all three domes same color temp.. love them though not cheap $25 or something a piece
These will be WAY cheaper.

Do these arrays have some form of voltage regulation? It is my understanding that voltage spikes in the vehicle will shorten the lifespan of LED arrays considerably.
Not sure about the voltage regulation. These are not for sale at $25-40 per bulb. At the price point I am going to offer them at, plus including spares in the kit, I think most people will just go with it. This is an alternative to spending $250-400 (on a 100 Series at least) to outfit your vehicle.

I have been running mine for months with no issues.

You can also check out what the 100 section thinks here: https://forum.ih8mud.com/100-series-cruisers/467075-led-madness.html#post6451338


The only thing keeping me from posing kits and prices is that no one has responded to post #1 re: the different configurations on the 80 Series. I have all the bulbs and front socket adapters. I just need to be sure that I am spec'ing these kits correct for you guys!

The 80 I used for testing was a 94 or 95 and it only had front and middle domes. The owner of ACC Toyota told me that some of the 80s came with an additional 3rd rear dome and that some model years came with door courtesy lights.

He even let me test my door bulbs (10 LED) on a later model 80 Series that was in the shop.

Please look at the following and tell me if I am correct if I only offer the following:

Kit #1: Front Dome, Middle Dome
Kit #2: Front Dome, Middle Dome, Rear Dome
Kit #3: Front Dome, Middle Dome, Rear Dome, Door Lights
Kit #4: Front Dome, Middle Dome, Door Lights

(NOTE: ALL KITS WILL INCLUDE A SPARE BULB OF EACH TYPE)

Are all of the above configurations available in the 80 Series?

Thanks for your feedback. I look forward to making these available as soon as I get the above information! (HOPEFULLY TODAY!)

Joined
Mar 31, 2008
Messages
941
Location
Big Island Hawaii
Front dome = map light? My 94 has a front, middle and rear dome light. no door lights. I would be interested in a kit depending on price. Are there any amber bulbs available?
