[S4Cruiser]

Yes, the long ones. I have the inserts.

I might have some in my cache of recently plated hardware. Let me know many you need and I can rummage through and check.



[SMG]

I might have some in my cache of recently plated hardware. Let me know many you need and I can rummage through and check.

Thanks, I think there’s a total of four.



[imyahucklbrry]

Nicely done sir!
I really like running across threads that are far along like this so’s I don’t have to wait for next update.....
Kinda like recording something off TV so you can skip past the commercials



[Xpnsv72fj]

Studs showed up.

First off you are doing an amazing job, your 40 looks awesome and you are truly gifted!

Now for my question where did you buy the studs from and are they longer than stock? I'm running the same rear brake setup and would like to get some longer studs.

Thanks Josh



[S4Cruiser]

Thanks, I think there’s a total of four.

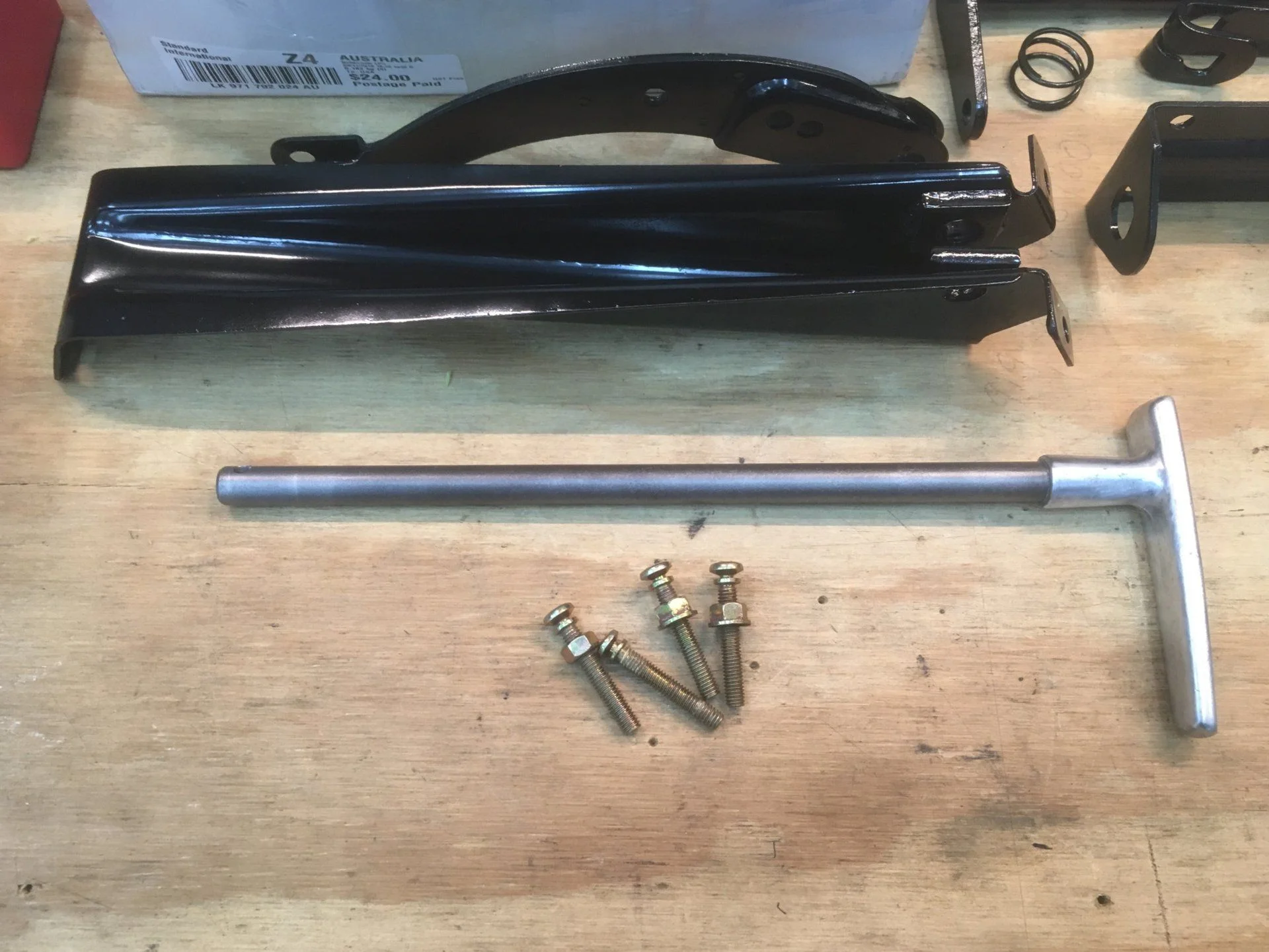

These? See pic below.

I have 4 I can spare. The heads aren’t perfect and those nuts need removing...they must’ve gotten threaded on during plating. I did not attempt to remove them but they should come loose just need caution with the JIS heads.



[SMG]

These? See pic below.

I have 4 I can spare. The heads aren’t perfect and those nuts need removing...they must’ve gotten threaded on during plating. I did not attempt to remove them but they should come loose just need caution with the JIS heads.

View attachment 1890536

Awesome! How much you want for them?



[S4Cruiser]

Awesome! How much you want for them?

I’ll pm you...maybe we can trade for some stickers!



[SMG]

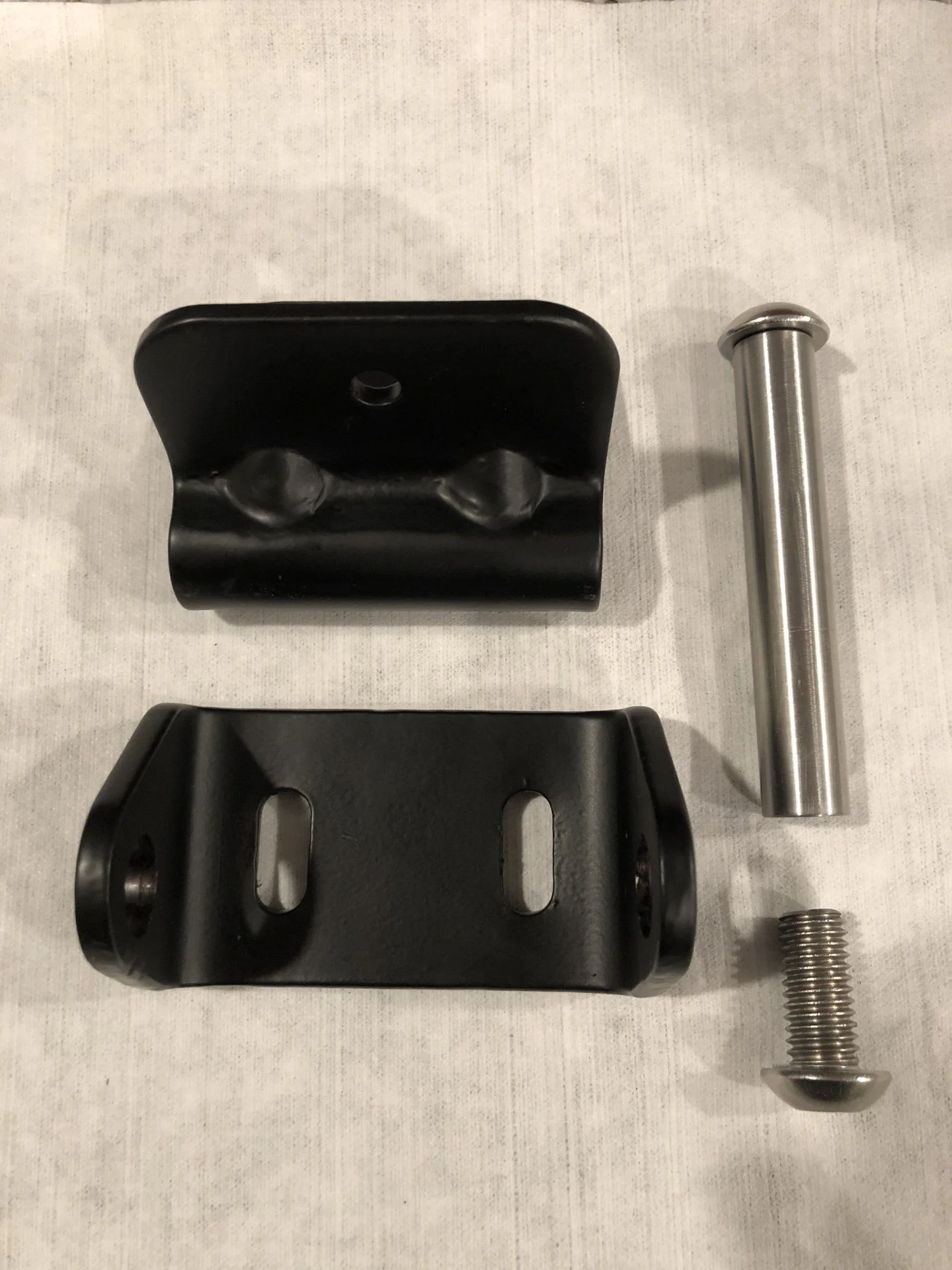

So I know this is a little anal, but I don’t like seeing rust streaks coming from my hinges.
I decide to take apart my bib hinge and replace the pin with a stainless one.

Once I had the hinge apart, I was able to clean up the bores then powder coat each piece separately. This should help with rust forming inside the joint.

Keep in mind, my bib hinge was nasty and I didn’t like the idea of spraying paint on a part that pivots.

The pin was turned on my Lathe and is the exact same width as the hinge body so no matter how much you tighten the bolts, it can’t pinch the hinge tight.

I know, I’m a crazy machinist by heart.



[samc2447]

I have your other hinge pins and they are awesome. If you decide to start selling those bib pins I'll take one.



[SMG]

I have your other hinge pins and they are awesome. If you decide to start selling those bib pins I'll take one.

Thanks for the nice comments.

I thought about it. I’m worried that it would be hard for some people to remove the original pin. I had to grind the welds on both sides to remove it.



[coonassjohn]

Not anal or crazy, just a top quality machinist.



[franklin40]

I have your other hinge pins and they are awesome. If you decide to start selling those bib pins I'll take one.

me too!



[SMG]

Thread update:

Some of these pics have been posted in other threads

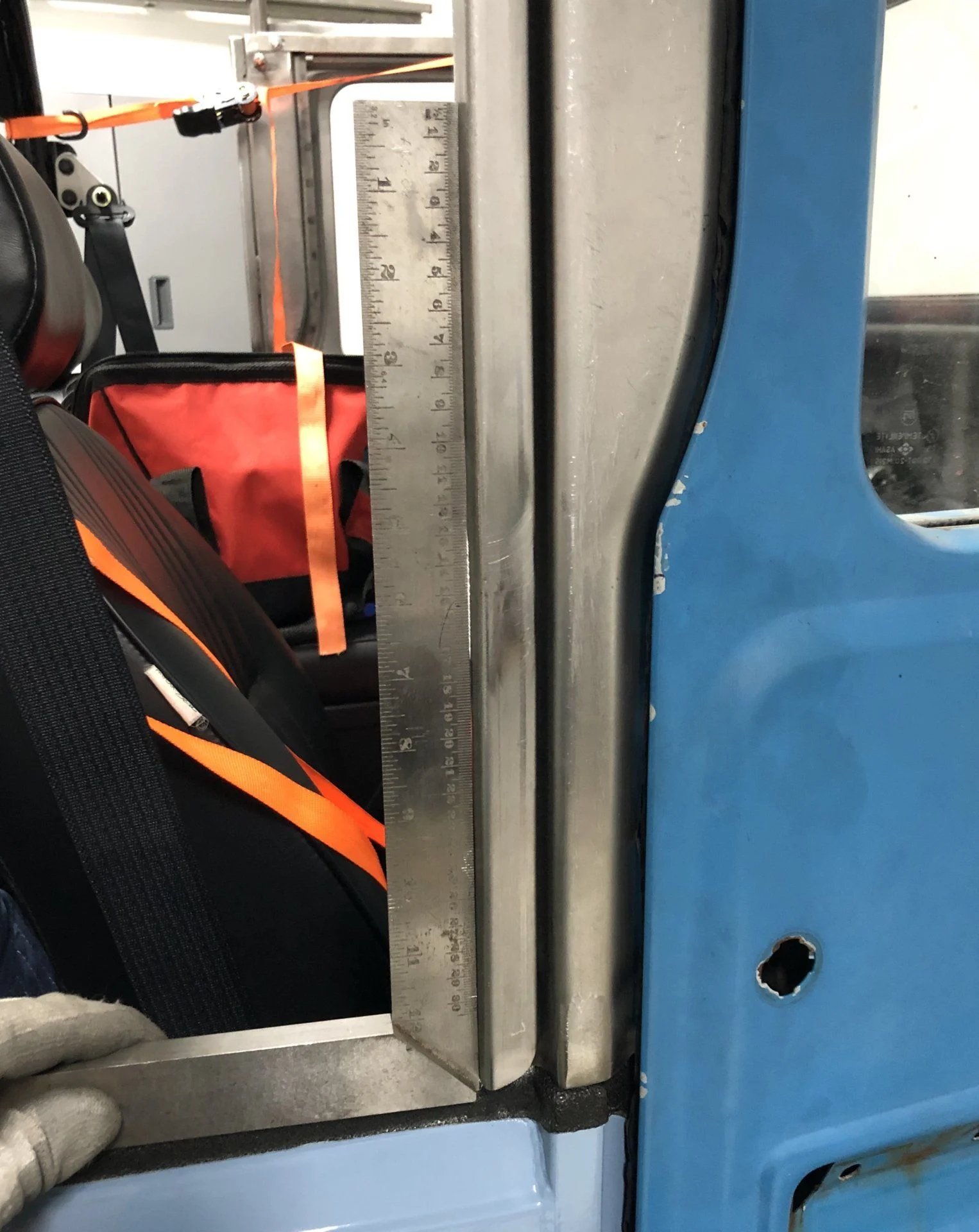

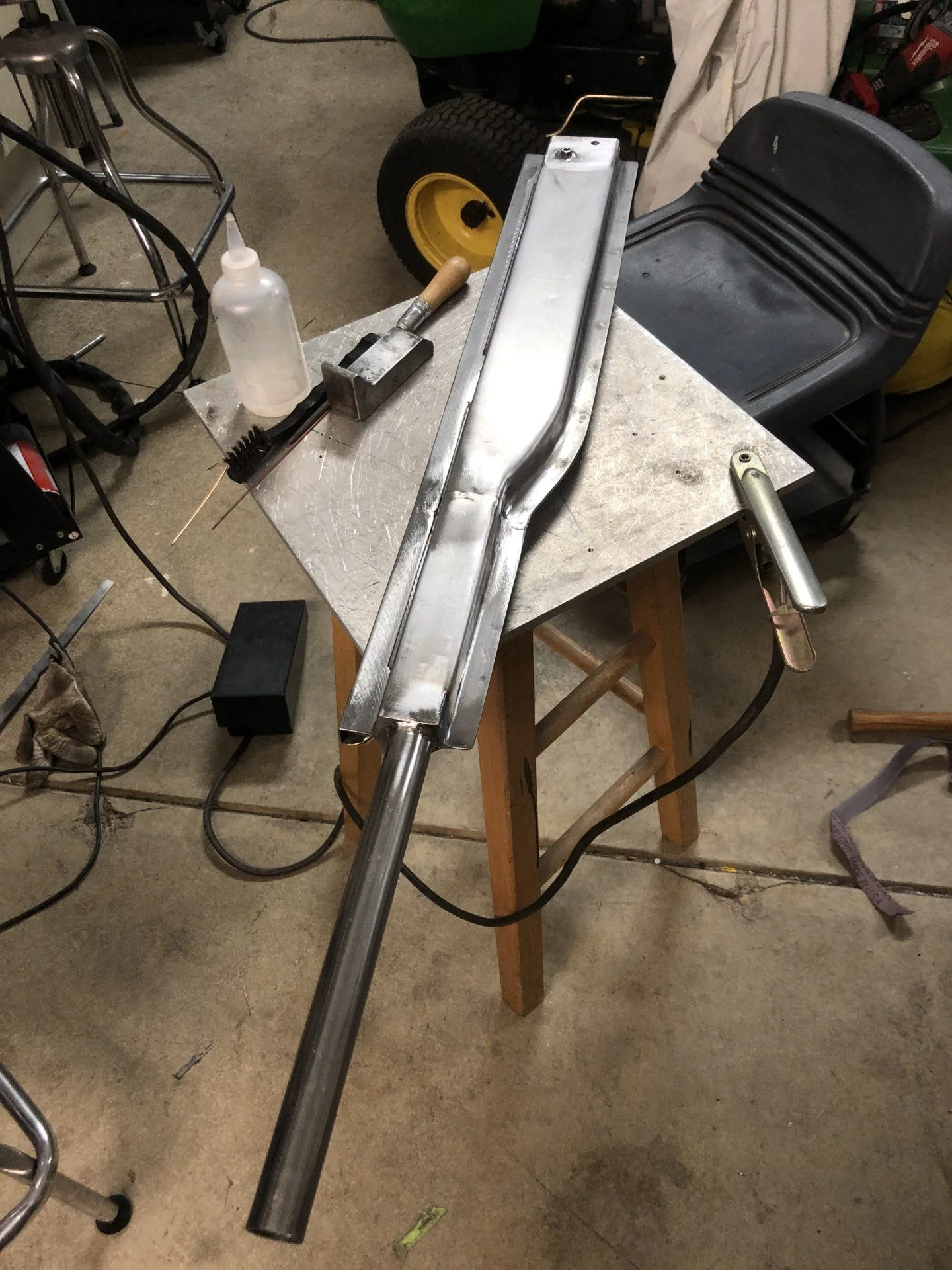

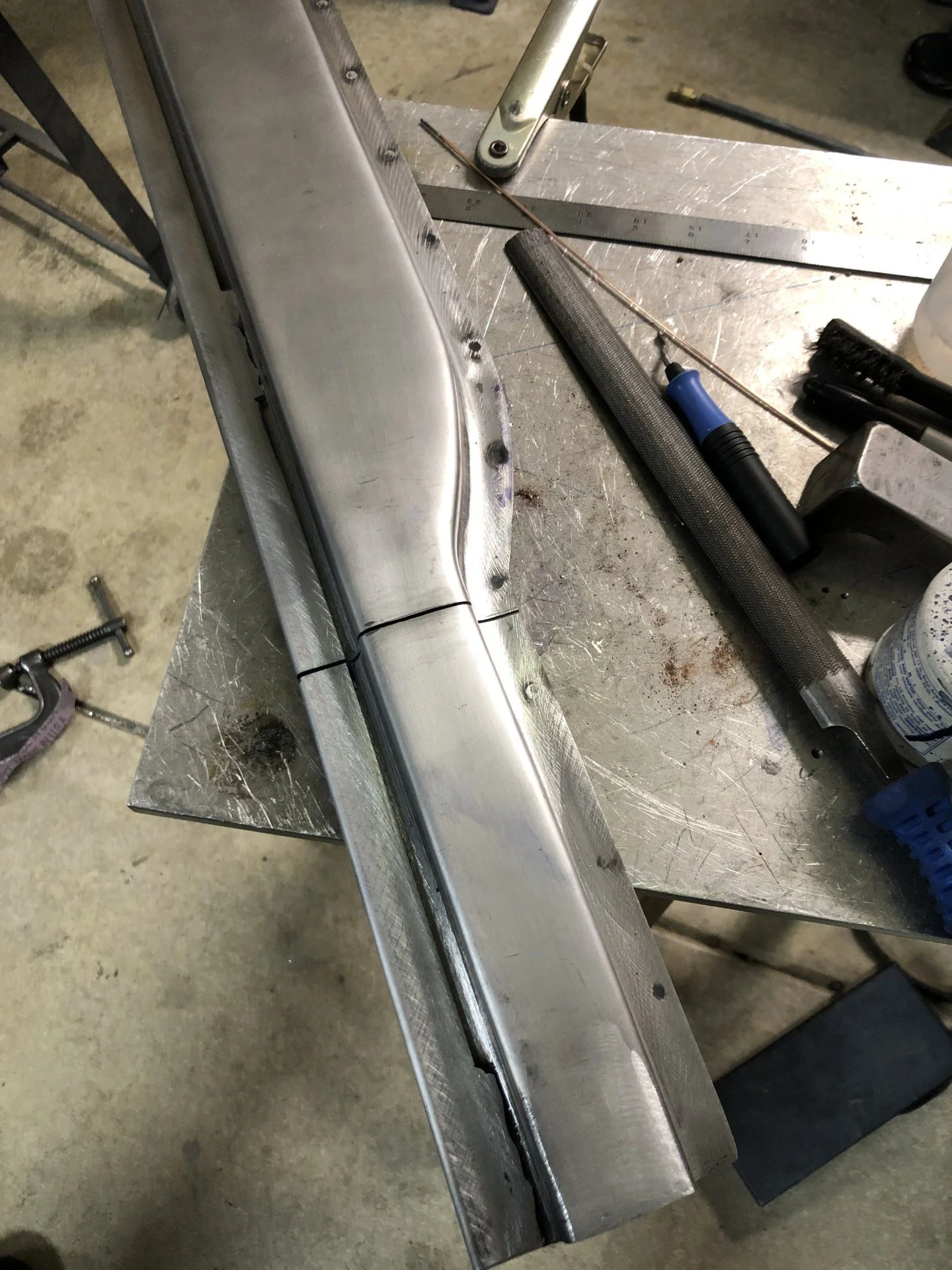

B-pillar has been cut, bent and welded back together to match the late model doors. I decided to cut the front bow sides that normally goes through the B-pillar. I removed about 10” on each side the welded a stub end to the bottom. This will allow me to make height adjustments much easier by only moving the top section of the bow and not have to fight the new bend. I also welded a nut to the top of each pillar this will allow me to run a screw into the bow once the final height has been set.



[SMG]

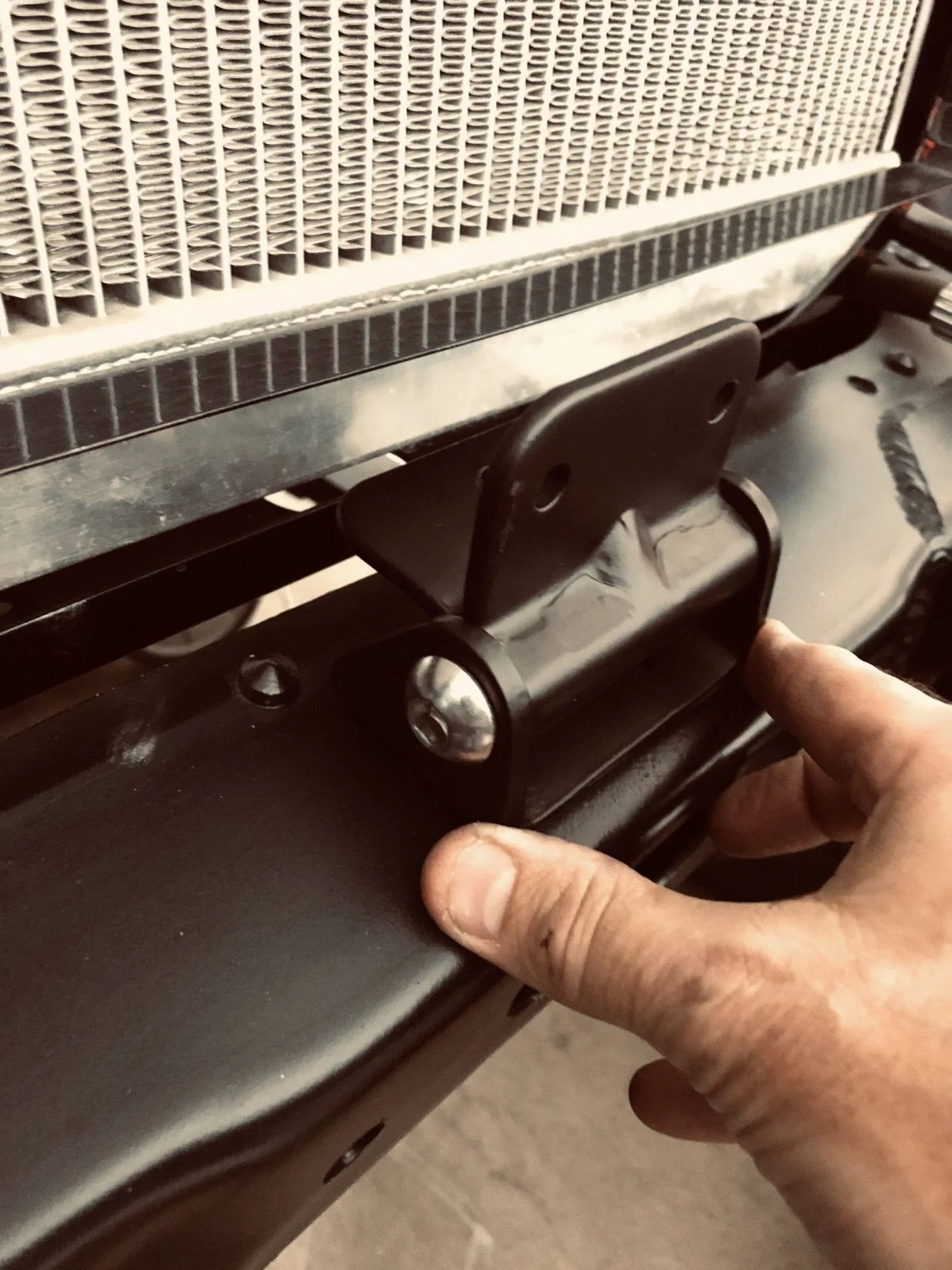

Fitting the windshield to door gap, B-pillar, Bows, Door headers and Quik Hinges has been a vey time consuming.

Did I mention how awesome these Quik Hinges are? Shout out to @69LC for a great product!

Finally happy with the fit of everything.



[SMG]

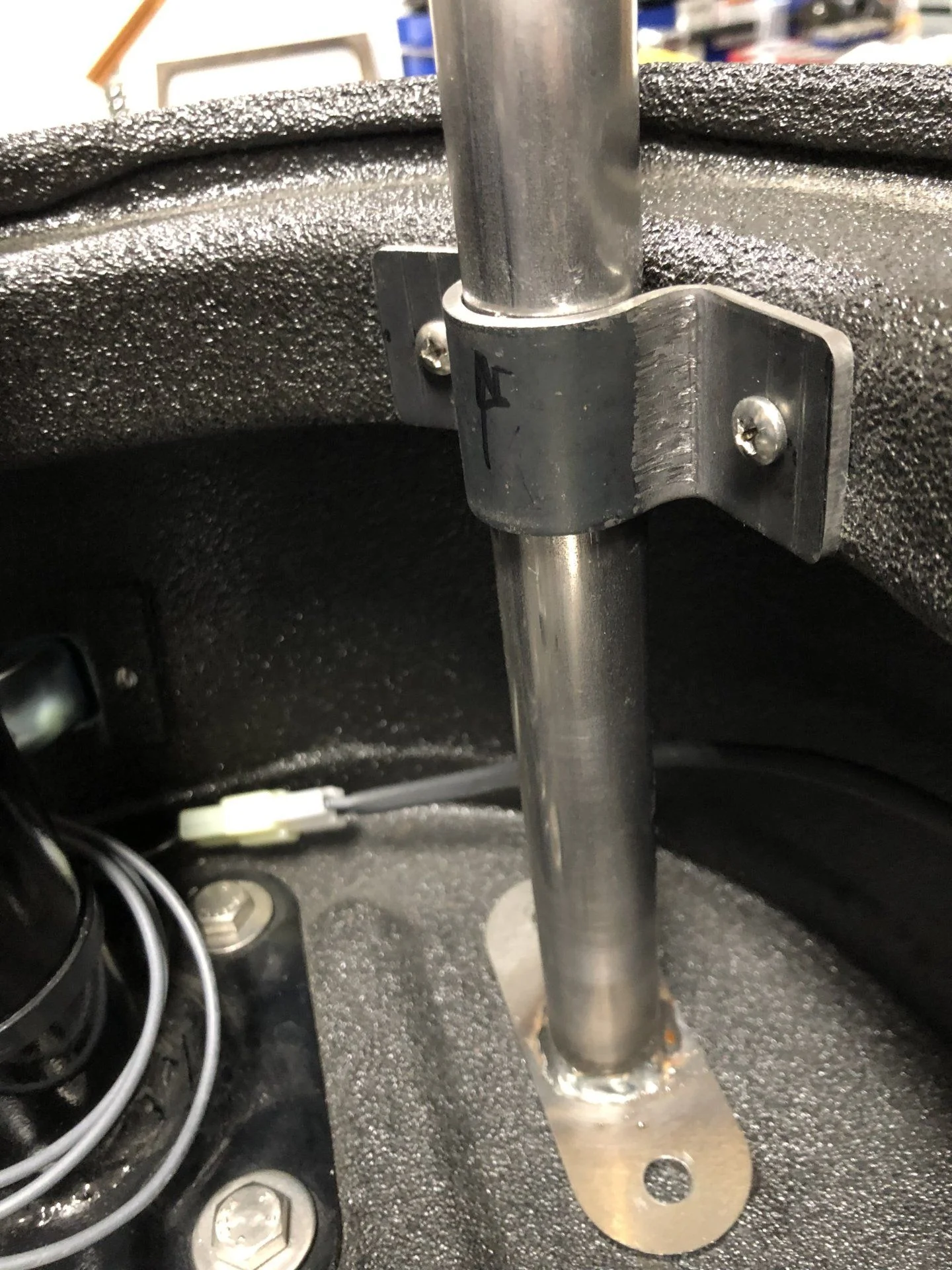

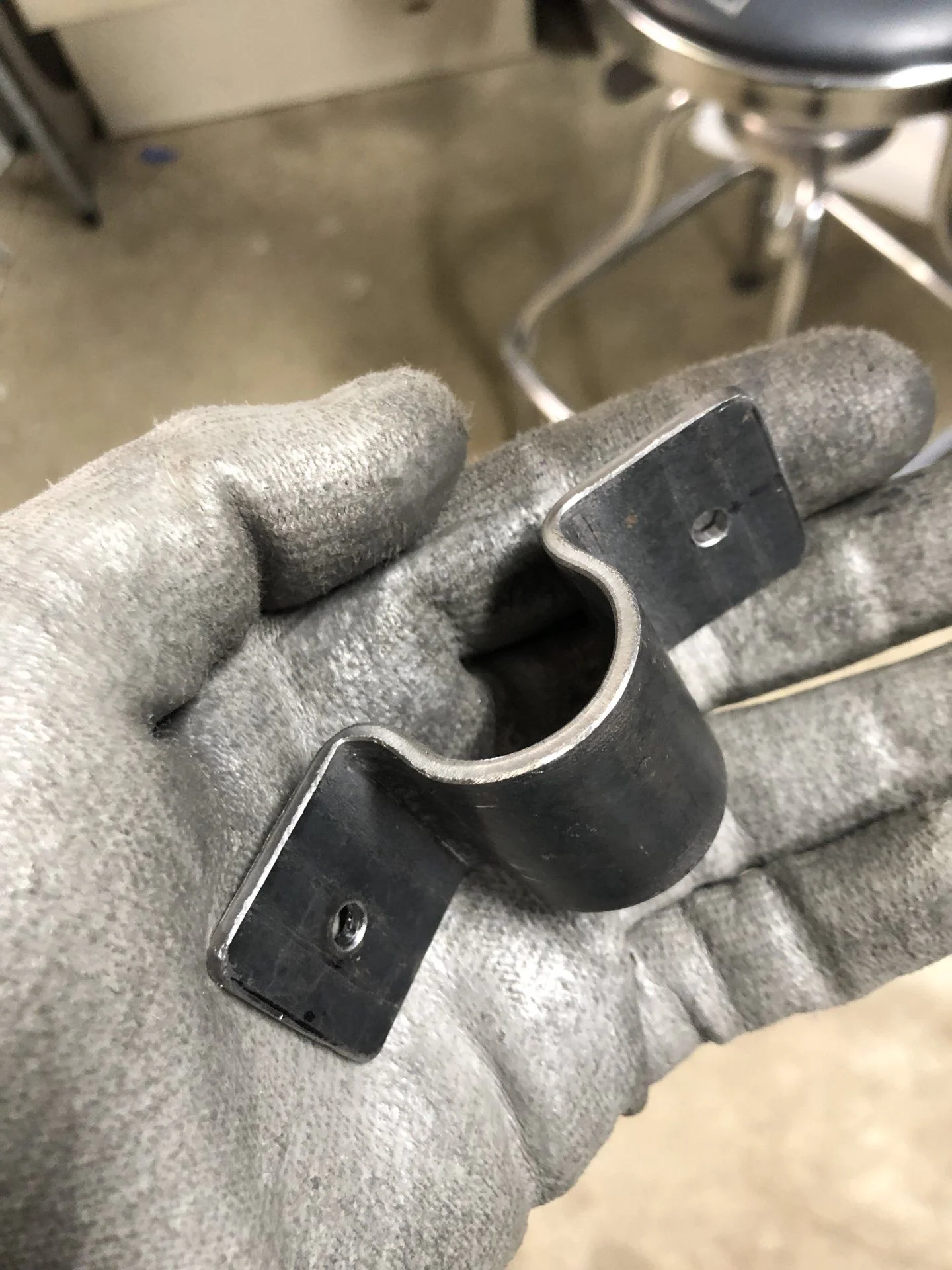

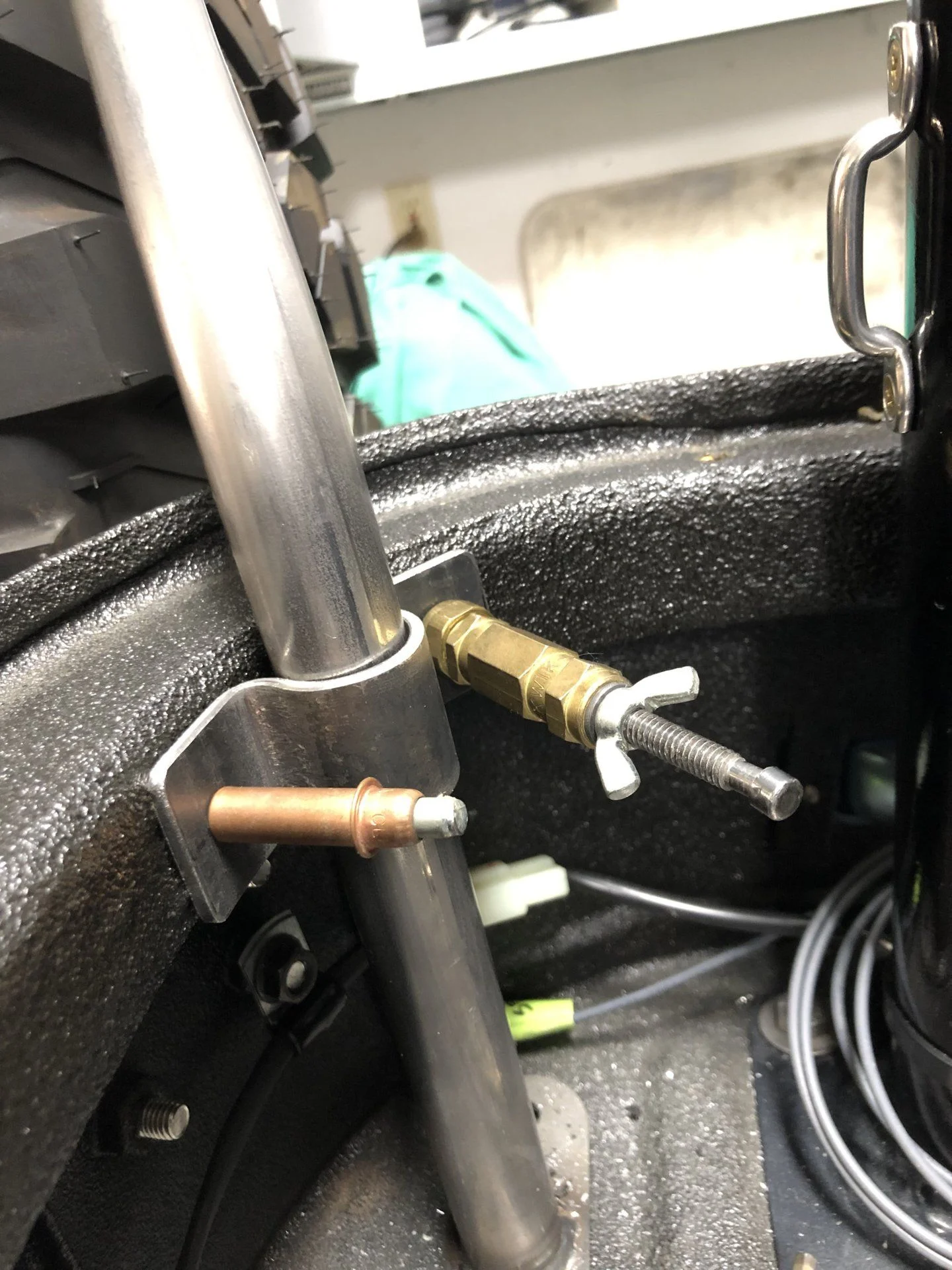

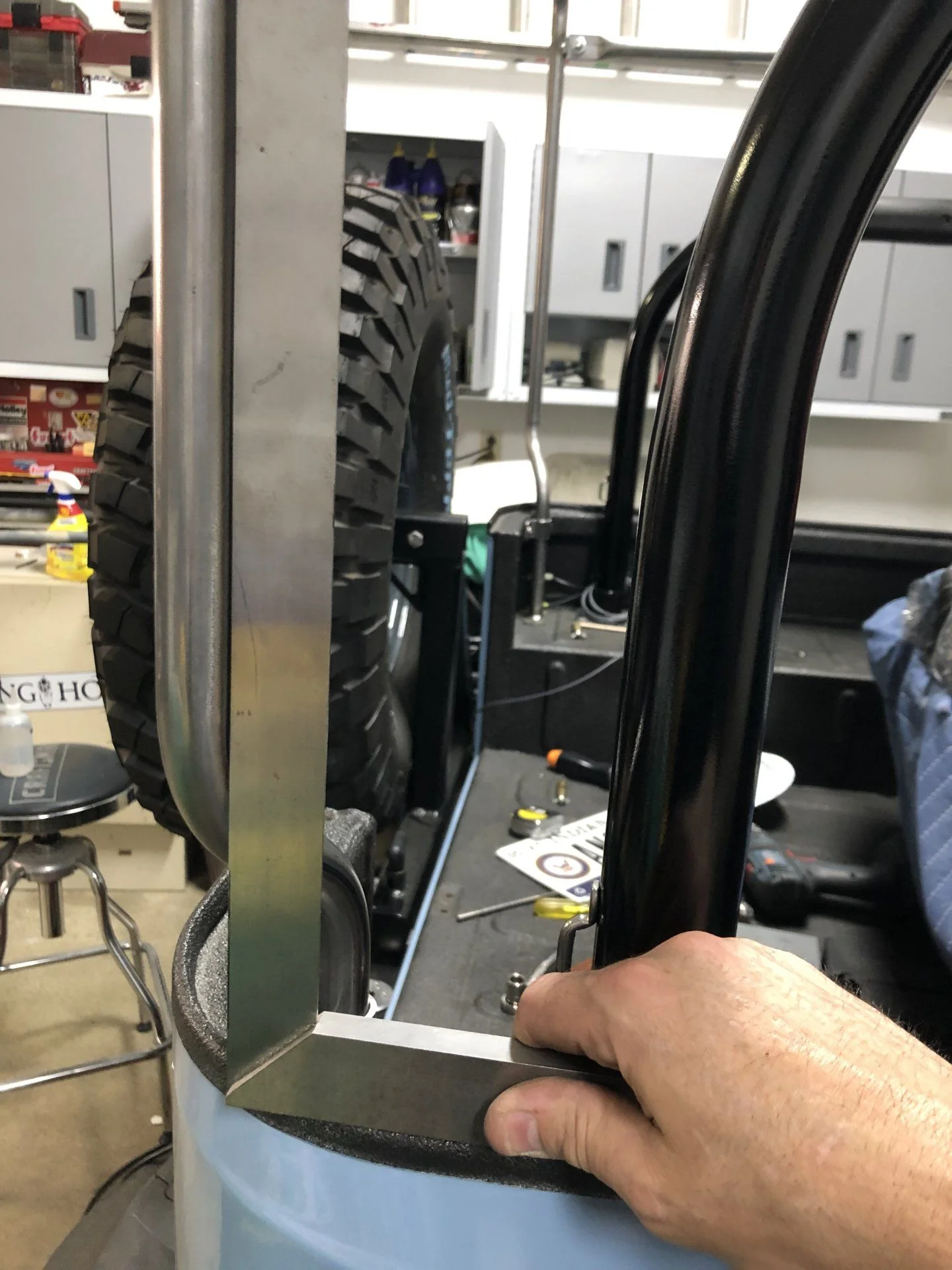

The Real Steel Bow Kit doesn’t come with the rear corner braces. I tried locating some 1” pipe straps from Home Depot but didn’t like how thin and flimsy they were so I decided to make some myself.
These are made out of 11 gage ( probably overkill )



[65swb45]

That reminds me, I’ve got another box to dig out.



[reddog90]

Awesome work so far.



[69LC]

Very nice work sir.



[LSUfj]

The Real Steel Bow Kit doesn’t come with the rear corner braces. I tried locating some 1” pipe straps from Home Depot but didn’t like how thin and flimsy they were so I decided to make some myself.
These are made out of 11 gage ( probably overkill )

My real steel bow kit came with those, but it was just the conduit straps. like you show Can you tell us how you formed the 11ga? I want to do the same.



[SMG]

My real steel bow kit came with those, but it was just the conduit straps. like you show Can you tell us how you formed the 11ga? I want to do the same.

These were bent on a press brake with a 1” round die. I figured since I was set up I might as well make extras just for this reason. I left the legs long so they can be cut to size. You will have to tweak the big radius to fit your tub and drill for the holes. I just used a bench vise for the little bit of tweaking.
Send me a PM.
