'73 FJ40 Ambulance Door Lock Pics needed

[cvan1971man]

We are putting the ambulance doors back together. Anyone have pics of the lock mechanism for both sides of the ambulance doors



[B y r o n]

Seems ambulance doors weren't used until 1975 so may have to settle for pictures from '75 on.



[cvan1971man]

Yeah it is frankensteined. 73 FJ, '77 dngine, tranny and t case, 78 hard top with ambulance doors



[Living in the Past]

Seems ambulance doors weren't used until 1975 so may have to settle for pictures from '75 on.

While not in the US market ambulance doors started 4/72 in some markets. Model would have a letter C in the model number some where after the V.



[cvan1971man]

anyone?



[coinoperated40]

Not sure what you are looking for. Here is a start



[charliemeyer007]

I have a 72 wearing a 76 top.

Scroll down

Land Cruiser Rear Ambulance Style Doors 1975-1984 40 Series

Land Cruiser 40 Series Rear Door, 1975-1984, glass, latches, handles, hinges, weather strip, panels

www.sor.com



[zerotreedelta]

I have a bit captured here on reassembly of the mechanisms/latches if it helps at all. (It's got some of the hanging/weatherstrip, but you can zip around and skip whatever)



[cvan1971man]

You rock... thanks!



[Living in the Past]

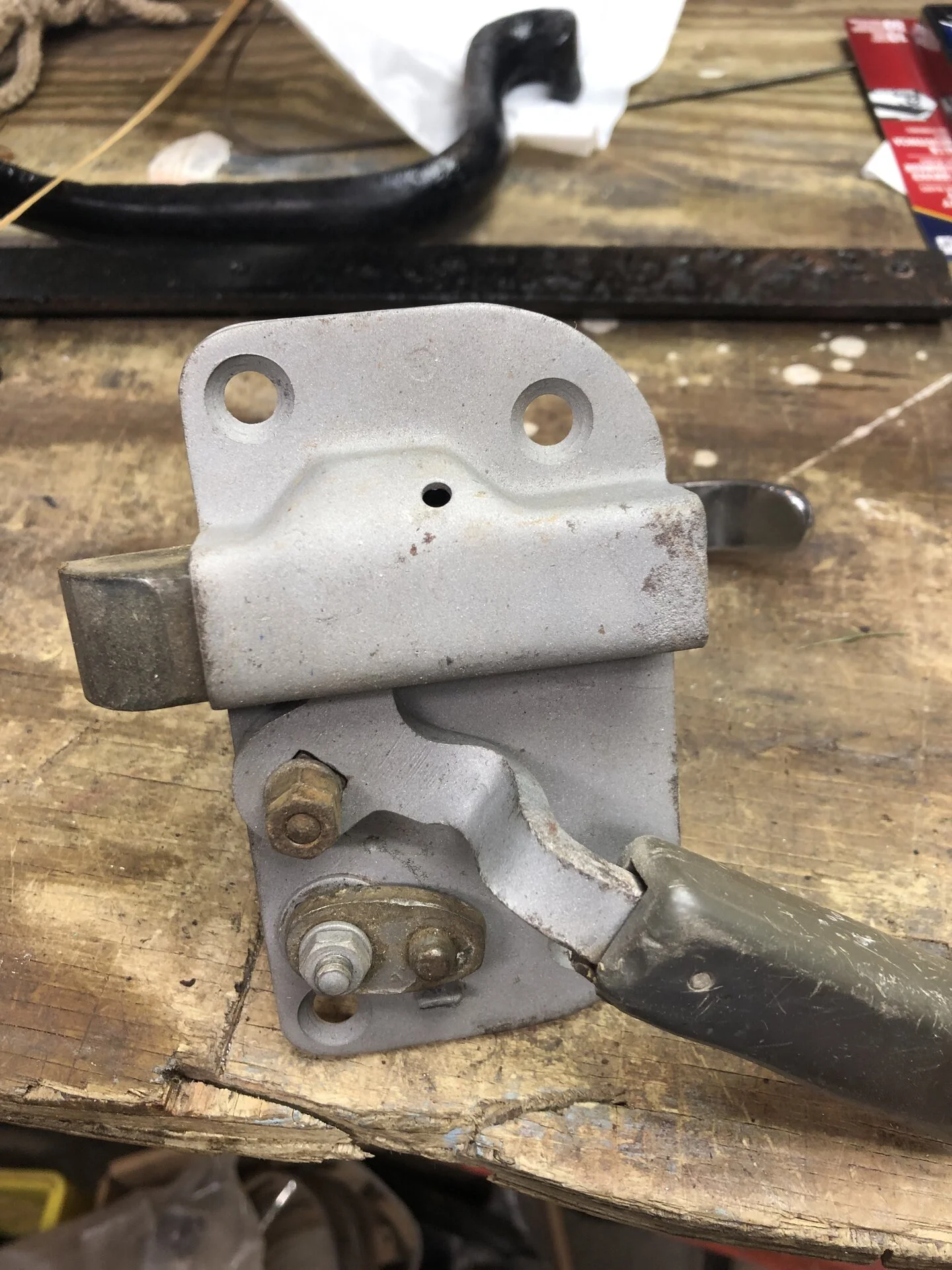

Not sure what you are looking for. Here is a startView attachment 3452327

Hold it up to a mirror. That a left side door hand/latch. Right side matches the ambulance doors.
