Are the four engine instruments ( oil press., fuel quantity, water temp, and voltage) on a HJ75 a single cluster or are they four separate gauges?
Thanks, .....1978HJ45



[ForealBoreal]

Are the four engine instruments ( oil press., fuel quantity, water temp, and voltage) on a HJ75 a single cluster or are they four separate gauges?
Thanks, .....1978HJ45

it really depends on what model and what market it is coming from.
I have seen 70s come with just the speedo and the simple ones.



[Gun Runner 5]

1986 HJ75 Ute from Australia. The primary fuel quantity indicator is broken ( red needle is physically missing).
.....1978HJ45



[PhrogsPhorever]

They were all separate on my '85 BJ-70 cluster and '97 HZJ-75 cluster.



[ForealBoreal]

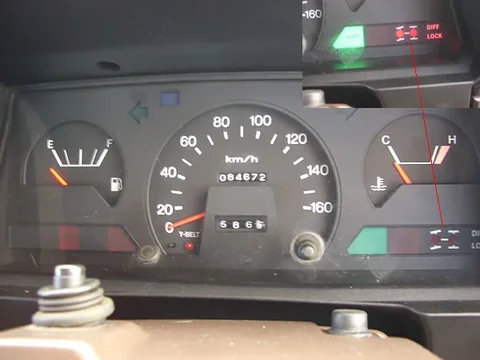

this is probably the style of dash cluster your wondering about.

Base models seemed to get this style of cluster vs the tach styled one.

Photo courtesy of Crushers (Luxury Imports)



[Gun Runner 5]

Even though this photo is not from the actual vehicle this is the cluster I am referring to.
.....1978HJ45



[PhrogsPhorever]

The fuel and oil will be paired up, when you pull the cluster apart you just remove the bolts on the back and the fuel/oil gauge pair will come right out. The BJ70 cluster has individual gauges vice the pairing.



[wongtsenhin]

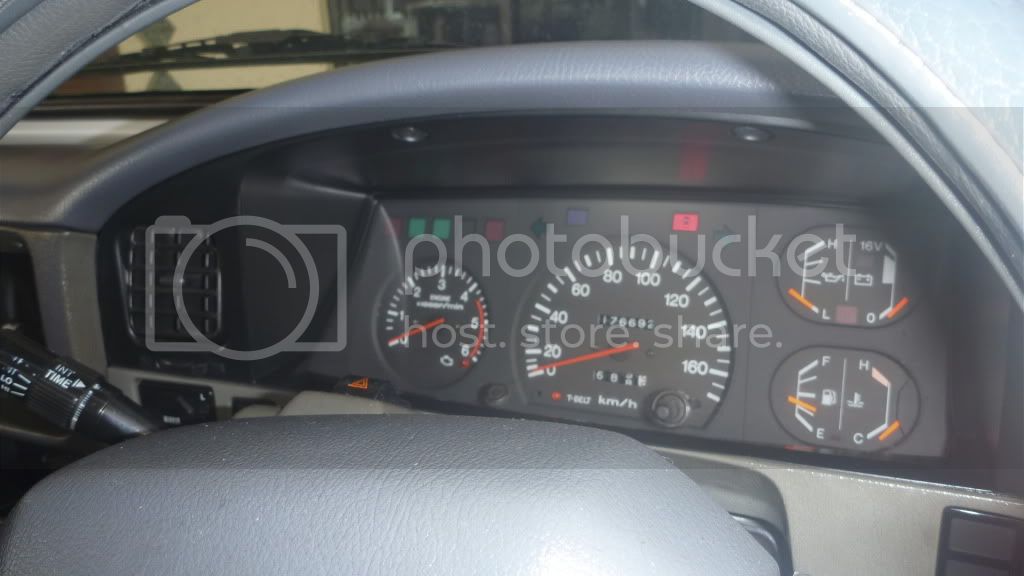

Here is my 12v cluster gauge.
If you after this cluster. please to be careful with 12v or 24v. On the voltage gauge 16v stands 12v and 32v goes to 24v.



[Gun Runner 5]

Thanks Wongtsenhin......................1978HJ45



[wongtsenhin]

You're welcomed! 24v is also stated on the reverse side of the cluster meter.



[JuanJ]

Hello wongtsenhin,

Is your cluster from an early model Prado?

Just curious.




Juan



[kzj78]

Hello wongtsenhin,
Is your cluster from an early model Prado?
Just curious.
Juan

Looks exactly the same as my 94' KZJ78 - so I'd say yes it is.



[VajaFJ70]

Here is my 12v cluster gauge.
If you after this cluster. please to be careful with 12v or 24v. On the voltage gauge 16v stands 12v and 32v goes to 24v.

mine is just like this



[wongtsenhin]

This is a Jpn domestic model dash from KZJ78. Is a late Prado not early. Early model is still having the "squarish" dash.

Hello wongtsenhin,

Is your cluster from an early model Prado?

Just curious.




Juan



[JuanJ]

Hello,

Thank you for the explanation. So you mounted it into your 75. How difficult is it?




Juan



[wongtsenhin]

Slight mod to edge of the dash, then direct bolt in.

Hello,

Thank you for the explanation. So you mounted it into your 75. How difficult is it?




Juan



[Clint79]

Would that be to miss the bolts for the fold down window part Wong



[wongtsenhin]

Absolutely correct! That's the bolt hinder the dash. Clint! No problem for your 79 if going for this dash. No fold down windscreen.

Would that be to miss the bolts for the fold down window part Wong



[Charlie Christ Abela]

Hi guys, maybe you can help me a bit. I have an instrument cluster that appears to be from KZJ78 as wongtsenhin but it is 24v. Can you please help me maybe guide me what their wiring on the back is for? For example which number is for the fuel gauge, oil gauge etc please? I would appreciate as much help as possible as I am new with Toyota



[tmarx]

Slight mod to edge of the dash, then direct bolt in.

So did your 75 initially have the cluster without the rev counter and then you swapped this cluster in after your 1HD-t swap ?
