Damnit, more things I want for Trail Tailor! Lol

ENABLER BROTHER!!

H



[TRAIL TAILOR]

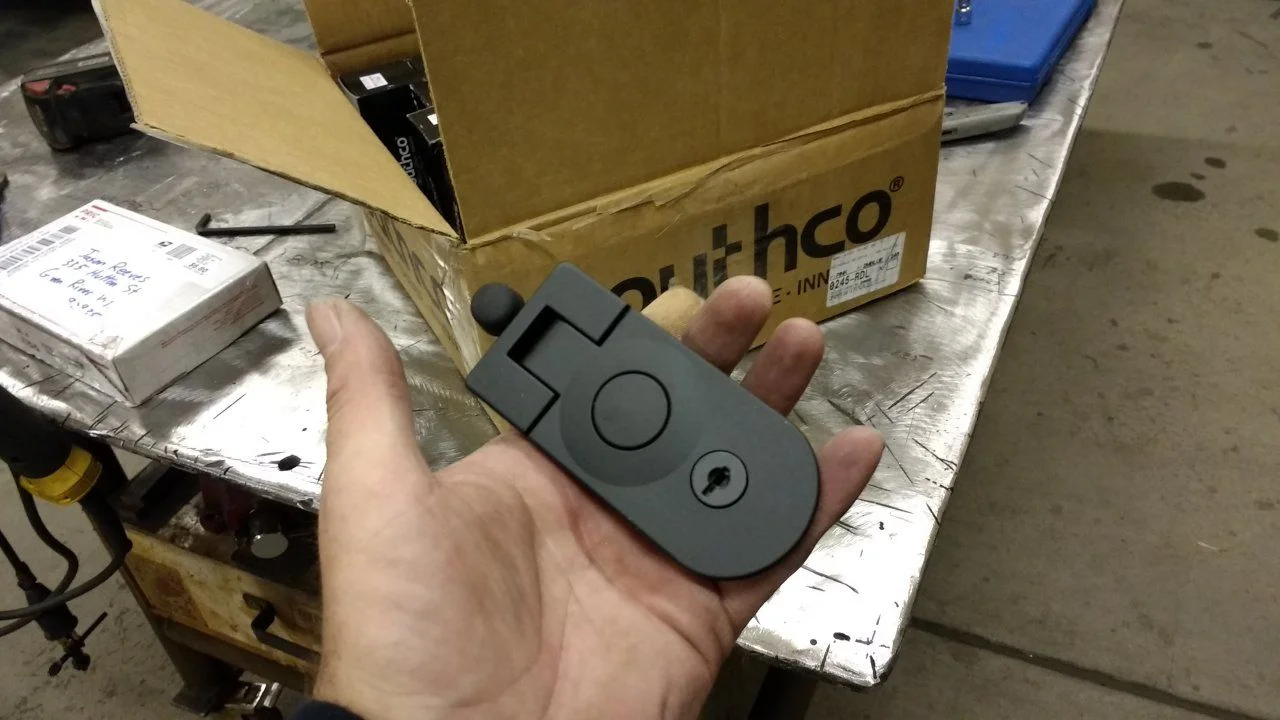

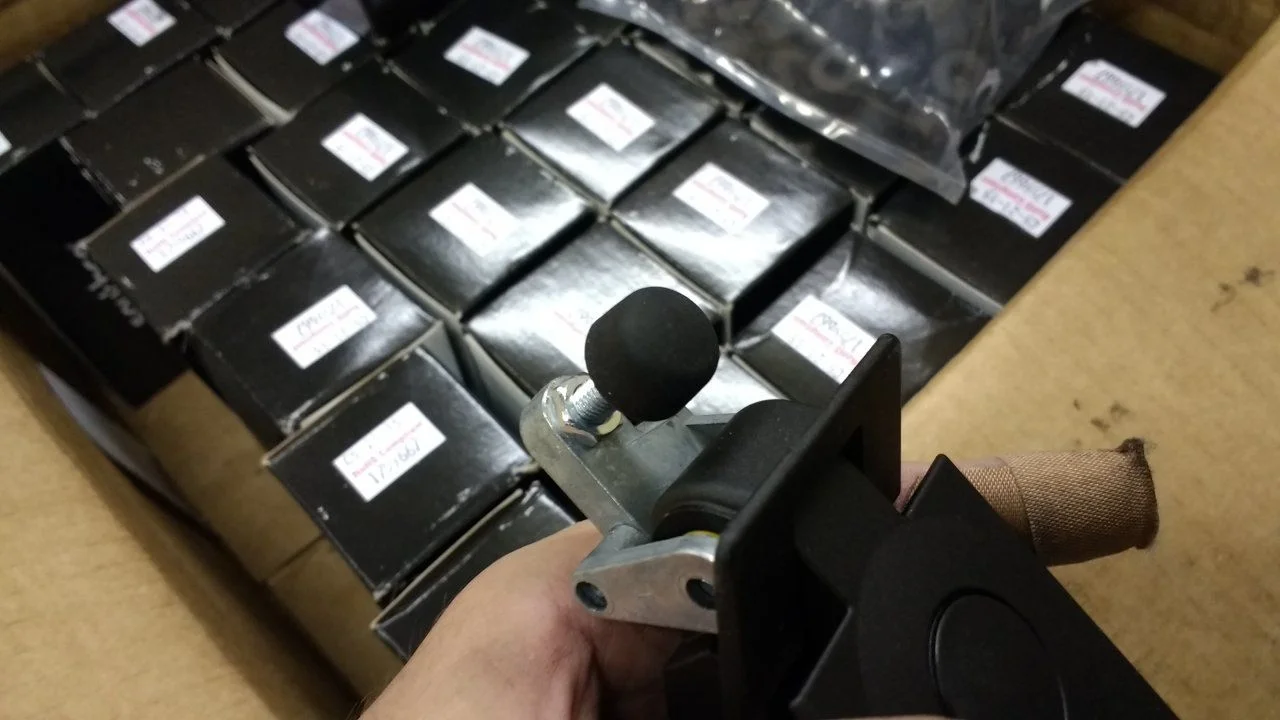

100- Southco locking latches with bumper pads arrived today.

J



[TRAIL TAILOR]

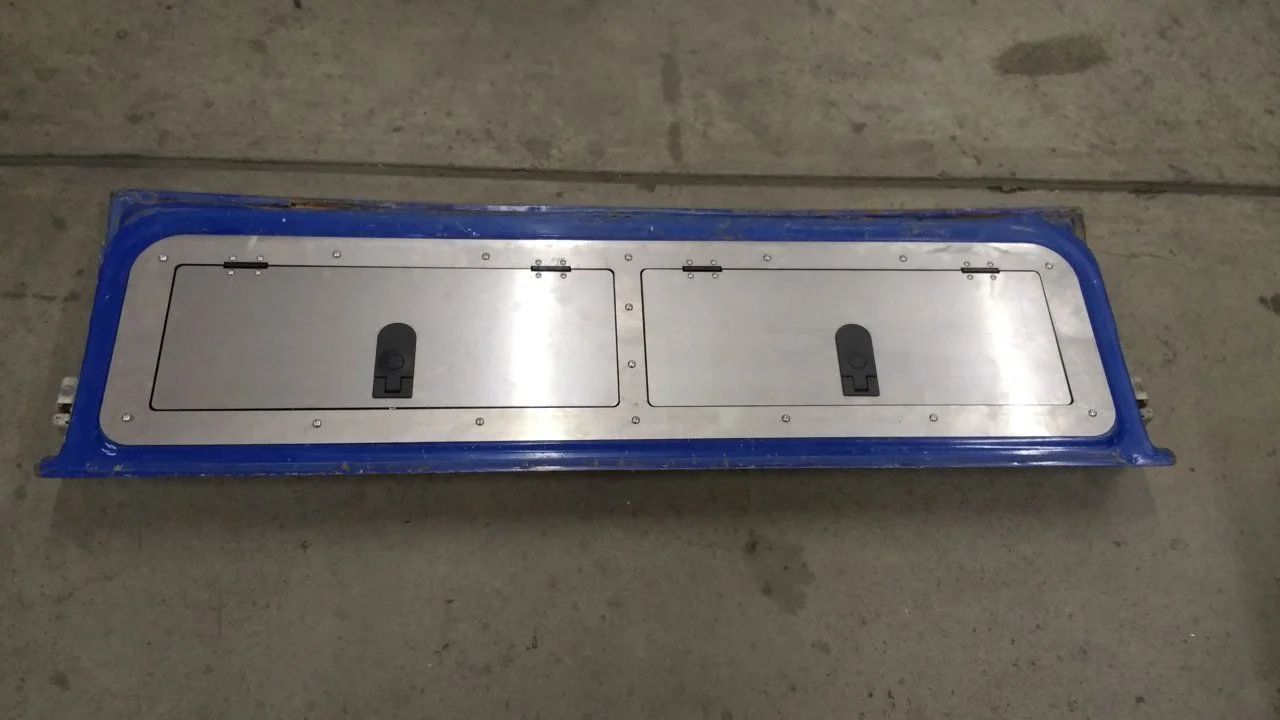

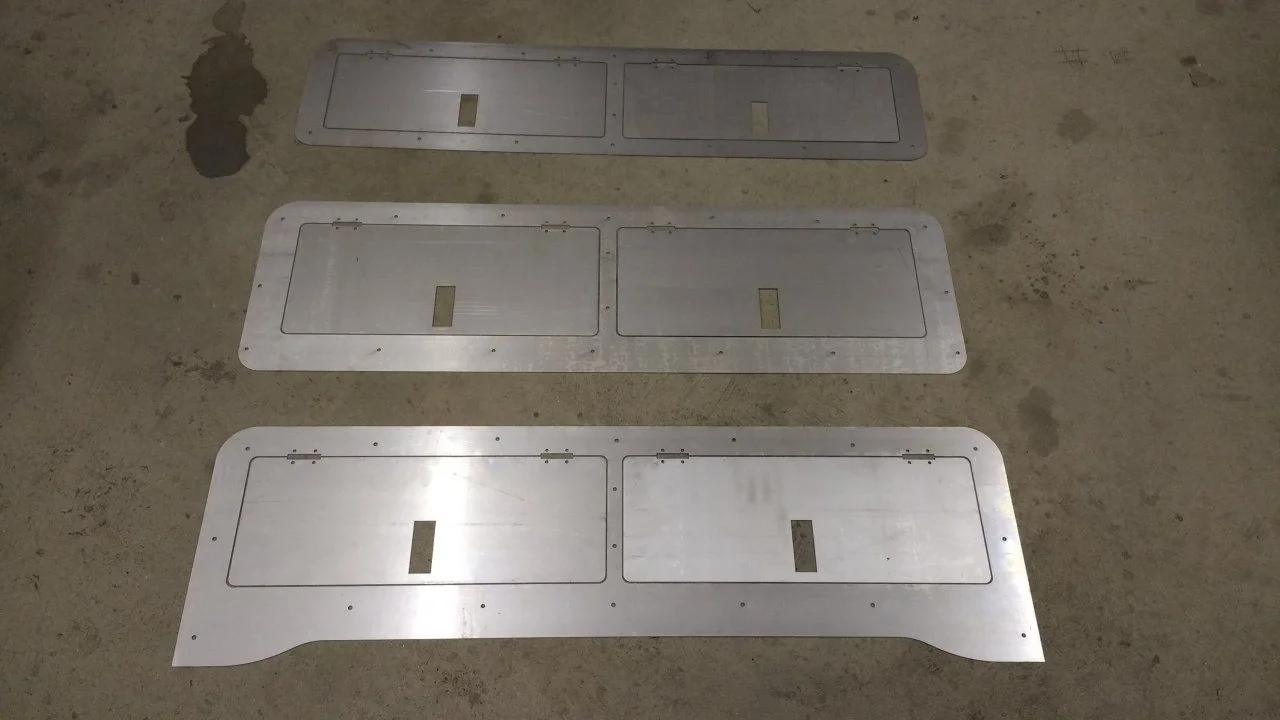

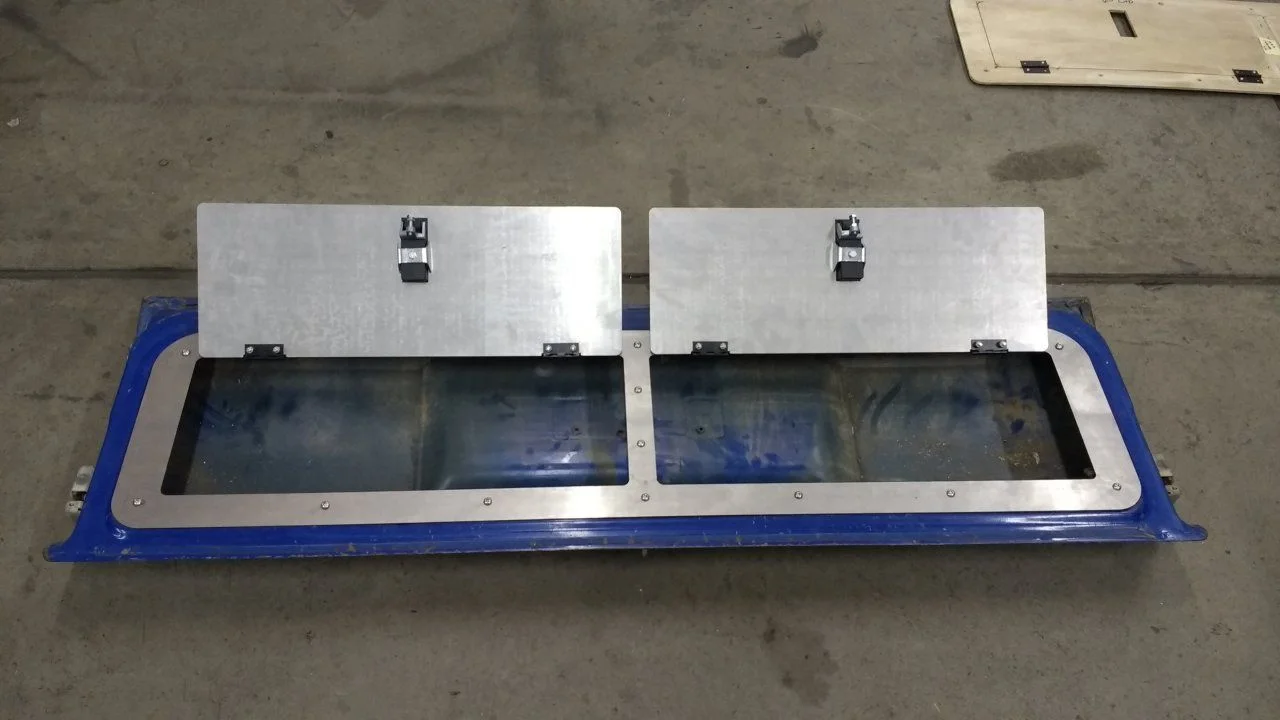

Mock ups arrived. Need a couple small adjustments and they will be ready to run.

Quarter panel scans should be done tomorrow as well.

J



[mitchbenson]

Mock ups arrived. Need a couple small adjustments and they will be ready to run.

Quarter panel scans should be done tomorrow as well.

J

View attachment 1328684 View attachment 1328685 View attachment 1328686

cannot wait for these to arrive @reevesci. you are a magician.



[TRAIL TAILOR]

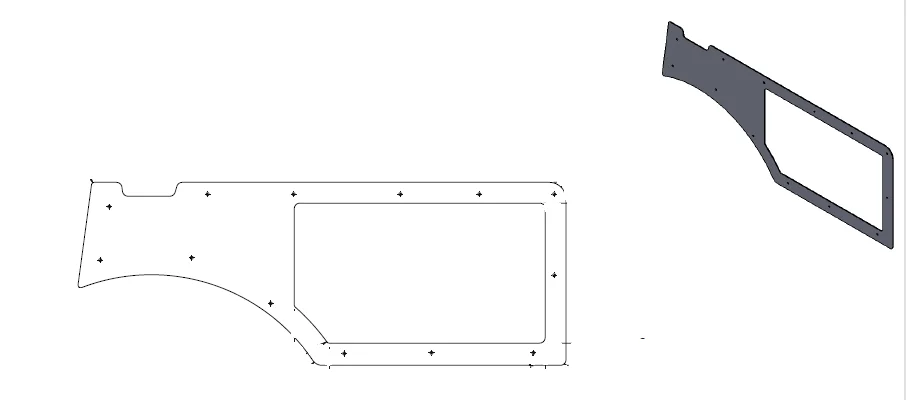

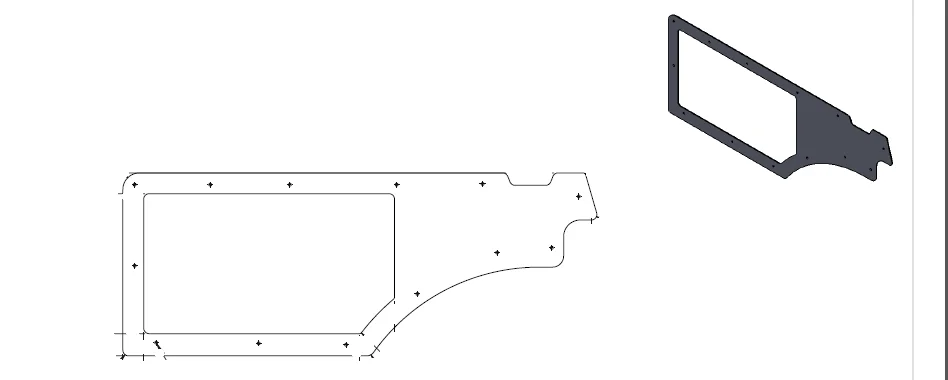

1st Rev 60 panel scans.

J



[LAMBCRUSHER]

are you using solidworks?



[TRAIL TAILOR]

are you using solidworks?

Not sure what my laser guys are using on this. I know the designer said SW wouldn't adjust some of the parameter properly after inputting the travel points from the 3D scanner.

So I doubt it.



[TRAIL TAILOR]

Just left the cutters and the lids are ordered. Ishould have them in hand on or before the 27th.

The 60 panels are a week or so behind the lids.

J



[echodeuce]

I'm still on the hunt for my first FJ62 and I'm going to want this mod. Tag for future reference.



[hoon77]

Looking killer!



[dmjay]

Oh yeah baby!



[TRAIL TAILOR]

I've had a couple of questions come up in the past couple of days... Here are my answers to these questions...

#1) Larger door size opening. I will NOT make the door larger. Why, the latch rods become exposed when you make the doors larger and anyone that has bent or damaged these rods know the tailgate never opens the same again. However, the rods can still be damaged from other items, but with them being covered from a top exposure point, it will help reduce this.

#2) Gas struts will not be installed. People are welcome to add these themselves, if they are so inclined.

#3) 6061 material was chosen because it is has a harder Brinell rating than 5052, but much is softer , yet cheaper than the 7075 I original wanted to go with. It was a stronger but more price suitable material. Happy medium, if you will.... plus is much more scratch resistant than a softer grade. If you guys use your rig like I do. I want a surface that will stand the test of time from rugged use.

#4) Why 1/4" vs 3/16"... I can take a piece of 3/16" x 10" x 3' long and it deflects quite a bit when I twist it by hand. The longer the piece the easier to twist of course. The same size 1/4" piece still deflects, but it is about a quarter of the range. Overall just a much stronger piece of material. I've loaded one of my dual doors up with over 300#s with no issues.

Thanks,

J



[TRAIL TAILOR]

ALL,

I have put in my initial order with the cutters. They will extend me until Monday morning if I need to add more.

If you are interested, let me know.

Jason



[TRAIL TAILOR]

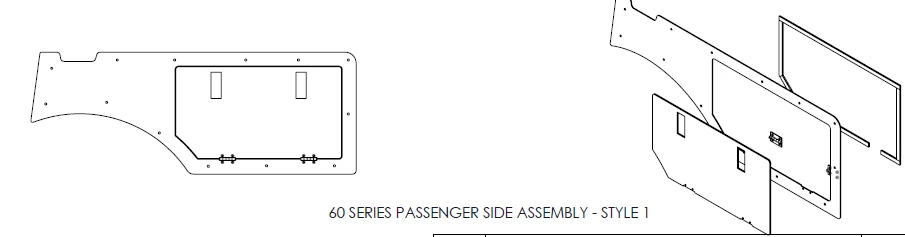

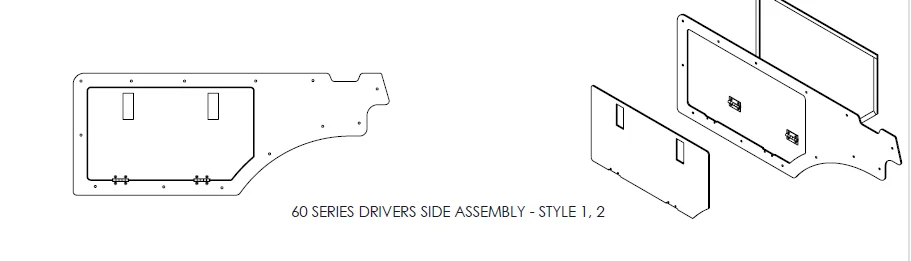

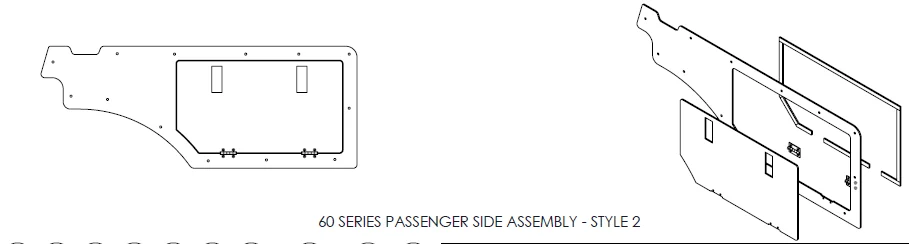

Finalized the quarter panels today and the sample will be in hand next week for initial fit.

These will also be available withOUT doors for those just wanting to replace the old upholstery panels. @hoon77 ....



J



[Kirk Hover]

very nice looking panels, i have a 62 series,will these panels work? Let me know



[TRAIL TAILOR]

The front tips have to be cut off and will work fine.

J



[Kirk Hover]

do you have them in stock? let me know details



[TRAIL TAILOR]

They are about 2.5 weeks out. Lids will be here late next week.

J



[Kirk Hover]

price? how do i go about ordering or reserving panels and a lid



[TRAIL TAILOR]

Sending PM with details.
