I need to build a car trailer to tow my bush truck around on. I want to keep it narrow, to make it a bit easier to tow. And i want to keep it pretty close to the ground so it isn't too tippy with a landcruiser on it

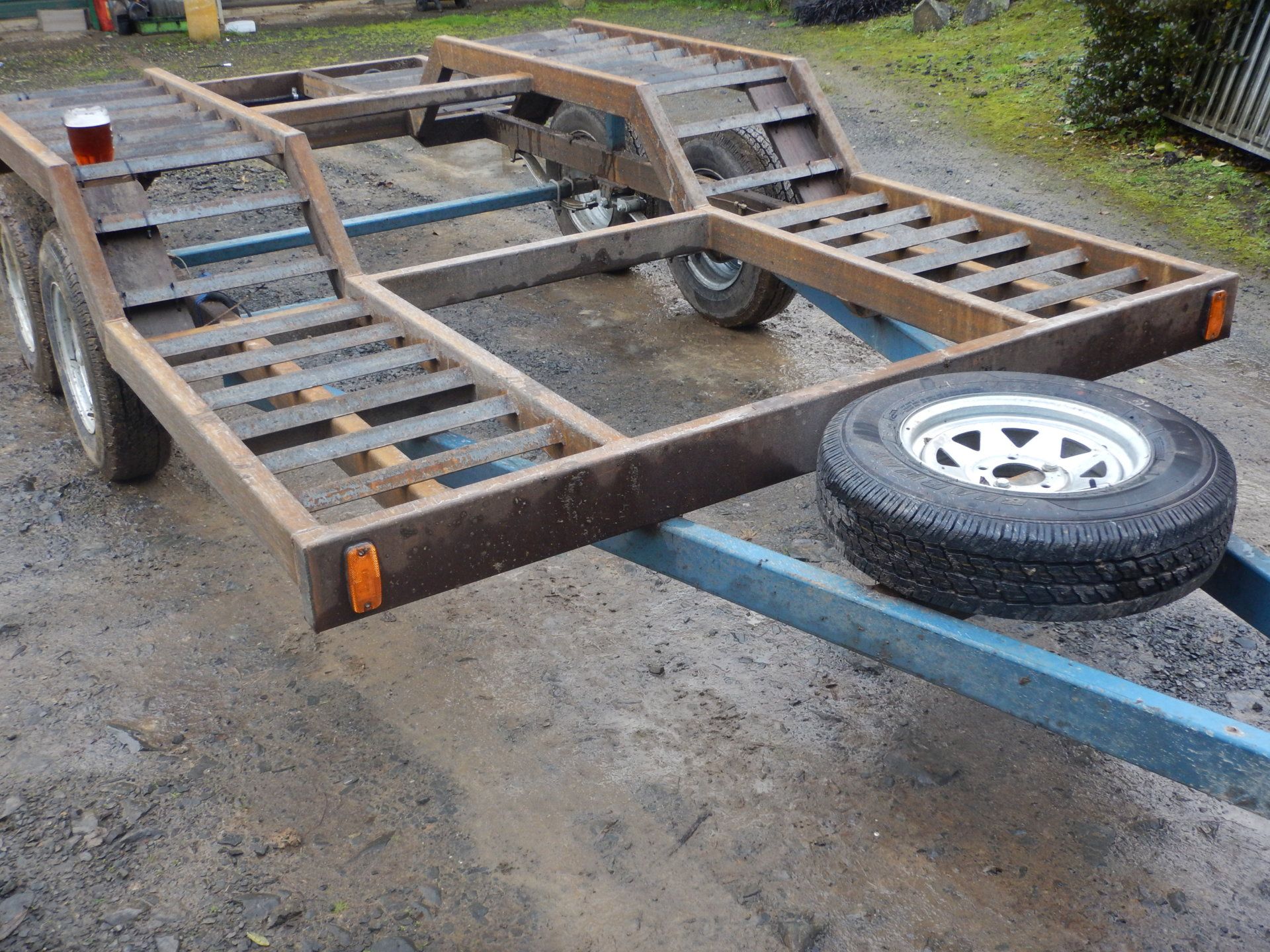

To keep it low and narrow, ill have the wheels under the deck but have the deck lower than the wheel height with guards you drive over, and instead of having a chequer plate deck ill just have angles going across so the mud just falls off, you don't see many trailers built like this so ill show some pictures of how i made mine

I started with a 2500kg braked tandem trailer kit:


The 80 series is a bit tippy with almost half a ton of steel on the roof


Into it

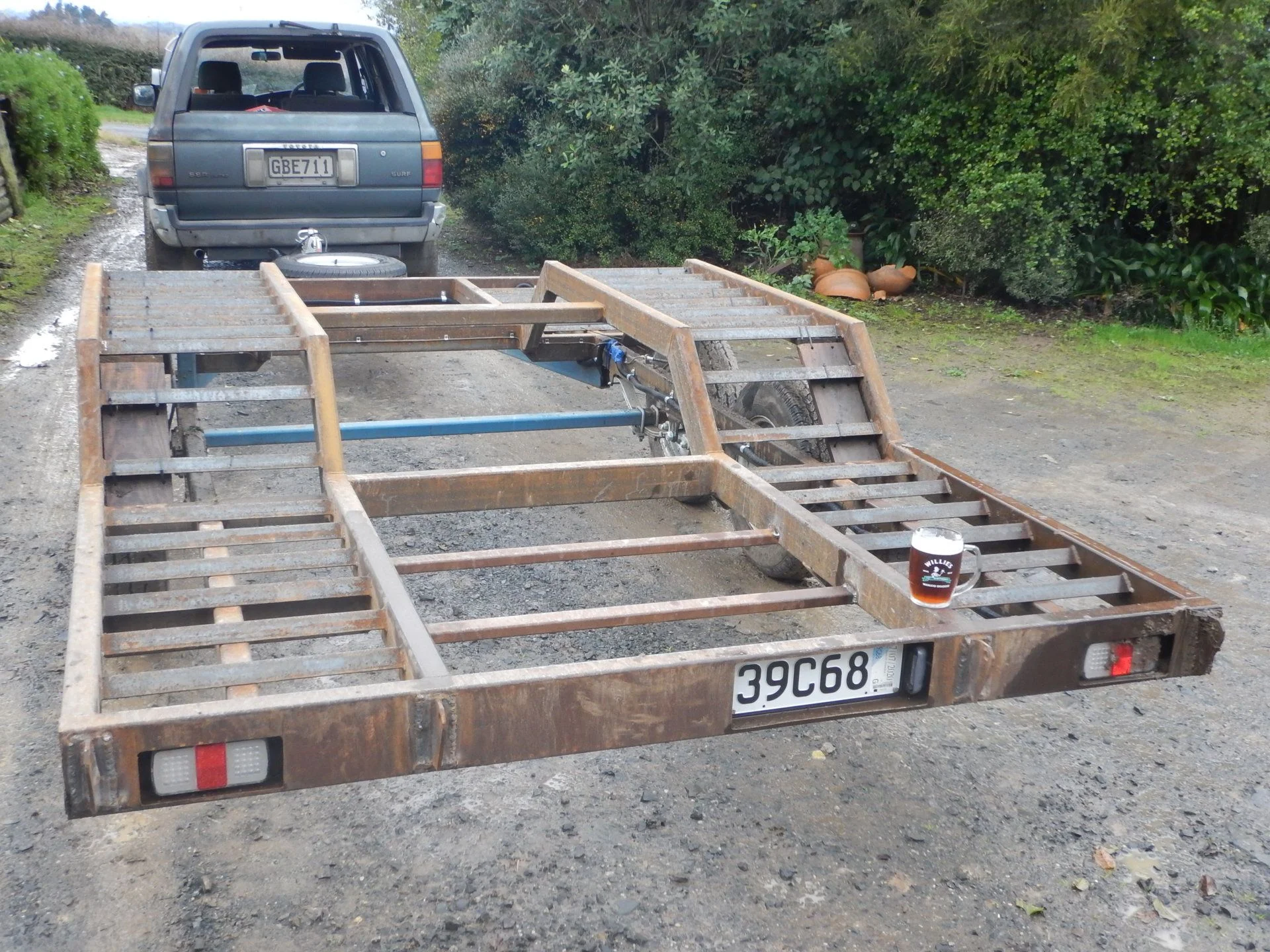

I was hoping to get all the steel work done in one week end but i got too thirsty sunday night so i gave up:beer:

Joined
May 25, 2018
Messages
209
Location
Hamilton, New Zealand

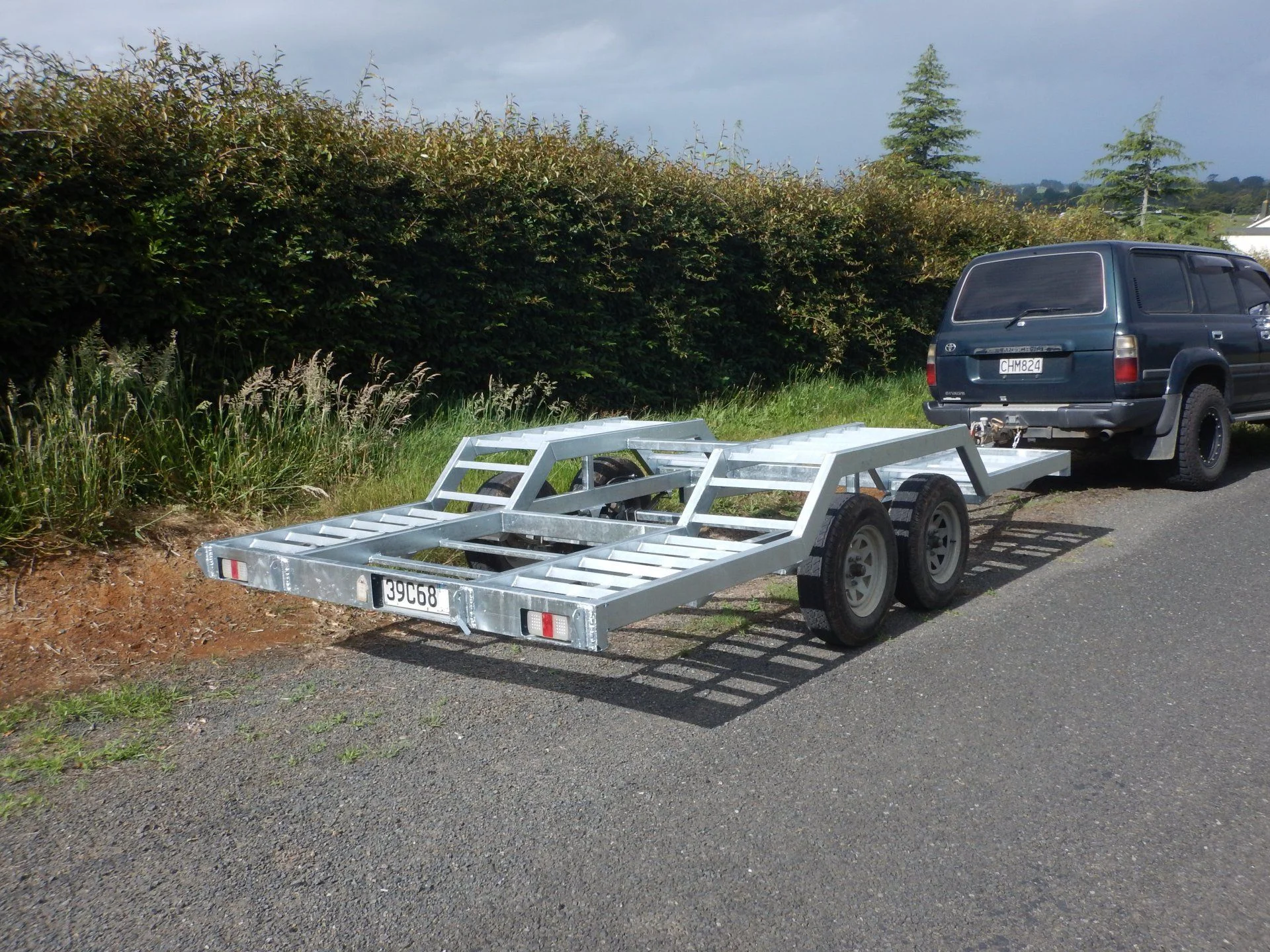

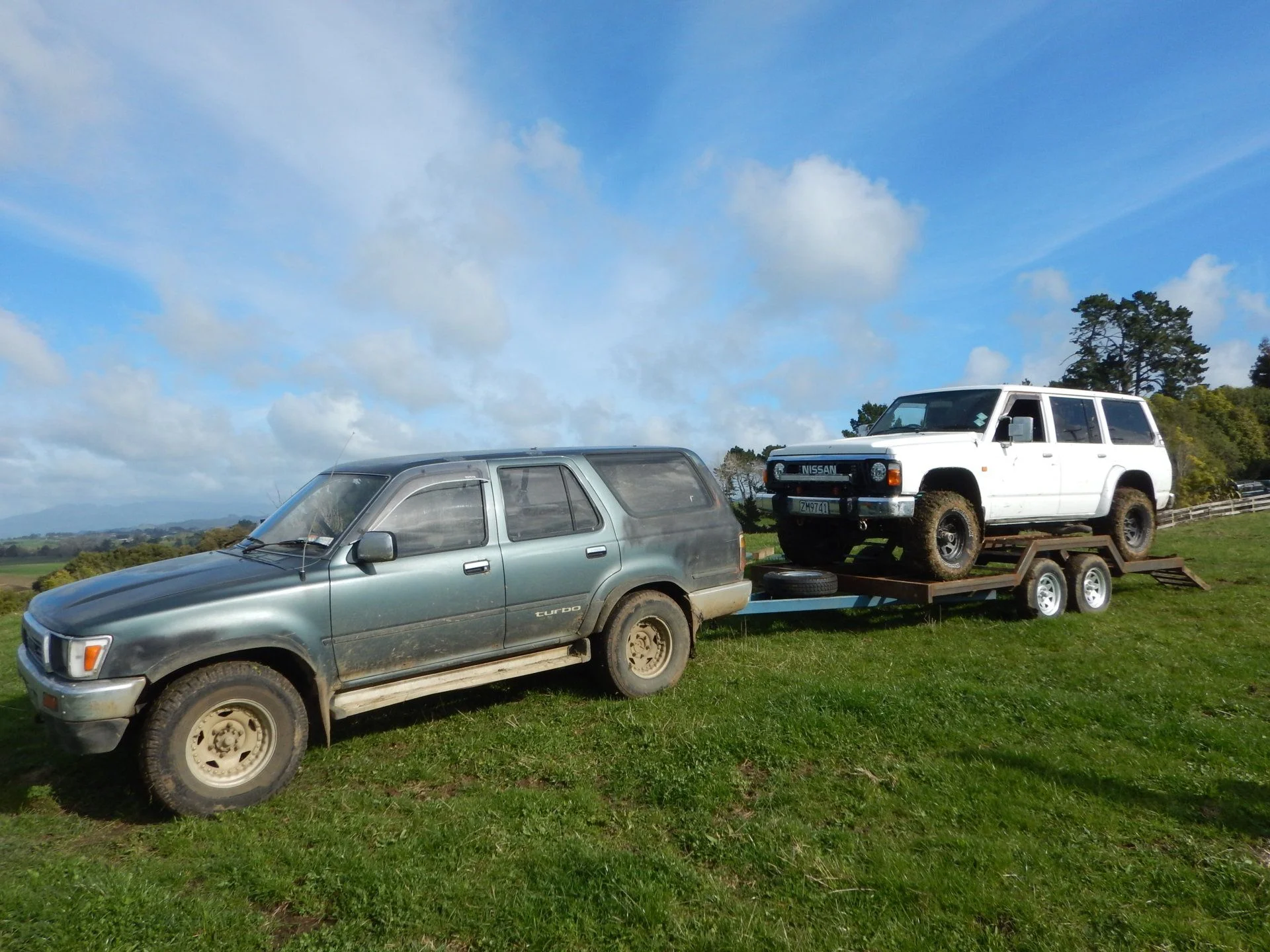

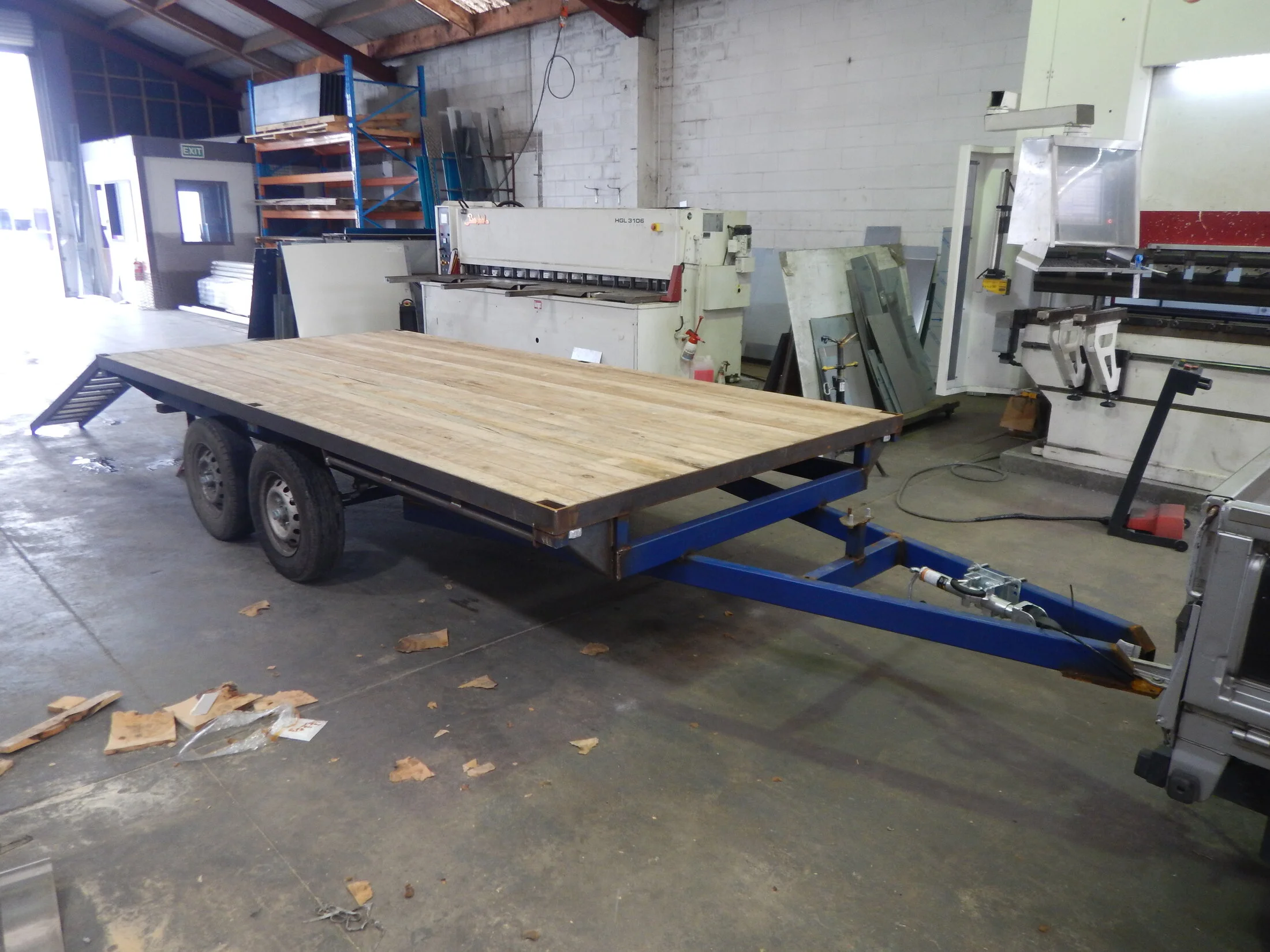

I towed it home today, seems alright, stays nice and true at 100kmh. its easy the reverse.

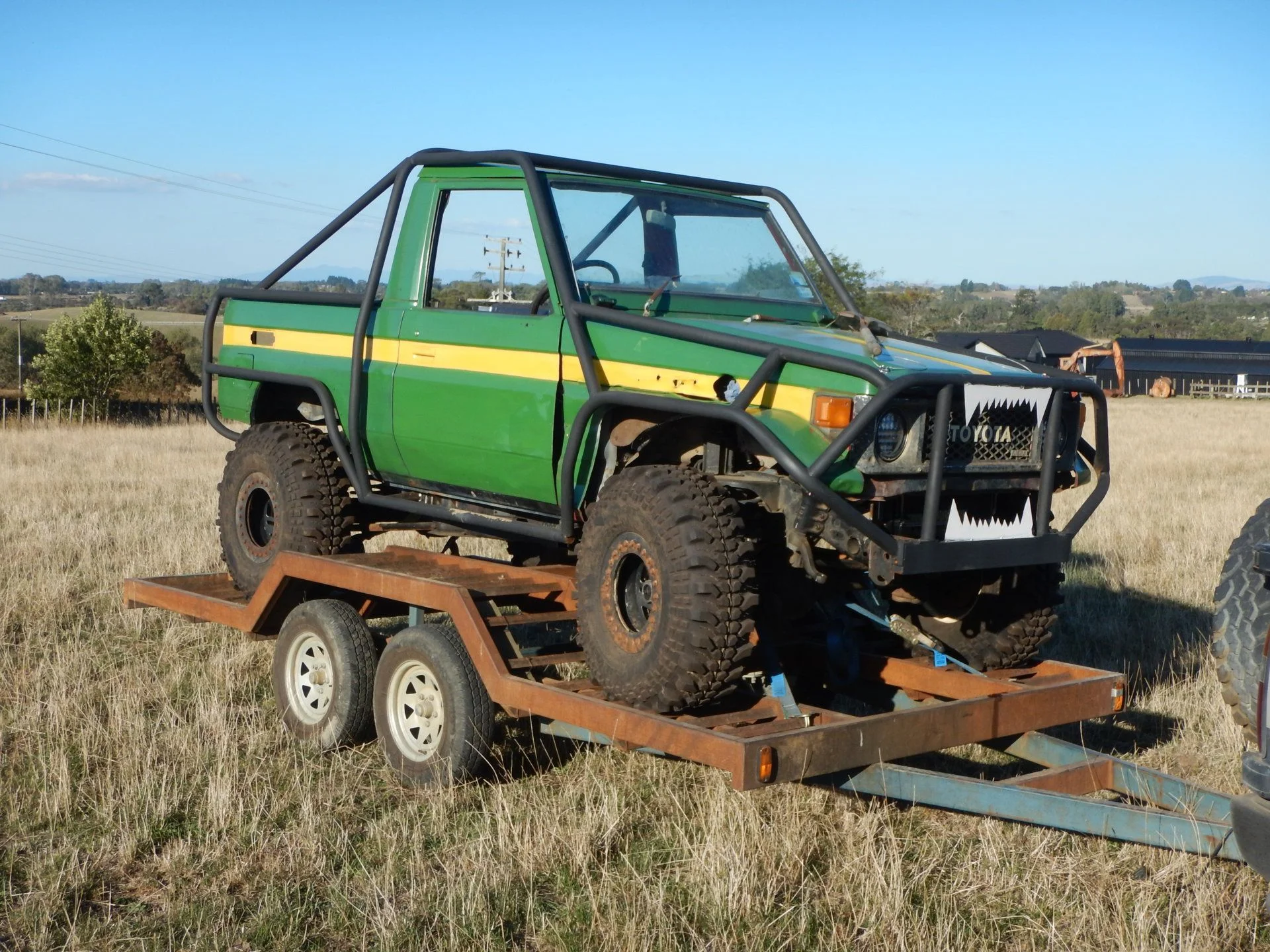

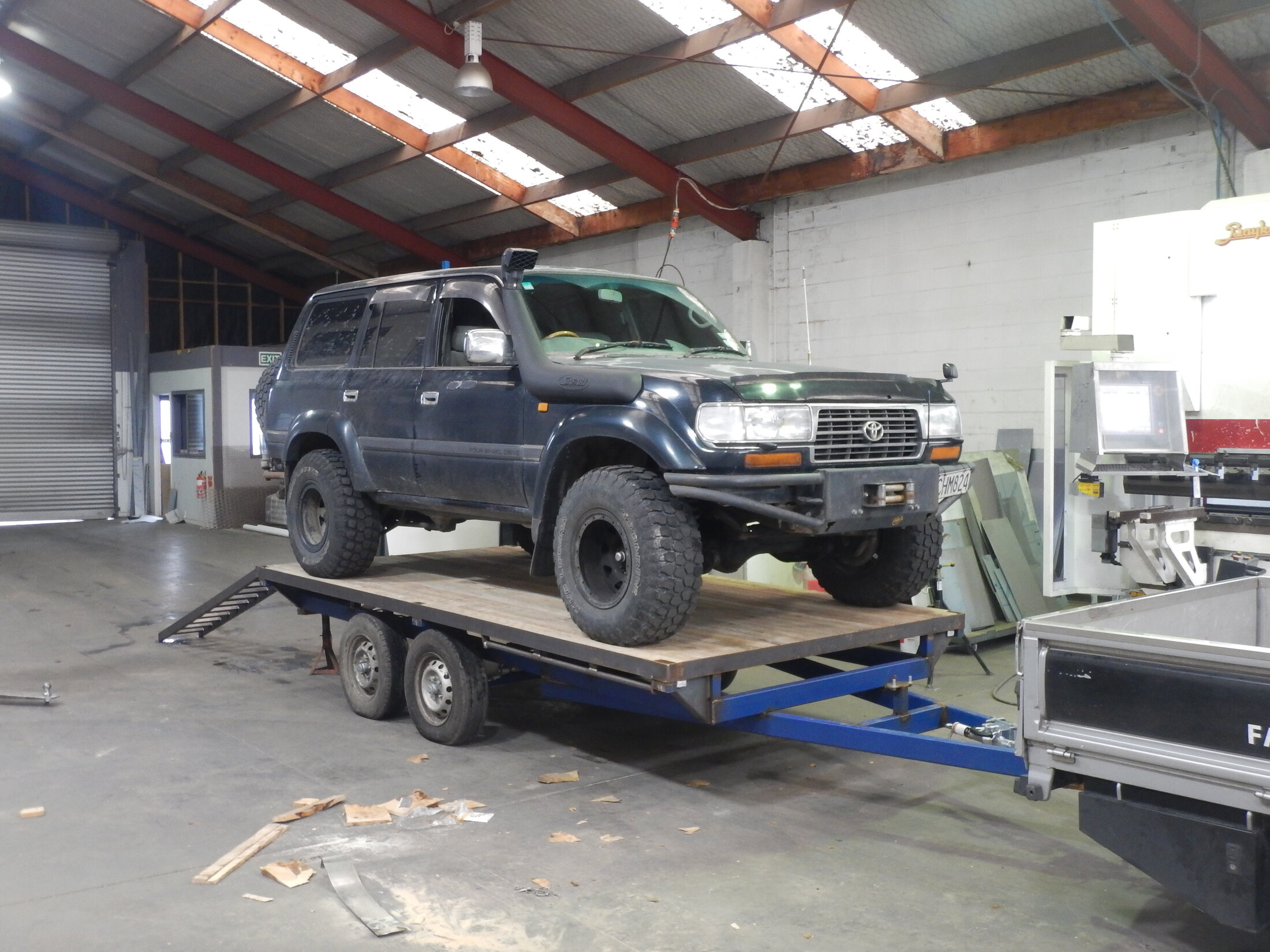

Chucked the truck on it.

I put bits of timber under the front wheels because the arse end of the surf would lift off the ground and wonder off.



Theres heaps of clearance


Its lifted with 35"s so im pretty sure there will be enough clearance for a cruiser with no lift and small tyres.

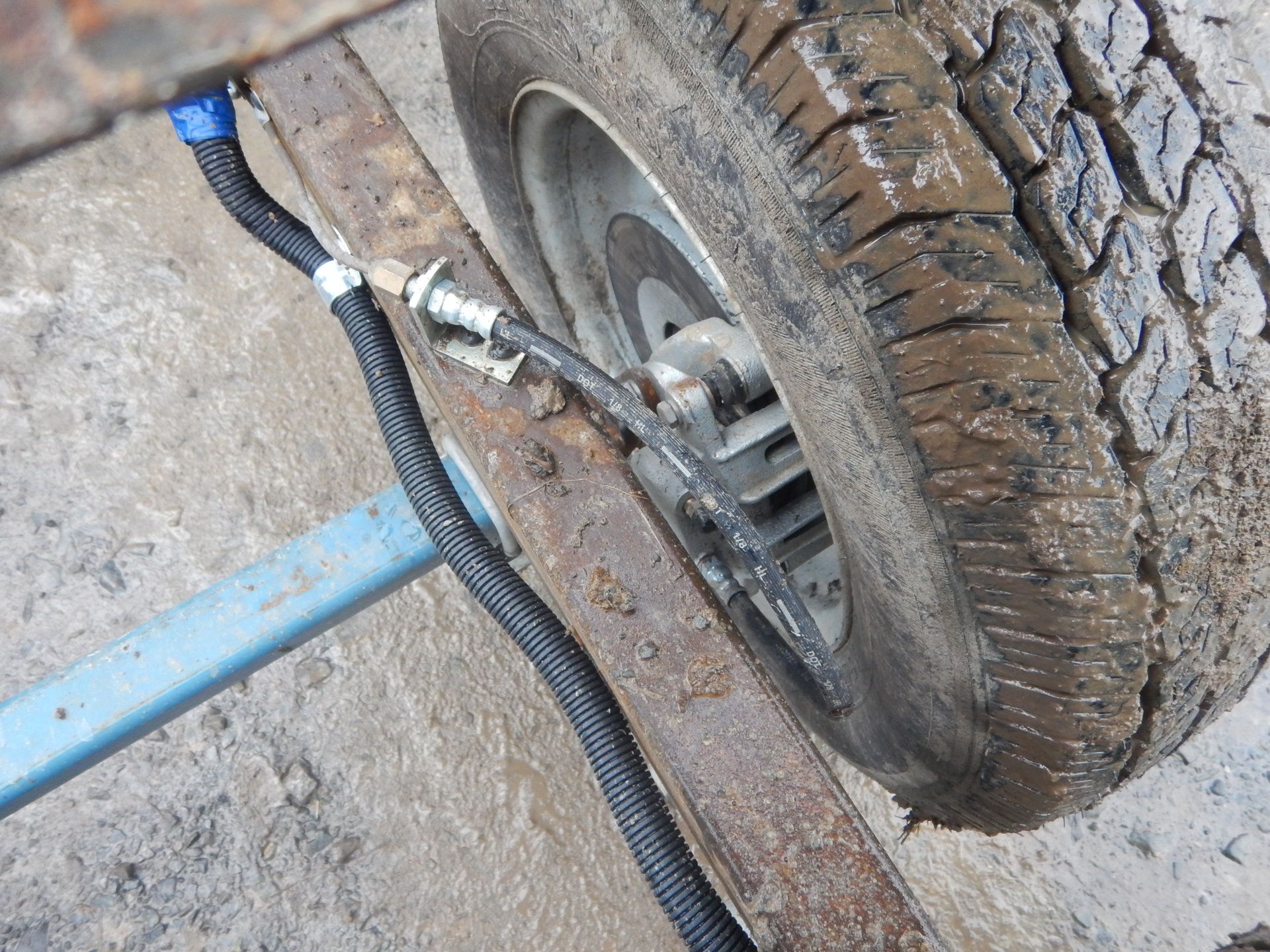

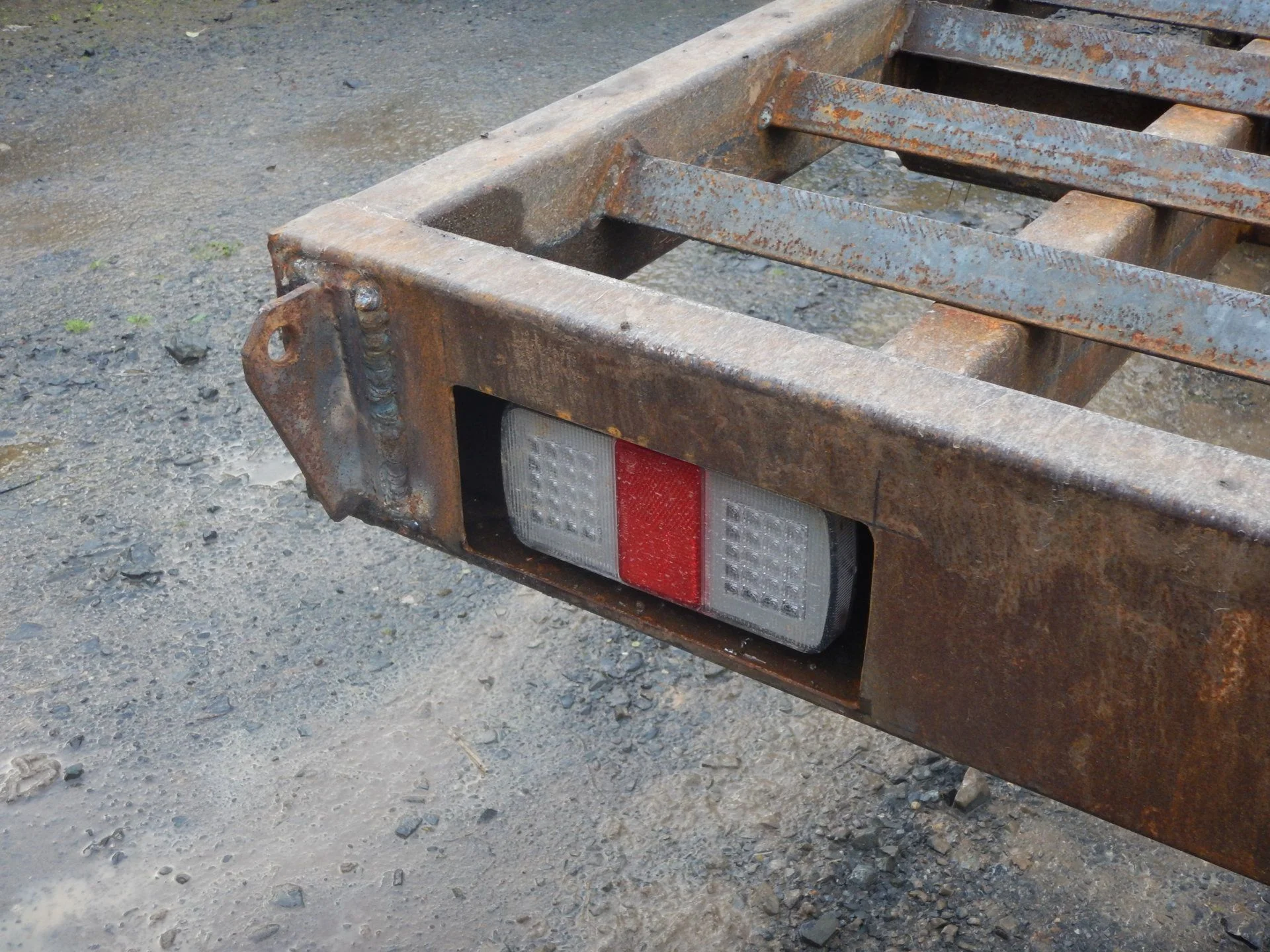

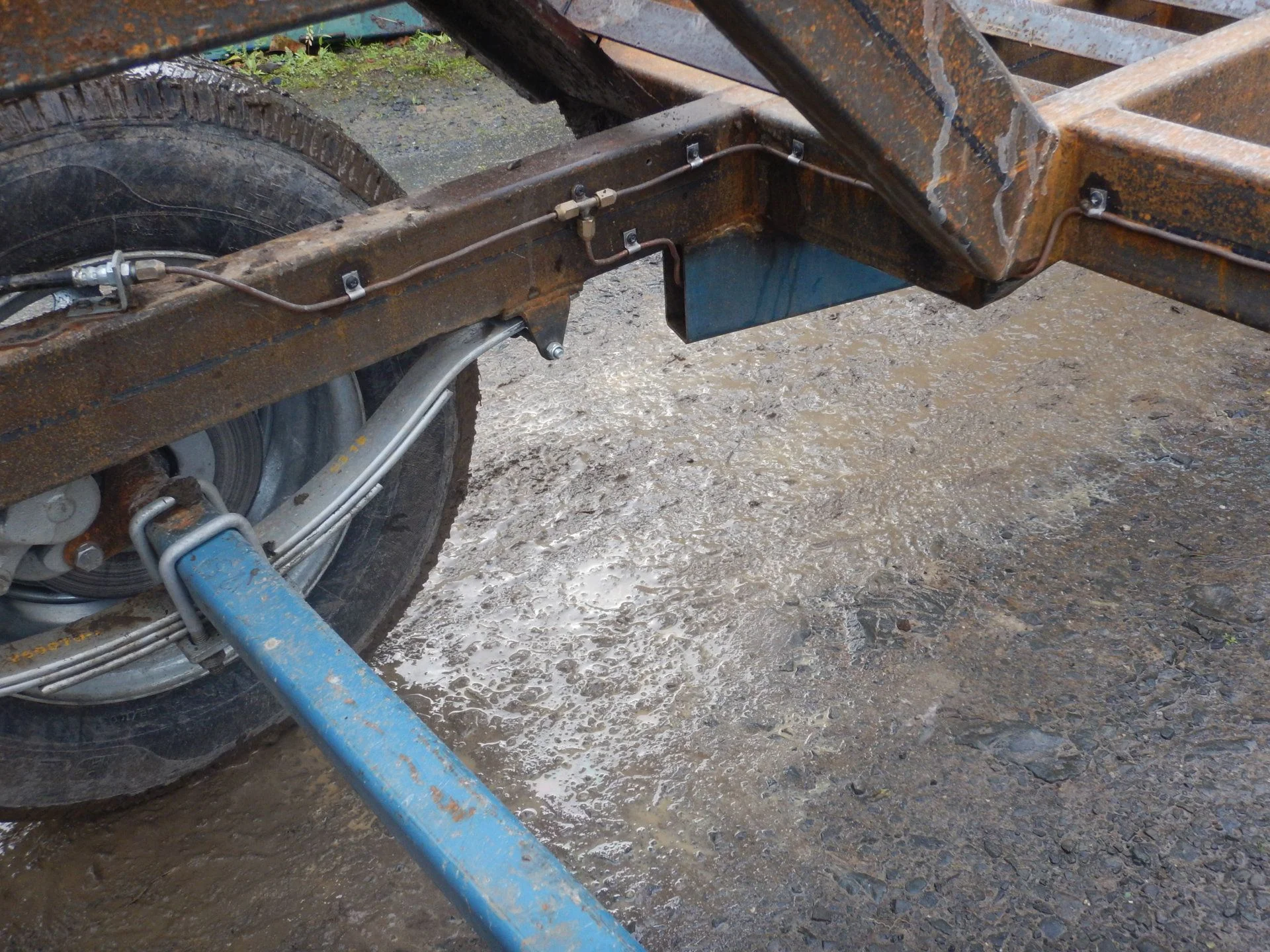

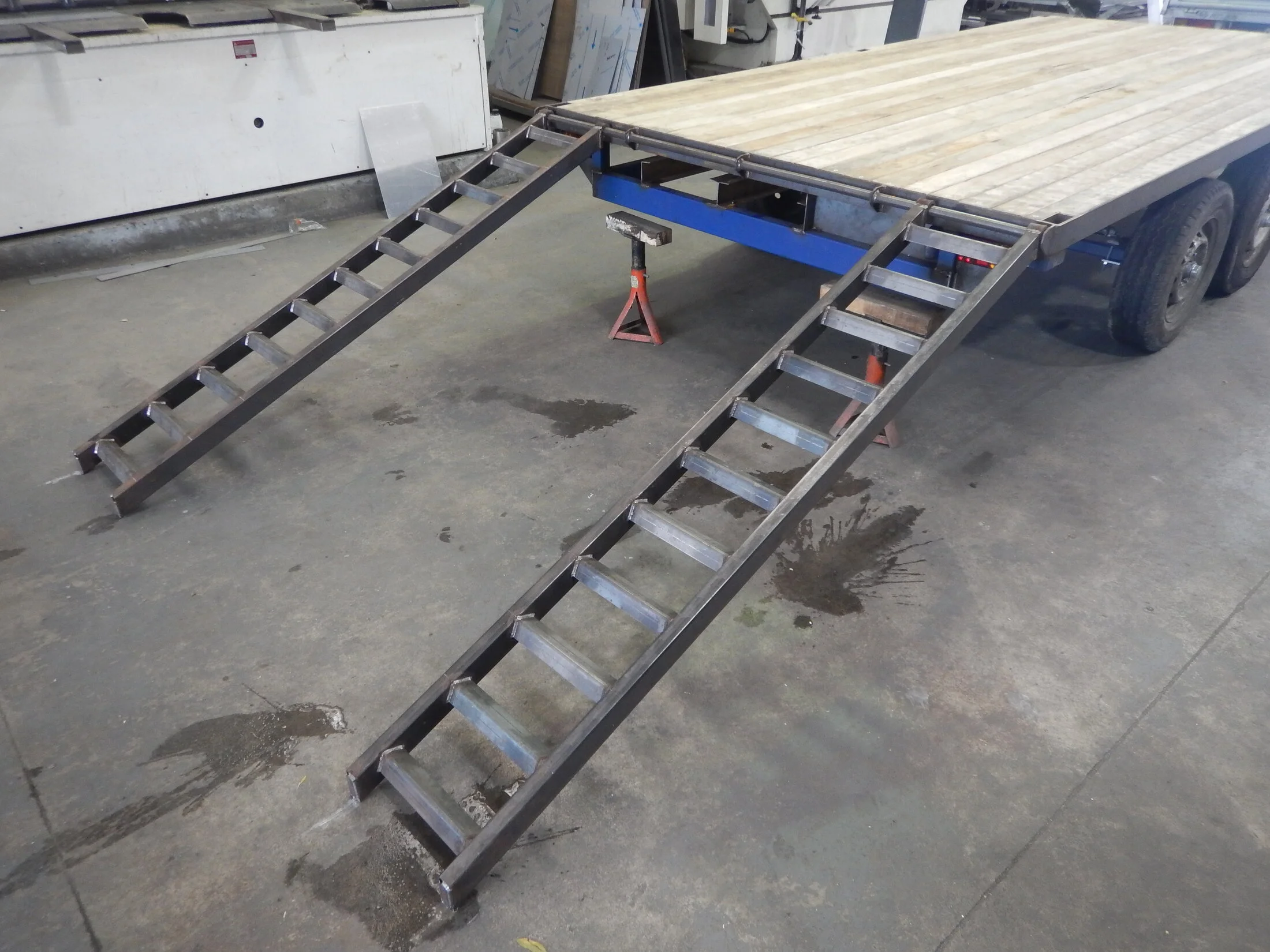

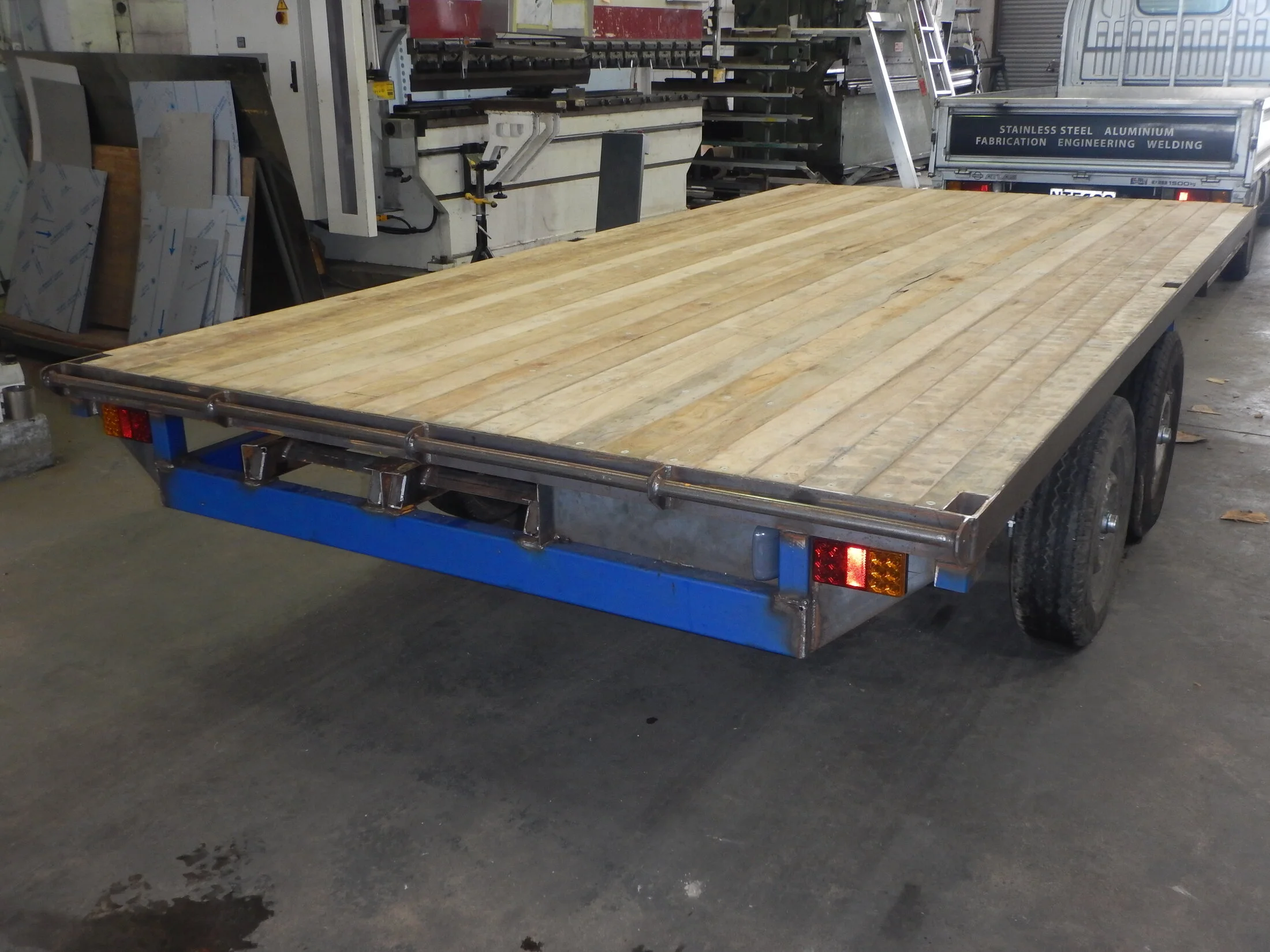

Now i just need to make some ramps, plumb up the brakes and cut holes for the lights and run the wiring

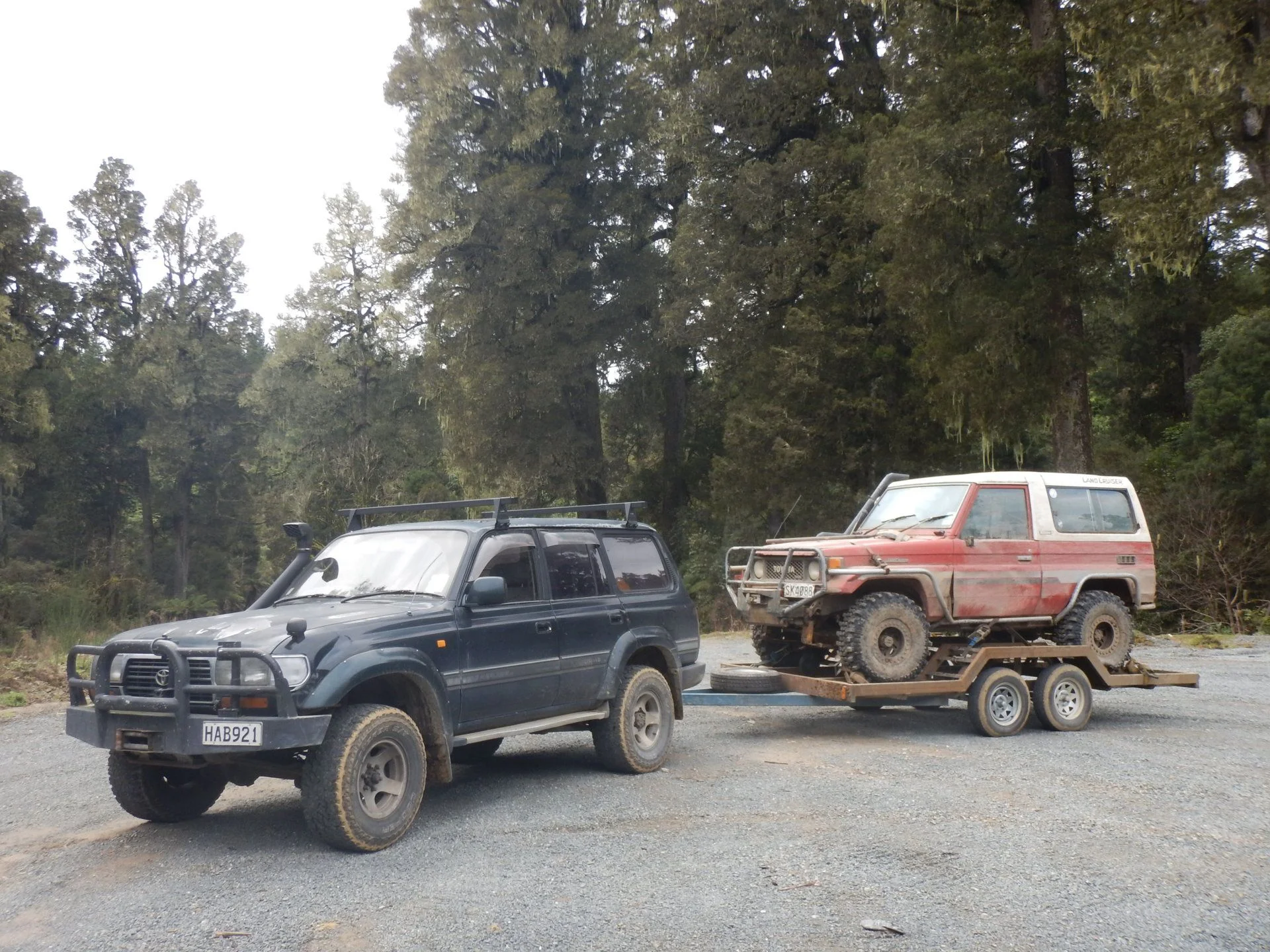

My other 70 series isn't driving at the moment, so i don't have enough horsepower to take it for a drive with a vehicle on it



Im going to take it on a few trips before i take it apart to get it galvanised. So i can change anything, without wrecking the galv.

Joined
May 25, 2018
Messages
209
Location
Hamilton, New Zealand
Id say its between 7-800 kgs.

Yea, because of the way its made, with 6 lengths of box section going up the length of it, i could definitely have gone lighter with the material. But at least i know its strong, and im sure it will come in handy when i need to move some heavy sh*t around
Cheers

Joined
May 25, 2018
Messages
209
Location
Hamilton, New Zealand

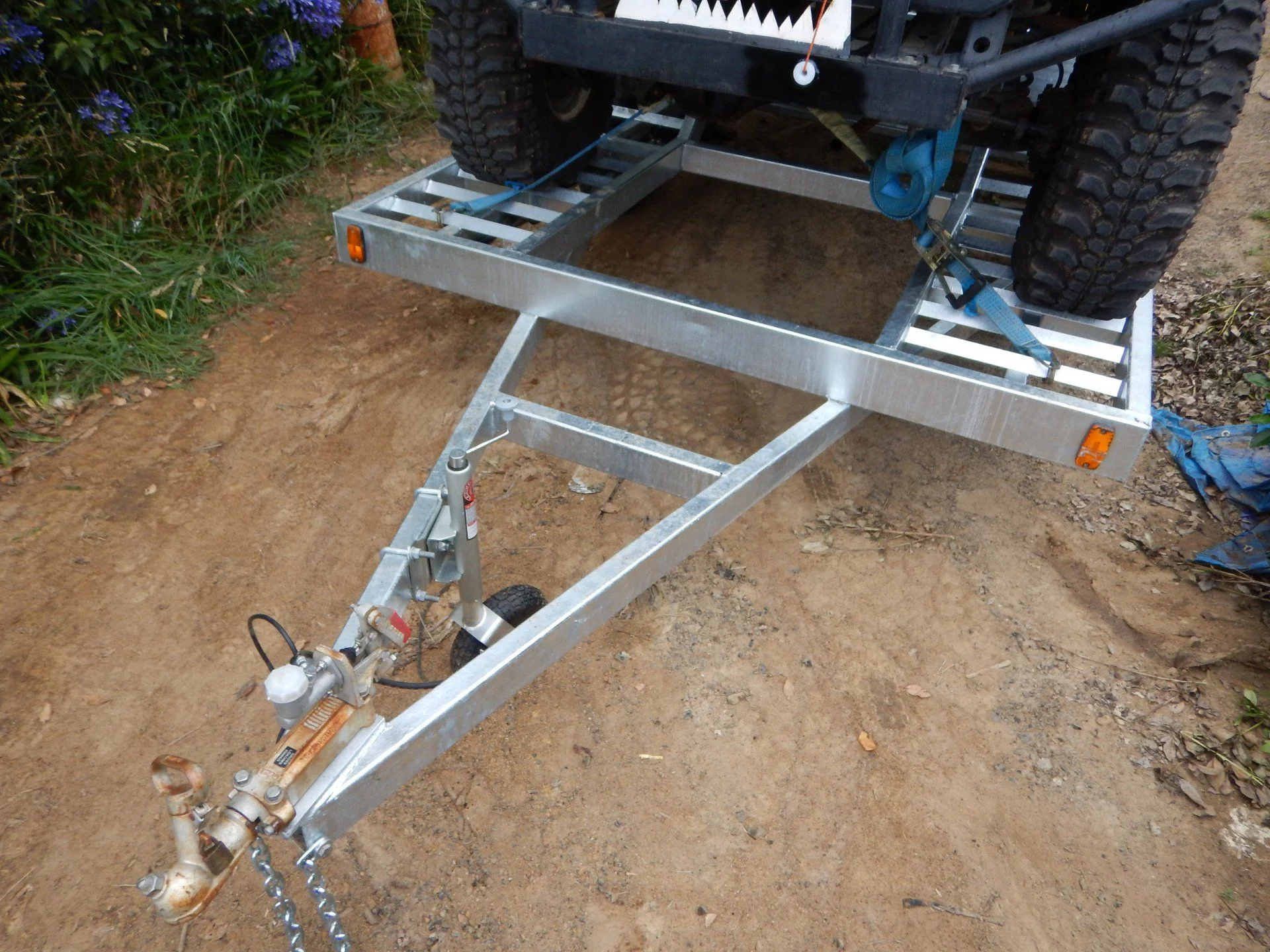

The trailer is still going mint. But i still haven't got around to galvanising it yet.
It tows way better with my new striped down truck on it, way heavier tongue weight. So there is no more terrifying death swaying. Ill still build a big steel tool box to bolt onto the draw bar...... eventually



When i finally get it galvanised, ill take some more pictures
Cheers


GLTHFJ60

Rum Runnin'
SILVER Star
Joined
Apr 18, 2005
Messages
26,808
Location
Durham, NC
Nice work. Tongue weight is definitely a concern with the axles centered like that, but understand why you did it that way.


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
17,406
Location
US
nice. It's great that the raised fender design is essentially auto-centering for the carried truck. Probably never would fall off. Although it may be harder to get a truck on there without a running engine. I imagine you will put a good winch somewhere up front?

Joined
May 25, 2018
Messages
209
Location
Hamilton, New Zealand
Nice work. Tongue weight is definitely a concern with the axles centered like that, but understand why you did it that way.
I think that might be why ive never seen a tandem trailer build like this, there always little single axle trailers used for towing small trucks like Suzuki's. When there is only one trailer wheel to drive over, the vehicle can be way further forward on the trailer.


nice. It's great that the raised fender design is essentially auto-centering for the carried truck. Probably never would fall off. Although it may be harder to get a truck on there without a running engine. I imagine you will put a good winch somewhere up front?

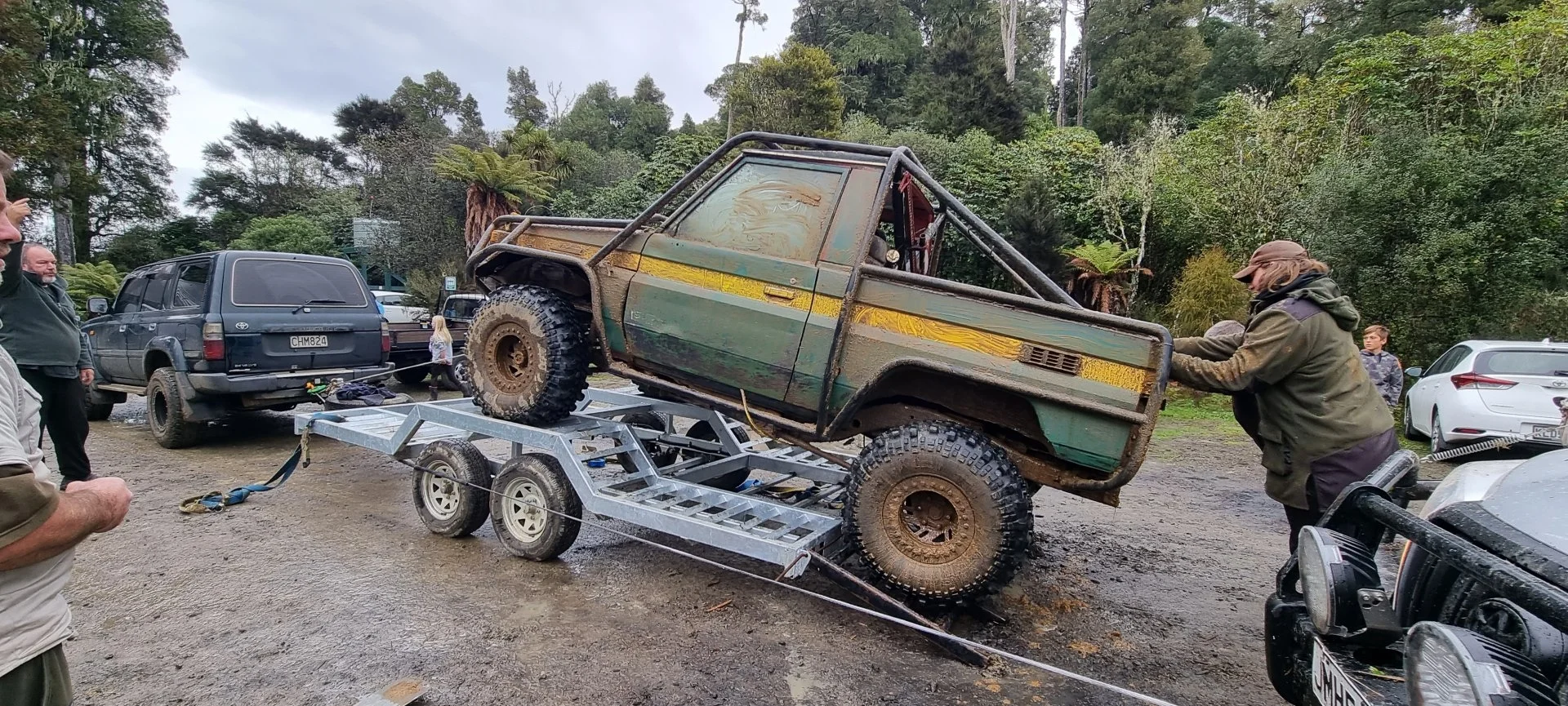

Yea, ive done it once, load a truck without a running engine. I used a 2 ton come-along, it takes a lot of pulling power. But i don't think ill bother mounting a winch, because hopefully when i come to need to load a non drive-able truck. ill be at a 4wd club meeting and everyone will have a winch able to load up my truck or ill be at home, where i have a come-along. Now that ive said that, im probably gunna get caught out some where. But if i get desprate im sure ill work out a way to tow a truck onto a trailer not attached to any thing, There are pleanty of ways to kill a horse....
