4Runner rear window relay repair

Discussion in '95-older Toyota Truck Tech' started by 2ndGenToyotaFan, Aug 26, 2007.

  1. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    I did this on my 89 4Runner, but the 90-95 would be almost the same, except the relays are located on the drivers side at the rear corner, and a bigger pain to get out.

    Here's 4Crawlers page on rear window problems

    This repair should be undertaken if neither the front switch or the rear key switch will operate the window, but you can hear the relays clicking in the body behind the drivers seat, and the ground and saftey switches have been rulled out.

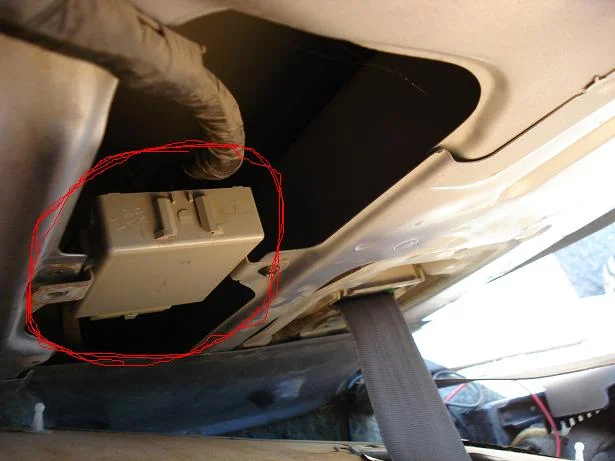

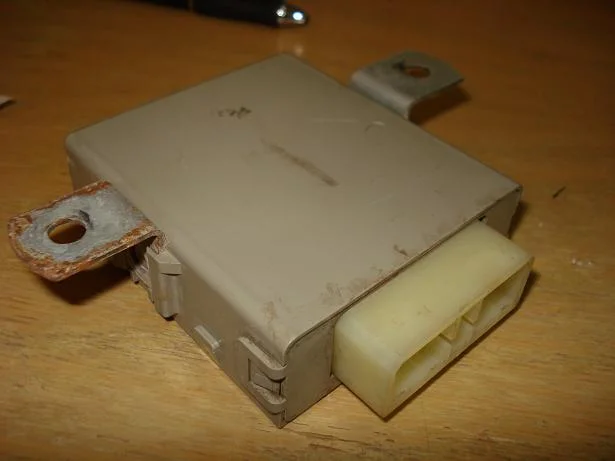

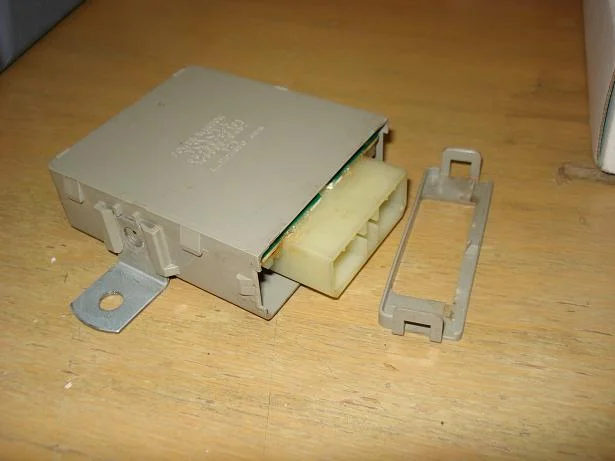

    So here's the relays, in, out, and with the end popped off.
    Relays 1.JPG Relays 2.JPG Relays 3.JPG

    Last edited: Aug 26, 2007
  2. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....

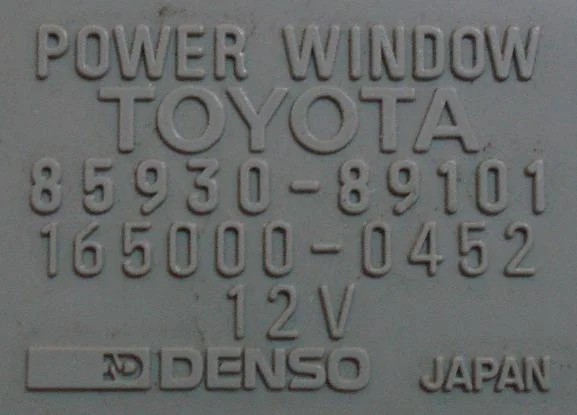

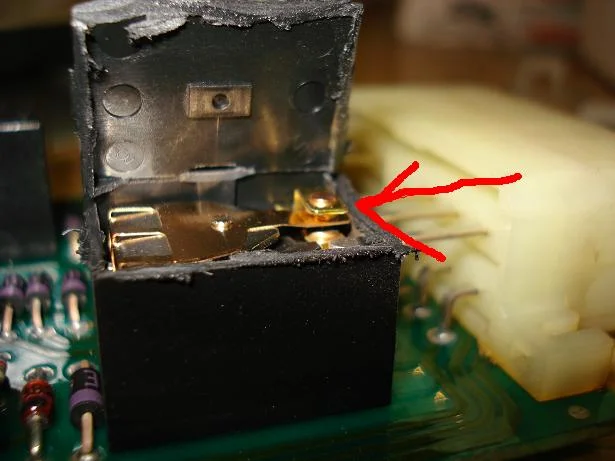

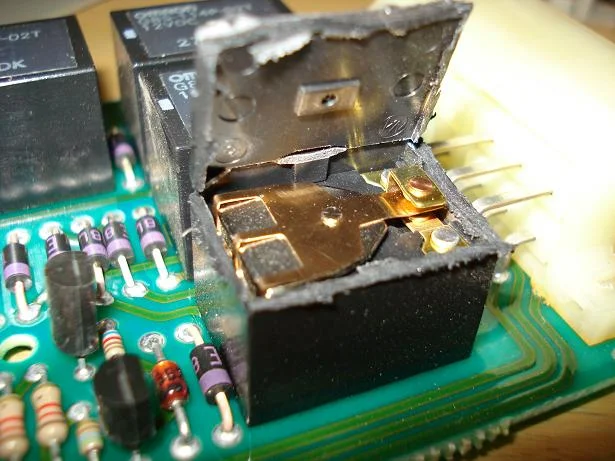

    Here's the numbers for those interested, and the relays out of the case, and what you see once you cut them open with your dremmel tool. :D I used a small abrasive disc and it melted into the relays pretty well, and didn't leave too many chunks around, but make sure to clean up what chunks do get left behind as they can stop the relays from working properly after you bothered to clean them. Dont' worry if you hit the contacts a little, they are not that fragile. The arrow is where the contacts are located.
    Relays 4.JPG Relays 5.JPG Relays 6.JPG

    Last edited: Aug 26, 2007
  3. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....

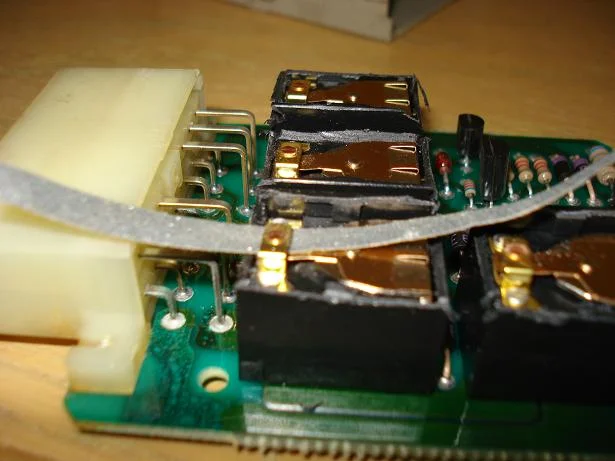

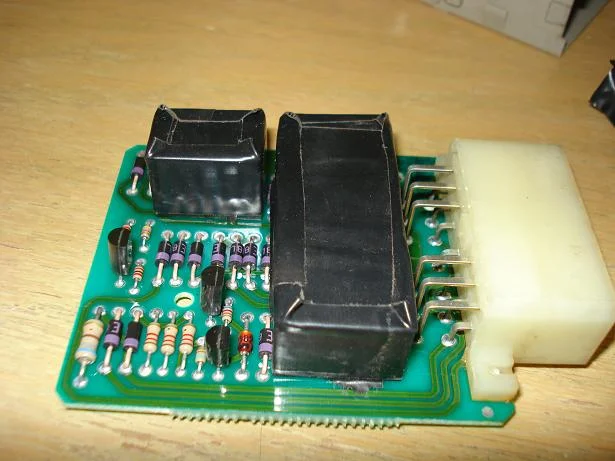

    Another shot of the open relay, and a thin strip of sand paper works well for cleaning them off, remember there are 4 surfaces to clean in each relay (2 upper and 2 lower. Pretty easy to see once they are open. Then just tape them all back up with their lids on, and stick it back together......

    However, you should, as I should have, check continuity between the upper/lower contacts and the center contact, to make sure you have them cleaned off well enough. I did not, and had to waste an afternoon figuring it out......
    Relays 7.JPG Relays 8.JPG Relays 9.JPG

    Last edited: Aug 26, 2007
  4. foxfab

    foxfab

    Messages:
    3,521
    Media:
    2
    Likes Received:
    38
    Joined:
    Aug 23, 2004
    Location:
    Carolina, RI
  5. theo

    theo

    Messages:
    1,432
    Likes Received:
    2
    Joined:
    Feb 19, 2002
    I've also seen Radio Shack relays soldered into the stock board, but they're too big to fit inside the stock cover. Your guys' solutions are both way cooler than that. :D Thanks.

  6. beatdown83fj60

    beatdown83fj60

    Messages:
    615
    Likes Received:
    0
    Joined:
    Jul 30, 2006
    Location:
    Evergreen, Colorado
    Wow! Good post! Thank you.

  7. Isotel

    Isotel

    Messages:
    4,061
    Media:
    5
    Albums:
    1
    Likes Received:
    40
    Joined:
    Sep 29, 2003
    Location:
    Crawlorado.com
    i put in the new relays from RS and they worked out good,

    i wonder how long till those old relays are gummed up again?

  8. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    Well, they don't get "gummed up" it's just carbon that starts to cover the contact... once sanded off they should be like new, so my guess is it'll last another 18 years..... :D

  9. brokenmonkey

    brokenmonkey

    Messages:
    17
    Likes Received:
    1
    Joined:
    May 4, 2006
    Location:
    Culpeper, VA

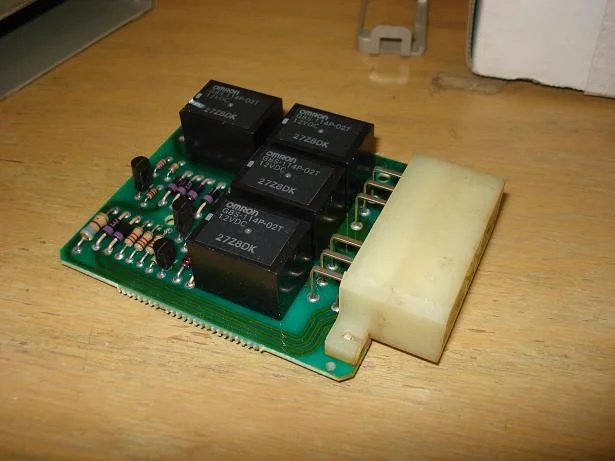

    [FONT=verdana, arial, helvetica]My rear window wouldn't go down on my '91 when I got it. I took the relay box off the bracket and pulled the circuit board out of it. (Easy if you're careful.) I plugged it back in and gave it a slight twist while the down switch was depressed. The window would go down if it was twisted. So I figured it was something mechanically wrong with the relay. There is a line of four in the center of the board, (they're rectangular, black boxes) There's a new relay part # from Omron that swaps out perfectly for about $1.70 at Newark Electronics. The only differance is that it's a wee bit taller. (not a problem, just different) I soldered it into the second position down (if you're holding the switch up by the plug) and that took care of the down direction. I don't know which one is the up relay, but what I did was I bought four (for <$12 with shipping) with the idea that I might have to swap them all out. I got lucky and did it the first time, so I have spares now.

    The new Omron # is G5LE-1 12vdc
    [/FONT]

  10. stormscrambler

    stormscrambler

    Messages:
    46
    Likes Received:
    3
    Joined:
    Mar 1, 2008
    hey guys new to the forum and though i would let you know you can also get the 12volt guy kit it is pertty nice, not try to sell stuff just letting you know and, and it is not on his site you have to mail him. storm:trooper:

  11. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    Update, it's been over 2 years, and I have not had a single issue with this repair. :cheers:

  12. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    Just had another issue creep up... Window would not work from front switch either up or down, but would work fine from the tail gate switch... I tested all the grounds and inputs to the relay box, and it was getting all the ground signals and +12V that it should. After testing the circuit board for an hour and not finding any problems I decided to Jump the 4 ground inputs together up to up and down to down for the front and rear switches. 2 small wires soldered in and it's all good again... Relays still have not needed a cleaning FYI.

    I soldered the #5 to the #12 and the #4 to the #11 pins. Incidentally this mod will also bypass the front switch only working when the key is on, the same as jumping +12V to the #8 pin. :cheers:

  13. GAS-A-LOT!

    GAS-A-LOT!

    Messages:
    1,202
    Media:
    1
    Albums:
    1
    Likes Received:
    1
    Joined:
    Oct 18, 2006
    Location:
    LOS ANGELES
    Is this in the Q&A? Very helpful info with pics... !!!:clap:

    My rear window only works with front switch but no rear key...:frown:
    Will be messing with it soon.

  14. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    Yes, FAQ'd. The rear gate switch has a habit of breaking it's soldered wire connections... You may want to take the gate apart and inspect the harness as step one... :cheers:

  15. CGriswold

    CGriswold

    Messages:
    1
    Likes Received:
    0
    Joined:
    Oct 2, 2011
    I have a diffierent problem......mine prob is I replaced the rear door of my 90 4runner and on the dash it says back door open....which switch is it that is sending this so I can delete the switch or replace it.....My rear windo won't go down and when I press up all I hear is beeps...Help Please

  16. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,712
    Likes Received:
    166
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    If you pull the interior panel and the metal panel off of the tailgate, you will see the guts. The switch that operates the "back door light" is the one connected to the lock on the tail gate. Good luck!

  17. pholife

    pholife

    Messages:
    172
    Likes Received:
    0
    Joined:
    Feb 8, 2011
    Location:
    Huntington Beach, CA
    great post! thank you

  18. Allthewheels

    Allthewheels

    Messages:
    1
    Likes Received:
    0
    Joined:
    Jun 11, 2013
    Transistors

    Hey is anyone able to tell me what each transistor has written on it as one of mine has burnt out and is unreadable. My relay looks the same as the one in the picture. It's from a 1st gen

  19. SirArthur

    SirArthur

    Messages:
    1
    Likes Received:
    0
    Joined:
    Aug 12, 2013
    Awesome repair! Just did this on my 90 4Runner and all works! One adjustment, I didn't take off the panel - I cut the wall of the cubby hole to access the relay and then made 2 access holes in the front panel where the bolts are - I'll cover them with plugs and then I never have to remove the panel if I have other issues with the relay

  20. Kerrie

    Kerrie

    Messages:
    1
    Likes Received:
    0
    Joined:
    Oct 20, 2014
    So I have a 1985 toyota 4runner and my boot bit cant be accessed or opened window doesnt work so this is a wicked post for me, but my question is where is the relay kept in my 85 model 4 runner (i dont want to pull out the wrong thing)
