Figured i would start a new thread as the "tear down" thread is pretty much over.

I will try to take some pictures and detail what all i'm doing and also provide some part numbers as well.

The plan is to completely overhaul the motor and then turbo it following similar lines as landtank.

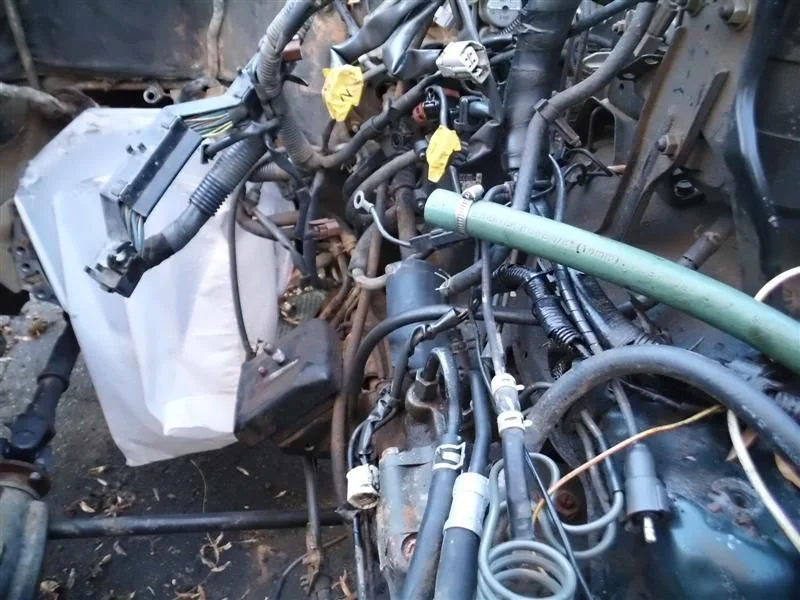

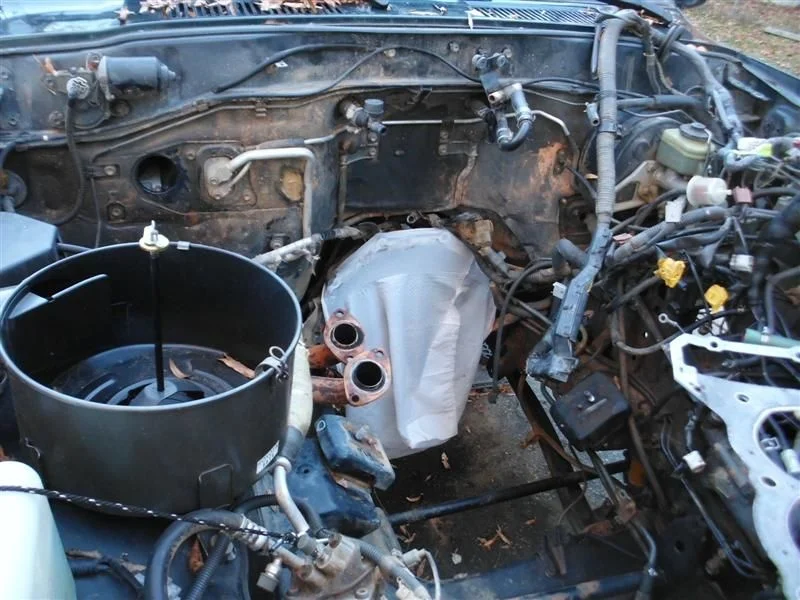

So to begin, here is a shot of the rig as it sits, parts and a few more things.

All the wires and stuff are really intimidating



[concretejungle]

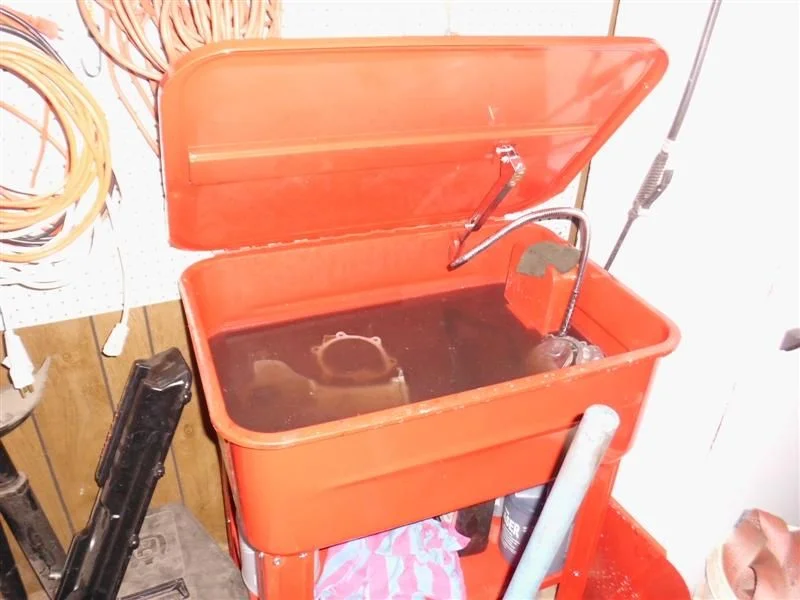

Picked up a parts washer from Harbor Freight on sale for $94. This thing is nice and will come in handy for any axle rebuilds also.



[concretejungle]

first two things i ordered were: Heat tape for the wiring harness. I already have some extra wire protection wrap (Plastic sleeve stuff) so i will use than and then wrap it with the high temp tape.

I also thought i would upgrade the power steering cooler while i was at it. I have had a lot of groans and issues with my power steering so hopefully this will fix it.

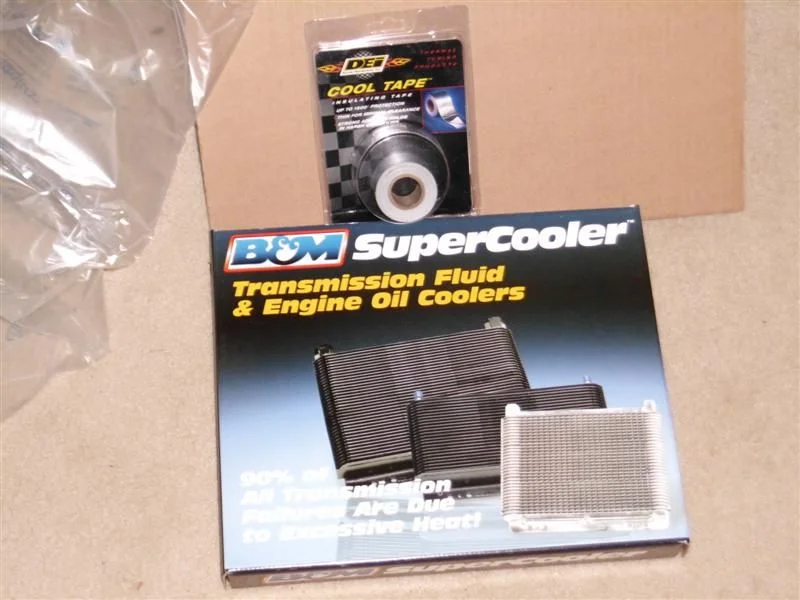

Purchased them from Summit Racing:

Cool Tape: DEI-010408..........$13.95
Trans Cooler: BMM-70255........$46.75



[concretejungle]

Next i took the block and head to the machine shop.

The block is finished but the head is not. I will follow up with that as soon as i get them back.



[concretejungle]

While the machine shop was doing its magic to the block and head, i called cdan.

Ordered up a few parts

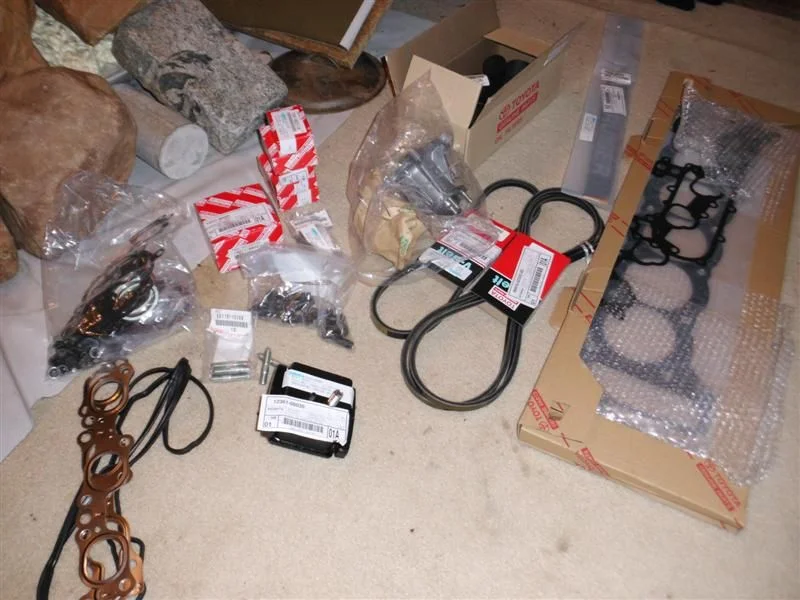

Ever wonder what $1009 in parts looks like:

Ring Set:......................................... 13011-66021
Gasket Kit (includes HG)................... 04111-66035
Belts (fan)........................................90916-02353-83
Belt (V) ..........................................99332-10910-83
Bolts (for the flywheel) .................... 90105-12244
Bolts (studs for exhaust manifold).......90116-10169
Rear Hatch Emblem (not motor related)75435-60040
Radiator hose....................................16571-66030
Radiator Hose....................................16572-66021
Radiator Hose....................................16573-66010
Insulator (motor mount).....................12361-66030
Bearing Set (not sure if main or rod)...11701-66031-04
Bearing Set.......................................13041-66031-05
Washer Set.......................................11011-66020
Bearing Set.......................................13041-66031-04
Water Pump......................................16100-69325


Still waiting on just a few parts, like another motor mount and a main bearing that is on the slow boat from Japan.



[concretejungle]

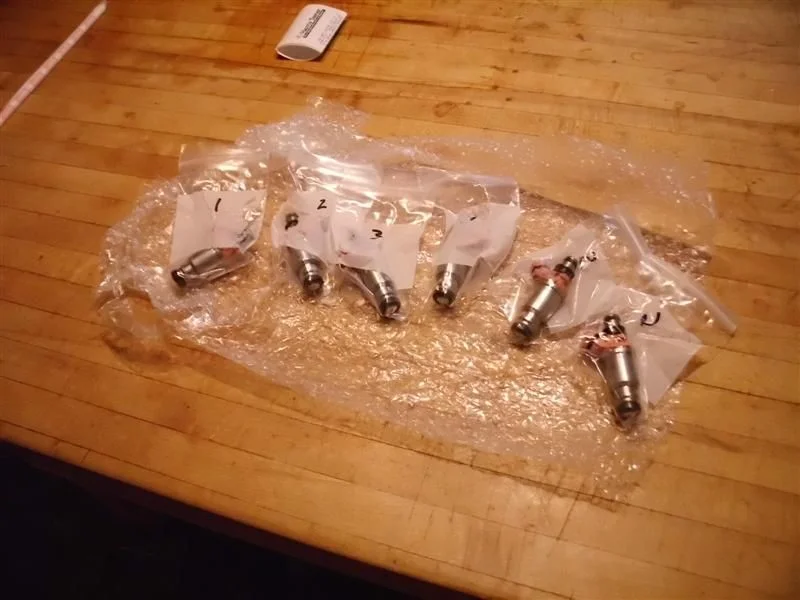

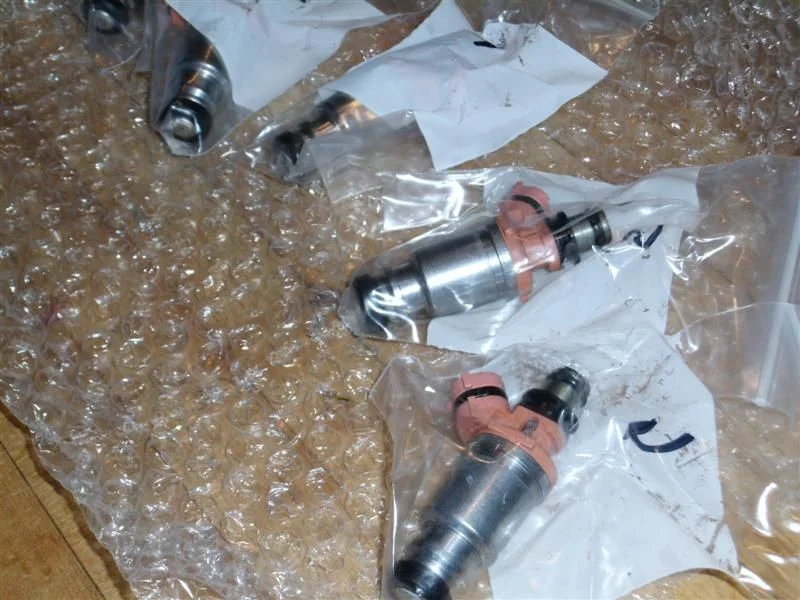

Also sent my fuel injectors to witchhunter performance. Those guys are great and had them heading back to me within 2 days.

WitchHunter Performance - Injector Cleaning & Flow Testing Services

Clean, rebuild and flow test 6 injectors............ $114.00 + $10 shipping.
