interesting !
This is cool to see! Keep the high quality pics coming!
There was a guy who did this, but literally imported the back 1/3 of a barn door 100. Then he chopped and welded it to his. I’ll try to dig up the post.
I found the post, but all pictures have been deleted for some reason. The truck was sold after he completed the work.
@Dilspec - can you post any pics from your barn door journey?
@Dilspec - can you post any pics from your barn door journey?
Dilspec
SILVER Star
I sold the truck a year after the project was done. I didn’t chop the back half of my 100. The donor pillar was used for measurements & to achieve the cleanest transition.

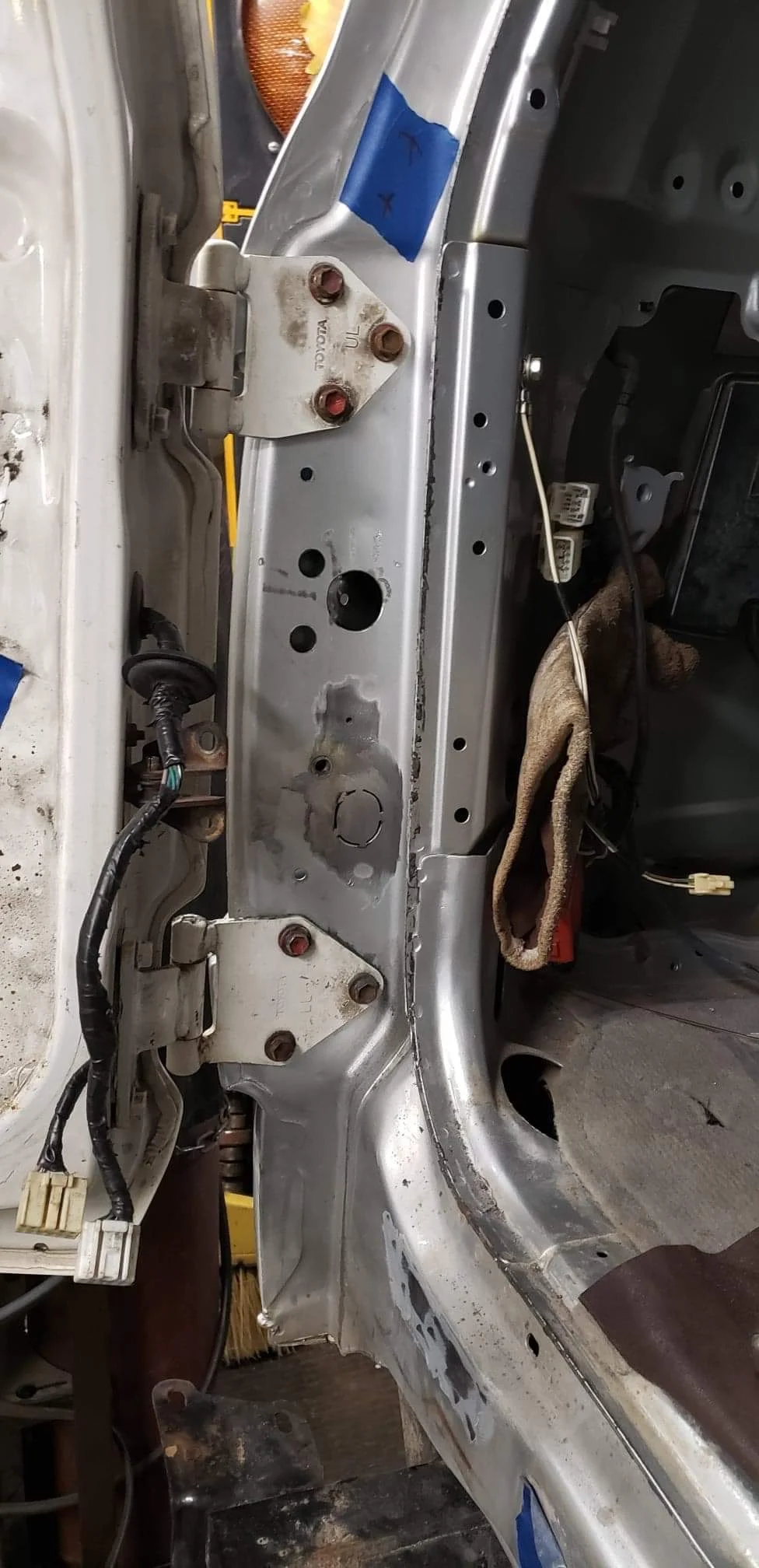

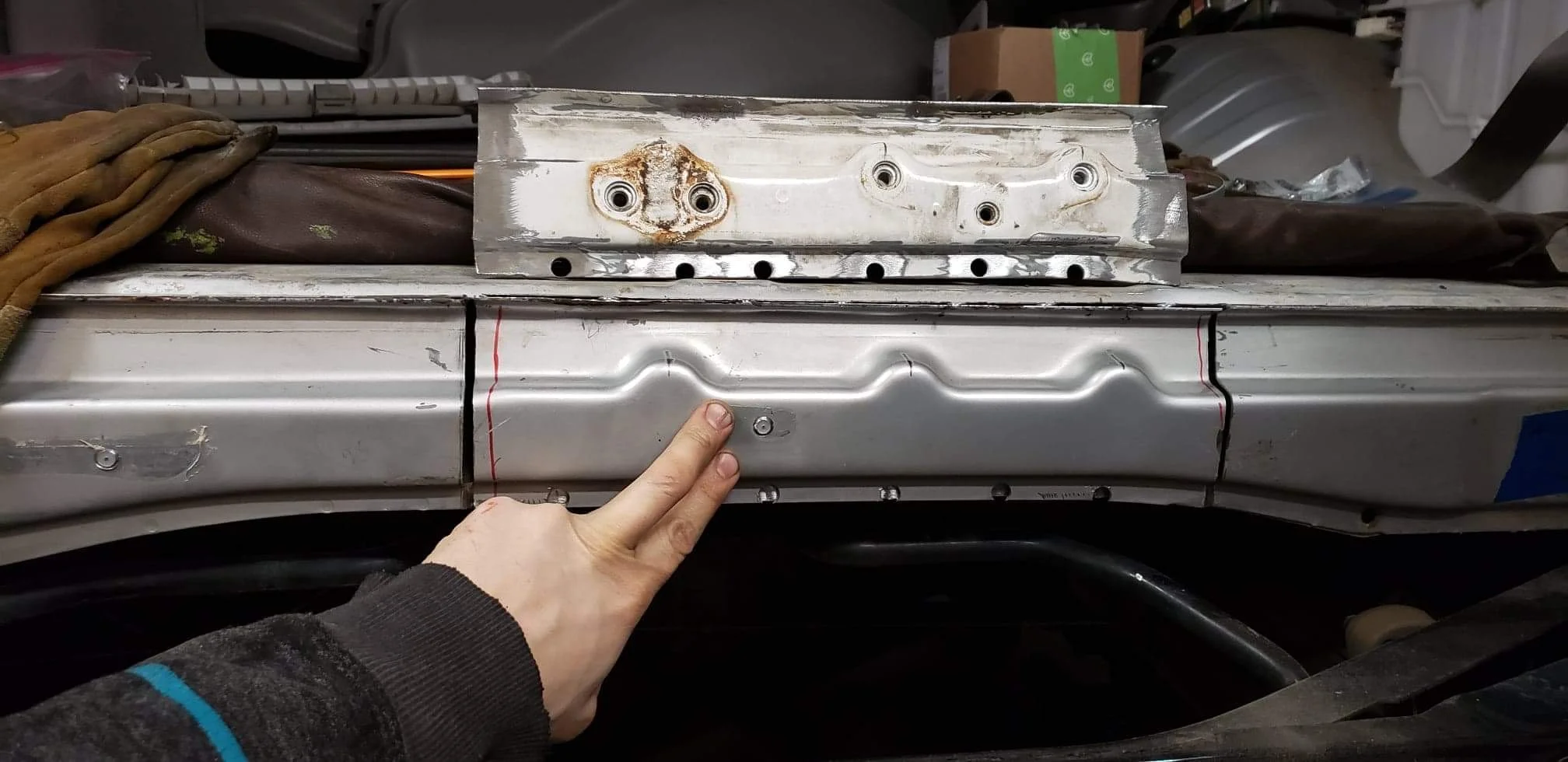

At a high level tailgate hinges were removed, welded nuts inside and bolted the doors up. There was some welding/fab work for the drip rail & bottom strikers. Final step is adjusting the doors so they close properly using factory shims.

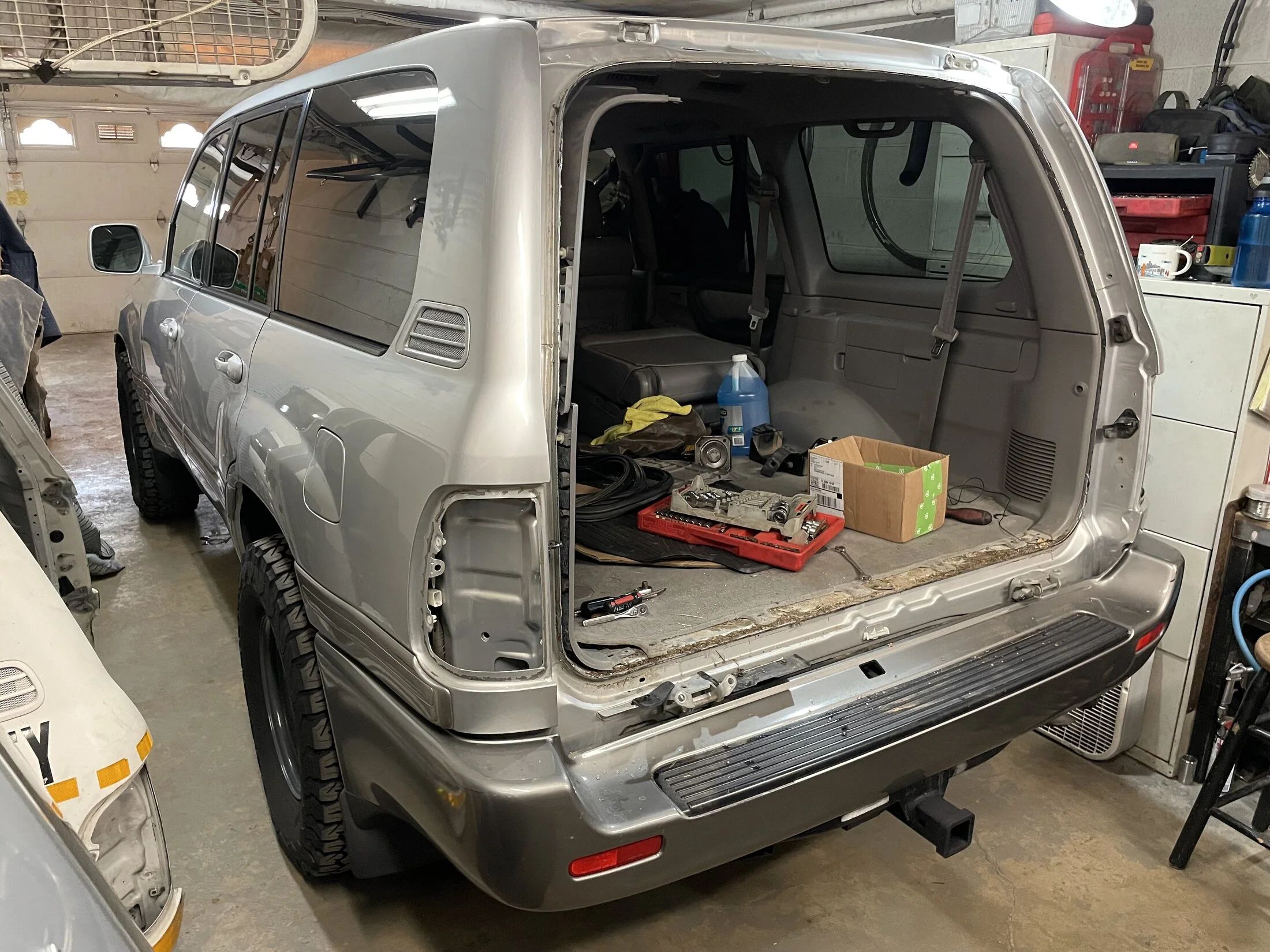

Here’s some pictures of the process.
At a high level tailgate hinges were removed, welded nuts inside and bolted the doors up. There was some welding/fab work for the drip rail & bottom strikers. Final step is adjusting the doors so they close properly using factory shims.
Here’s some pictures of the process.
Dilspec
SILVER Star
Some more pics, feel free to ask any questions.
This is a cool project for sure BUT someone educate me....Why would you want some swing out doors that serve no purpose compared to the original setup which provide you with a seat, table, and sun block shade lol
Dilspec
SILVER Star
Why not?
lol fair enough....well, cost, time, and removal of functional pieces are a few reasons but I'm not hatin' just speculatin'
I generally prefer the tailgate but the barn doors do allow easy access to the trunk while have a swing out tire carrier. If pop top camper or rear bench seats, barn doors would be the way to go too.
A lot of folks with barn doors to complain of dust ingress though. They don't seal as well as the tailgate.
A lot of folks with barn doors to complain of dust ingress though. They don't seal as well as the tailgate.
Sorry, I couldn’t recall 100% how you achieved it. I just knew that it had been done, and done very well might I add.
GTV
SILVER Star
With jump seats in the back it makes a lot of sense. Otherwise, tailgate all day every day.
I have a buddy who wants this conversion, badly. I do crazy stuff like this and was foolish enough to say "maybe". This biggest unknown is sourcing the doors. @mcleaod you appear to be in Qatar and have access to these. How about getting one to the US? I don't need the frame, just the doors and latch/hinge parts. Using 3D scanning, I can do the rest without having to ship the back section of an entire vehicle.
