Wiper linkage bushing (Front)

[HAAANK]

My bushing is shot and I'm curious if anyone has a decent fix or source for the bushings.
Looks like @NLXTACY has on for 60 series, anyone know if those can fit an 80?

I saw a thread which involved some welding on the linkage, I'm hoping for a more simple solution.

Thanks fellas.



[gummycarbs]

Front or rear?



[HAAANK]

Front or rear?

Front



[Malleus]

Can you point to the "bushing"?

There isn't a separate part I'd identify as a bushing. All the pins fit into machined holes.



[gummycarbs]

Front

Darn. The rear linkage with bushings is only like $30.

I would probably start by looking at those bushing assortments sold under the Help brand (Dorman, I think). They don't list any matches on their site, but maybe Toyota uses common bushing designs...

The bushings aren't available from Toyota and the US market linkage is NLA. There's a non-US market linkage that's available (85150-60101), but nobody has confirmed that it's a direct swap-in. It's only $137 from Partsouq.



[RoaringFork]

I had the bushing at the wiper motor connection fail… I looked at the aftermarket repair kits on the parts store shelves, but couldn’t find anything that worked. I ended up sourcing a used linkage from @slow95z .



[truthdetector]

There's a non-US market linkage that's available (85150-60101), but nobody has confirmed that it's a direct swap-in. It's only $137 from Partsouq.

I got this and it bolted up perfectly in my '97 with 6 new 91653-A0616 bolts.



[gummycarbs]

I got this and it bolted up perfectly in my '97 with 6 new 91653-A0616 bolts.

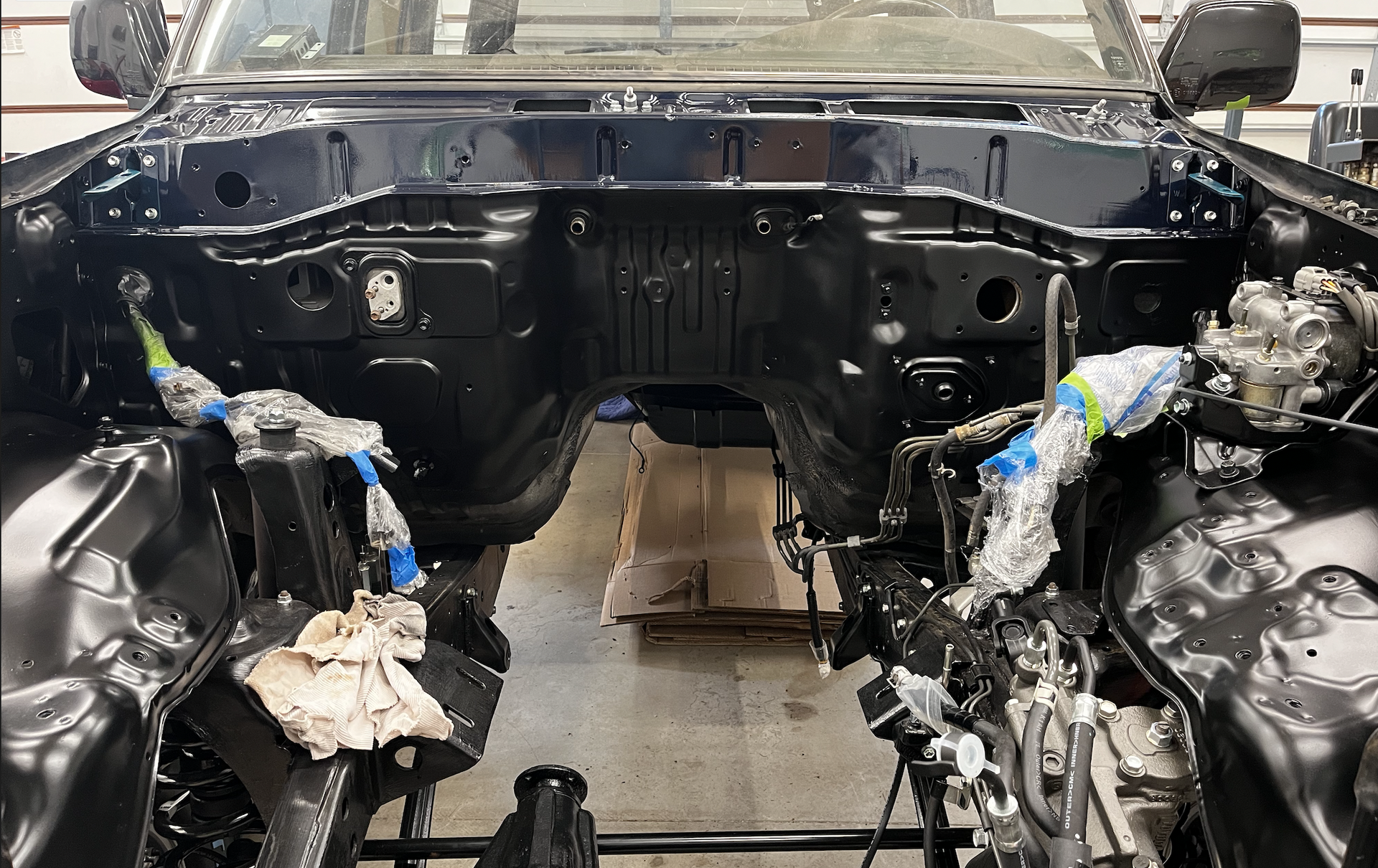

View attachment 3181913

It connected to your existing wiper motor and wiper arms?



[truthdetector]

Motor, yes - that snapped on perfectly. Haven’t tried to test-fit the arms yet. Happy to get some comparison pics when I get back to the shop, which won’t be for another few days to a week.



[sunrk]

Ouch a new wiper motor for RHD 85110-60101 is almost A$700 through Amayama and the linkage assembly 85150-60120 is about A$270 while the revised one 85150-60121 shows at about A$170.

I've replaced the wiper arms with the screw on style blades with later version using clip-in style blades but otherwise not had any problems.



[NLXTACY]

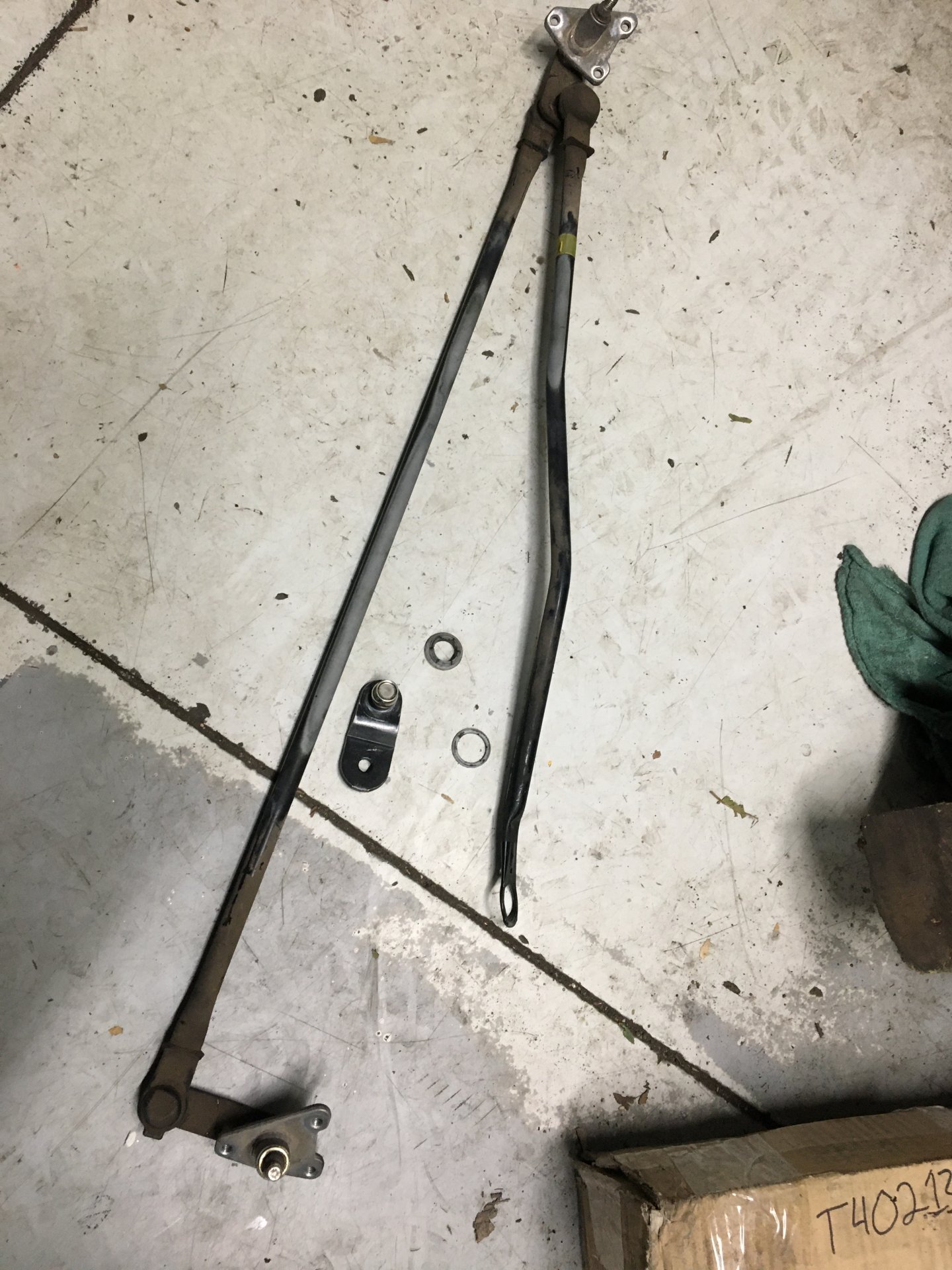

View attachment 3181912

that looks just like the one I make for the 60 but never had a reason to test on the 80.



[Kernal]

While things are apart is a good time to dismantle the wiper linkage spindles to clean and regrease the small hub and internal brass bushings. IME the original grease washes out and/or dries up (inside the spindle housing/bracket) leaving no lube for the short wiper spindles along with allowing water entry.


Top photo shows the wiper arm spindle after having a lube port/tunnel machined down the spindle shaft then a side port drilled into the shaft to allow grease to flow where it's needed between the bushings

View of the internal brass bushings before they were packed with grease

FWIW



[sunrk]

Nice one didn't realise that was how they were made internally.

Might be worth trying the same thing with mine that's now getting close to 33 yrs since manufacture. I wonder if the revision to the part number is connected to those bushes?

I use something like Wurth HHS-2000 or 'forklift grease' for these type of fittings as the grease draws in and tends to wick down. Not sure how effectively though.



[Kernal]

Any lube is better than no lube. It was a bit fiddly to pry the washers or clips off but once you figure out the first one the next is easy.



[HAAANK]

that looks just like the one I make for the 60 but never had a reason to test on the 80.

That would be amazing if it did



[truthdetector]

@gummycarbs

The posts where the wiper arms mount are identical.
