Which Carling Style Switches for Delta Shift Console? (1 Viewer)

[mudgudgeon]

Filing it by hand is time consuming.

Perfect tool for the job . . .



[CharlieS]

That would've been a great tool to use. A file and elbow grease got the job done though.



[CharlieS]



[JoeCova]

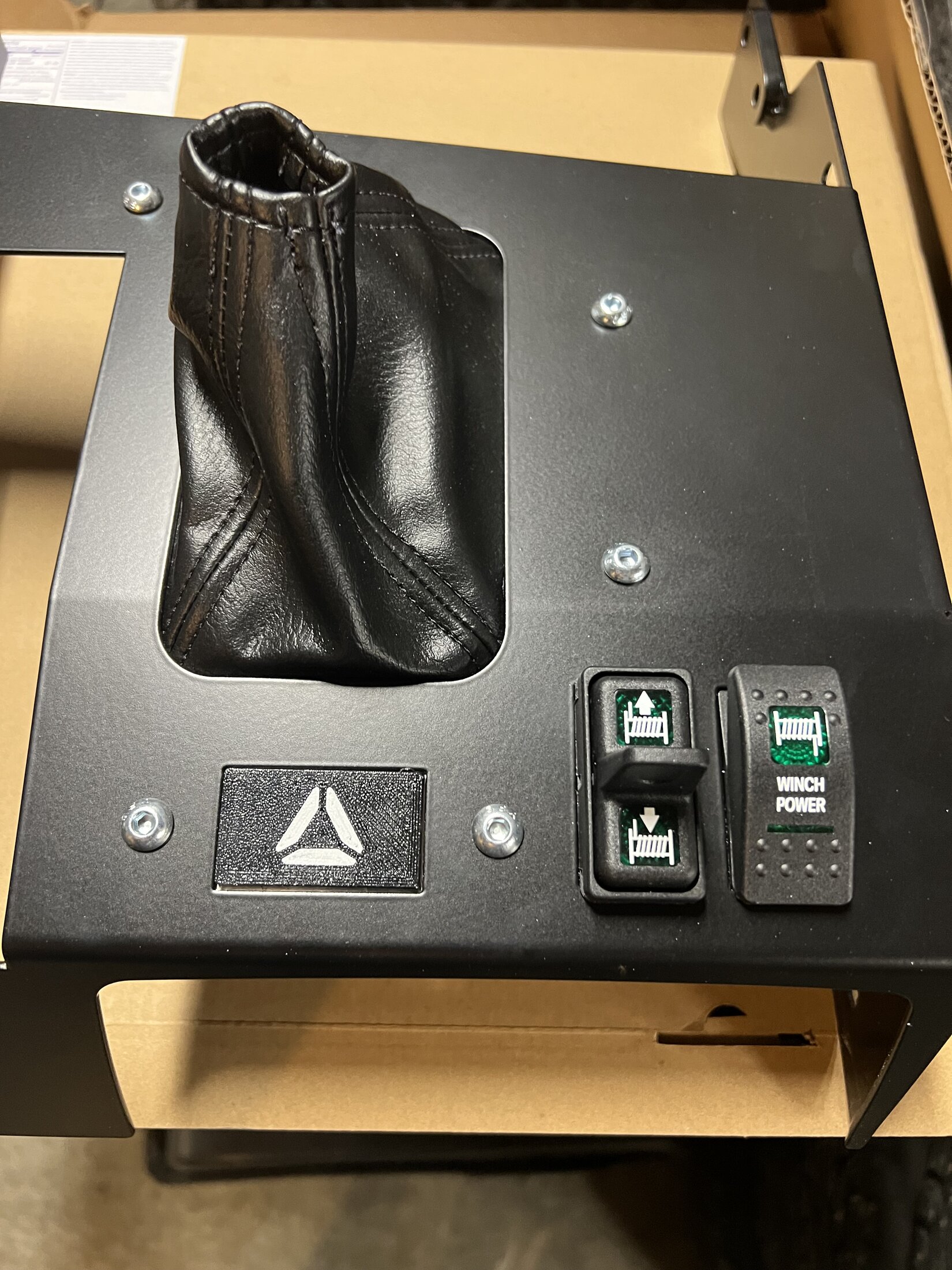

View attachment 3807589

Now post how you wired it all up.



[CharlieS]

Will do!



[Broski]

Something Like this



[CharlieS]

I got a bunch of goodies from Waytek or Mouser (?) to make it a single 8 pin connector per switch. I haven't gotten around to wiring it yet. I'll post when I do.



[mudgudgeon]

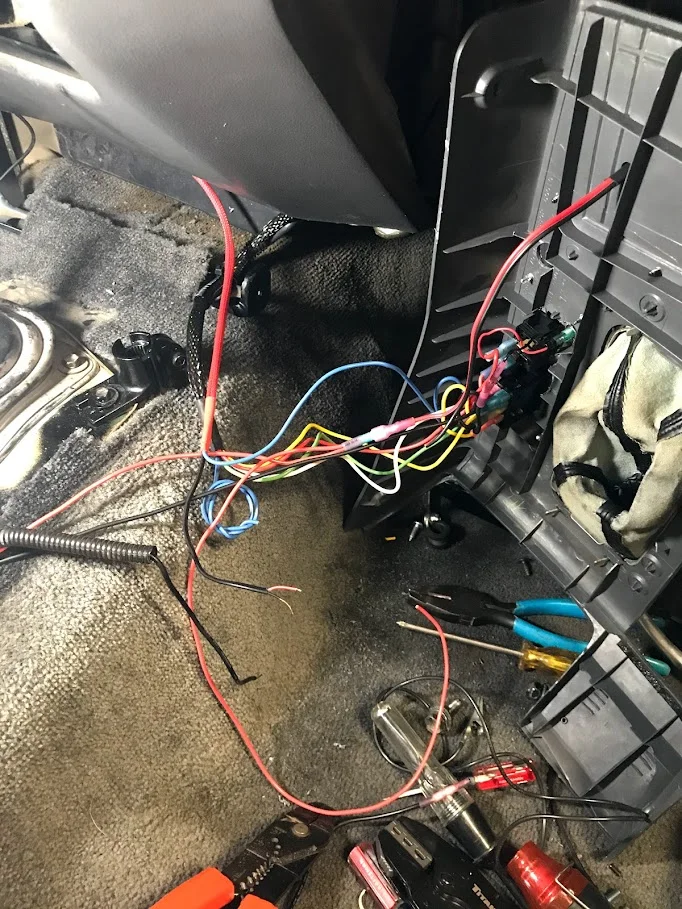

View attachment 3812378
Something Like this

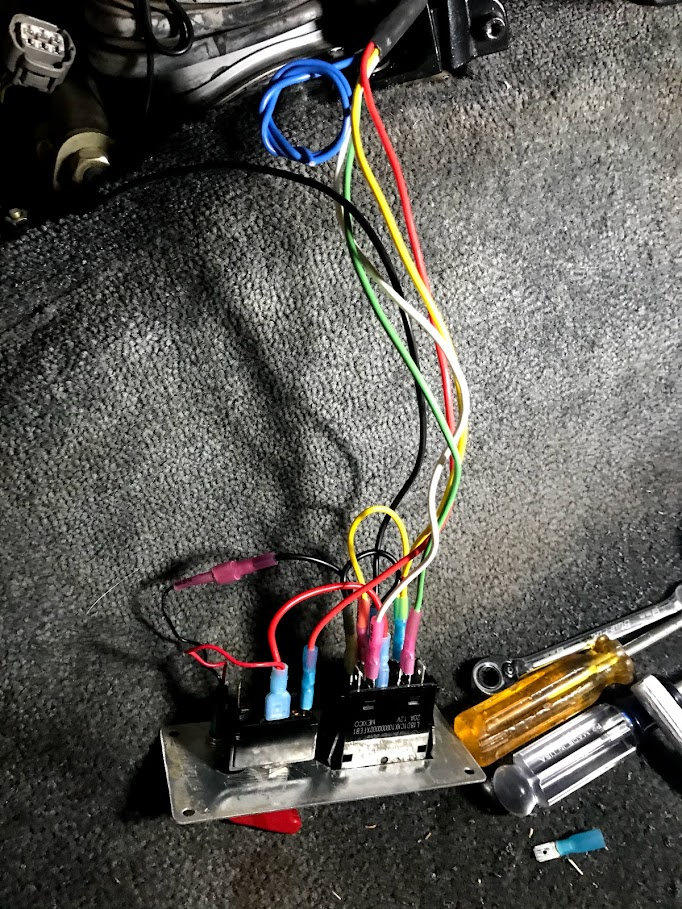

View attachment 3812382

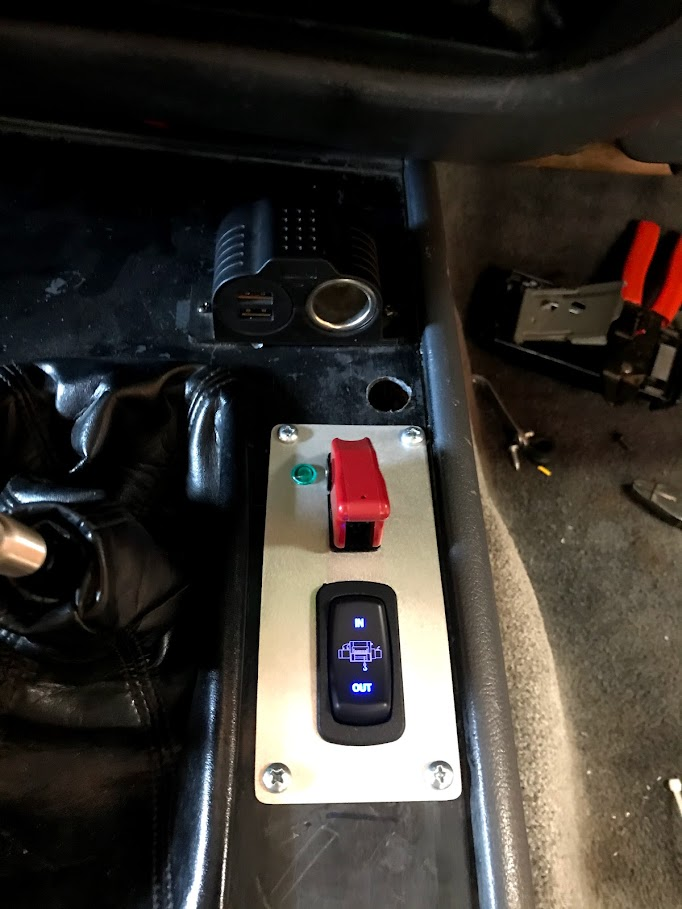

View attachment 3812383

I hit like for the missile switch master switch, not so much for the spaghetti underneath



[Broski]

It's a minimum 4-5 wires depending on your winch controller, more if you want the switch's to light up when you have you head light on and or when the switch's are powered up. I have both.
Older winch's 4 wire newer 5 wire



[Broski]

I hit like for the missile switch master switch, not so much for the spaghetti underneath

Pretty much cleaned up in the second pik
