Warn M8000 Winch Install

Discussion in '80-Series Tech' started by FirstToy, Aug 16, 2006.

  1. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    I finally finished installing my winch. Big thanks to Alvaro, Eduardo & Andries
    for all the help and tips. It was very, very helpful. It took a couple weeks of doing a bit after work and a bit on weekends.

    I also cribbed off Slee's dash winch controls w/ a couple Toyota switches from
    ebay ($15 ea). (Slee's diagram is on his site's tech section)

    If you plan to do this, use the old 4Runner antenna switch instead of the Land
    Cruiser one.
    The 4R switch is a rocker switch, better than LC's 2 seperate buttons.

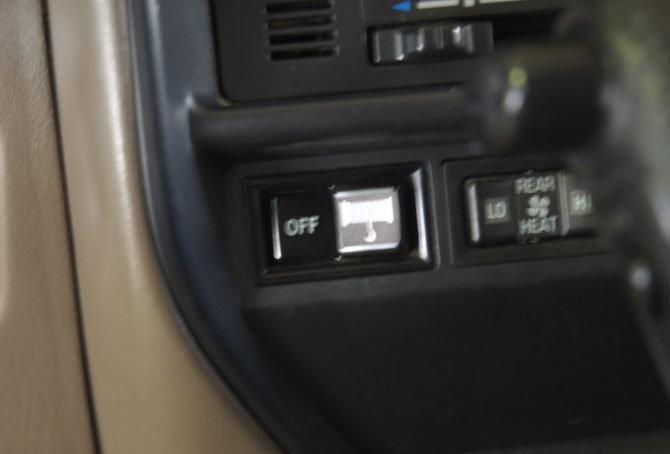

    Pictured are some temporary icons I made for the dash switches. I will make stickers and put them on there so it looks fairly clean.
    winch.jpg winch2.jpg winch3.jpg

  2. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal

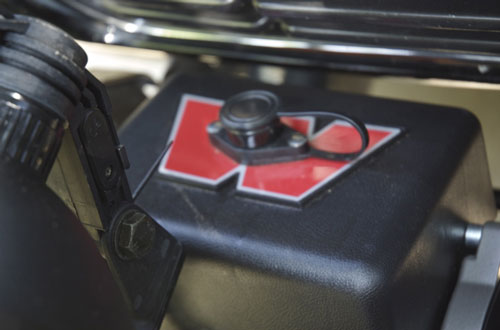

    Here you can see the 4Runner antenna switch.
    The control box is on the passenger side, plenty of room

    from underneath, you can see the spacers you need to clear the M8000. Use longer bolts - all grade 8 hardware. (noted that Warn supplies Grade 5 hardware w/ the winch)
    winch3.jpg winch4.jpg winch5.jpg

  3. Big_Moose

    Big_Moose

    Messages:
    426
    Likes Received:
    0
    Joined:
    Aug 26, 2002
    James,

    Lookin Good!
    Nice clead install - running out of dash room:)

    Joe

  4. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    Thanks Joe,
    Yeah self-imposed end to mods. The dash is full!

    I should say I put a kill switch for the + winch cable, so even if someone jumps the control box, it is no-go.
    winch_switch.jpg wiringwinch.jpg

    Last edited: Sep 8, 2010
  5. dfmorse

    dfmorse

    Messages:
    1,518
    Likes Received:
    2
    Joined:
    Jul 7, 2004
    Location:
    EVERGREEN, CO, USA
  6. cruiserdan

    cruiserdan SupportingVendor Emeritus Moderator

    Messages:
    21,818
    Likes Received:
    5,403
    Joined:
    Mar 27, 2003
    Location:
    Surrounded by Cruisers from all over the world
    The remote controls mimic my set-up from a few years ago. I too selected the antenna switch as it eliminates the requirement for additional relays. In addition, I mounted the cable control switch in the center console with the cable-in and cable-out positions intutitive in relation to the vehicle position.

    I also incorporated an arming swith on the istrument panel.
    march to feb 2005 012.jpg 805.jpg

  7. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    Looks like we used the exact same buttons! Great minds think alike :) hehe

    I don't have blanks in the center- only the subwoofer there :(

    Tho you give me the idea to switch the in/out around. So "in" is inboard, "out" is closer to the window...

    I'm still playing w/ the icons- I kinda like these:

    Last edited: Aug 17, 2006
  8. cruiserdan

    cruiserdan SupportingVendor Emeritus Moderator

    Messages:
    21,818
    Likes Received:
    5,403
    Joined:
    Mar 27, 2003
    Location:
    Surrounded by Cruisers from all over the world
    Mine are in simple text:

    "Cable in" and "Cable out".

  9. desertdude

    desertdude SILVER Star

    Messages:
    3,308
    Likes Received:
    116
    Joined:
    Nov 29, 2003
    Location:
    Arizona
    Very well done James - this is on my finish to do list

    Nice icons you artist you... :)

  10. YngTLCOwner

    YngTLCOwner

    Messages:
    296
    Likes Received:
    0
    Joined:
    May 17, 2004
    Location:
    So. Cali
    Your trucking is looking awesome James! As always great work!

  11. SinCity4r

    SinCity4r

    Messages:
    65
    Likes Received:
    0
    Joined:
    Mar 30, 2006
    Location:
    Reno NV
    Very clean James. Your attention to detail is impressive!

  12. Biff

    Biff

    Messages:
    1,904
    Likes Received:
    3
    Joined:
    May 19, 2004
    Location:
    Los Angeles
    Looks good, can I ask why a Warn M8000 instead of something heavier?

  13. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    Victor,
    Watching it perform at Rubicon on Alvaro's 80 sold me on the M8000.
    With this type of thing, seeing for yourself is the best way to decide if it's right for you.
    For example, Cruiserdrew has a 12K Warn I think. Obviously, this will handle more situations.

    My thinking was: What is the lightest, least expensive winch that will do the job well?
    M8000= proven performer in my terrain & truck
    weight= approx 43-45lbs total (minimal impact for the 95% of the time I will not use it)
    cost= this is tricky. You want high quality but never need it! But I got it at a great price and jumped on it.
    self-sufficient= I felt like the winch was a big step in going prepared on solo/small trips.

    The only downside is "your winch" becomes "our winch" on group trips ;)
    The only reason that scares me is if the recovery points on a stranger's vehicle are not up to snuff. But I am not afraid to say "no" in such situations.
    I am looking fwd to trying it out on a trip w/ Cruiserheads tho

  14. desertdude

    desertdude SILVER Star

    Messages:
    3,308
    Likes Received:
    116
    Joined:
    Nov 29, 2003
    Location:
    Arizona
    Well said... I want your icons to become my icons :D

  15. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    after I finalize, I'll send you some Pasquale :)

  16. desertdude

    desertdude SILVER Star

    Messages:
    3,308
    Likes Received:
    116
    Joined:
    Nov 29, 2003
    Location:
    Arizona
  17. Beowulf

    Beowulf

    Messages:
    12,529
    Likes Received:
    52
    Joined:
    Mar 27, 2003
    Location:
    Somewhere in the foothills...
    FirstToy,
    Did you come up with other winch icons or was the final version? I am using the same 4R antenna switch.
    -B-

  18. FirstToy

    FirstToy

    Messages:
    4,432
    Likes Received:
    71
    Joined:
    Nov 27, 2003
    Location:
    Socal
    Haven't had time but I am going to print some this week.

  19. GreatLakesWaterjet

    GreatLakesWaterjet

    Messages:
    475
    Likes Received:
    2
    Joined:
    Dec 18, 2004
    Location:
    In the shop cuttin' parts
    When you get the labels done, pm me with a price please. Need some bad and don't have time to make them. Looks great!

  20. Spydaz

    Spydaz

    Messages:
    390
    Likes Received:
    0
    Joined:
    May 20, 2005
    Location:
    Long Island, New York
    Why did it take so long to install the winch itself?? I am pondering on doing this and using that exact winch. Is it a pain in the Arse to install????
