Later this year I will be having a diesel conversion done on my 80. Thus, my uber-clean fully-functioning TRD Supercharged 1FZ-FE and A343F will be up for sale.
At this point this is a "feeler" thread, which will eventually move into a "for-sale" thread. Not trying to tease, but until my 80 goes under the knife, it needs to keep running. The motor runs strong, has good compression, and does not burn or leak a single drop of oil.
Price-wise I am looking at $7,000 for the lot...before you choke on the price read what has been done, and what is included. This is not a junkyard pull. It is a running TRD-breathing known rig.

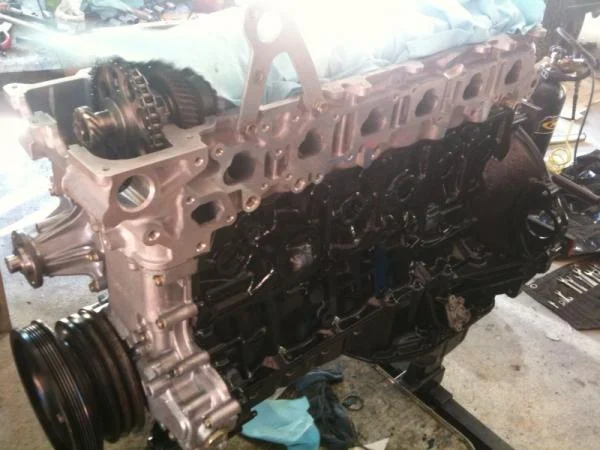

Here are a few shots from when the work was done.
At this point this is a "feeler" thread, which will eventually move into a "for-sale" thread. Not trying to tease, but until my 80 goes under the knife, it needs to keep running. The motor runs strong, has good compression, and does not burn or leak a single drop of oil.
Price-wise I am looking at $7,000 for the lot...before you choke on the price read what has been done, and what is included. This is not a junkyard pull. It is a running TRD-breathing known rig.
- 1FZ-FE which had a major service performed by Robbie Antonson (Powderpig) 20k miles ago, with a total of 178,000 on the motor now. The motor was torn down to just the block with the pistons inside (crank came out for polishing) including the following items:
- Main Bearings
- Con Rod Bearings
- All Seals replaced (yes every single one)
- Engine parts cleaned of oil varnish and sludge
- Brand New Mr. T Cylinder Head (replacing the original which had small crack)
- New Cylinder Head was serviced by machine shop to factory specs
- Oil Cooler Cleaned
- Fuel filter replaced
- PHH replaced with silicone
- All clamps are either OEM style or non-marring constant pressure style
- Injectors serviced by Witchhunter
- New OEM cap, rotor, wires, etc.
- New OEM water pump
- New OEM power-steering pump
- Intake and EGR cleaned of all crud
- TRD Supercharger cleaned of all crud, fluid replaced
- New silicone Supercharger hoses
- Vacuum lines replaced with silicone lines
- All Belts and hoses replaced with OEM
- New pulleys and bearings as needed
- New OEM Blue Fan Clutch with 10,000 cst oil
- Oil catch-can added to PCV circuit
- Primed and painted with engine enamel
- Has used only Mobil 1 (will provide a Blackstone Report when I next change oil)
- Has used only Toyota Red radiator fluid changed every two years
- New Napa Starter and OEM rebuilt spare included
- Various other motor spares from my personal stash (will need to dive into that box)
- Edit - Also has LandTank MAF, and will include the OEM MAF
- 1996 OBDII ECM (sorry, I will be keeping my loom as it needs to be married to the diesel)
- EMS Stainless Steel Exhaust
- Two-cat model from manifold-back
- Custom-cut and shortened rear pipe to clear subtank and not easily pinch offroad (tucks up high, and will work with stock trucks)
- TRD 10PSI Boost Gauge
- A343F
- Works flawlessly, never had any issues
- No leaks
- Fluid changed 12 months ago
- Trans cooler
Here are a few shots from when the work was done.
