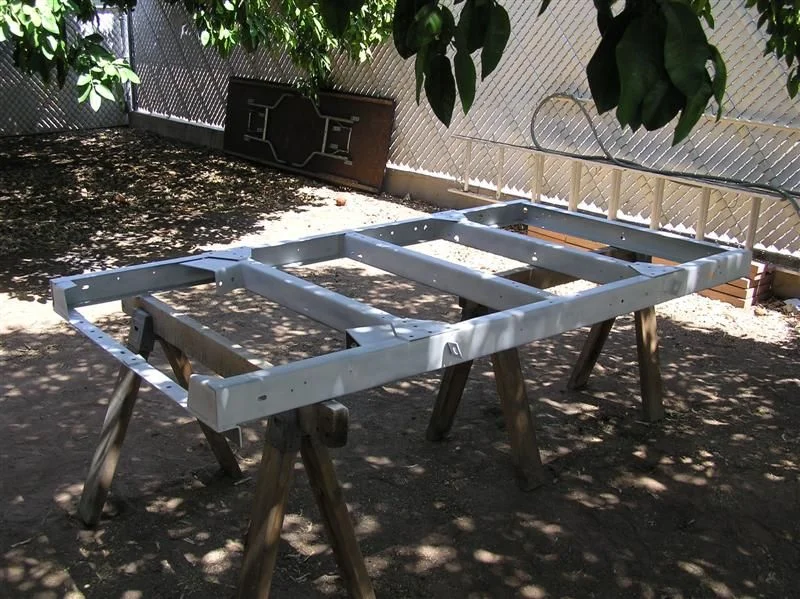

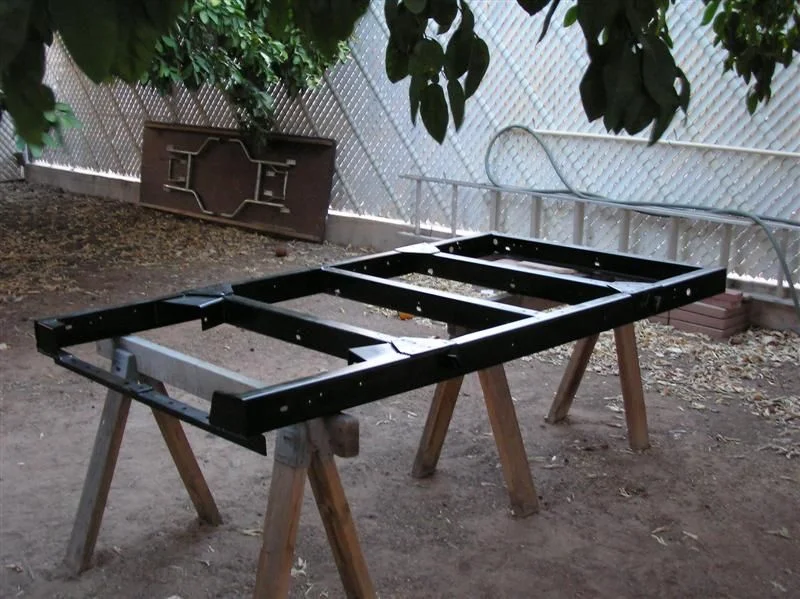

1. The frame primered.

2 & 3. The frame painted and drying.
P1010060 (Medium).JPG
P1010061 (Medium).JPG
P1010062 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

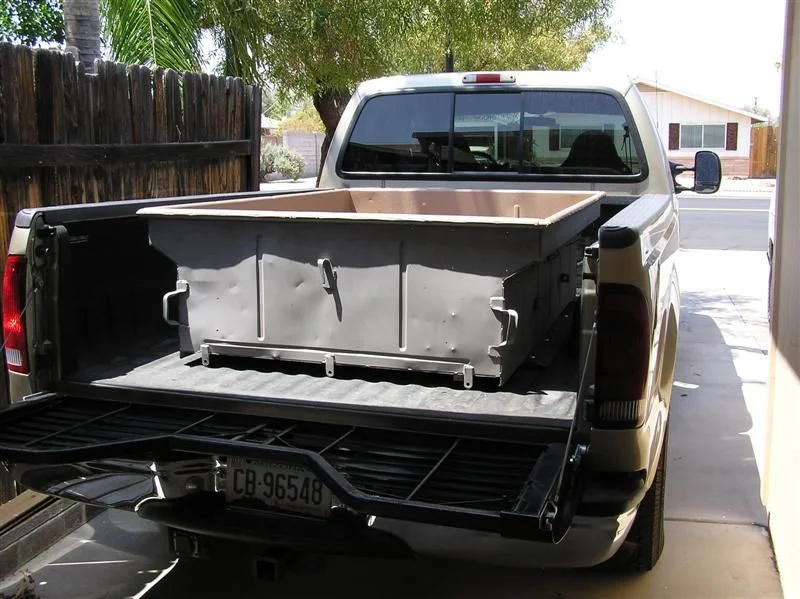

I had taken the tub right from the sandblaster to the Line-X shop to get it lined. I know some of you would have recommended that I do a Herculiner liner to save some money. But doing it this way, saved me a lot of time and the color turned out great.
P1010067 (Medium).JPG
P1010066 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

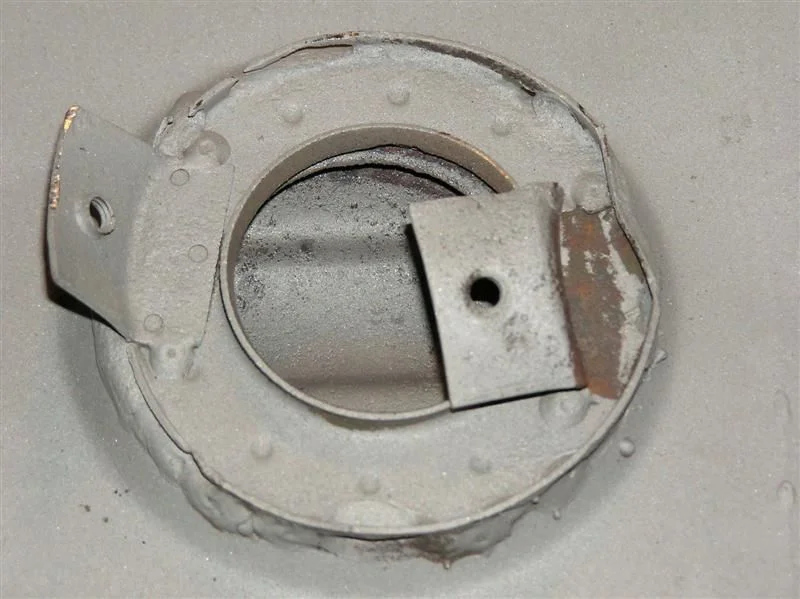

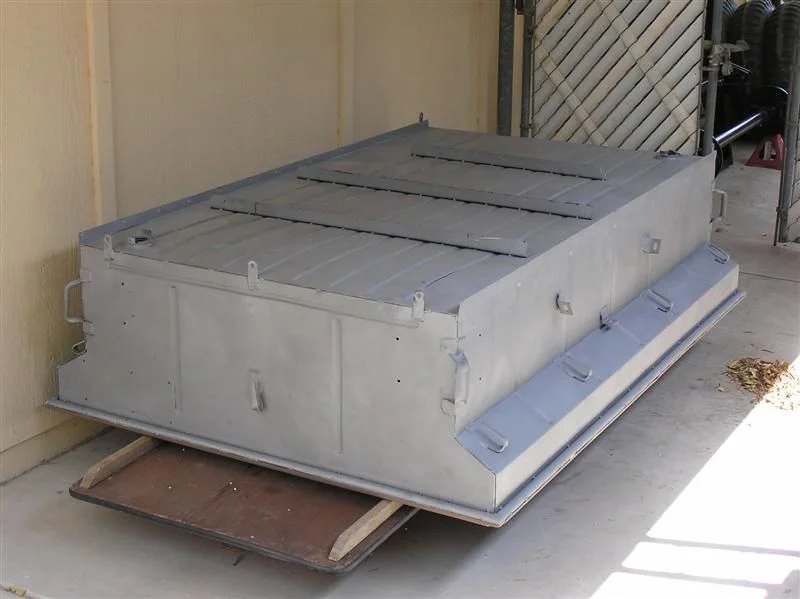

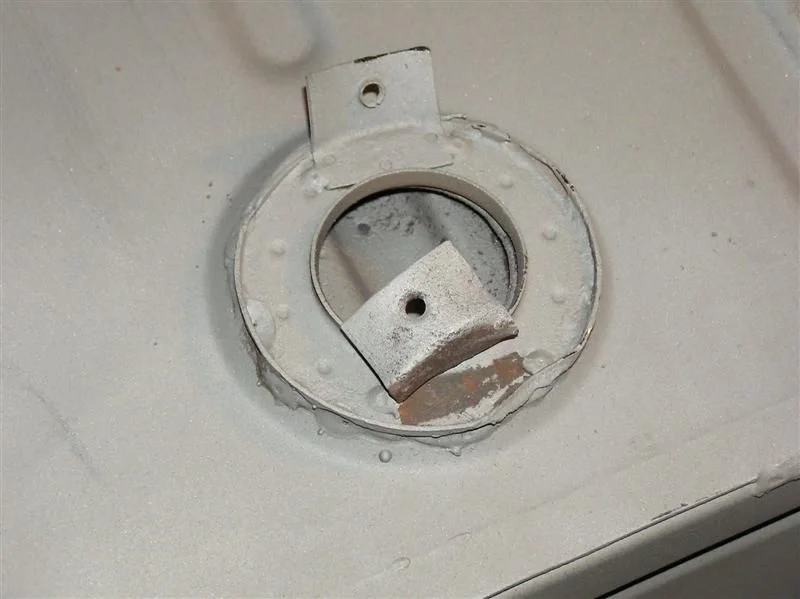

I ran into a little trouble here. The Line-X shop damaged the tabs for one of the drains. So, I had to wait to get this repaired before I could paint the tub.
P1010068 (Medium).JPG
P1010069 (Medium).JPG
P1010070 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

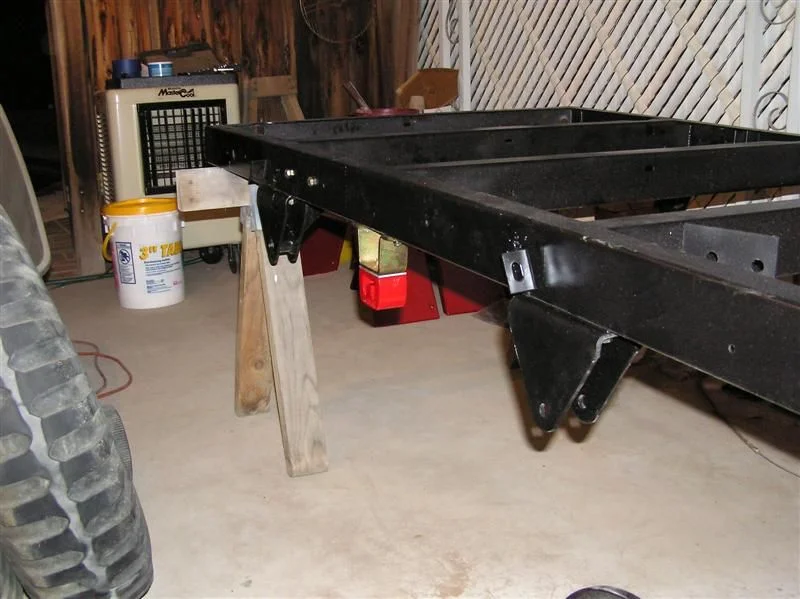

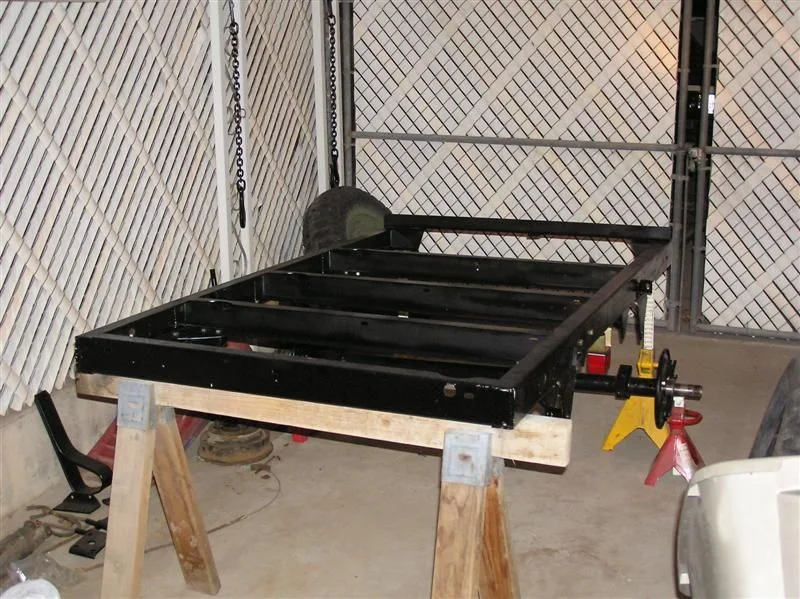

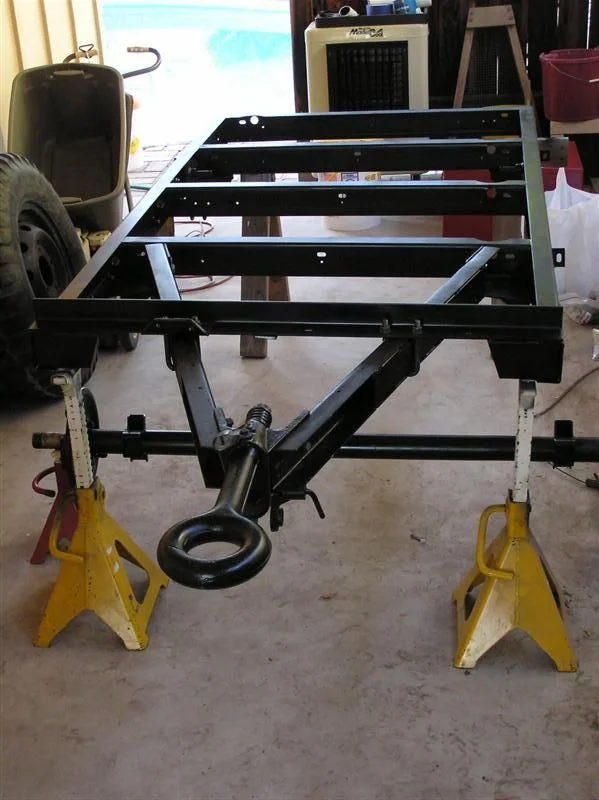

So, I continued to work to get the chassis back together. Here you see the spring brackets are reinstalled, the extended bump stops for the spring-over and that the draw bar is reassembled.
P1010073 (Medium).JPG
P1010074 (Medium).JPG
P1010075 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

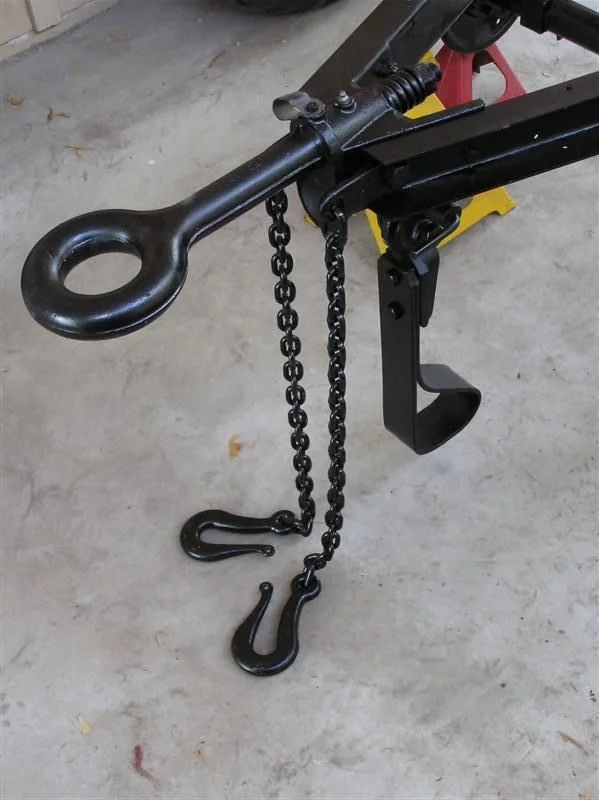

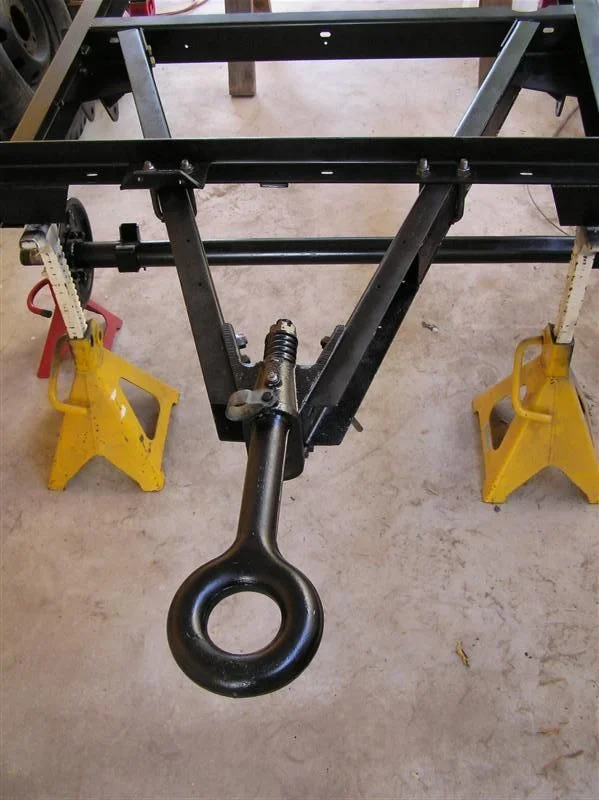

1 & 2. I got the final pieces of the draw bar together, the landing leg and safety chains.

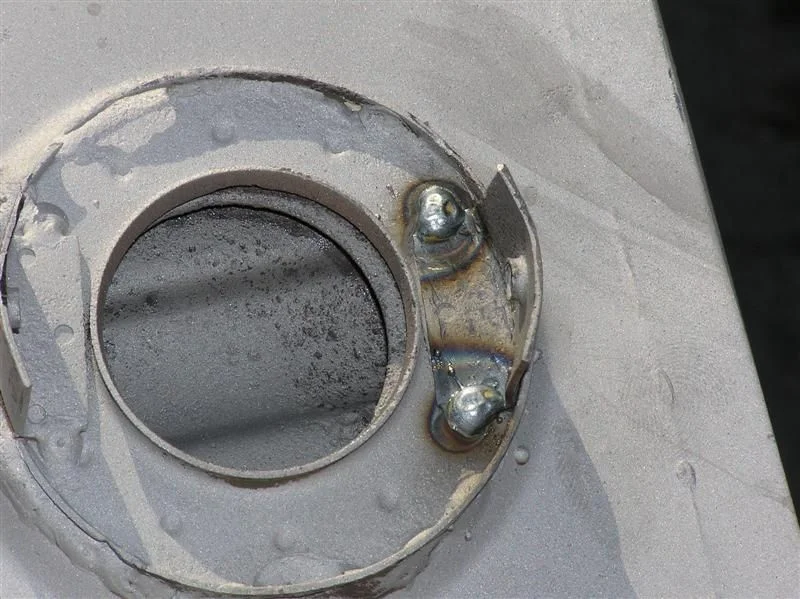

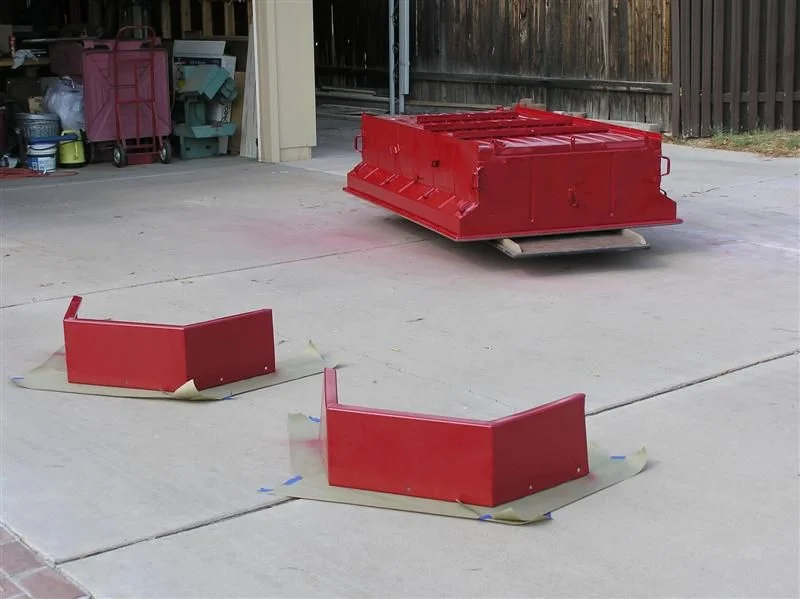

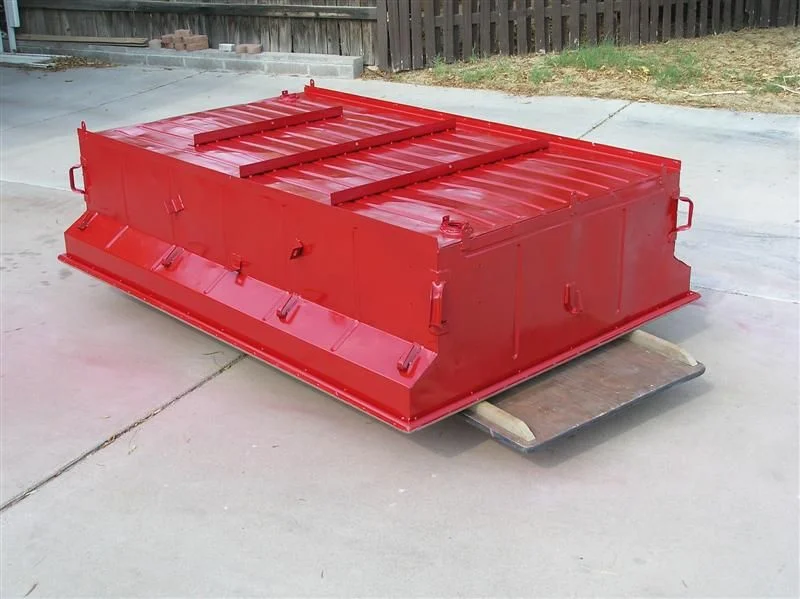

3. The body shop that had welded up some other holes in the bed, rewelded the drain tab and I was ready to paint the tub.
P1010076 (Medium).JPG
P1010078 (Medium).JPG
P1010077 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

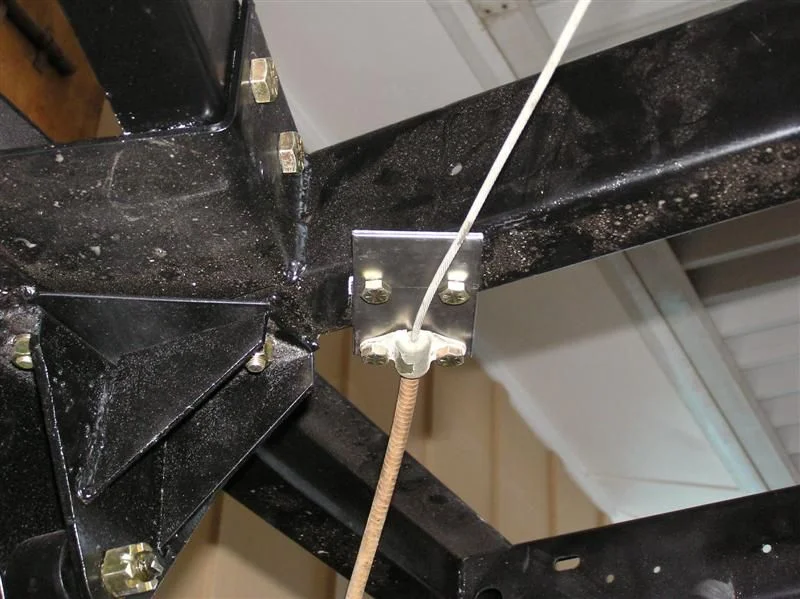

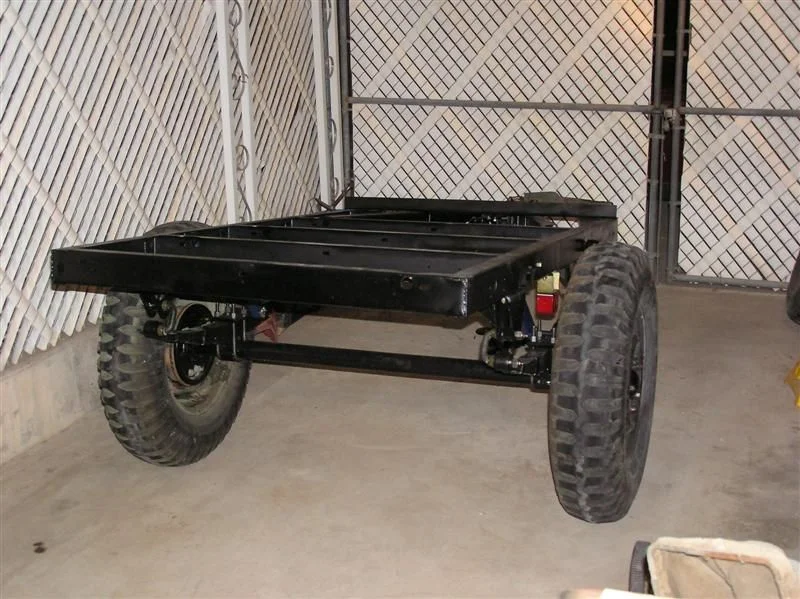

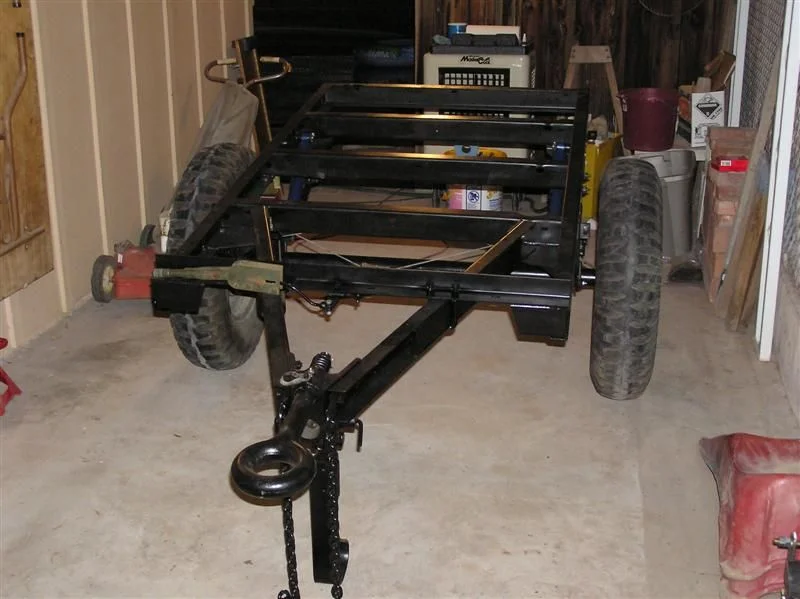

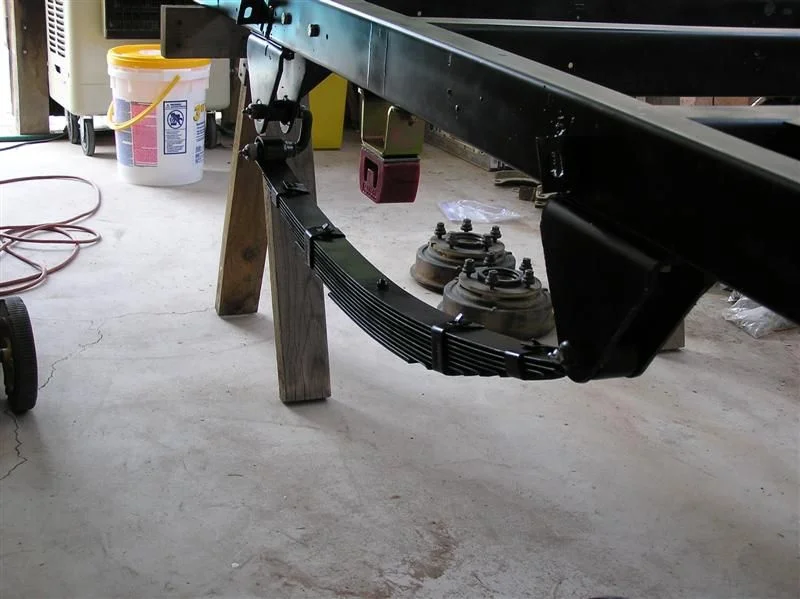

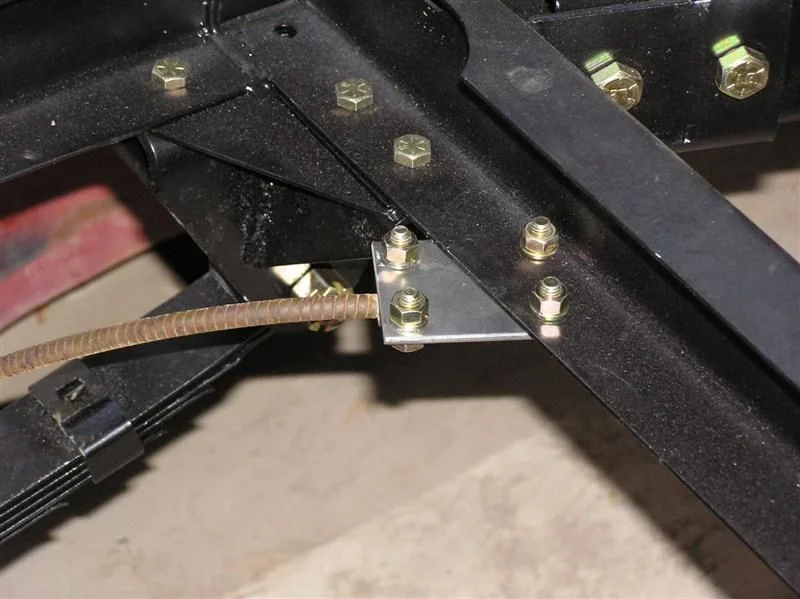

I went back to work at getting the chassis rolling again. I installed the springs and axle. I put the brakes back together and installed the wheel hubs with new bearings. Then I hooked up the parking brake cable. Because I had done a spring-over, I had to make these simple brackets to relocate the cable housings. I also had to make a longer J-hook from all-thread for the parking brake to work.
P1010080 (Medium).JPG
P1010083 (Medium).JPG
P1010086 (Medium).JPG

Last edited:
Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

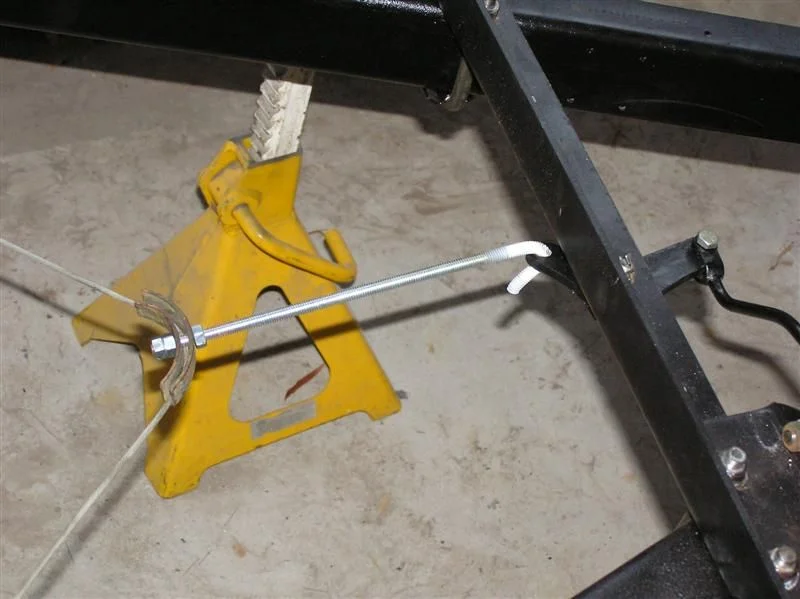

1. The J-hook installed.

2. The parking brake handle is installed. I didn't have time to paint now, but will get it painted later.

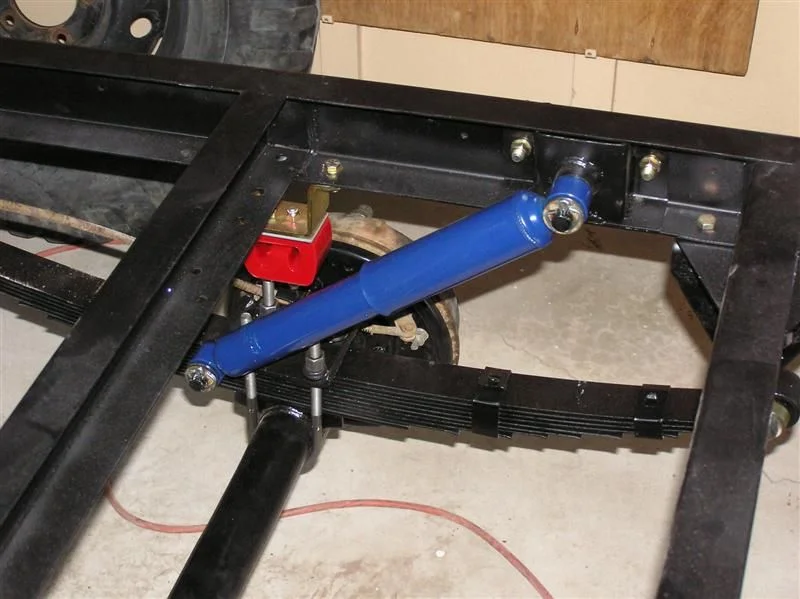

3. I installed the new shocks.
P1010087 (Medium).JPG
P1010085 (Medium).JPG
P1010084 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

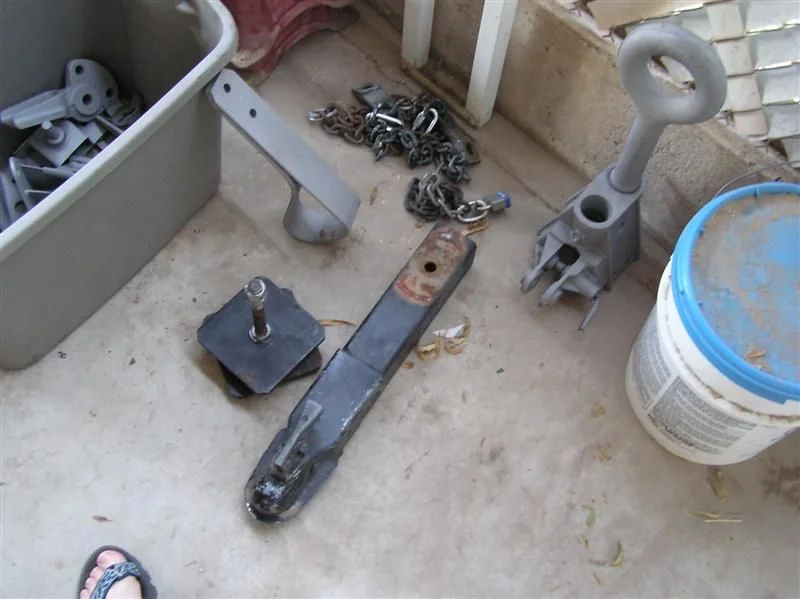

With the spring-over, the trailer was going to be tilted forward quite a bit with the ball hitch adapter in the first photo. So, I had it modified for the extra lift.
P1010041 (Medium).JPG
P1010088 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

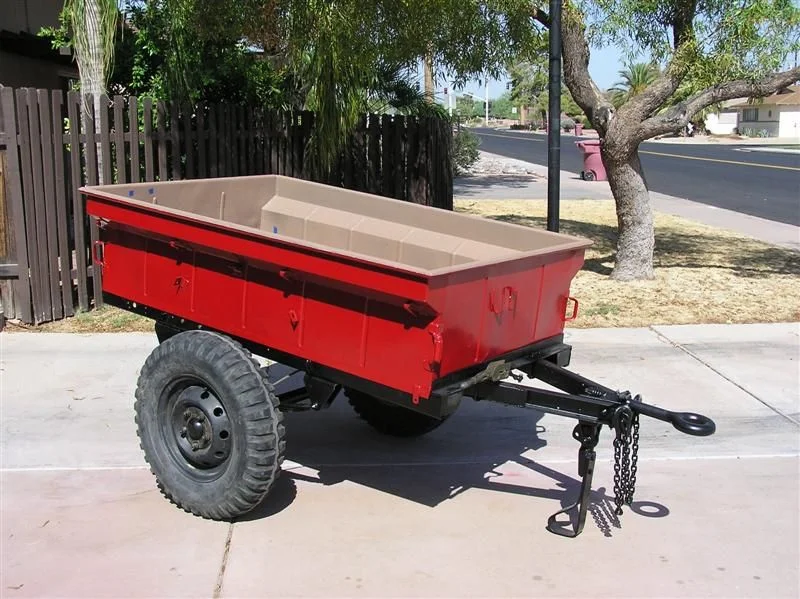

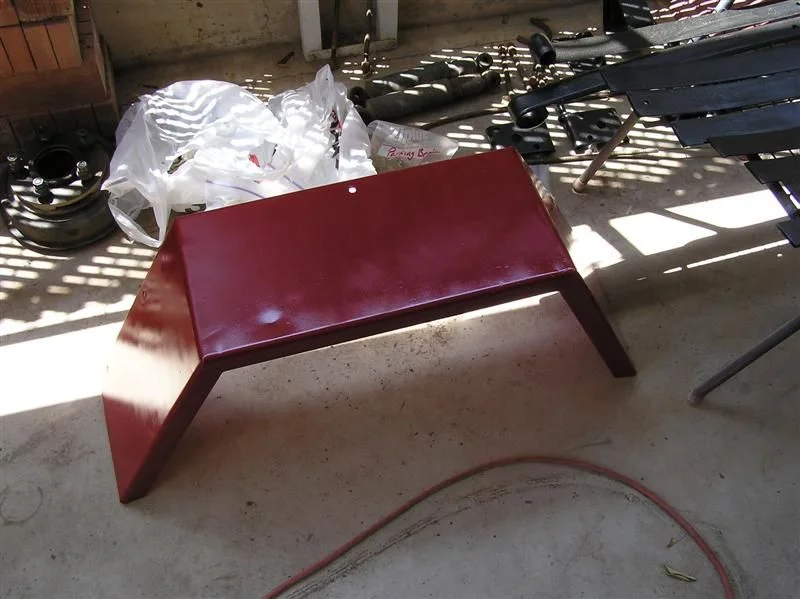

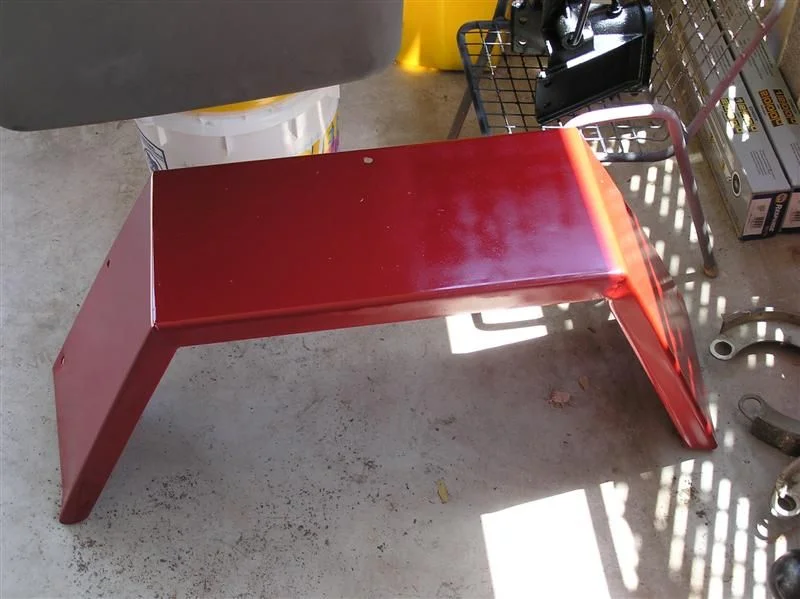

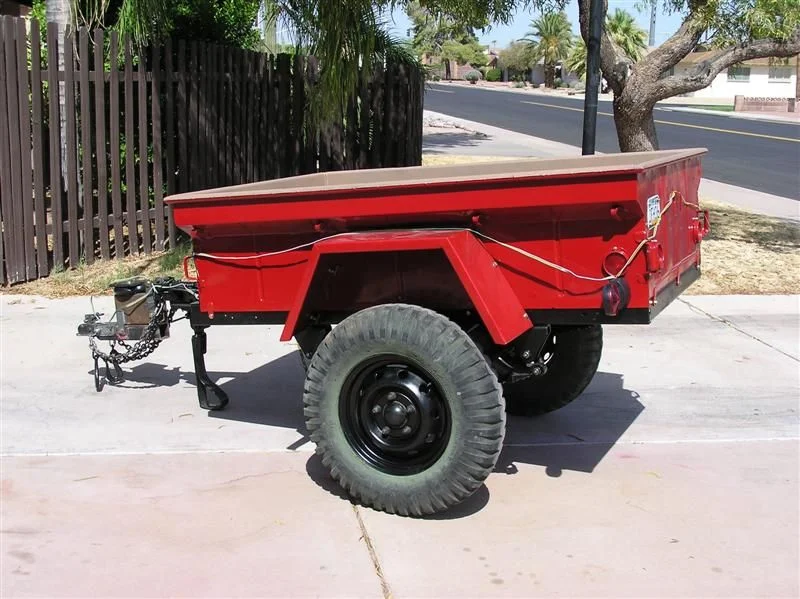

With a little help, the tub was set back on the chassis and bolted down. I installed the fenders and the new license plate. I then put the modified ball hitch adapter and the magnetic trailer lights on the trailer. I will put permanent lights on it at a later date when I can fabricate what I want.
P1010091 (Medium).JPG
P1010092 (Medium).JPG
P1010093 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

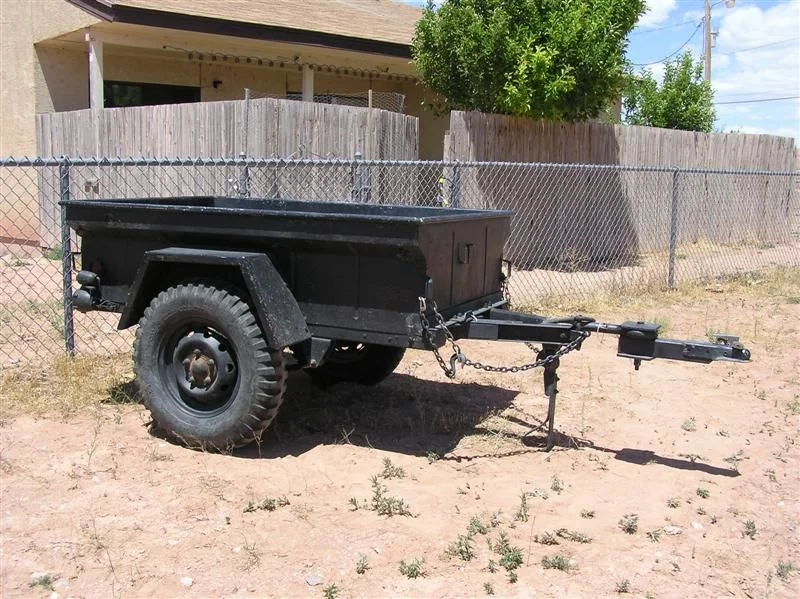

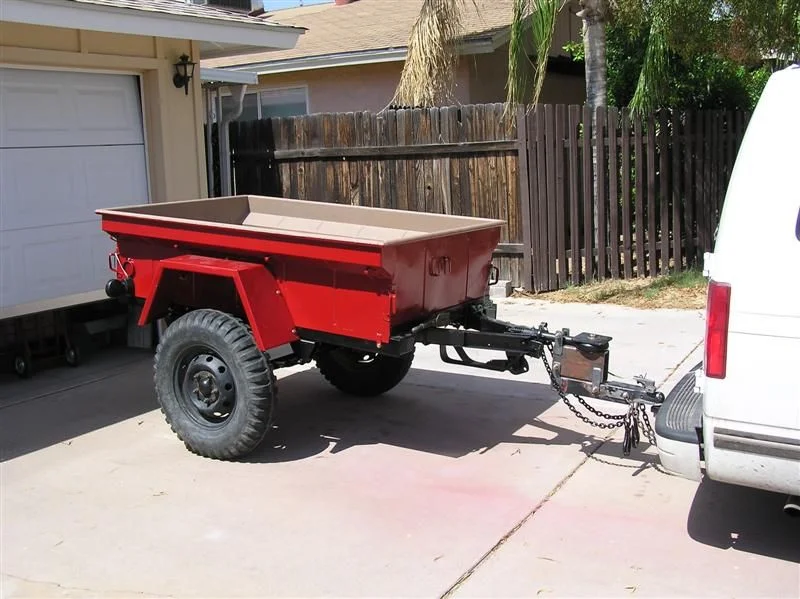

So, here we have the before and after shots. It took a lot of work to get it done in 2 weeks, but it was worth it. It's hooked up to my van for the ride home.
Parked behind our House 2 (Medium).JPG
P1010094 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

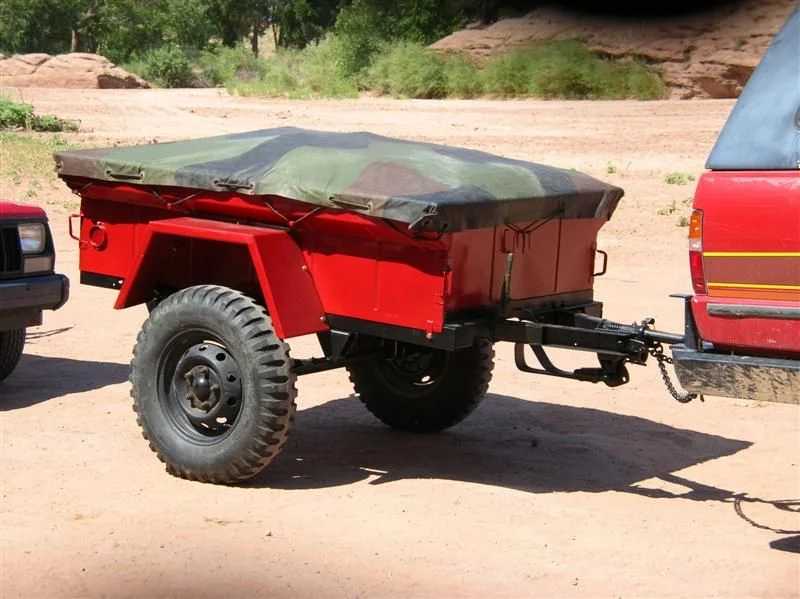

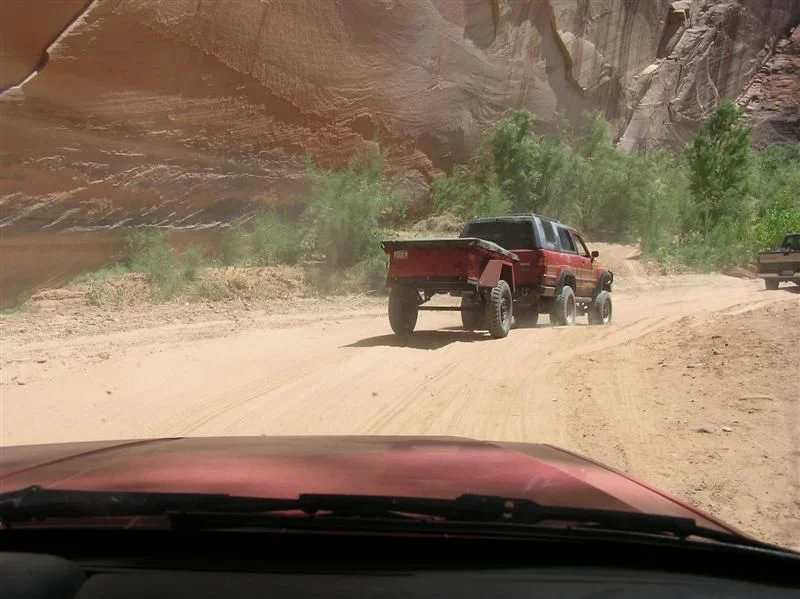

Now, many of you were probably wondering if I have taken the trailer out on the trail yet. In fact, the day after I got it home, we went out with a group to camp in Canyon De Chelly. It is attached to my 4Runner, loaded up and ready to go. It towed beautifully. I hardly noticed that it was back there. Many were surprised that I made it towing the trailer through the sand. I enjoyed building it and had a fun time wheeling with it. I look forward to many years wheeling with it.

:bounce:
Readry To Go (Medium).JPG
The M416 Loaded and Ready To Go (Medium).JPG
P1010101 (Medium).JPG


davegonz

Keeping it Weird
SILVER Star
Joined
Sep 15, 2004
Messages
9,565
Location
Austin, TX
Sweet looking trailer. Now go get some cool stripes to match your truck.

Joined
Mar 31, 2006
Messages
1,102
Location
Abbotsford, B.C.
That has to be one of the most impressive, well documented and photographed writeups I've ever seen on Mud. VERY impressive. :)

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona
Thanks guys!

Here is a fact that I had forgot to put in the posts on painting. I did all of the painting with Rust-Oleum rattle can paint.

The chassis - Semi Gloss Black #7798

The tub - Regal Red #7765


1Fine40

Rust Buster
Joined
Aug 25, 2003
Messages
1,096
Location
Wild Idaho
That is sweet! Lots of work to get it where you want it, but I can see it was worth it. I wish I could find one to build for myself, but they seem to be scarce as hen's teeth! And if you find one, they want a King's ransom for it....May just have to start building a custom one...

Great job and write up!

Cheers!

Joined
Sep 8, 2003
Messages
5,996
Location
Bozeman, MT
AMAZING JOB!

Great looking trailer, I agree a few retro strips would set it off! You should be super proud of that thing and get lots of years out it. Nicely done!
