Hi All,

This is the rebuild of my M416. I am calling it the "Two Week Wonder" because I only had 2 weeks to get this done. Yes, I did get it finished in that amount of time. I am sorry that I wasn't able to get anything posted while I did the work. I was doing the work at my Dad's place and did not have the time. So here it goes!

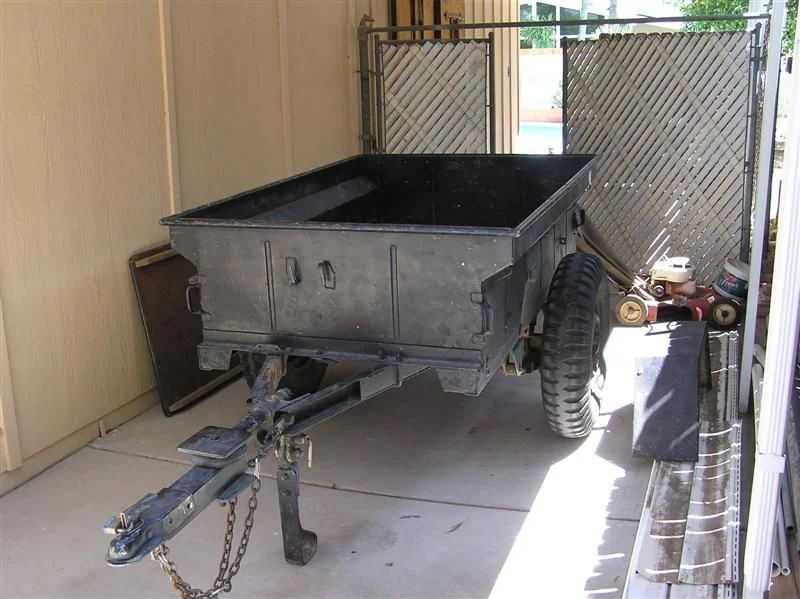

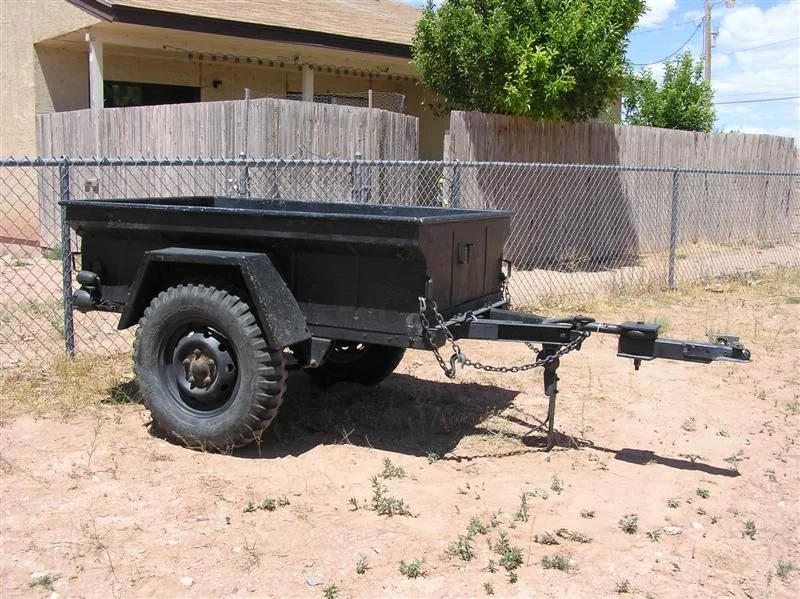

The first photo is what my trailer looked like when I bought it.

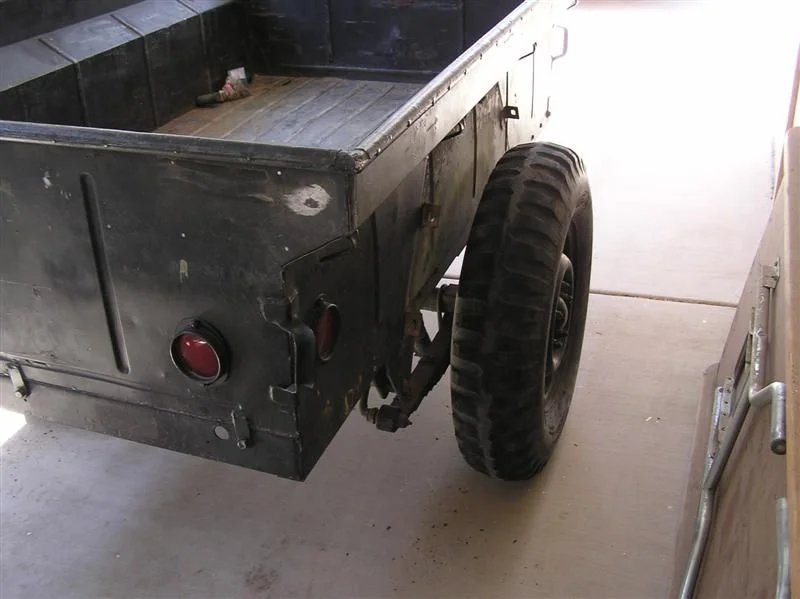

The second and third photos are the beginning of the disassembly of the trailer at my Dad's house.
Parked behind our House 2 (Medium).JPG
P1010001 (Medium).JPG
P1010002 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona
1. The fenders are off.

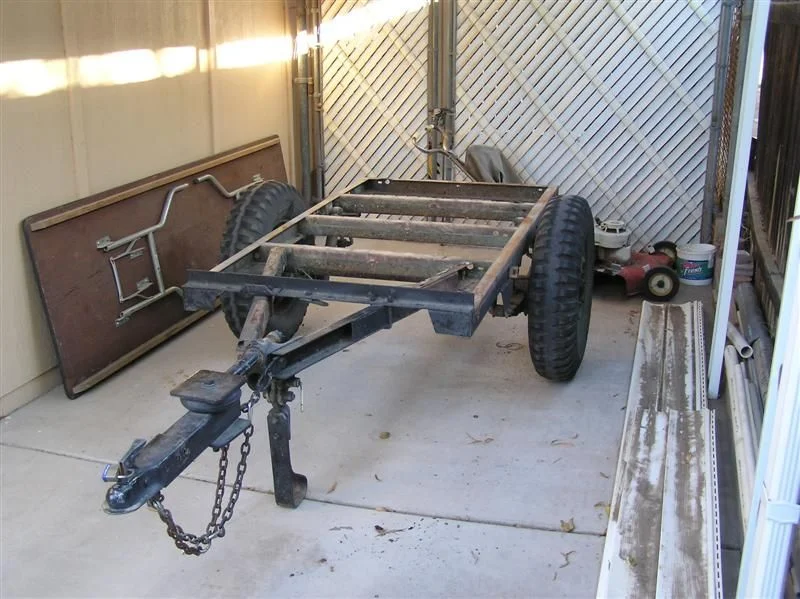

2. The tub is off. This trailer comes apart easily.

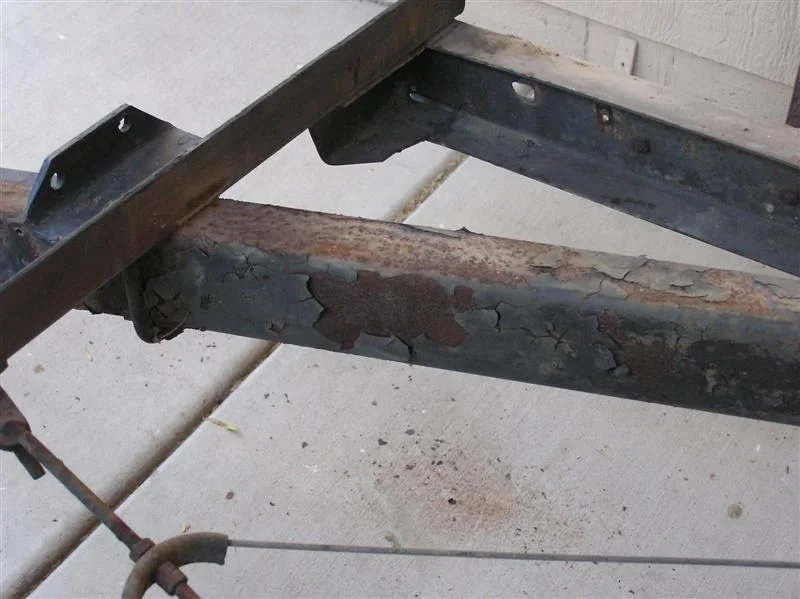

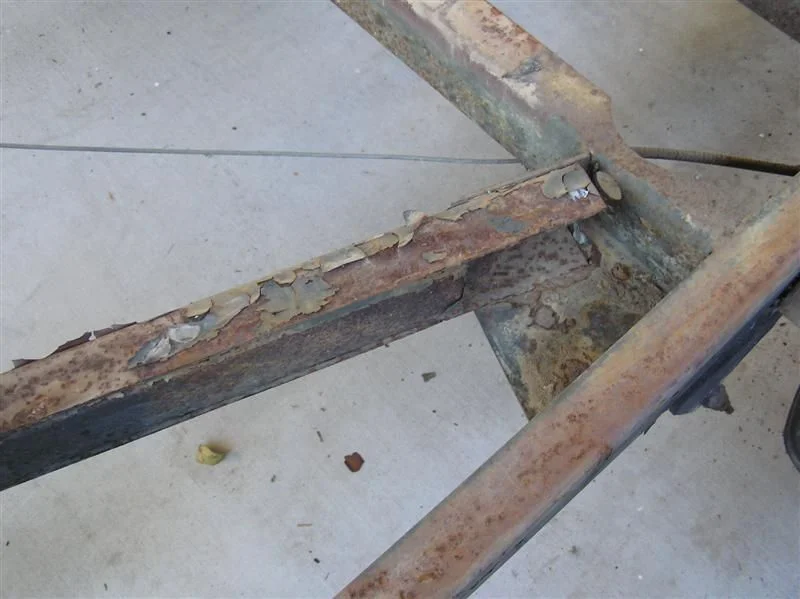

3. This is what I was worried about. The scale is no to bad and nothing is rusted through. This is why I am doing this.
P1010003 (Medium).JPG
P1010004 (Medium).JPG
P1010005 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

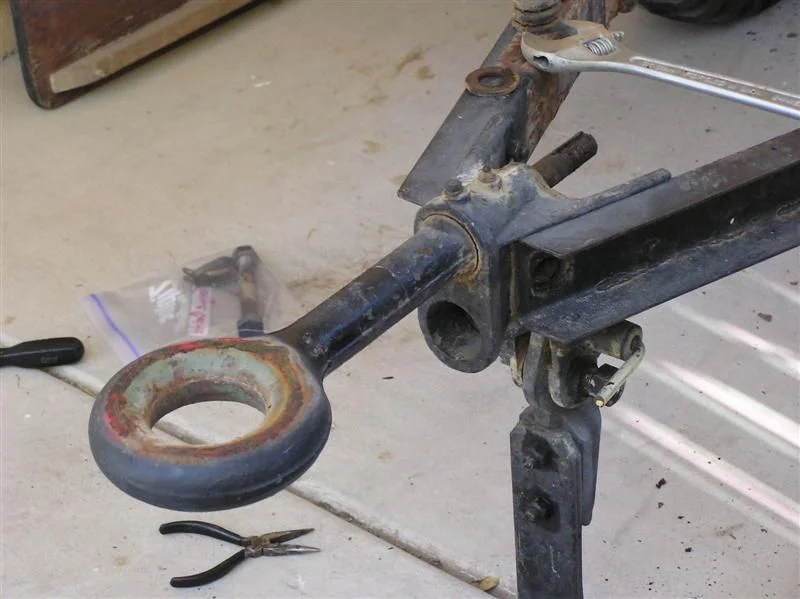

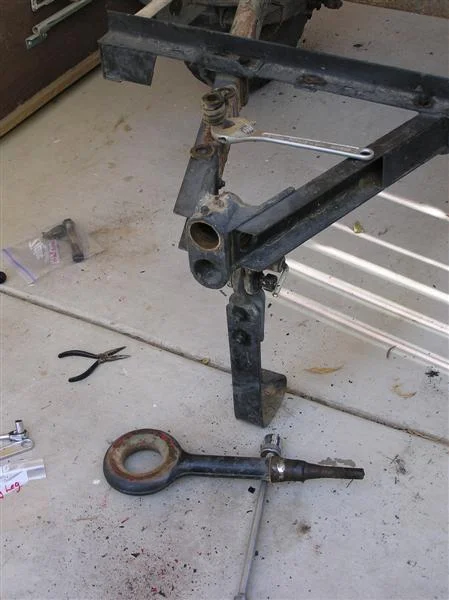

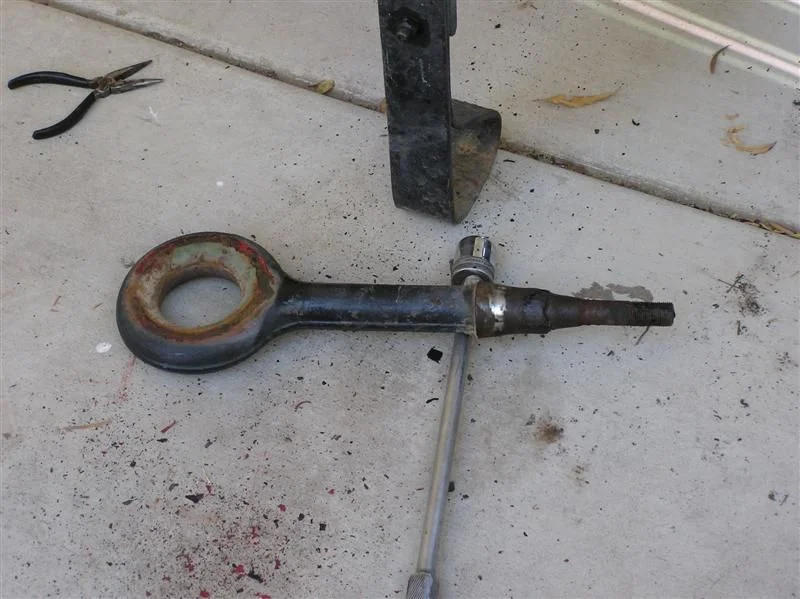

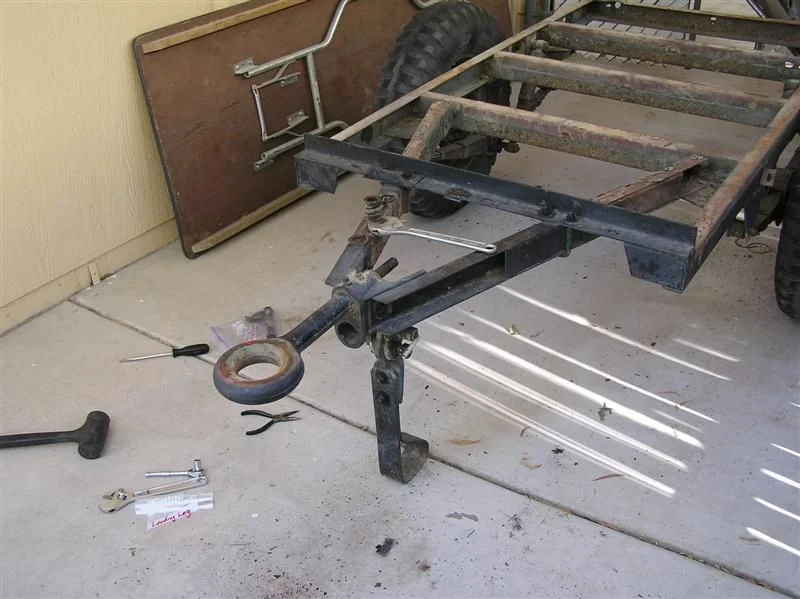

1 & 2. The lunette.

3. The draw bar bracket, the lower hole for the lunette has been heavily painted. So, I'll have the sandblaster clean it out.
P1010009 (Medium).JPG
P1010010 (Medium).JPG
P1010011 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona
1. The draw bar arms and bracket are now off.

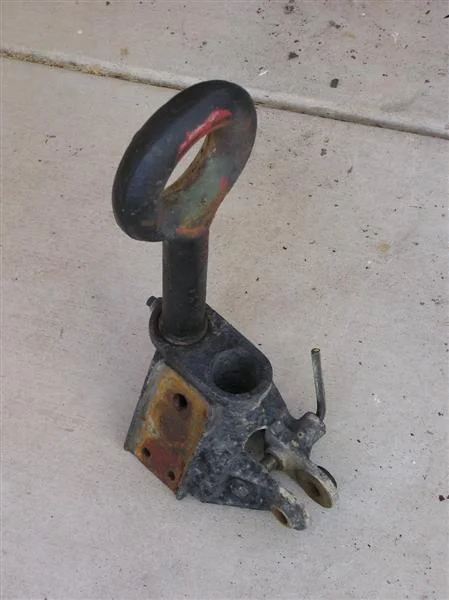

2. I decided to put the lunette back in the draw bar bracket, so that the upper hole would not get sandblasted.

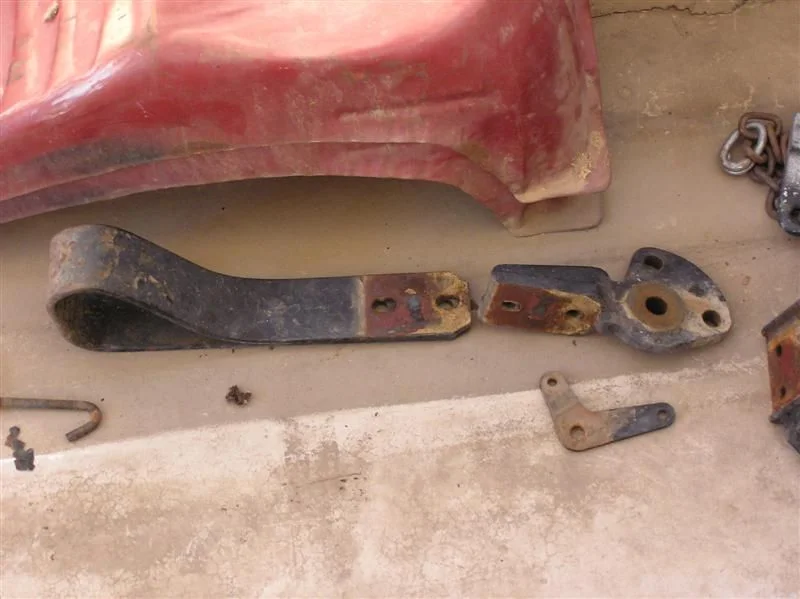

3. The landing leg, landing leg pivot bracket and the parking brake bellcrank.
P1010012 (Medium).JPG
P1010013 (Medium).JPG
P1010014 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

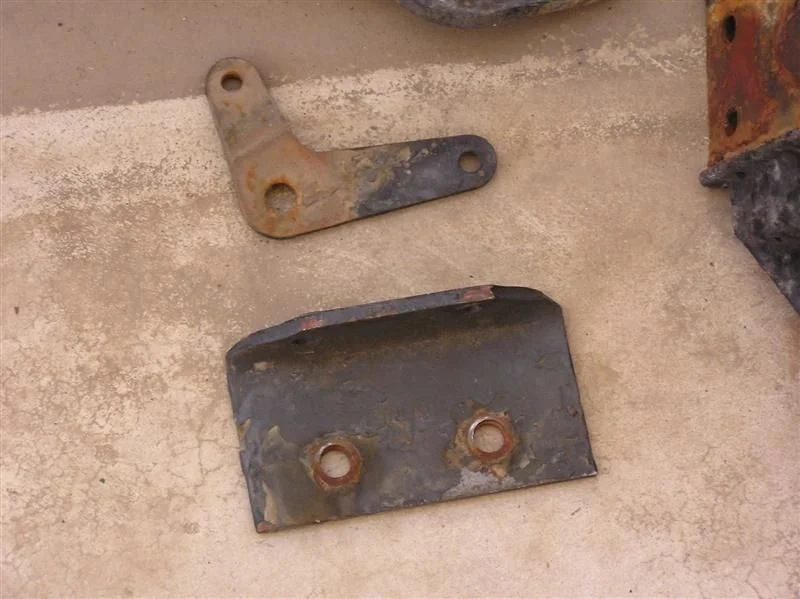

1. Parking brake bellcrank and the bracket for the parking brake handle.

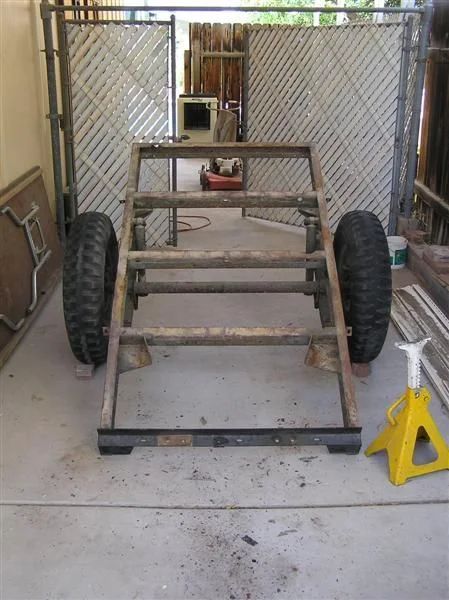

2. Now to work on the rest of the chassis.

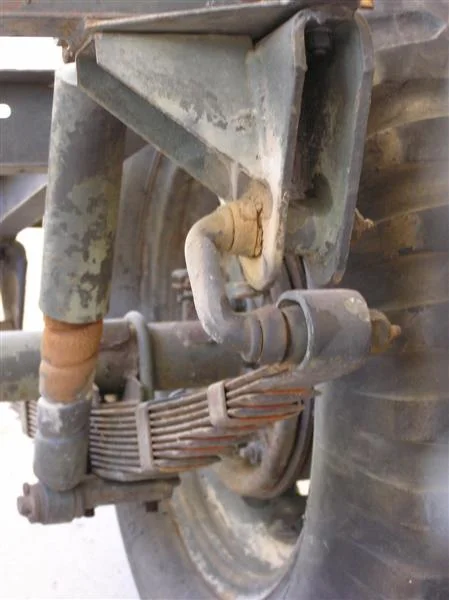

3. The spring shackles are 1950s J**p C-shackles.
P1010015 (Medium).JPG
P1010016 (Medium).JPG
P1010017 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

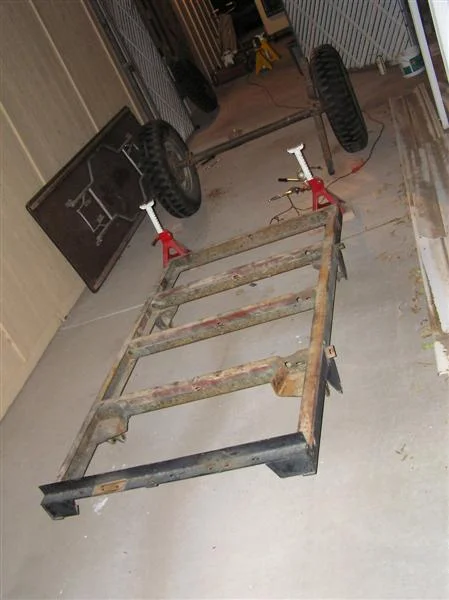

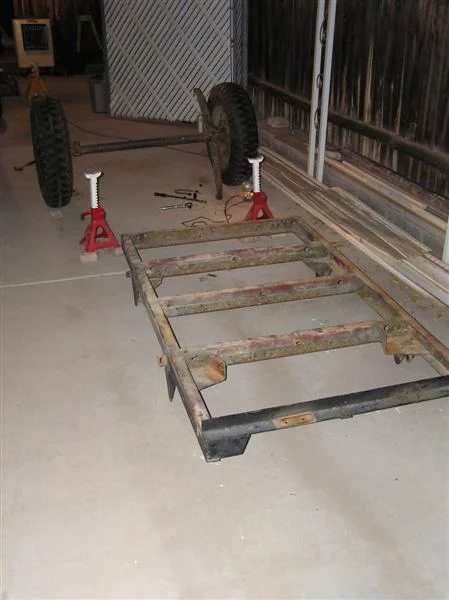

1 & 2. Got the frame off the axle.

3. I'm getting the springs off the axle.
P1010018 (Medium).JPG
P1010019 (Medium).JPG
P1010020 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

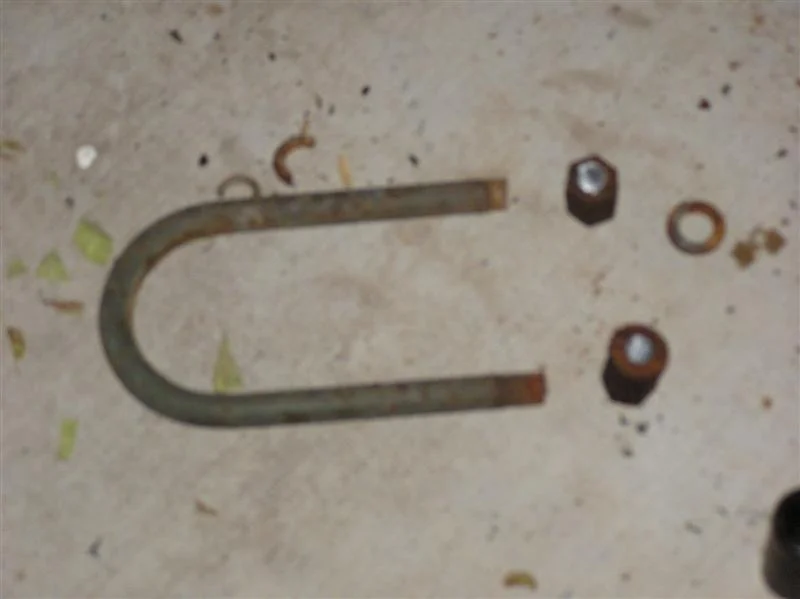

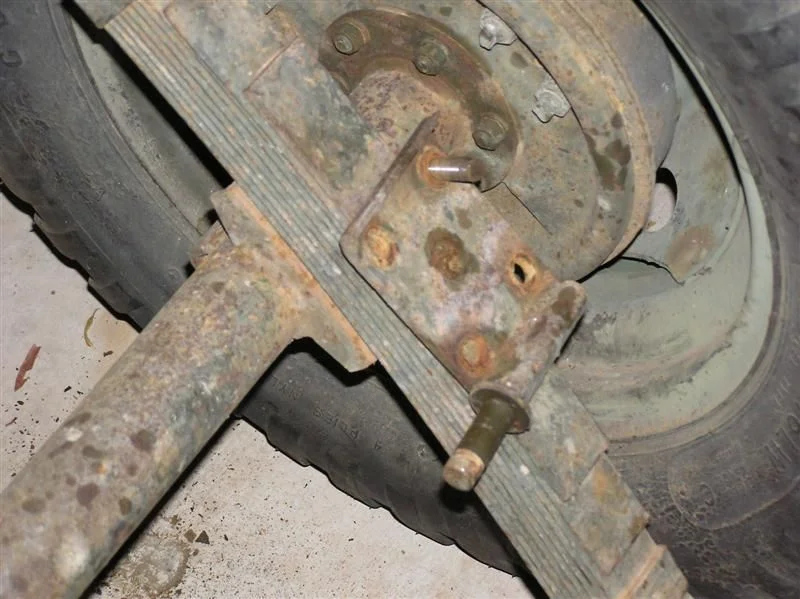

1 & 2. Things were rusted tight and I snapped a couple U-bolts getting the springs off.

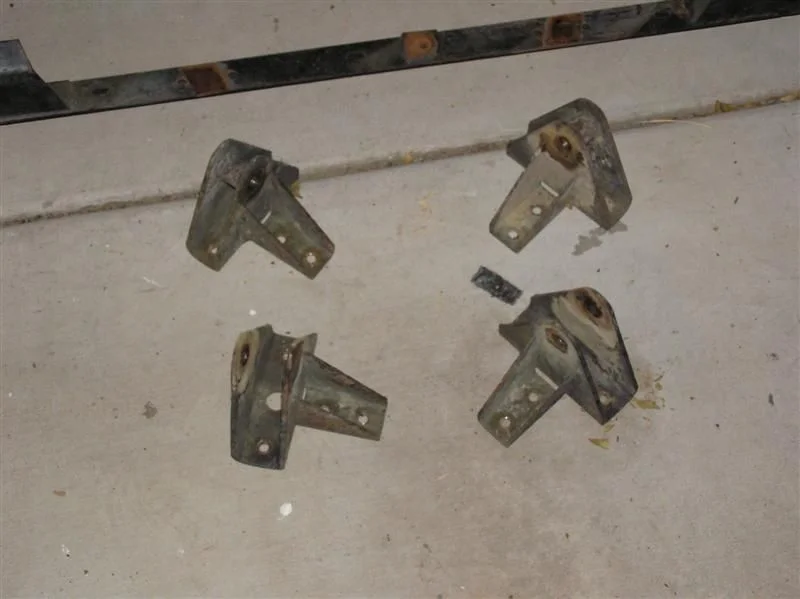

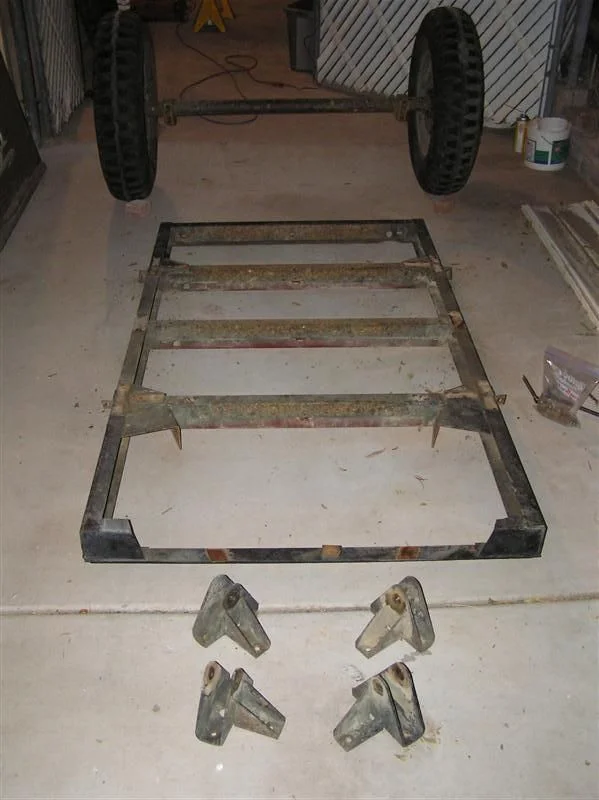

3. The spring brackets off the frame.
P1010021 (Medium).JPG
P1010022 (Medium).JPG
P1010023 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

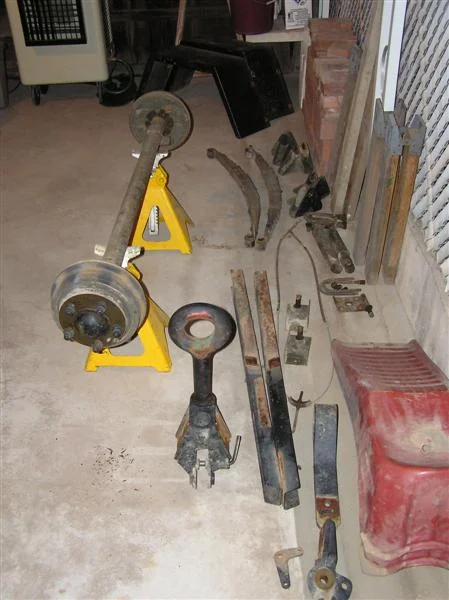

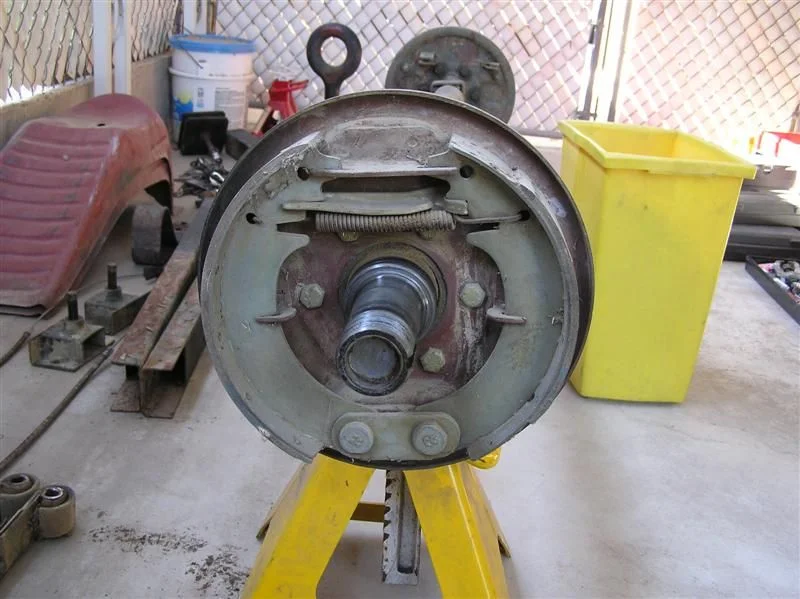

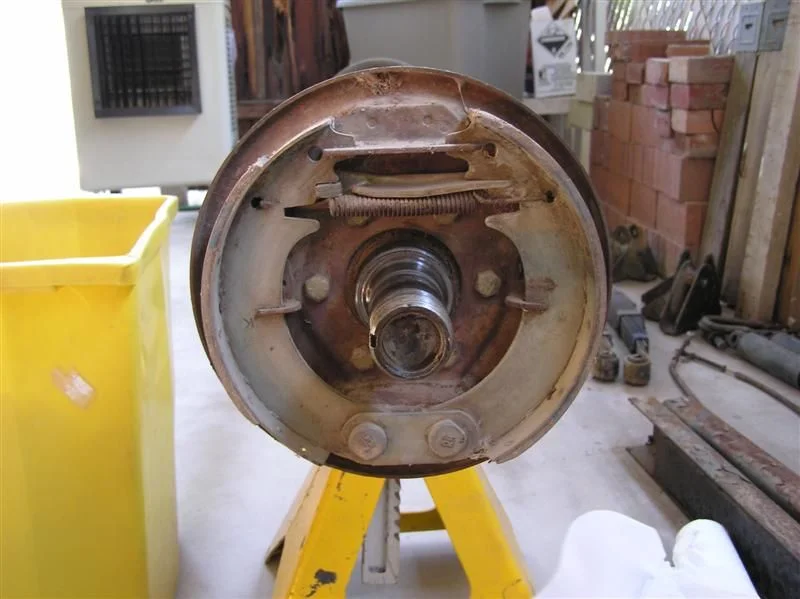

1 & 2. I've got the hubs off and took these photos so that I could see how the brakes went back together.

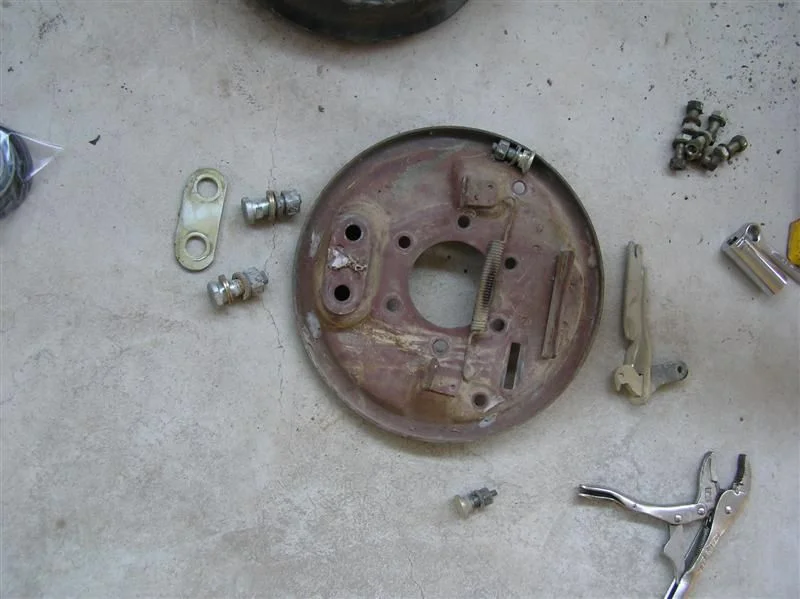

3. The brake backing plate and hardware.
P1010027 (Medium).JPG
P1010028 (Medium).JPG
P1010029 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona
1. The spindles look good.

2 & 3. Getting the springs apart so that they can be sandblasted.
P1010030 (Medium).JPG
P1010031 (Medium).JPG
P1010032 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

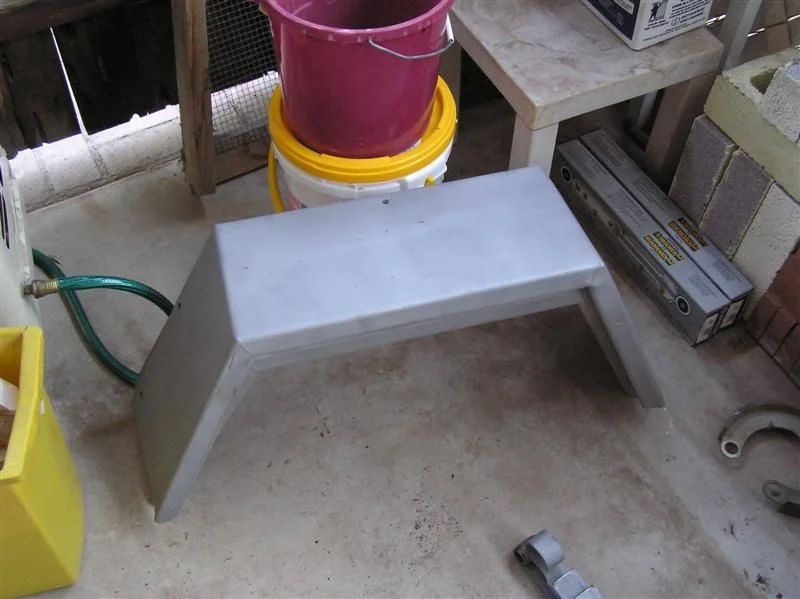

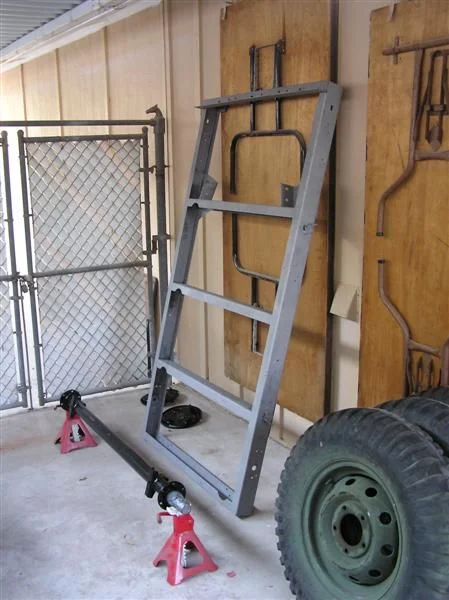

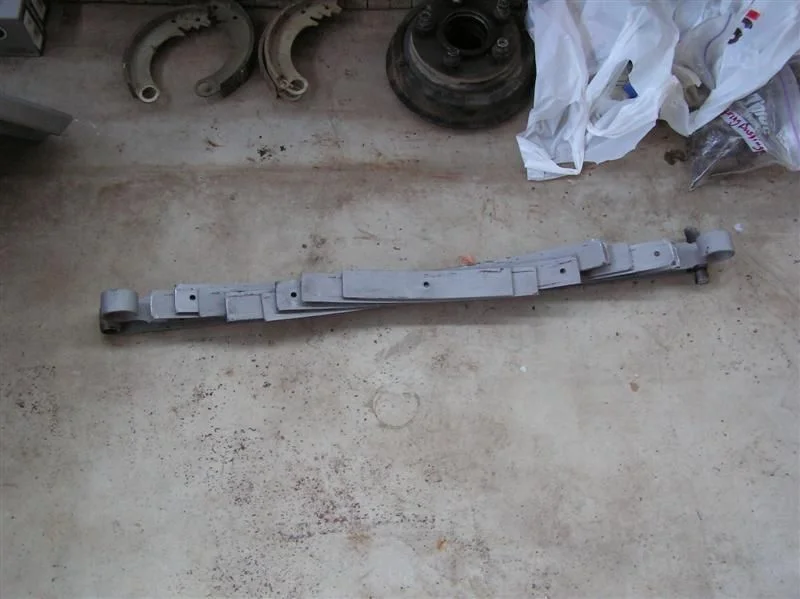

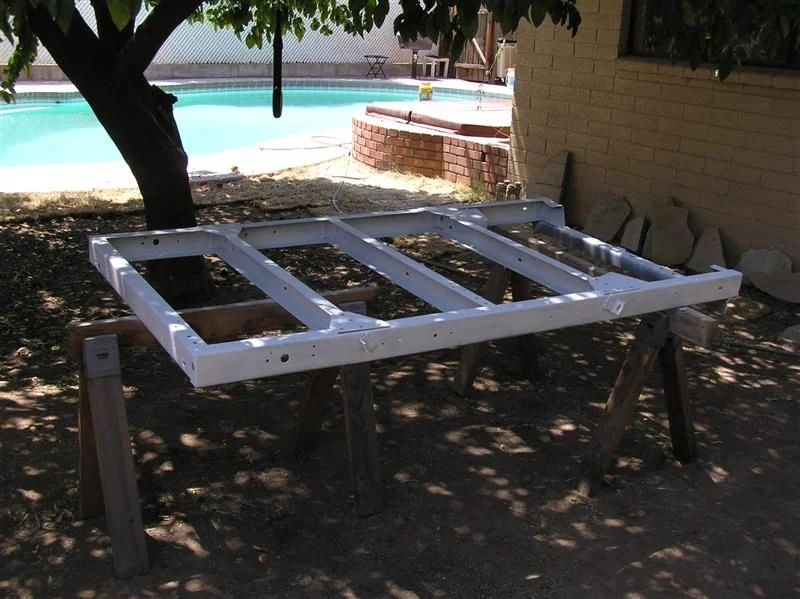

I got everything back from the sandblaster and it looked good. I got the axle painted before I remember to take some photos.
P1010033 (Medium).JPG
P1010034 (Medium).JPG
P1010035 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

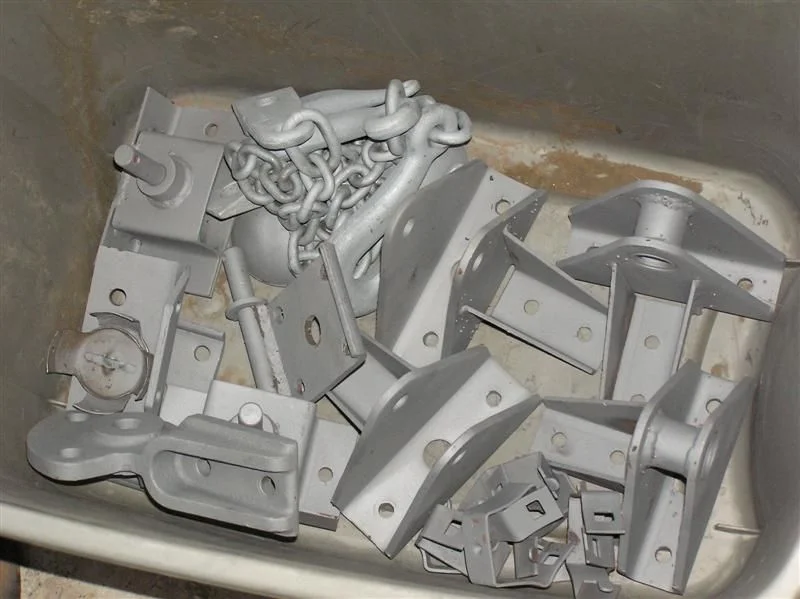

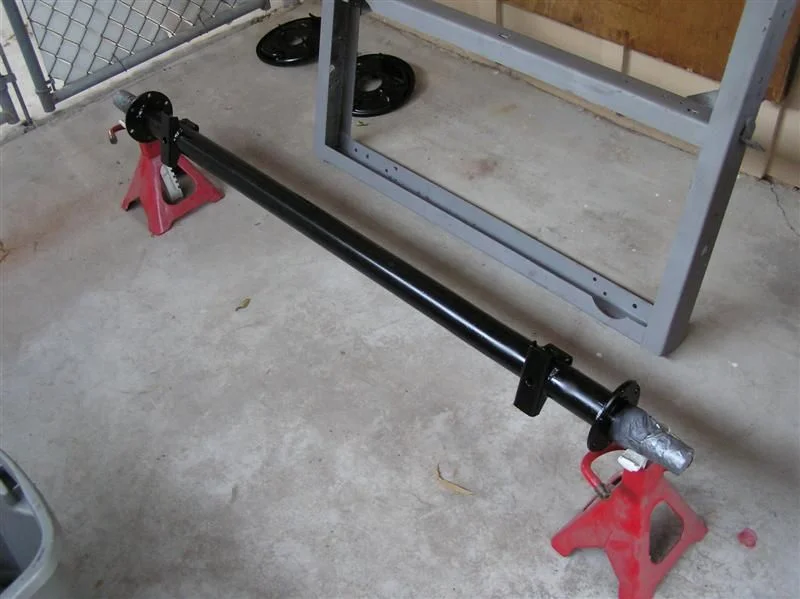

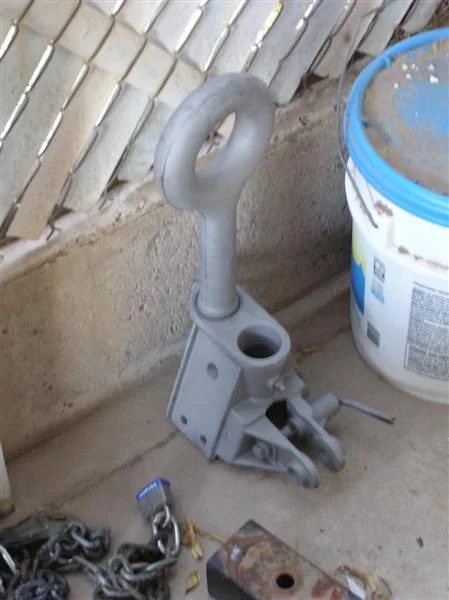

The sandblaster had me duct tape the areas that I did not want to get sandblasted. That is why there is duct tape on the spindles.

Everything is nice and clean now!
P1010036 (Medium).JPG
P1010037 (Medium).JPG
P1010038 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

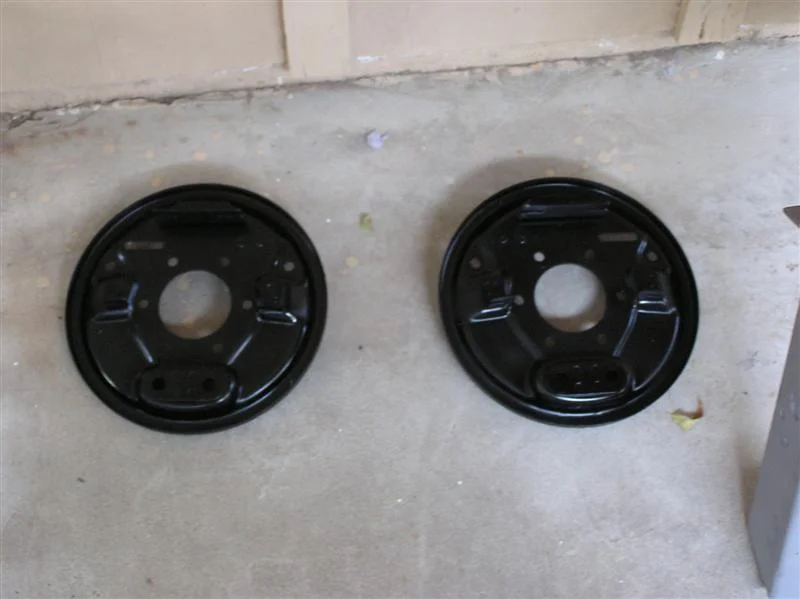

1 & 2. A couple of shots of the brake backing plates. I used the flash in the second photo and it washed out some of the detail.

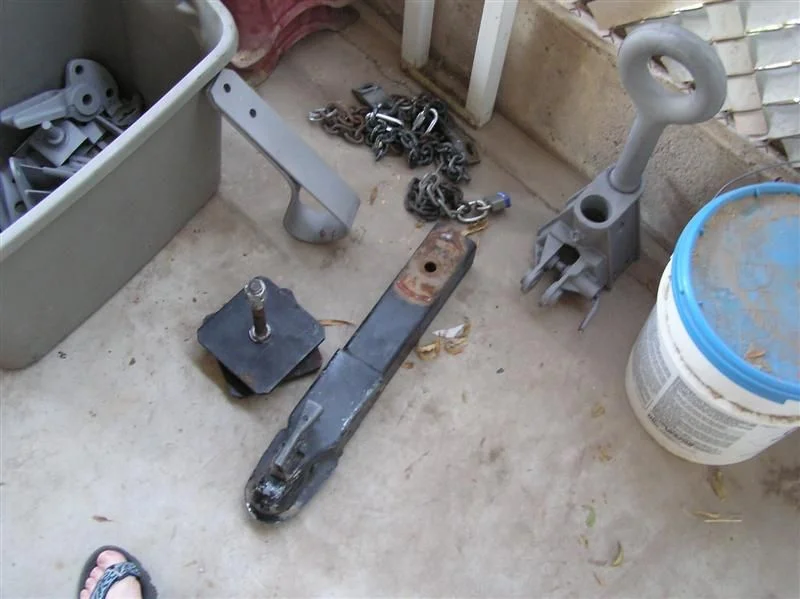

3. The lunette, landing leg and the ball hitch adapter.
P1010039 (Medium).JPG
P1010040 (Medium).JPG
P1010041 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

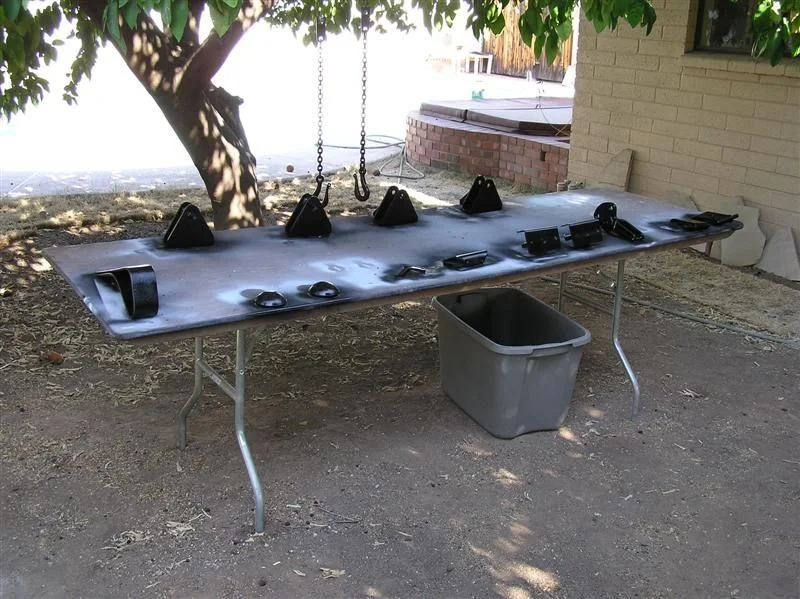

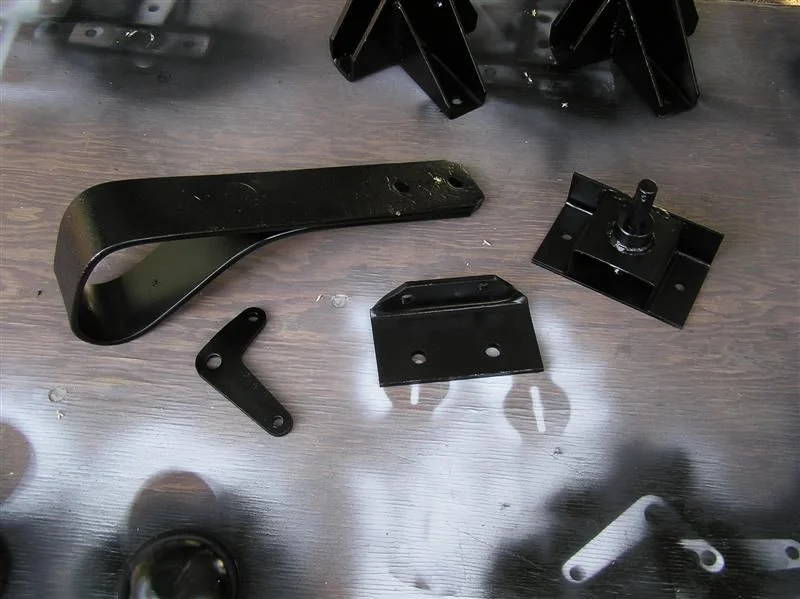

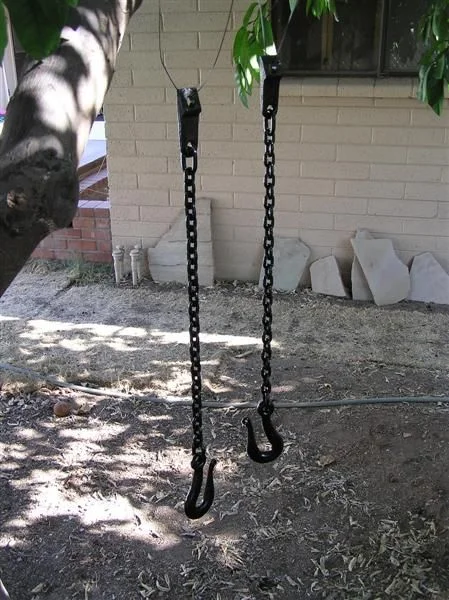

1 & 2. Painting the safety chains and the many other parts.

3. The spring brackets.
P1010045 (Medium).JPG
P1010046 (Medium).JPG
P1010047 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

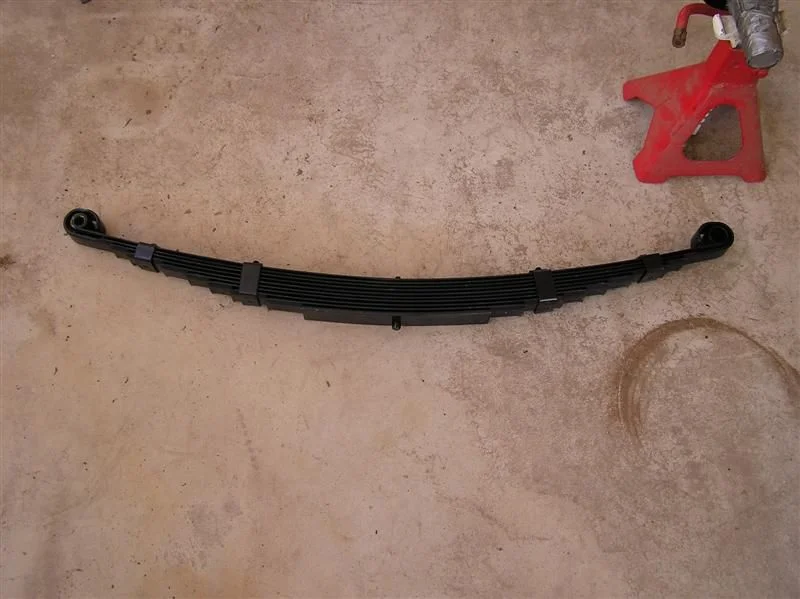

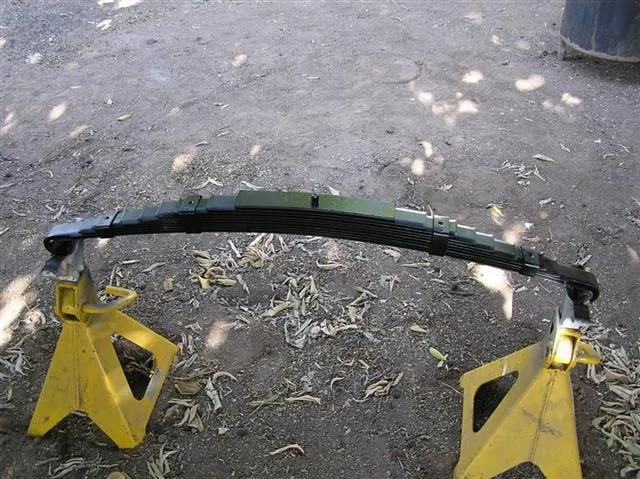

1. A spring is ready for reinstallation.

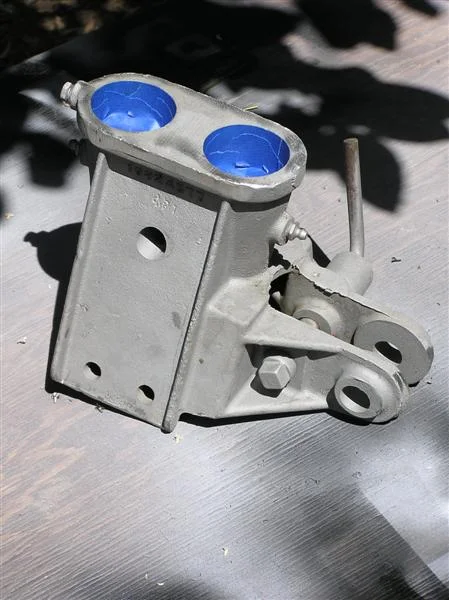

2. The draw bar bracket ready for primer.

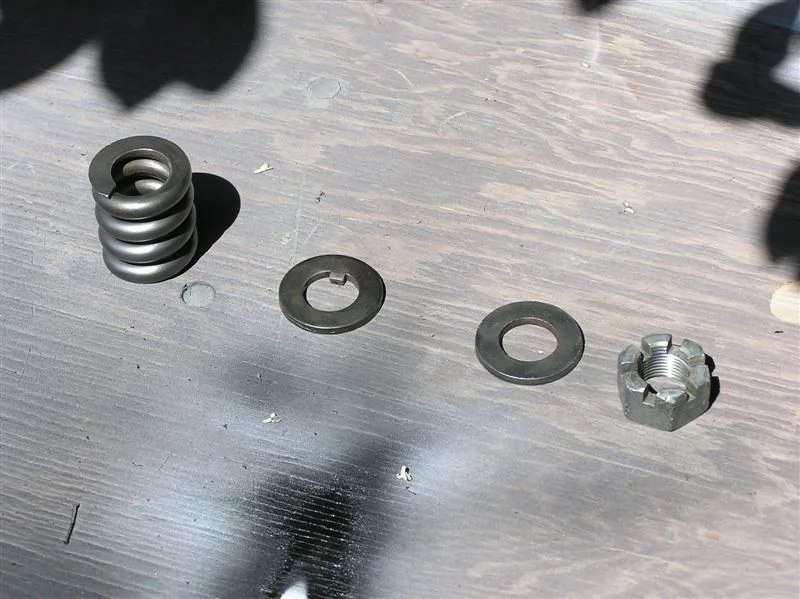

3. The lunette hardware about to be painted.
P1010051 (Medium).JPG
P1010052 (Medium).JPG
P1010053 (Medium).JPG

Joined
Apr 1, 2007
Messages
425
Location
Northern Arizona

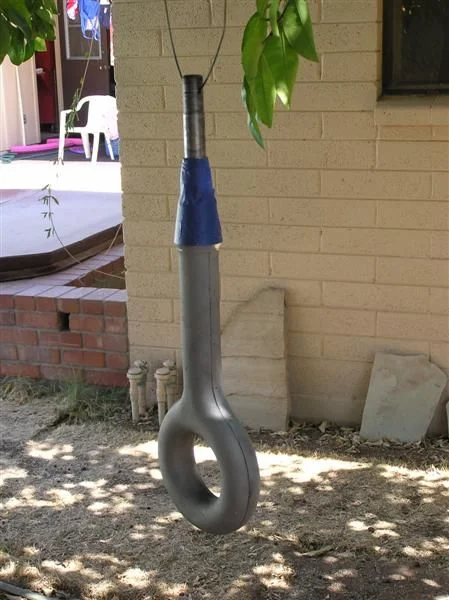

1. The lunette ready for primer.

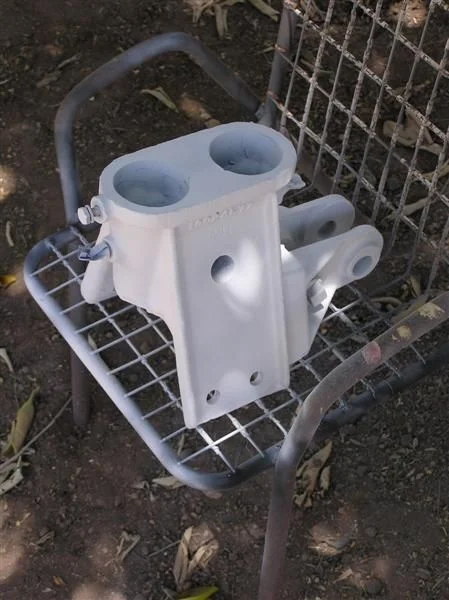

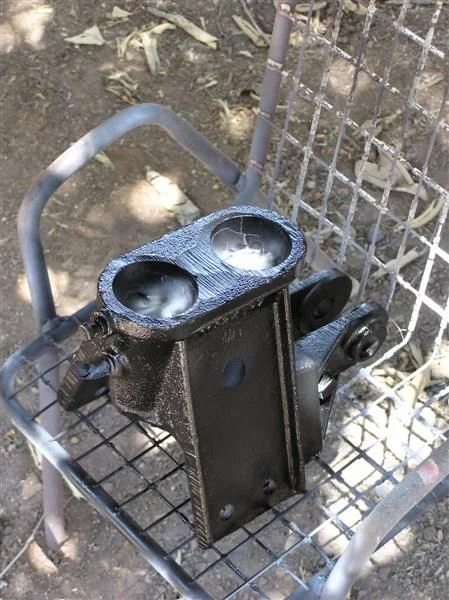

2. The draw bar bracket primed and ready for paint.

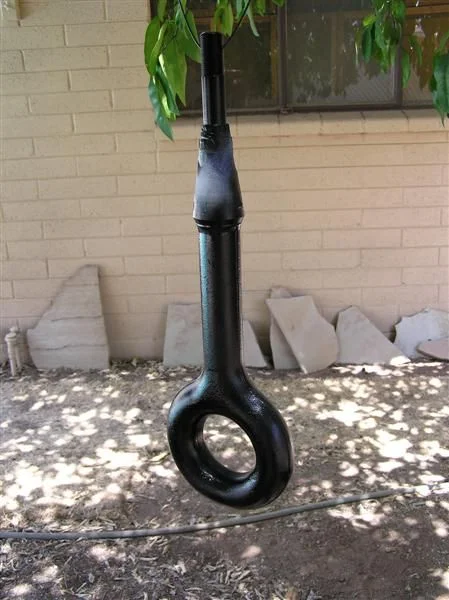

3. The lunette is done and drying.
P1010054 (Medium).JPG
P1010055 (Medium).JPG
P1010056 (Medium).JPG
