Tundra 10.5" Differential vs 9.5" w/ Pics

Joined
Oct 28, 2002
Messages
4,085
Location
Western Massachusetts
Hey everyone, thought you might like to see how BIG the Tundra diff actually is, so I set one next to an FZJ80 locking 9.5" unit. Spline count for the Tundra is 35, I believe shaft dia. at the spline is 1.41. I have yet to take this one apart to inspect things like bearings. These diffs and the axle are made by the Hino plant in Memphis ,Tennessee. I'll post more info as I have time to get into it... if you have any questions or requests for pics, just ask.





Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
What spline count is the pinion?? It looks the same as the 80 series unit.


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,581
Location
Panamá
Website
www.4x4panama.com
Huge drive flange and the hole TLC 3rd member looks from a Suzuki compared to the Tundra ..

Intersting if you can take a comparision on the pinions.

Joined
Oct 28, 2002
Messages
4,085
Location
Western Massachusetts
I'm guessing it is probably larger with more splines despite the nut on the end being the same old size. I'll try to get to it tomorrow.

Other tidbits.

Crush sleeve is no more, back to the spacer with shims.

Side bearing preload is adjusted with shims just like the 9.5 elocker


Cruiserdrew

On the way there
SILVER Star
Joined
Mar 15, 2003
Messages
15,927
Location
Sacramento, CA
What a beauty, and the ring gear is thicker too, like a Ford 9 inch.

When will the first one of these get swapped into a Land Cruiser?

Joined
Sep 20, 2004
Messages
2,748
Location
here
not worth a swap IMO because it is a semi float axle, and it appears there is a ratio available problem. If a 4.10 ration could be found it might be possible but why ?

Joined
Oct 28, 2002
Messages
4,085
Location
Western Massachusetts
Ratios available are 4.10 and 4.30. I'll speculate that possibly this rear end is shared with one of the small Hino box trucks... which could allow a very wide range of ratios, many of them go the 3.xx up into the 5.xx range


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
btw I was under the impression that all E lockers were 8" (ish) size..


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,581
Location
Panamá
Website
www.4x4panama.com
Ratios available are 4.10 and 4.30. I'll speculate that possibly this rear end is shared with one of the small Hino box trucks... which could allow a very wide range of ratios, many of them go the 3.xx up into the 5.xx range

Interesting info ..

The pinion have the same single bearing config . ?

Joined
Oct 28, 2002
Messages
4,085
Location
Western Massachusetts

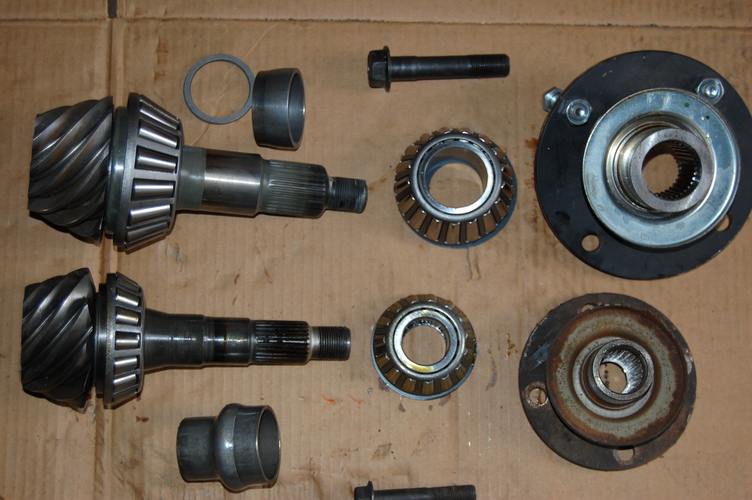

Ummmmmm... just a little bigger. Pinion bearings are huge, as are the bolts. The side bearings are a smidge smaller than the ones on the 9.5" locker. A quick measurement gives a 1.37" OD splines, which I think number 35, but I did count quick. I'll measure the ring gear thickness next trip out to the barn.


Joined
Oct 28, 2002
Messages
4,085
Location
Western Massachusetts
Haha! I purchased an 08 Tundra as I need a pickup truck again... 0% interest was the deal maker... I get to leave my money where it will make money. I was curious about the rear diff, and this one popped up on ebay for $130, it's a new take out that had a bent flange and was replaced. I'm trying to leave the Tundra alone as much as possible and finish up old stuff. :D

Joined
Mar 24, 2006
Messages
2,063
Location
Alabama
Website
www.tachedoutoffroad.com
