While trying to figure out a T-case shifter bracket from my 4L80 to T-case I'm now questioning how the H-N-L operates. I see if you do a twin stick you need a different 2h-4h shift rod but wondering why? How does it affect the H-N-L shift lever? I can move the H_N_L lever no matter what position the 2wd-4wd lever is in?



[tmxmotorsports]

While trying to figure out a T-case shifter bracket from my 4L80 to T-case I'm now questioning how the H-N-L operates. I see if you do a twin stick you need a different 2h-4h shift rod but wondering why? How does it affect the H-N-L shift lever? I can move the H_N_L lever no matter what position the 2wd-4wd lever is in?

If you do twin sticks you will still need a bracket to bolt that to the side of the transmission. Do you have Instagram? I replied to your other thread about your shifter bracket for the 4l80e I think I have pictures on my Instagram of the bracket I made and a video of it working. When I made it I had a mock up 4l80e transmission that I did the bracket off of.



[tmxmotorsports]

Oh the shift rod replaces the rod inside the transfer case if that is the one you are talking about.



[klinetime574]

H-N-L and 2WD-4WD are two separate shift points on the transfer case.

The 2WD-4WD pulls a rod/fork that engages the front output. Front to rear of the vehicle shift path.

The H-N-L moves a lever on top of the transfer case which selects high and low range (with neutral between). This is a left to right shift path.

You technically can shift into 2WD Lo, but Mr. T has a bracket on the transmission which blocks that shift path. Some have done to “2Lo mod” which you just cut part of the bracket off and voila.

Most people go twin sticks when swapping to a non-Toyota transmission because the stock shifter won’t work anyway (it has a pivot point on the H series transmission).

HTH



[Elkwagn]

What I am trying to decipher, is why a person needs to replace anything internally to use twin sticks, when you can shift into Low in 2wd anyways??



[klinetime574]

What I am trying to decipher, is why a person needs to replace anything internally to use twin sticks, when you can shift into Low in 2wd anyways??

I’m unaware of any internal modifications to install twin sticks.



[Elkwagn]

Oh the shift rod replaces the rod inside the transfer case if that is the one you are talking about.

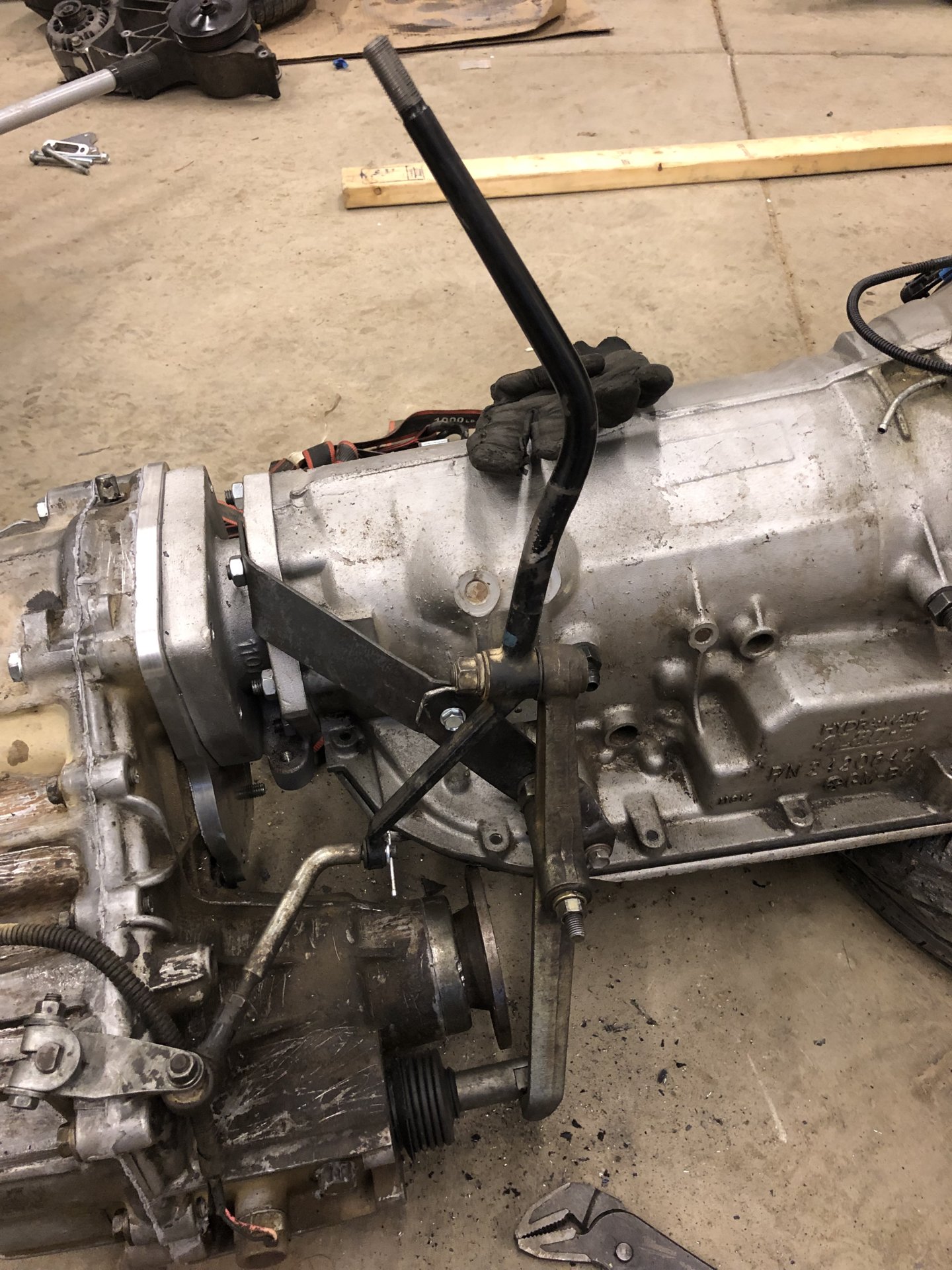

Is this the pic of your setup?



[Elkwagn]

I’m unaware of any internal modifications to install twin sticks.

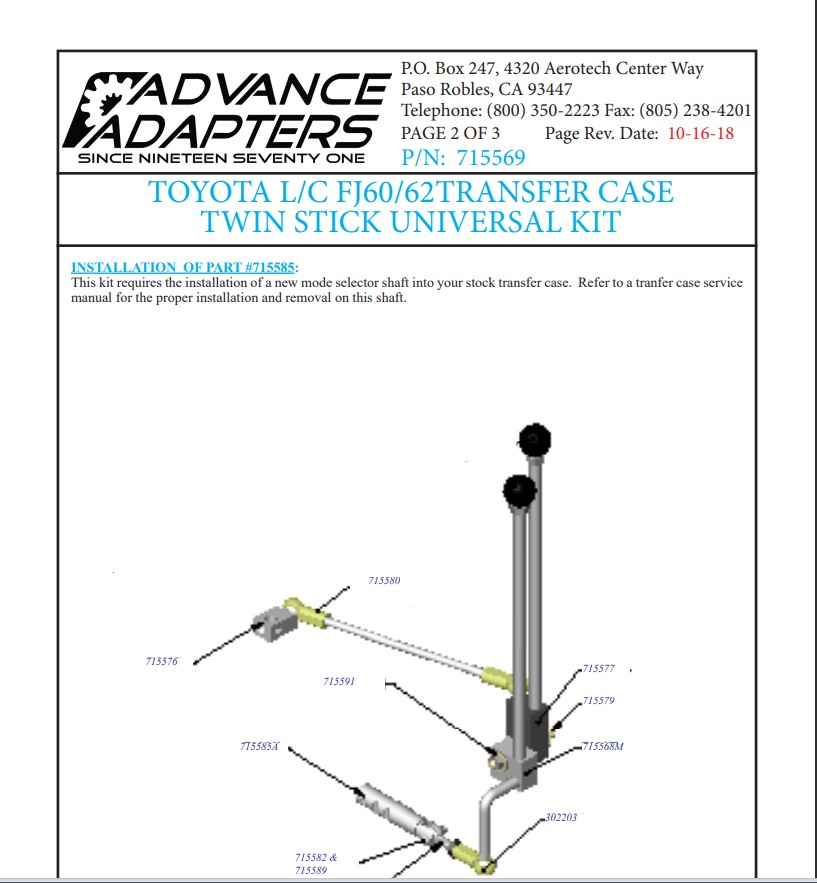

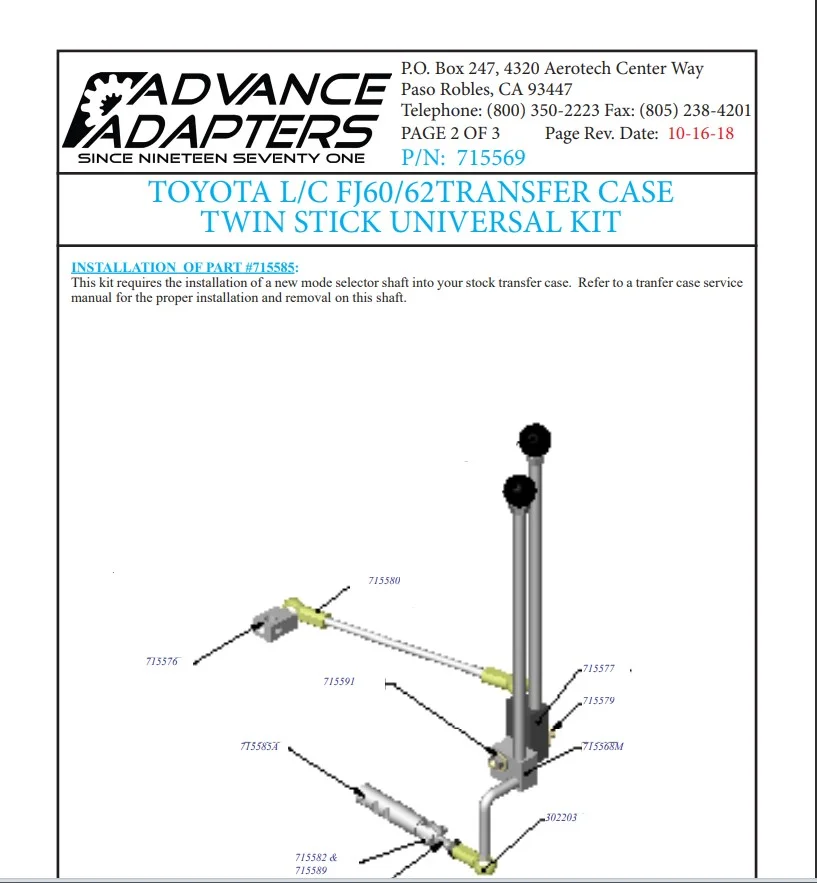

All of the instructions from suppliers tell you that you have to replace the shift rod internally for the twin stick setup
