Track bar relocation

Discussion in '80-Series Tech' started by pufft, Sep 16, 2018.

  1. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    anyone have any insight on relocating front track bar after installing high steer? Should I try to keep the track bar the same length and angle of the drag link.?

  2. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    Also are there any prefabricated brackets someone has used?

  3. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC

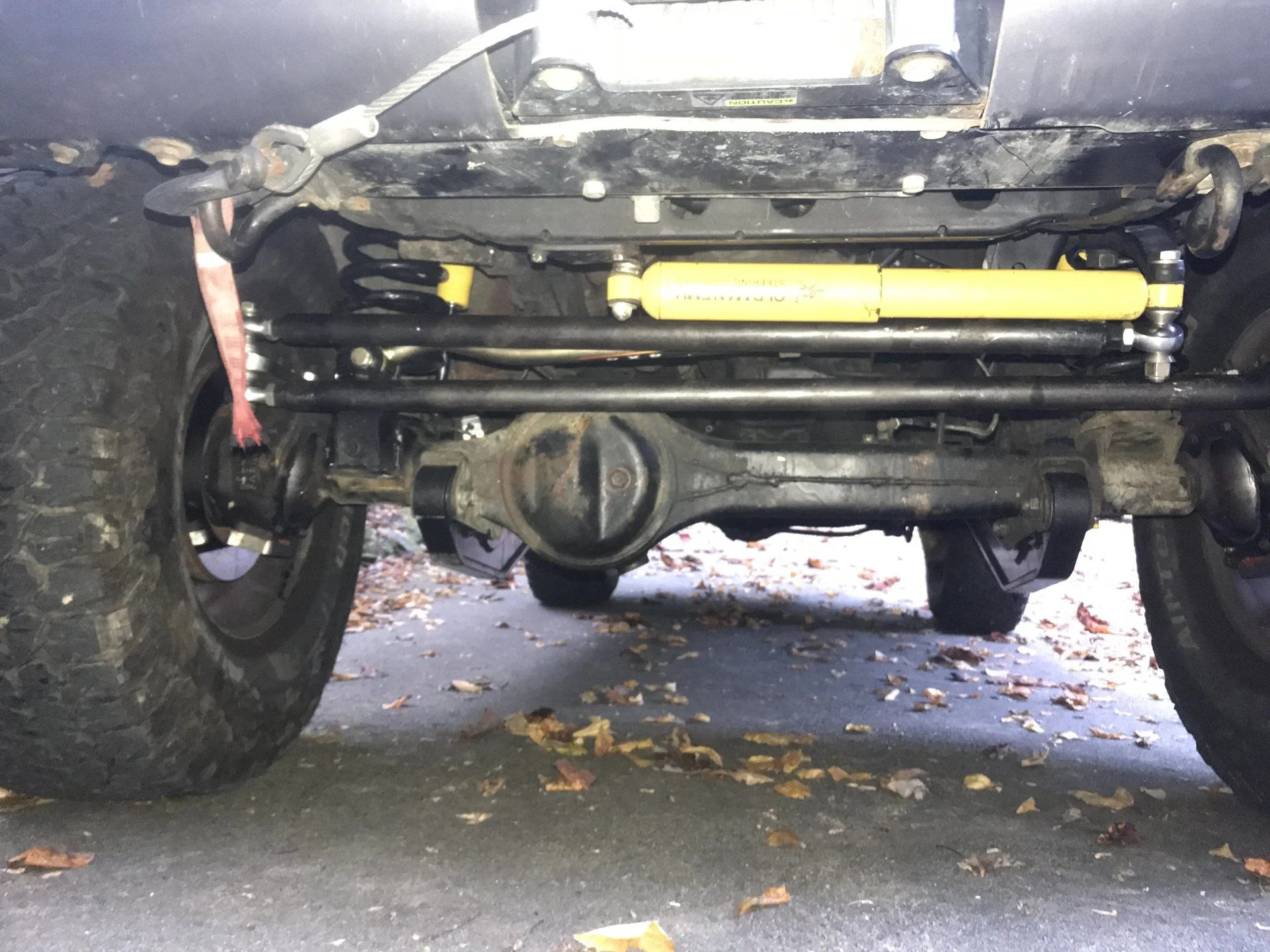

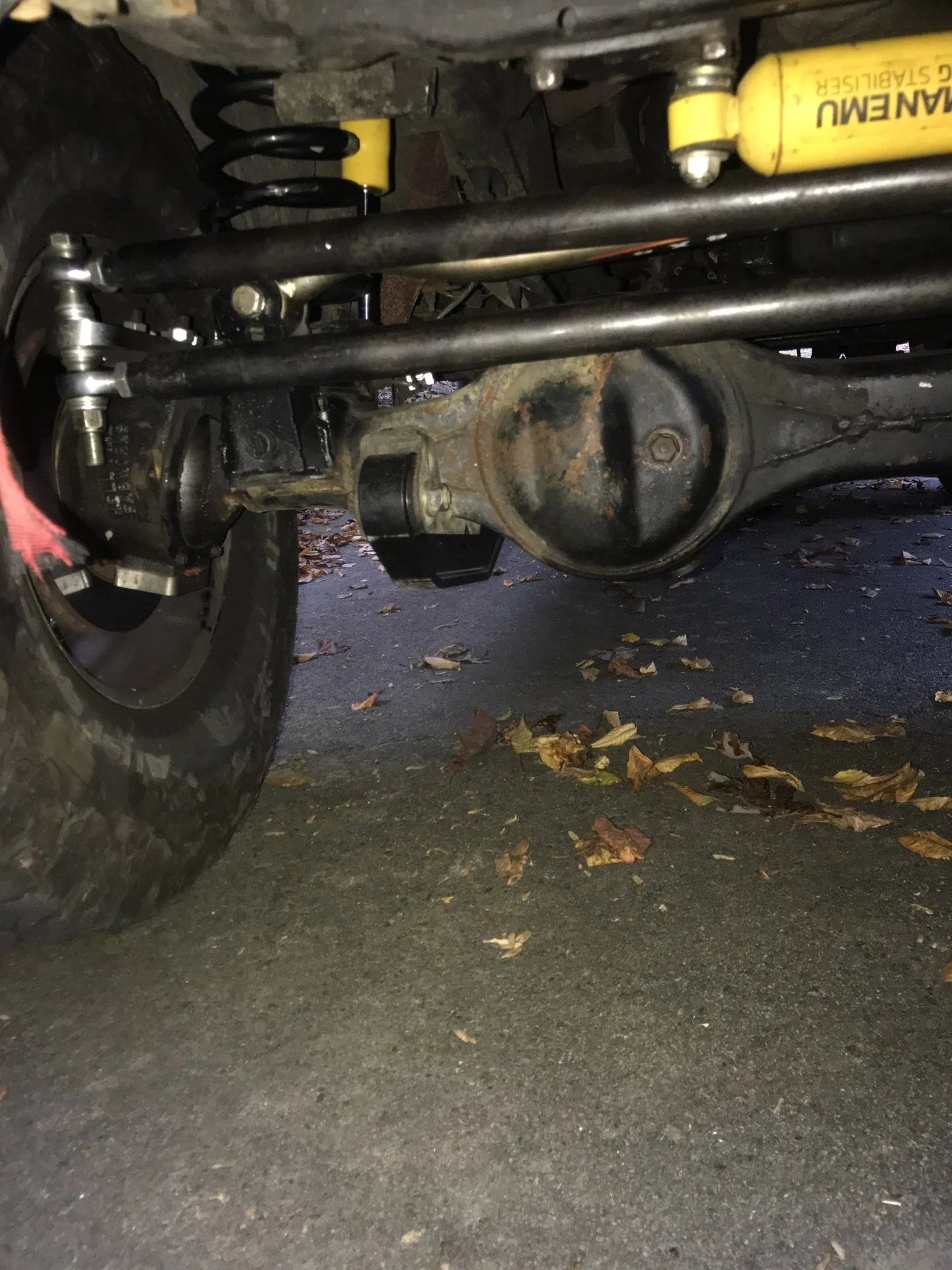

    Hellfire high steer finally installed with some prefabbed brackets from Ruff Stuff I finally got it all in place without anything bumping each other. If I had it to do over again I might have stuck with factory for a while. IMG_8928.JPG IMG_8929.JPG IMG_8624.JPG

  4. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Same length and angle would be ideal. But they wont be the same length so you can optimize the lateral misalignment of the track bar relative to the drag link by running it at a slightly different angle. It depends, basically.

    If you give me these 5 measurements I can tell you the proper height from the ground:

    1) ground to ball center of drag link end on knuckle

    2) ground to ball center of drag link end on pitman arm

    3) ground to center of frame bolt on track bar

    4) length of track bar from bolt to bolt

    5) length of drag link from ball center to ball center

  5. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    It seems to be performing well. I was even able to eliminate the steering dampener.

  6. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Up close pics of that weld job? Looks a little hack

  7. NV1971FJ40

    NV1971FJ40

    Messages:
    279
    Likes Received:
    373
    Joined:
    Oct 5, 2014
    Lol you should have mentioned this in your other thread about your mystery vibration.

  8. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Why

  9. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    Maybe if you guys don't have anything constructive to say about the vibration or a words of advice for building track bar brackets you could go jerk each other off on your own private page perhaps.?

    Marine7 likes this.
  10. NV1971FJ40

    NV1971FJ40

    Messages:
    279
    Likes Received:
    373
    Joined:
    Oct 5, 2014
    Because he just swapped the knuckles and changed the steering. Maybe he did something wrong during the install of knuckles.

    Here’s something constructive, you wasted your money on that steering setup and gained nothing you asshat.

  11. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    I was gonna compute the ideal track bar location based on polar geometry etc - wtf bro chill out. I dont think the vibration was related which is why i asked homie 'why'

    Chill out

  12. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    When you spend $900 on drive shafts only to find out thats not the issue and ask for help from other people who have the same hobby only to get heckled about your welding it is frustrating.

  13. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    All experts were once beginners bruh

  14. jcardona1

    jcardona1

    Messages:
    4,417
    Likes Received:
    6,151
    Joined:
    Aug 12, 2011
    Location:
    Sacramento, CA
    One time Nukegoat said my welds looked like herpes and I turned out fine. You'll be okay, I promise.

    Marine7 and NV1971FJ40 like this.
  15. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Except for the herpes. And I have had failures of suspension brackets that I have welded. It sucked

    Marine7 and pufft like this.
  16. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    Point taken. Kind of a sore subject since I had another guy weld it because he was a "professional".

    BILT4ME likes this.
  17. nukegoat

    nukegoat

    Messages:
    3,548
    Likes Received:
    3,242
    Joined:
    Apr 11, 2013
    Location:
    San Jose, CA
    Might be totally fine. I really cant tell but it just looked a little backyard fab

  18. baldilocks

    baldilocks Battle Ground, WA GOLD Star

    Messages:
    4,722
    Likes Received:
    4,710
    Joined:
    Jan 29, 2014
    Location:
    Battle Ground
    @pufft - I’m curious about why you did the high steer set up.

  19. pufft

    pufft

    Messages:
    142
    Likes Received:
    33
    Joined:
    Nov 2, 2006
    Location:
    Asheville NC
    When I lifted it I had a crazy bump steer issue. I though the high steer would put everything back up inline to stop it; well it didn't. After some research I found out it was the rear panhard bar angle that was causing the bump steer. I bought a Delta panhard riser for the rear and that stopped the bump steer.

    BILT4ME likes this.
  20. BILT4ME

    BILT4ME

    Messages:
    6,069
    Media:
    3
    Albums:
    2
    Likes Received:
    8,155
    Joined:
    Nov 9, 2012
    Location:
    Olathe, KS, USA

    S.CarolinaFZJ80 and pufft like this.
