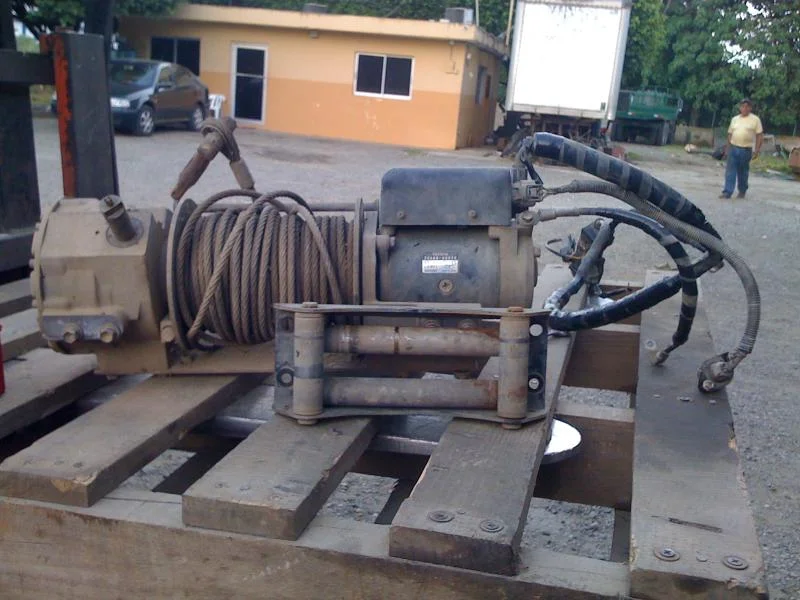

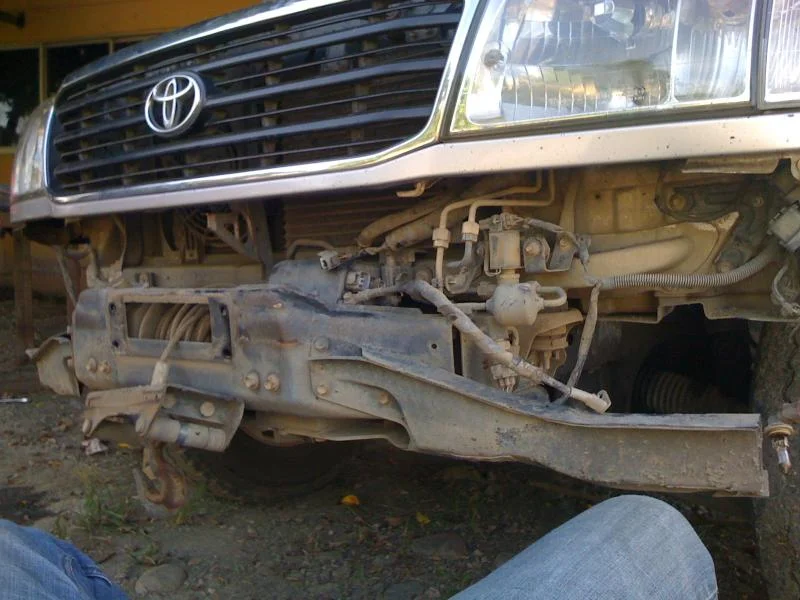

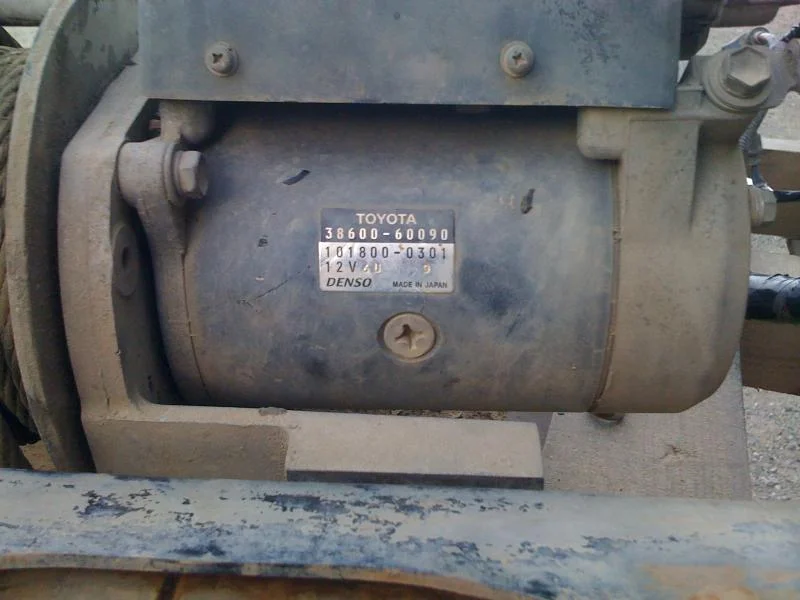

HI , i take out the OEM winch from my ex Land Cruiser 100 to use it on my land cruiser 80 but i forgot the copy the wiring diagram , can some of you help me to find the wiring diagram for this winch. i will attach some pics. thanks



[jasonmt]

ASSuming the wiring is similar to the 80 series: https://forum.ih8mud.com/80-series-tech/263415-denso-winch-38600-60050-a.html



[xoemor]

thanks. i think it's the same but i cant get... wheres the location of the W5 Winch SW Magetic on the land cruiser 100?. it is on the left of the diagram. on the fuse box????



[jasonmt]

If it has one it should be on the large gauge + wire berwixt the winch and the battery somewhere. On the 80 series it is under the left side battery tray if I remember correctly and it is the piece between the winch and the cover in the picture below:



[Tapage]

if you see in my sign under Marilu you will found a similar winch on my 80 series .. you just need to add a 12V to a cable ( don't remeber which one right now ) to make the winch function ..
