Throttle bracket on Carb

Joined
Aug 9, 2019
Messages
84
Location
Fargo
I purchased a cheap Chinese Carb for my '73 FJ, but my throttle linkage does not fit properly. Does anyone know where I can get a throttle bracket similar to this one?

Last edited:
Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
A '73 build in USA used a push rod on the throttle. It didn't pull. Cheap carbs have a ball, not a cable groove on the end of the throttle shaft. '72 used the cable groove on the carb.

Have you considered your air cleaner assembly? What intake manifold does the engine have, original from the factory?

Joined
Aug 9, 2019
Messages
84
Location
Fargo

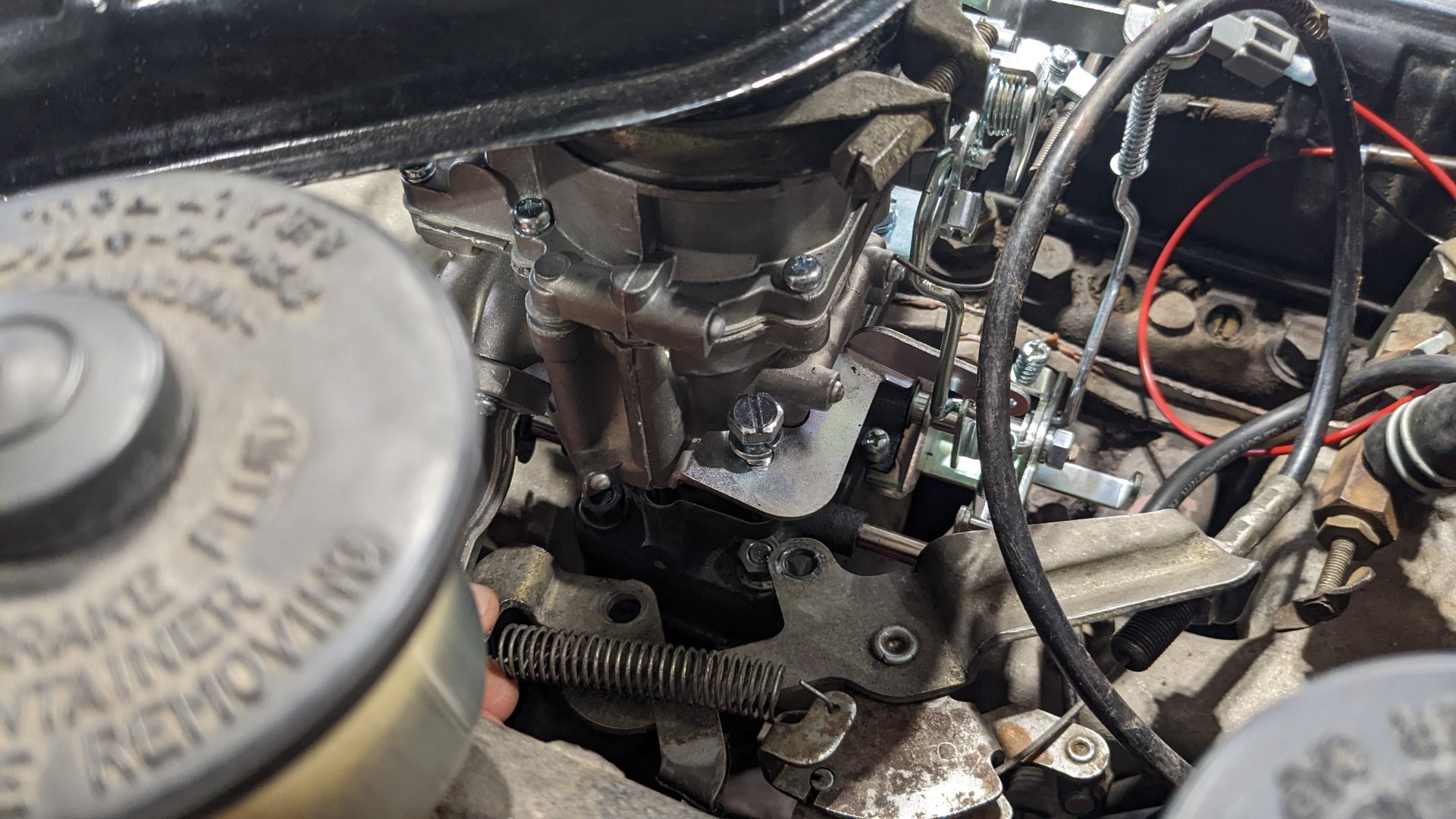

This is the throttle system that I have. I tried rigging it up, but it tends to bind a bit.the bracket doesn't quite fit where it should.

Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
The bracket is supposed to be at the base of the carb, not the middle section. I've never set one up, but, I think you are missing a riser block under the carb?, and that will get the carb and bracket at the right spot.

Last edited:
Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
When the carb is upside down, carefully check the torque on the (slotted not Phillips/JIS) screw that has a hole in the middle. Mine came from the factory kinda loose.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
23,456
Location
EAST COAST
Website
vintageteqparts.com

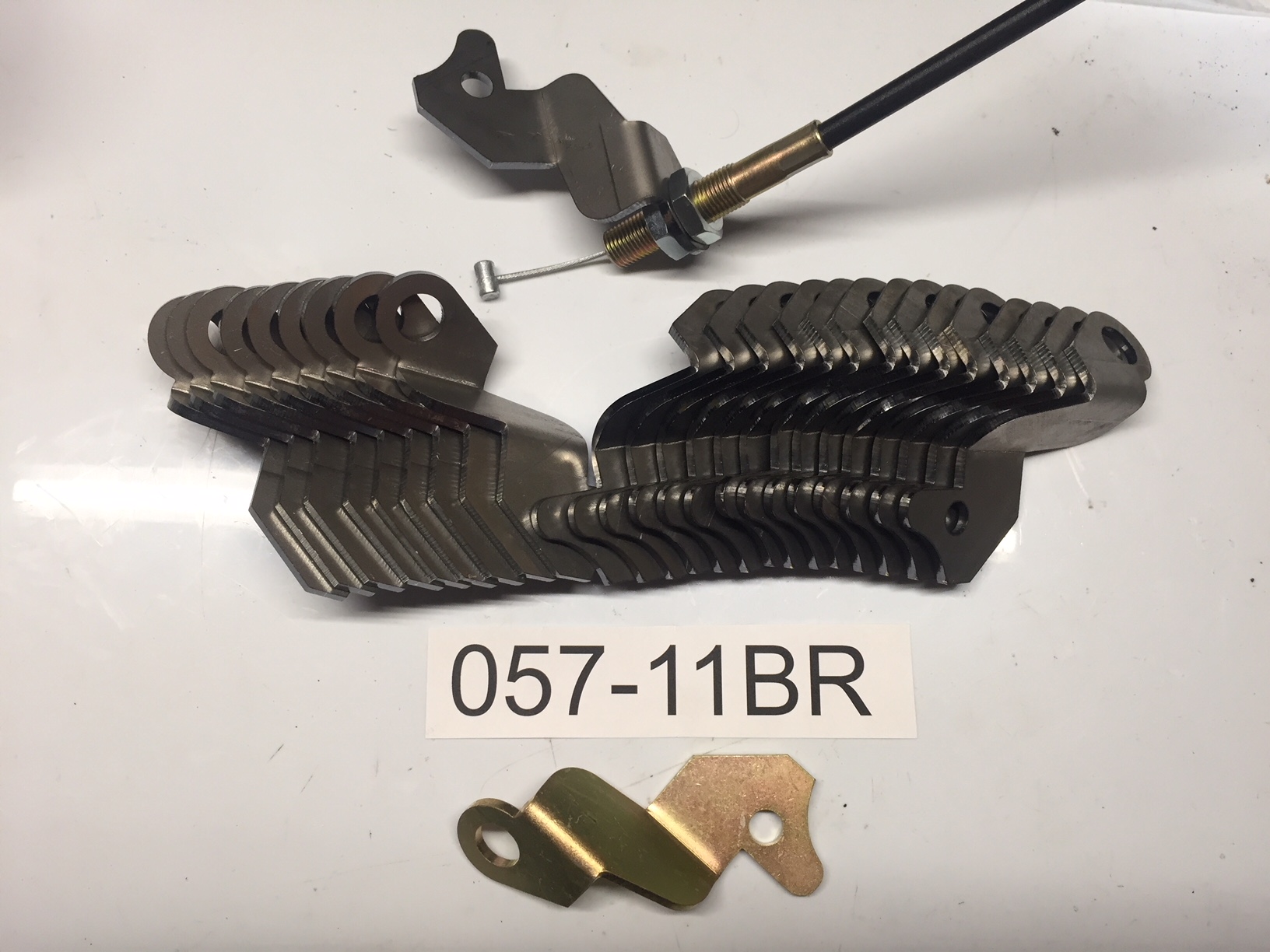

This bracket appears to already be in possession, top, top pic. Regardless, I'm so glad to see that someone is offering this. Also, the thread starter will need a return spring, not just the one on the carb.






This is the throttle system that I have. I tried rigging it up, but it tends to bind a bit.the bracket doesn't quite fit where it should.View attachment 3167806View attachment 3167807








Joined
Aug 9, 2019
Messages
84
Location
Fargo
I will check that out.

Without modifying the bracket, I can't get it to fit using the base screws. I tried mounting using that screw in the middle but it binds just enough.

Joined
Aug 9, 2019
Messages
84
Location
Fargo
Yes, I do. My problem is bracket does fit around the casing and the diaphragm mechanism gets in the way.

Last edited:
Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
You are using a 73’ throttle linkage and a later style carb. These two things will not work together.
There are making-it-work conflicts, but this isn't one of them. It isn't so much of a later style carb - too short for our later air cleaners; it is more of a non-USA carb. But, modifying an air cleaner assembly so that it..., yeah. Maybe it is a 2F air cleaner bracket and a 2F intake at home, but judging by the earlier insulator, I'd say that it is an F intake.

Some of the brackets (later '73) have the return spring out of that space. Maybe your right, and he needs to modify (bend?) the return spring part of the bracket. The photo (aboove) looks like the return spring was installed on the bracket, both sides. It can be installed like it is oriented on the 2F. He needs to get that bracket installed on the two intake mounting studs, on the top of the china-casting throttle body. Maybe modifying the part, but, not its function.

Last edited:
Joined
Aug 10, 2021
Messages
638
Location
Clearwater, FL
There are making-it-work conflicts, but this isn't one of them. It isn't so much of a later style carb - too short for our later air cleaners; it is more of a non-USA carb. But, modifying an air cleaner assembly so that it..., yeah. Maybe it is a 2F air cleaner bracket and a 2F intake at home, but judging by the earlier insulator, I'd say that it is an F intake.

Some of the brackets (later '73) have the return spring out of that space. Maybe your right, and he needs to modify (bend?) the return spring part of the bracket. The photo (aboove) looks like the return spring was installed on the bracket, both sides. It can be installed like it is oriented on the 2F. He needs to get that bracket installed on the two intake mounting studs, on the top of the china-casting throttle body. Maybe modifying the part, but, not its function.
No, that’s not correct.
The main issue is the truck uses a cable. It attaches to the bracket he has and the bracket mounts down on the cast iron bolt pattern when mounting carb. He is having an issue with firmest because the later carb he has there has a vacuum diaphragm on the front side of the carb not allowing the linkage bracket to install. Need to either source a correct carb or cobble some make shift linkage bracket.
we haven’t even got to the air cleaner fitment issues…

Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
Push ('73) or pull, both were done with a cable. No issue for the throttle itself. The return spring, I still question, but, a return spring shouldn't be your make-it-or-break-it.

Vacuum diaphragm is important, the orientation of a return spring isn't. Later brackets mount the return spring akin to 2F.

Never will it plug and play with the air cleaner assembly and F-intake manifold. This is the bigger issue.

A rotted '72 carb will be the donor for the part needed on the end of the throttle shaft - just run cable the whole way. But, why not use what someone else already made work, if you have the parts? An all-cable won't easily clear a 2F air cleaner assembly the same way the cable loops on a stock '73.

Joined
Aug 9, 2019
Messages
84
Location
Fargo
I thought it was more of a plug and play. I think I am going to scrap the idea and rebuild my original carb. Thanks for all help. Any suggestions on a good rebuild kit?

Joined
Aug 9, 2019
Messages
84
Location
Fargo
Here is a real left-hand turn, but what is the best option for converting over to EFI on a stock 155F?

I see a lot of threads dealing with 2F engines.

Besides the cost, there doesn't seem to be any reason not to convert.

Jerry

Joined
Sep 20, 2022
Messages
553
Location
35th parallel north
Makes no sense to me to go EFI. The threads on the web are too lengthy (for folks who have already demonstrated competence and skills)- that alone is how I base my opinion.

How can the computer differentiate between a misfire (incomplete burn) and a lean condition? They both read lean on the O2 sensor. That wouldn't matter, other than OEM EFI engines don't misfire because they have designed port, or direct, injection. This TBI thing is for the 1980's.

There is no steady ground on these rigs. Modern vehicles have so many capacitors because they have been tuned so they can work with sensitive electronics. The lamps and charging systems have all these really short moments with voltage spikes - you see it on the ammeter. The ignition is easily heard thru a cheap amplifier - even with the factory 'radio kit.'

I have an O2 sensor installed behind my header, it never got hot enough for when it is important (cold block/ coolant). A downpipe provides a better solution, just keep it from getting sprayed with exhaust steam. These things are better designed using thermal imaging. However, it would be really nice to get a fine mix of fuel and air at startup, and not big fuel droplets that stick to the cold walls of the intake manifold.

Last edited:
