The new FJ 73 Build

Discussion in '70-Series Tech' started by Alex gee, Jul 7, 2015.

  1. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015
    The oppurtunity presented it self to get hold of this beauty,

    Will be doing a fairly extensive build on this one.

    Nice to have a designated toy.

    Let the pictures do the talking.

    Picked her up with the Amarok

    [​IMG]

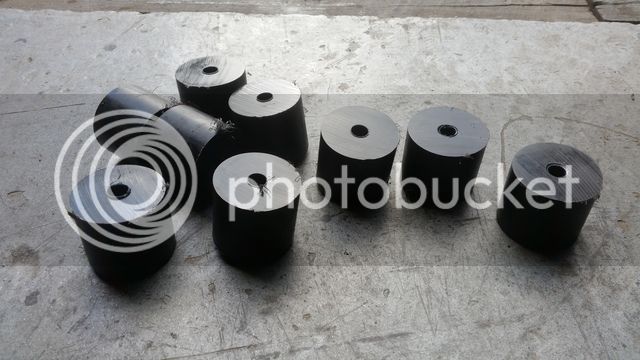

    First up was the body lift. So i Could build the bumper to suit.

    [​IMG]

    [​IMG]

    Started building up the front bar.

    [​IMG]

    [​IMG]

    Got my Dimple die set up sorted.

    [​IMG]

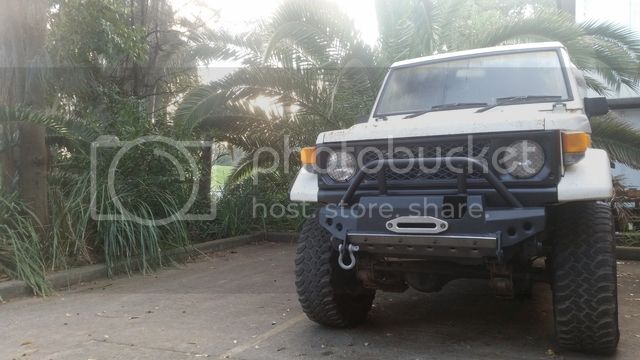

    thought it was finished,

    [​IMG]

    But added a hoop.

    [​IMG]

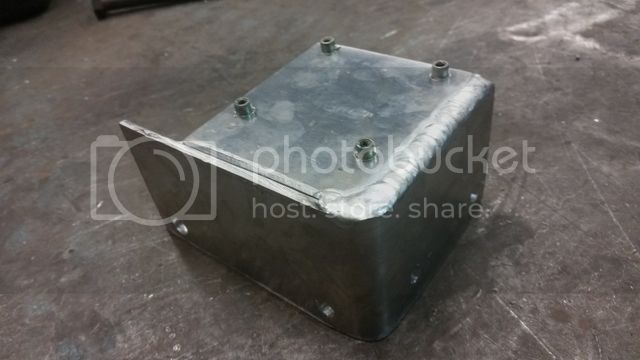

    Got a start on the Airbox for the snorkel.

    [​IMG]

    New 9mm leads plugs and MSD coil,

    [​IMG]

    Wheel spacers arrived , am just waiting to get it registered before fitting them up.

    [​IMG]

    3.5"Snorkel

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Staretd on the Carb hat , oh by the way its running a 5l 308 V8.

    [​IMG]

    [​IMG]

    with 4" inlet


    [​IMG]

    [​IMG]

    VajaFJ70, b702012, Locked79 and 2 others like this.
  2. beno

    beno Gihee Arakawa Moderator GOLD Star

    Messages:
    22,940
    Media:
    382
    Albums:
    29
    Likes Received:
    16,523
    Joined:
    Aug 28, 2004
    Location:
    Nederland, CO
    YEAH!!!

    No stinky 3F carby for this baby!

  3. ozcrusier

    ozcrusier

    Messages:
    2,740
    Likes Received:
    937
    Joined:
    May 2, 2011
    Location:
    Coffs Harbour Australia
    Square 600 holley with vac secondaries

  4. carpet

    carpet

    Messages:
    93
    Likes Received:
    14
    Joined:
    Apr 10, 2012
    Location:
    Melbourne
    love the front bar!!

  5. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

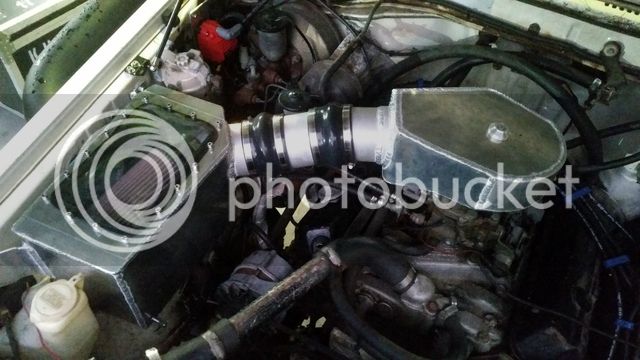

    Quadrajet , 4 Barrel , comes on song when the secondaries open.

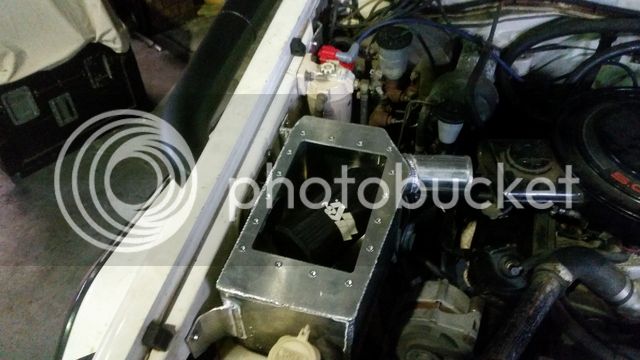

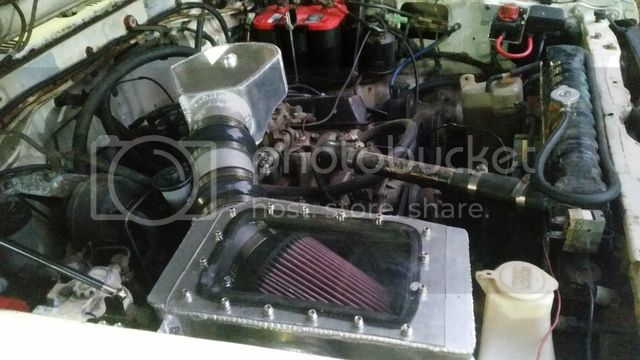

    Shoe horned the 4"filter in,that thing is huge.

    [​IMG]

    [​IMG]

    UV stable polycarbonate lid , will be nice to be able to keep an eye on what going on inside.

    [​IMG]

    Billyfj7312ht and trox like this.
  6. Billyfj7312ht

    Billyfj7312ht

    Messages:
    477
    Media:
    1
    Likes Received:
    593
    Joined:
    May 3, 2015
    Location:
    Qld Aust
    Holy snappin duckshit batman !!! I hope you made 2 lots of this stuff for me........its not like you don't have enough room in your shed.

  7. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

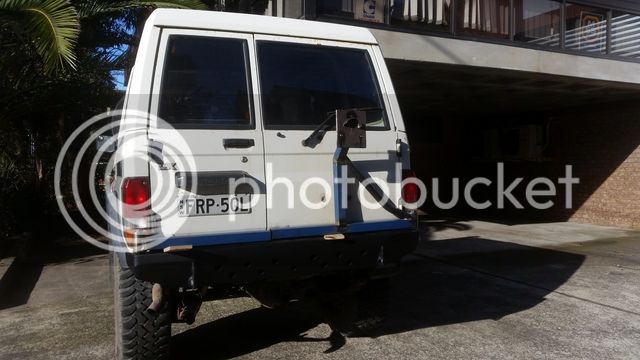

    new rear bar,

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

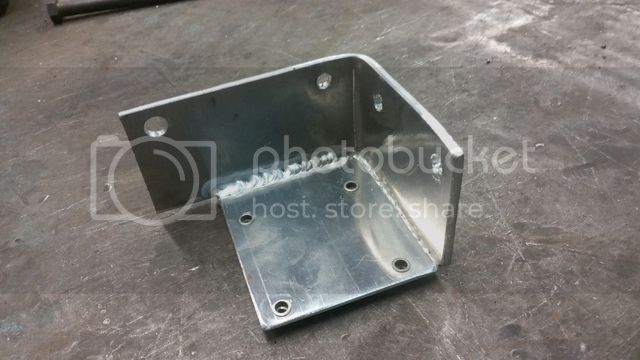

    mounted the winch control and isolation switch,

    [​IMG]

    [​IMG]

    [​IMG]

    snorkel plumbed.

    [​IMG]

    [​IMG]

    bonnet struts added

    [​IMG]

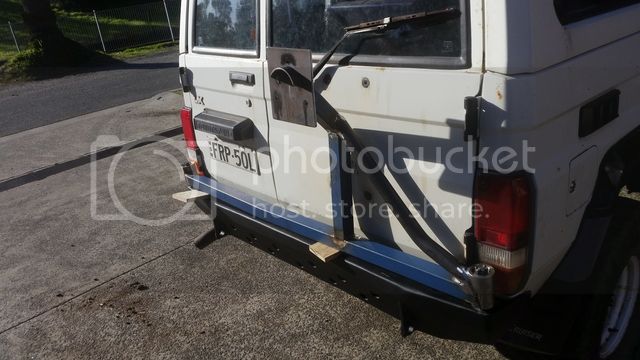

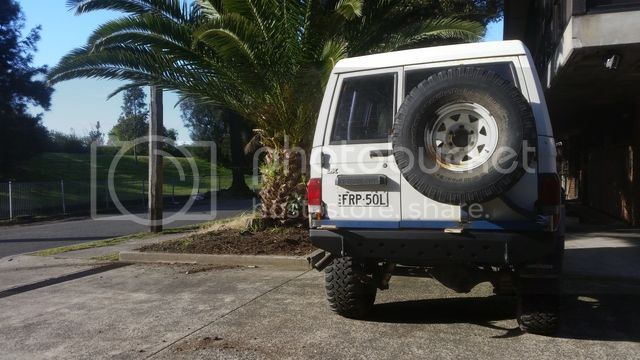

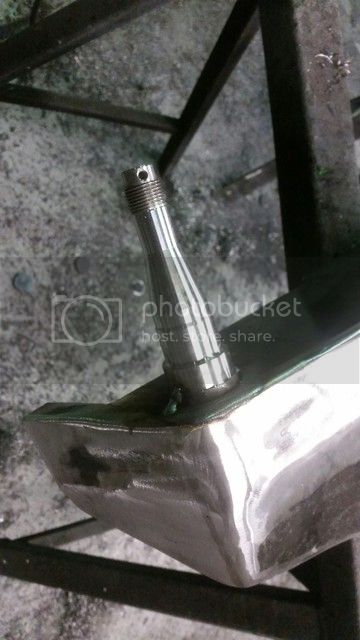

    Tyre carrier underway , with clearance for 37's , will be doing a can holder on the other side.

    [​IMG]

    [​IMG]

    [​IMG]

  8. ozcrusier

    ozcrusier

    Messages:
    2,740
    Likes Received:
    937
    Joined:
    May 2, 2011
    Location:
    Coffs Harbour Australia
  9. divemedic

    divemedic

    Messages:
    899
    Media:
    57
    Albums:
    4
    Likes Received:
    557
    Joined:
    Jan 22, 2015
  10. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

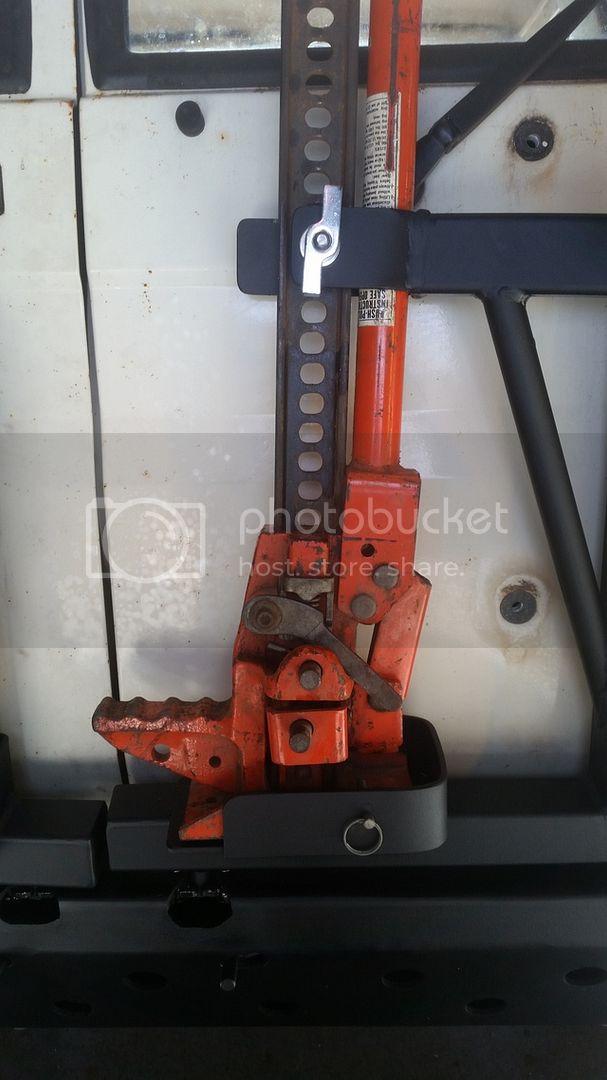

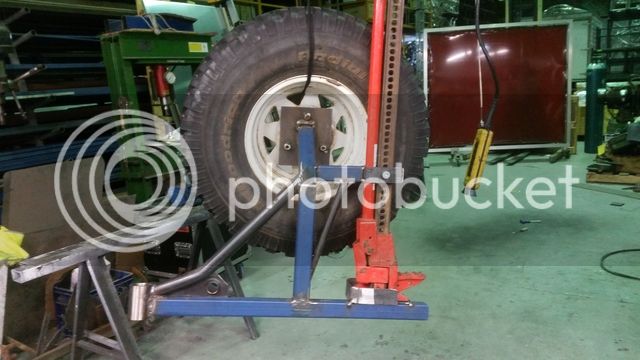

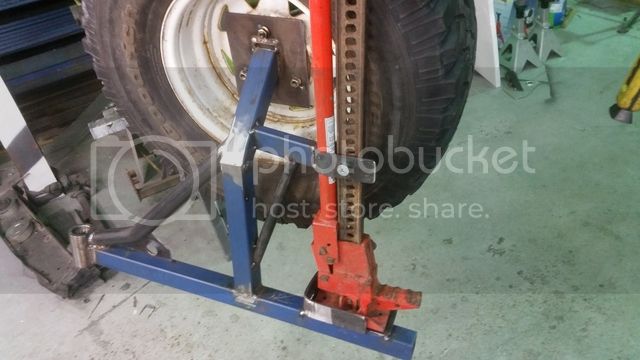

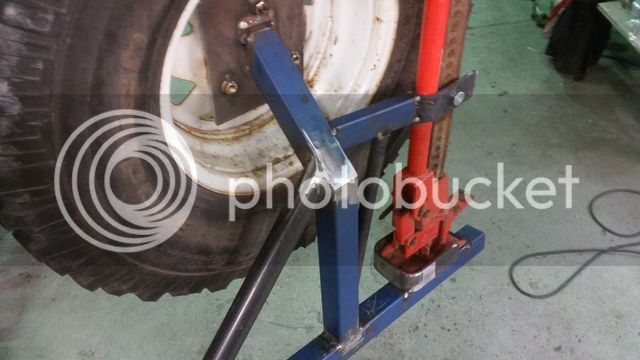

    Hi-lift mount.

    [​IMG]

    [​IMG]

    [​IMG]

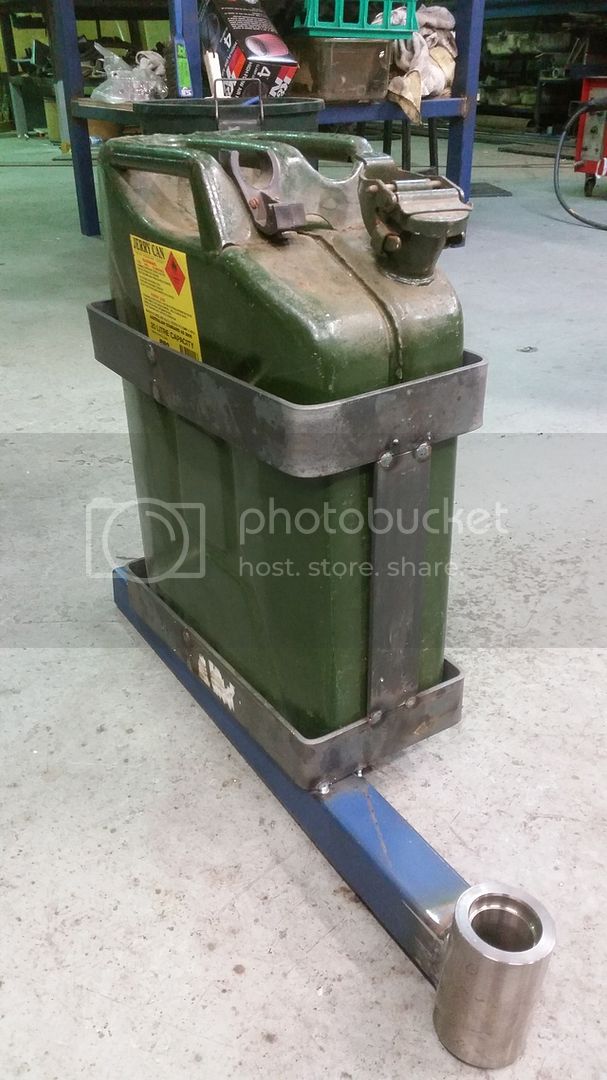

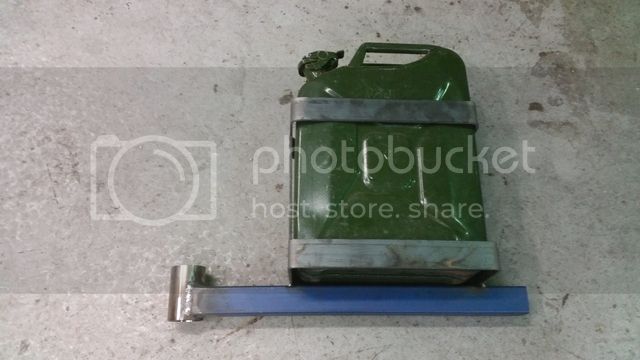

    and can mount.

    [​IMG]

    [​IMG]

  11. divemedic

    divemedic

    Messages:
    899
    Media:
    57
    Albums:
    4
    Likes Received:
    557
    Joined:
    Jan 22, 2015
    You may need gussets under the bottom lip of that can carrier?

  12. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015
    Am going to do a base plate and then some sort of gusset or reinforcment?

    Machined some caps for the swing away hinges , never liked the crappy hubcap covers,

    [​IMG]

    [​IMG]

    divemedic likes this.
  13. clintnz

    clintnz

    Messages:
    222
    Likes Received:
    110
    Joined:
    May 21, 2006
    Location:
    Rotoiti, New Zealand
    Nice work! I used a car door latch on my swing-away tyre carrier, $0 & works great.

    V8 70 series are the shizz :cool:

    Cheers
    Clint

    Alex gee likes this.
  14. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

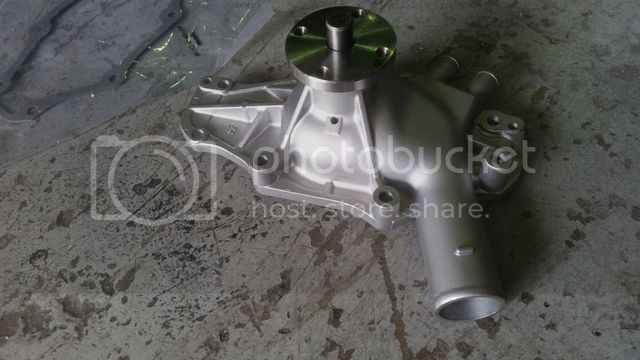

    Fitted a new waterpump as the bearing was letting go on the old one.

    Also changed all the radiator hose extensions from steel to aluminium.

    Might explain why so much rust came out of the thing.


    [​IMG]


    [​IMG]

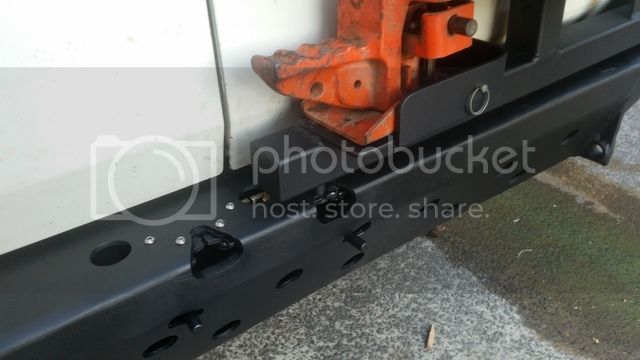

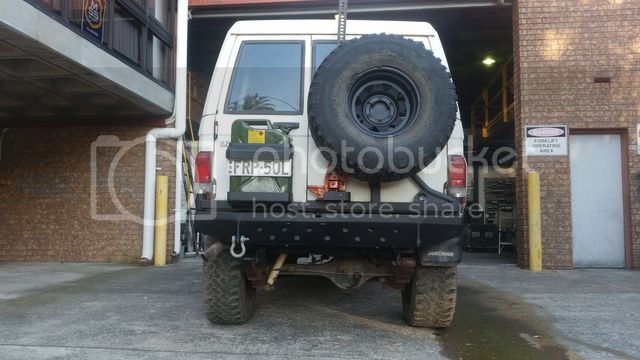

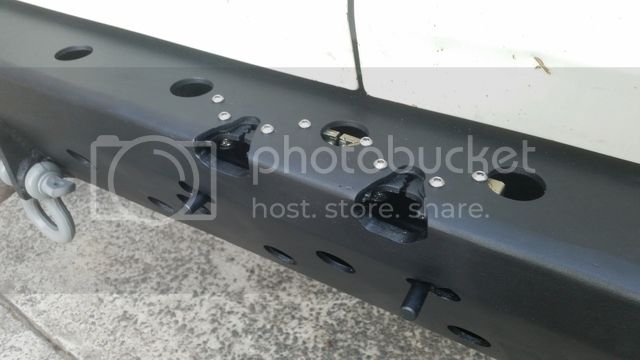

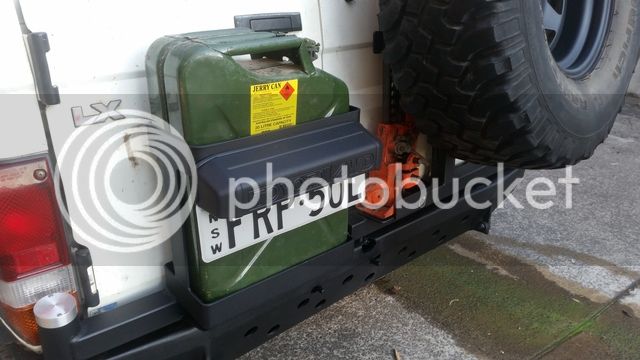

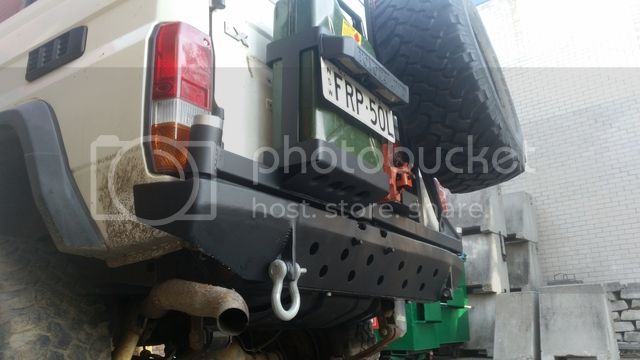

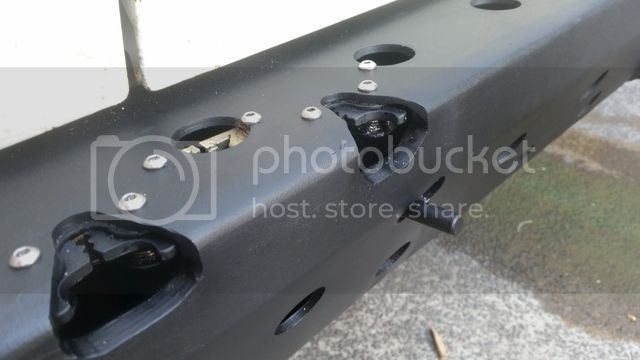

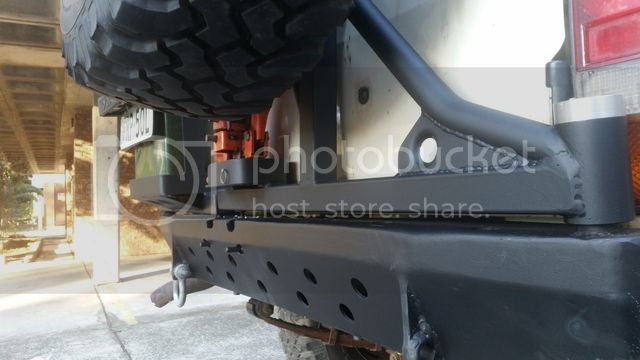

    Got the rear end sorted. Used autoloc ' s big bear claws latches and added some stubs for handles.

    Mounted them in the bumper to keep the swing away arms clean.


    Turned out spot on. The double action in the latch is really nice and adds a pop out when you open them.

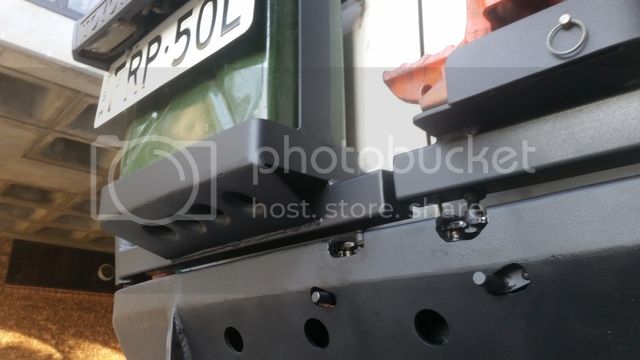

    Used the cruiser plate surround on the can holder to keep it oem ish.

    Have some led plate lights to go in there and some led indicators to go in the bar.


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

  15. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

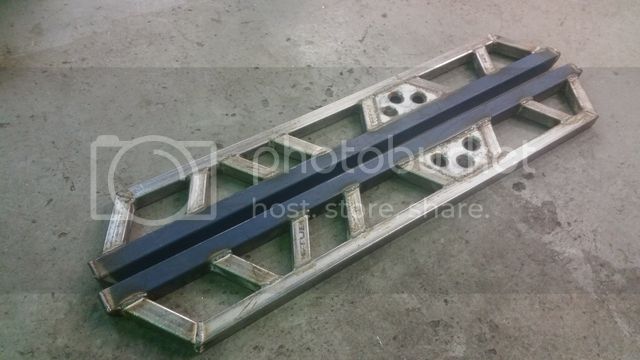

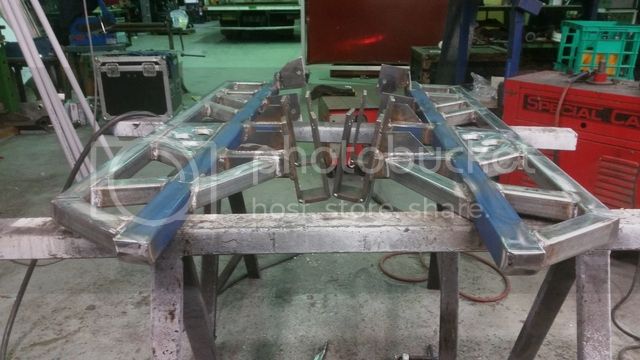

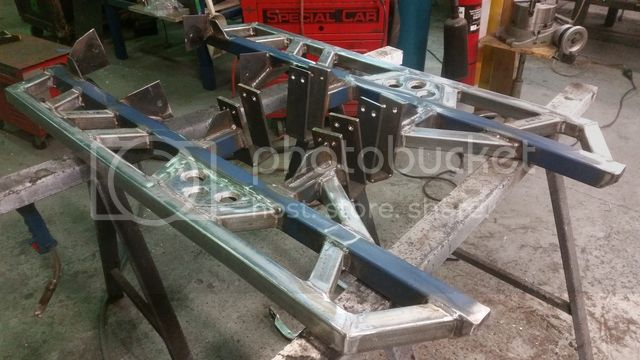

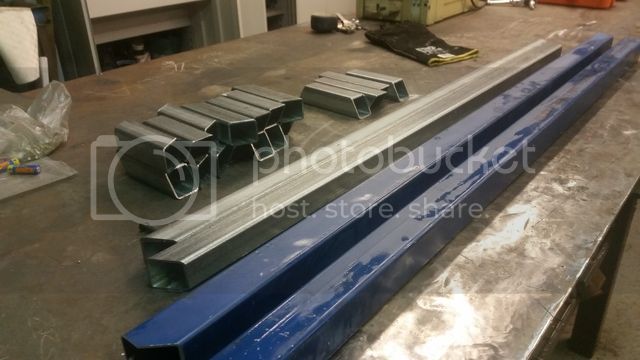

    Started on the sliders went with something a little out of the ordinary.
    Will build an attachment for the hilift.

    Unlike me to have most of the job chopped out before i start.

    [​IMG]

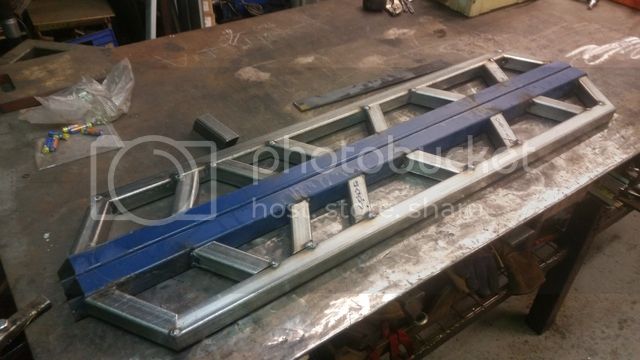

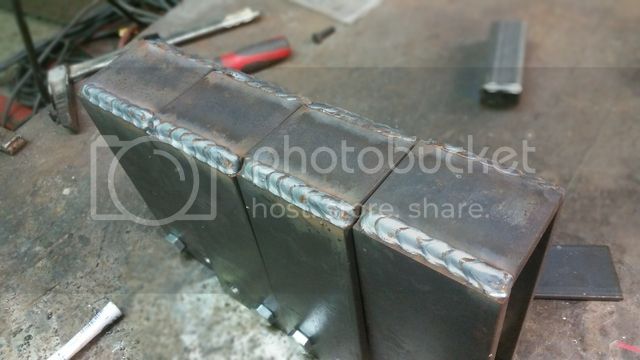

    Tacked up.

    [​IMG]

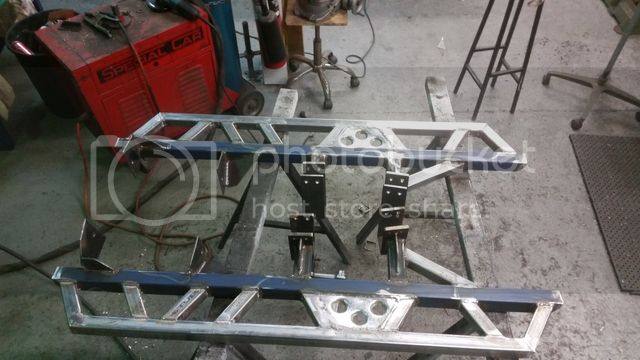

    welded

    [​IMG]

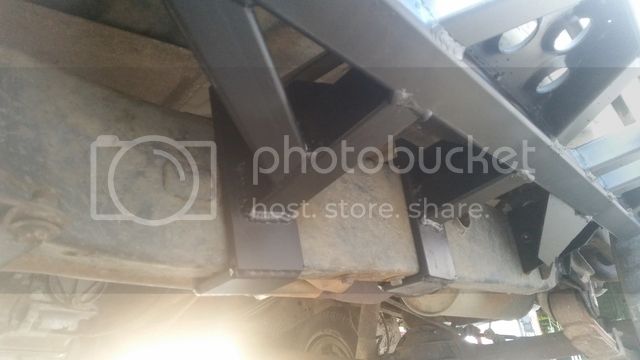

    Frame brackets, 10mm and 8mmx75 plate , dont think they will be going anywhere.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

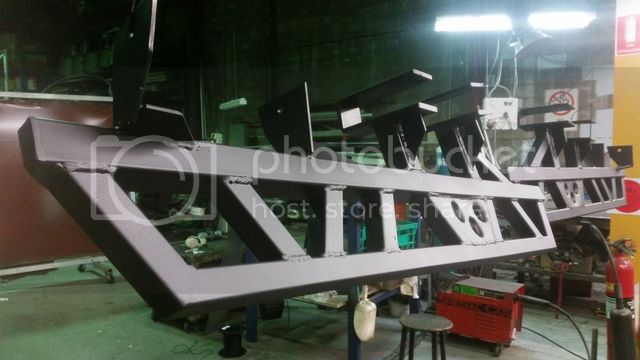

    Painted.

    [​IMG]

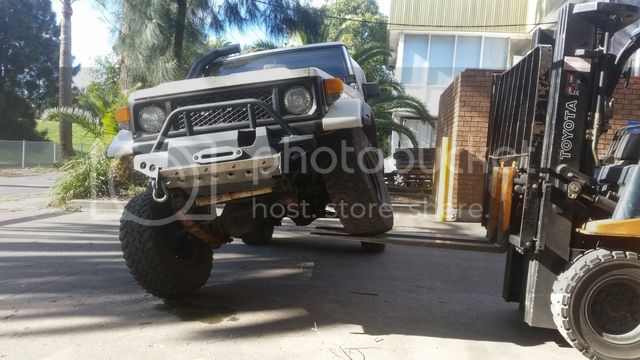

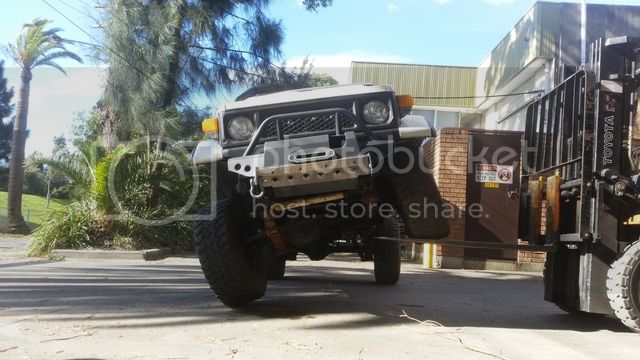

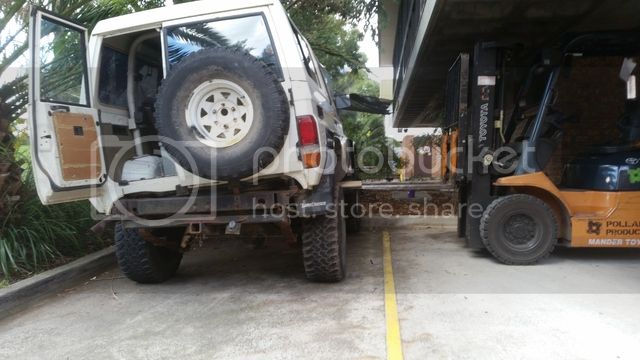

    Am plotting the next step with suspension , so i thought i would see how she flexes, pretty damm well i thought, the rear is pretty tight so im going to lose a few leaves from the pack.

    [​IMG]

    TLC Norway likes this.
  16. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015
  17. Billyfj7312ht

    Billyfj7312ht

    Messages:
    477
    Media:
    1
    Likes Received:
    593
    Joined:
    May 3, 2015
    Location:
    Qld Aust
    Your centre of gravity will be low with them on. Nice work.

  18. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015

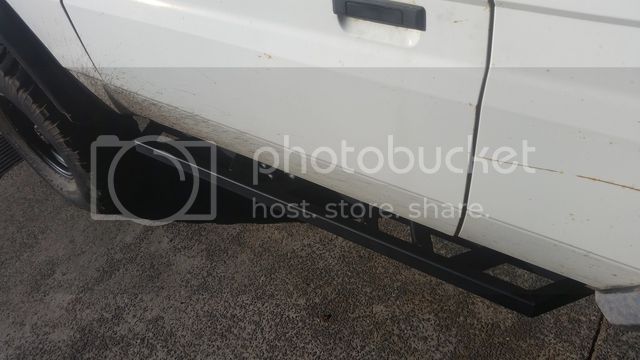

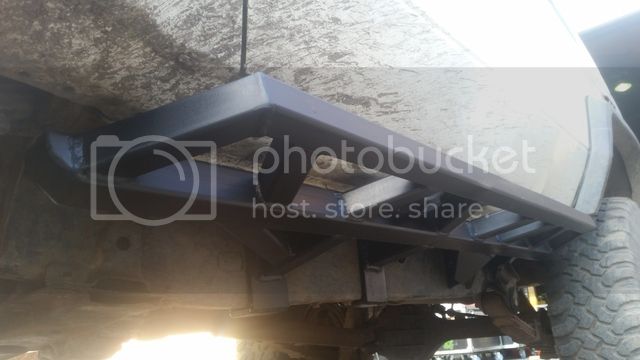

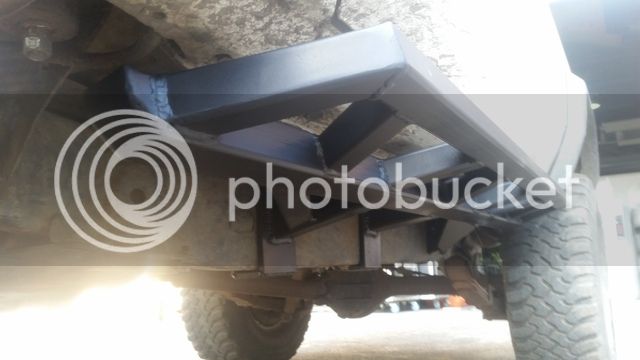

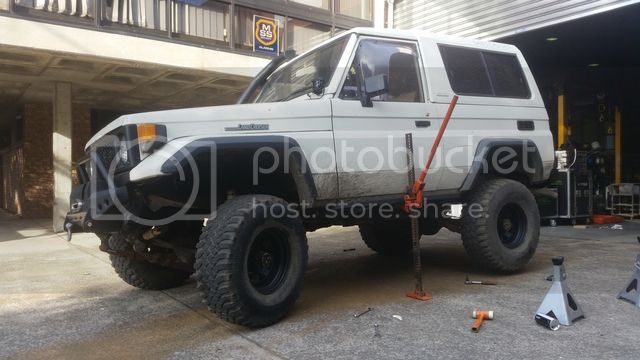

    Fitted up the sliders and tested the hi-lift , 4mm of deflection which I'm happy with.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

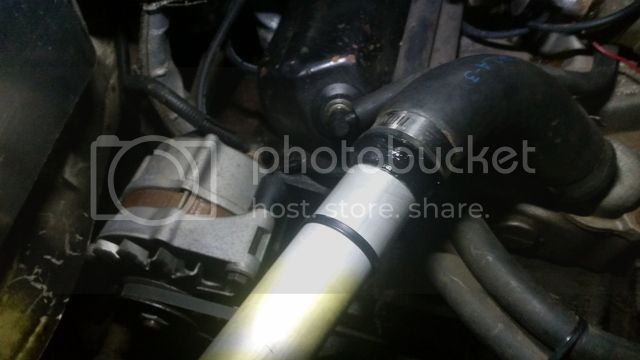

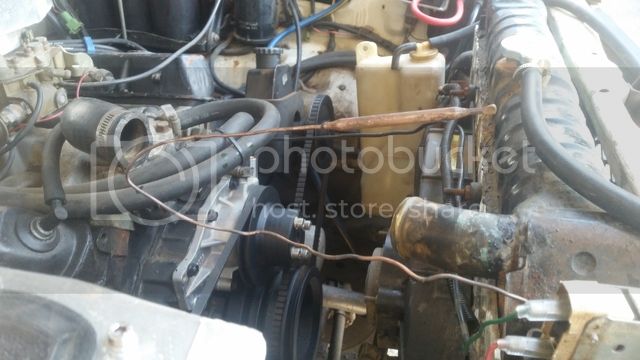

    Had trouble sealing the probe off for the thermo fan switch,
    they usually have a small gasket half moon thing to help the seal.

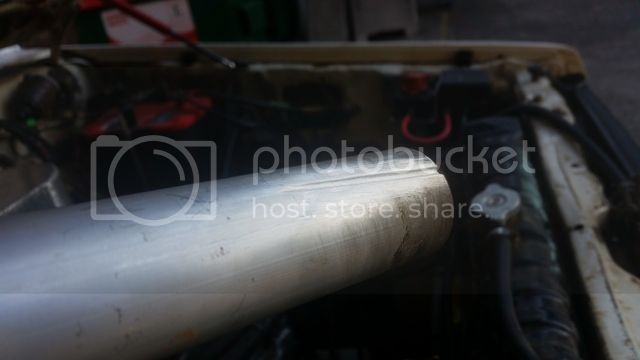

    I decided to cut a groove in the extension pipe so it sits a little flatter,

    The probe

    [​IMG]

    [​IMG]

    so far so good,

    [​IMG]

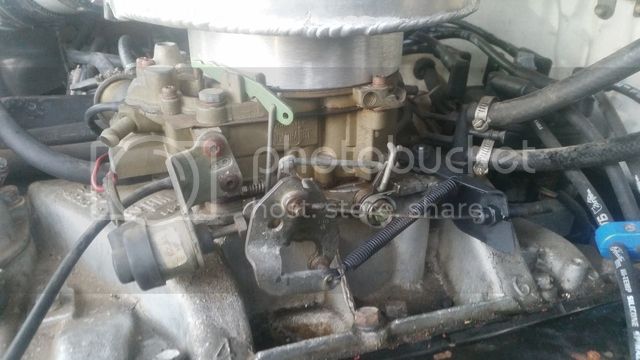

    Next thing that was playing on me was the path of the throttle cable, it was nowhere near a straight pull, re-drilled the mount and straightened it up,
    When i was resetting the cable lengths and so on i noticed the secondary butterflies werent opening , I dialed in the stop bolt on the accelorator pedal ( had to trim it down actually) and wham full quad butterflies ,
    Sounds and goes even more ridiculuos than before.

    [​IMG]

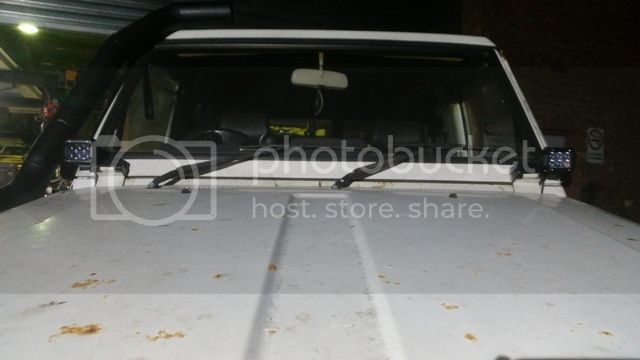

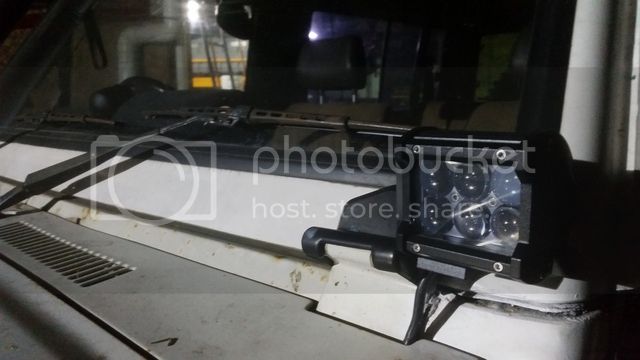

    fitted some little 4"spots to the a pillars,

    [​IMG]

    [​IMG]

    without.

    [​IMG]

    with , the bonnet'glare isnt as noticable in the flesh

    [​IMG]

  19. Watty

    Watty

    Messages:
    14
    Likes Received:
    2
    Joined:
    Apr 18, 2013
    Location:
    Auckland New Zealand
    Where did you get the flares from. I just smashed two of mine and have to replace them. Are they original Toyota parts .

  20. Alex gee

    Alex gee

    Messages:
    183
    Likes Received:
    308
    Joined:
    May 25, 2015
    They are OEM toyota ones , with the intergrated mud flaps.
    They where on the car when i bought it.
    One was snapped in 2 when I bought it and I glassed it back together.

    Need to repaint the others to match now , going to remove the mudflaps and smooth the bottom edges soon.

  21. CAL FJ73

    CAL FJ73

    Messages:
    2
    Likes Received:
    1
    Joined:
    Jun 20, 2015
    Location:
    Queensland
    Awesome work!! Love the front and rear bar work. You've got to be a Boily as only WE could turn out work like that? I'm doing a similar rear bar on my FJ73. Can't seem to find the Big Bear Claw latches you've used. Do you have a web site I could look at or know anywhere I could buy them?? Cheers
