Teaser: African Outback Rack on Fj60

Discussion in 'Camping & Outdoor Gear' started by 2mbb, Feb 22, 2007.

  1. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Pic's: African Outback Rack on Fj60

    this is just a teaser for now. I received a big cardboard box this week from Colorado that contains a full length african outback rack for my Fj60. I'll be doing the install this weekend. I'll be taking some pic's for posting. If anybody want's to see something special, while it's still in pieces, let me know. So far, with all the pieces scattered on my dining room table, it looks like it's going to be sweet!

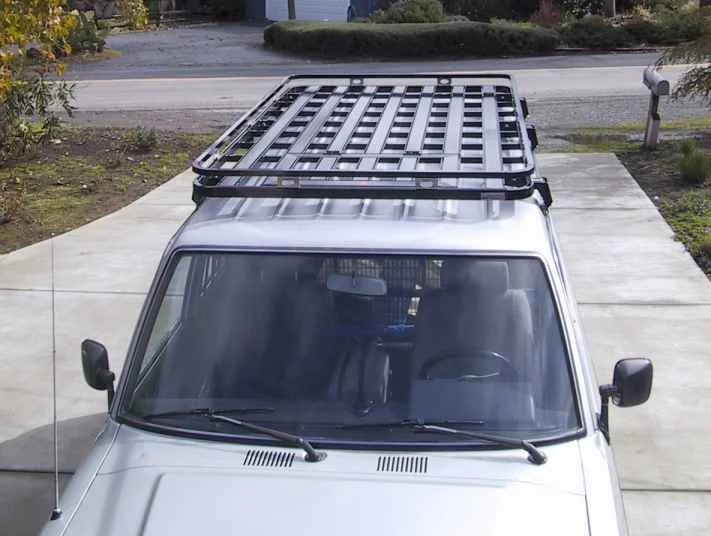

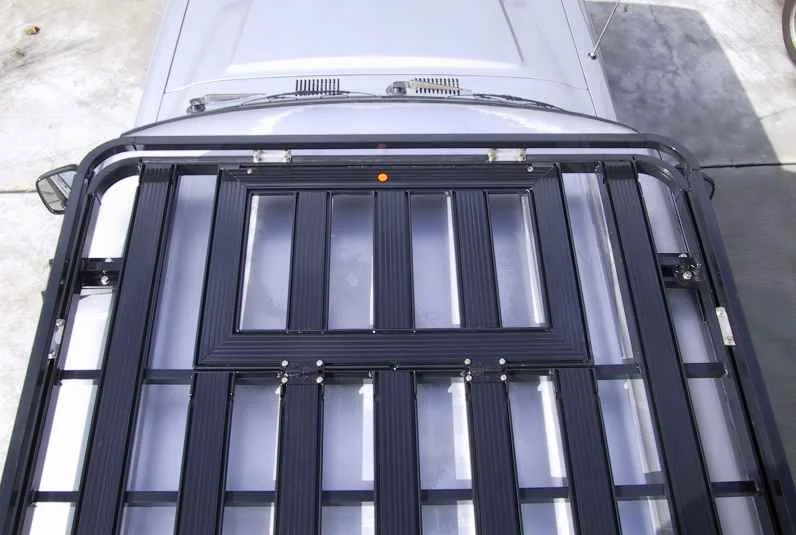

    Edit: Here are some pics of the competed rack. More pics below...The rack is really nice and solid. It's light, too. I can put it on top by myself. My only complaint is that to get the mount width correct for the rain gutters, the rack is not centered right to left. It sit's about 1inch off center, although you can't really tell...
    African Outback Roof Rack  04.JPG African Outback Roof Rack  05.JPG African Outback Roof Rack 09.JPG

    Last edited: Feb 25, 2007
  2. landcruiserjunky

    landcruiserjunky

    Messages:
    3,865
    Likes Received:
    214
    Joined:
    Dec 23, 2005
    Location:
    In Between Worlds
  3. High Desert

    High Desert

    Messages:
    1,227
    Likes Received:
    2
    Joined:
    Mar 21, 2005
    Location:
    Central Oregon
    Lets see the bits and pieces too...

  4. tclndcrz

    tclndcrz

    Messages:
    989
    Likes Received:
    1
    Joined:
    Mar 30, 2003
    Location:
    Charleston SC
    sick! cant wait to see the pictures

  5. CaliCruiser

    CaliCruiser

    Messages:
    2,080
    Likes Received:
    1
    Joined:
    Aug 4, 2005
    Location:
    Pine Grove, Ca
    wheres WC, walnut creek? That is awesome I love those racks, should look nice on your 60.

    Dylan

  6. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Here ar some more pic's:

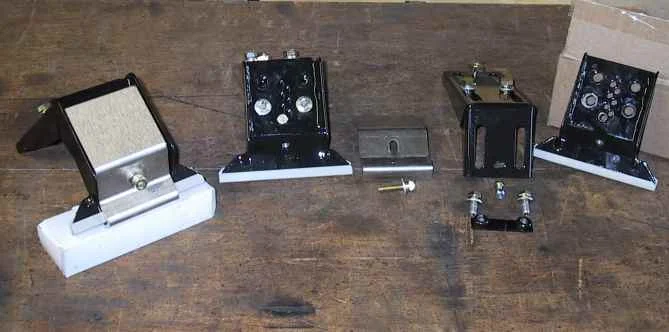

    The first picture are the gutter mounts. these adjust in height, and mount on the rack to allow adjustment of width. I set the height at the lowest setting for my FJ-60.

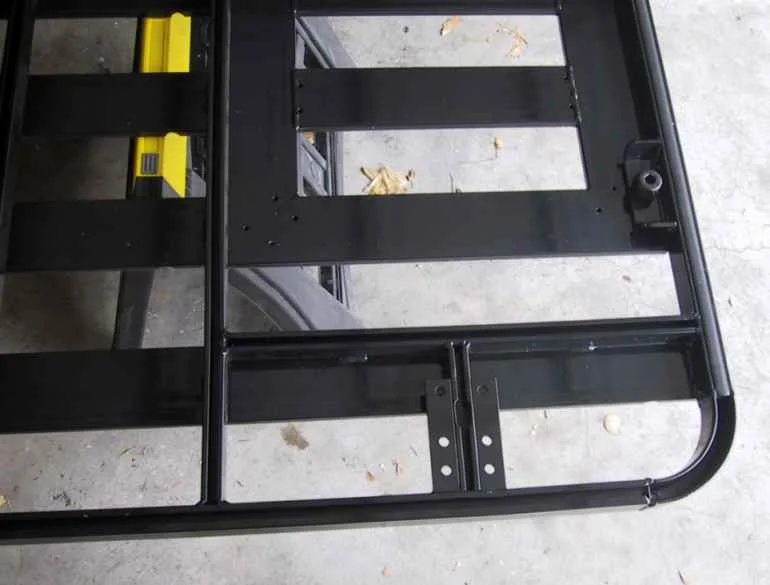

    The second picture shows the mounting plate on the rack for the gutter mount. Nice and solid. You can also see one of the two knobs that secures the trap door that sits above the sun roof (for the 80 series).

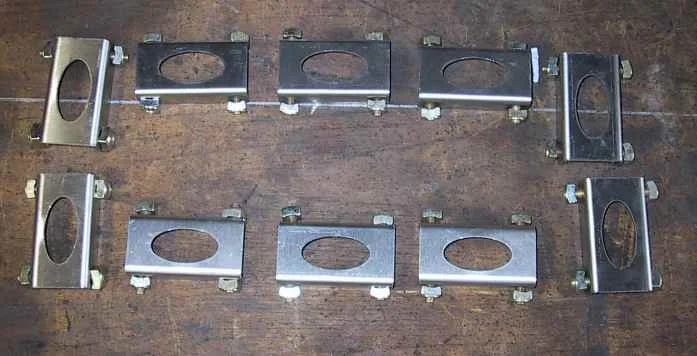

    The third picture is a close up of the brackets that hold the top rail on. It looks like 3/16" stainless steel.
    African Outback Roof Rack 01.JPG African Outback Roof Rack  03.JPG African Outback Roof Rack  02.JPG

  7. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA

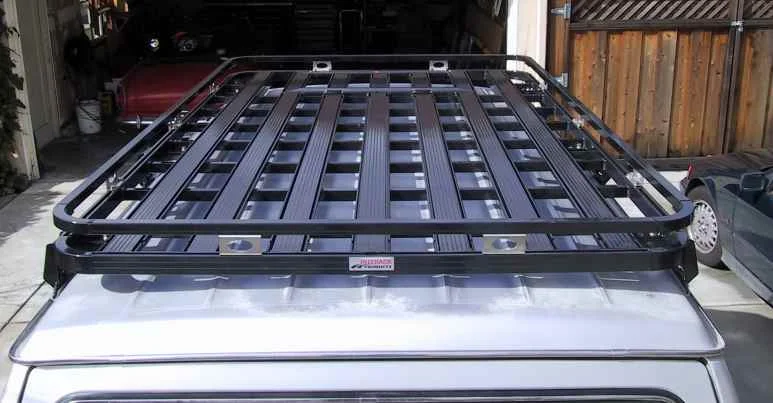

    Here's one more picture looking from the back.
    African Outback Roof Rack 07.JPG

  8. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Yeah, walnut creek.

  9. FJ60-Hokie

    FJ60-Hokie

    Messages:
    196
    Likes Received:
    1
    Joined:
    Jul 5, 2005
    Location:
    Coastal Virginia
    What are the dimensions of the rack including height?

  10. CaliCruiser

    CaliCruiser

    Messages:
    2,080
    Likes Received:
    1
    Joined:
    Aug 4, 2005
    Location:
    Pine Grove, Ca
    That looks awesome. Your rig is super nice man, If you ever make it over to the sierras or eastern side of the state I'd love to see your rig.

  11. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    The floor of the rack measures 51" wide x 82 1/2" long, outside edge to outside edge. The rail is about 1" wide.

    measuring height, but sticking a ruler in the bottom of the rain gutter, the floor of the rack is 6 1/4" high. The top of the rail measures 8 7/8" high.

  12. nicholastheczar

    nicholastheczar

    Messages:
    1,414
    Likes Received:
    6
    Joined:
    Aug 23, 2005
    Location:
    Magnolia, TX
    Very nice rack (huhuuhuu, not something i say to guys normally). :D

  13. sethos1

    sethos1

    Messages:
    93
    Likes Received:
    0
    Joined:
    Jun 7, 2005
    Location:
    Burbank
    Looks real nice. I have really enjoyed mine. Just an FYI, tighten down those knobs real good that close the sunrooof hatch. One of mine was loose and went bouncing down the freeway.

  14. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Thanks for the reminder. I was thinking of replacing them with bolts with lock washers. Or maybe I'll use some locktite.

    And thanks for the help with the dimensions. It does fit in my garage with the top rail on, but just barely!

  15. ctnista07

    ctnista07

    Messages:
    6
    Likes Received:
    0
    Joined:
    Dec 15, 2005
    randome question lol. i notice that you have a 190e, jw what kind (sport line?), because i have a 190e cossworth (daily driver) in addition to my fj60.................... nice rack by the way lol

    Last edited: Mar 10, 2007
  16. calphi27

    calphi27

    Messages:
    1,136
    Media:
    42
    Albums:
    1
    Likes Received:
    2
    Joined:
    Dec 10, 2005
    Location:
    Denver
    looks like you will have to cut out a hole for the sunroof space. looks sweet, I hope to make one just like it.

  17. Landpimp

    Landpimp

    Messages:
    15,825
    Media:
    1
    Likes Received:
    1,815
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    looks great! love mine on my 100(thats my rig on Slee) my rack also sits a tiny bit off........

    didn't know black was now an option......cool

  18. Beowulf

    Beowulf

    Messages:
    12,529
    Likes Received:
    52
    Joined:
    Mar 27, 2003
    Location:
    Somewhere in the foothills...
    I lost one too! As luck would have it, the knobs to tighten the cross-bars on the 'factory' rack for the 80-Series are the same size and thread pitch.

    -B-

  19. macneill

    macneill Rollin’ on 33s

    Messages:
    4,062
    Likes Received:
    6
    Joined:
    Jun 2, 2004
    Location:
    Port Washington, NY / Edgartown, MA
    SAAAAAWHEEETTTT!!!! I was thinking for my 100, but that is damn nice! :beer:

  20. 2mbb

    2mbb SILVER Star

    Messages:
    4,632
    Likes Received:
    96
    Joined:
    Sep 1, 2003
    Location:
    WC, CA
    Maybe Christo will cut you a deal on two?
