Sleeping Platform Without Drawers - Here's What I Came Up With

Discussion in '80-Series Tech' started by mmuthart, Feb 20, 2011.

  1. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    I've been wanting a simple and easy to setup sleeping platform without the standard drawer setup. The drawers are cool but I don't really like how it compartmentalizes the space underneath. I wanted to leave the underneath completely open and accessible. So I came up with this...

    There are 4 supports that bolt directly in to the seatbelt bolts that are already welded to the body. 2 more supports down the middle that tie the 'bed frame' in to the floor (drilled 2 holes in the floor).

    I'm a very novice welder and don't have much luck cutting wood. Overall, it turned out pretty good despite my handicaps.
    cruiserbed_1.jpg cruiserbed_2.jpg cruiserbed_3.jpg

  2. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho

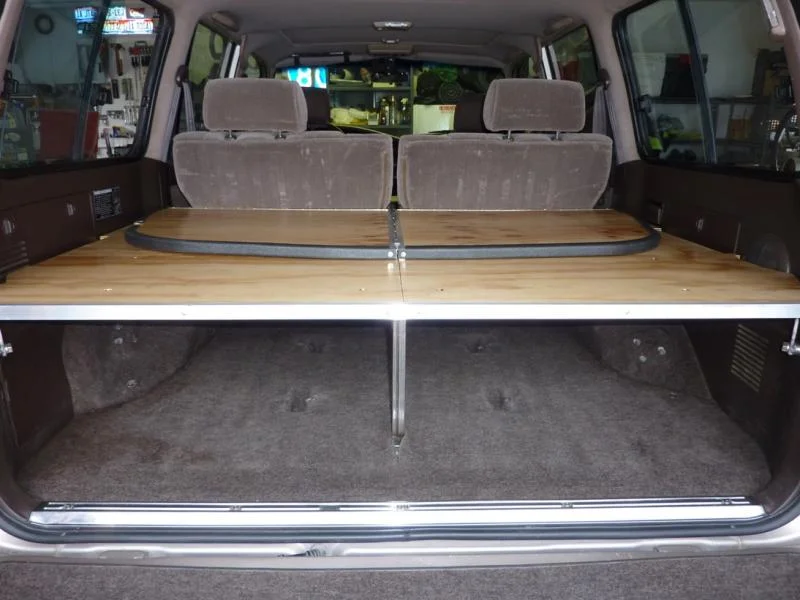

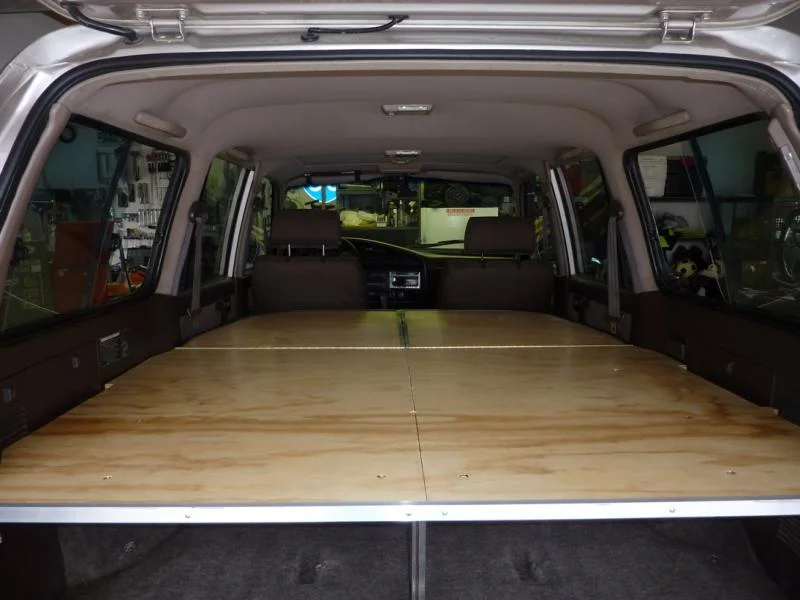

    With the 3/4" plywood platform...
    cruiserbed_8.jpg cruiserbed_9.jpg crusierbed_6.jpg

    Jody Kaufman, CA2GA and samh like this.
  3. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho

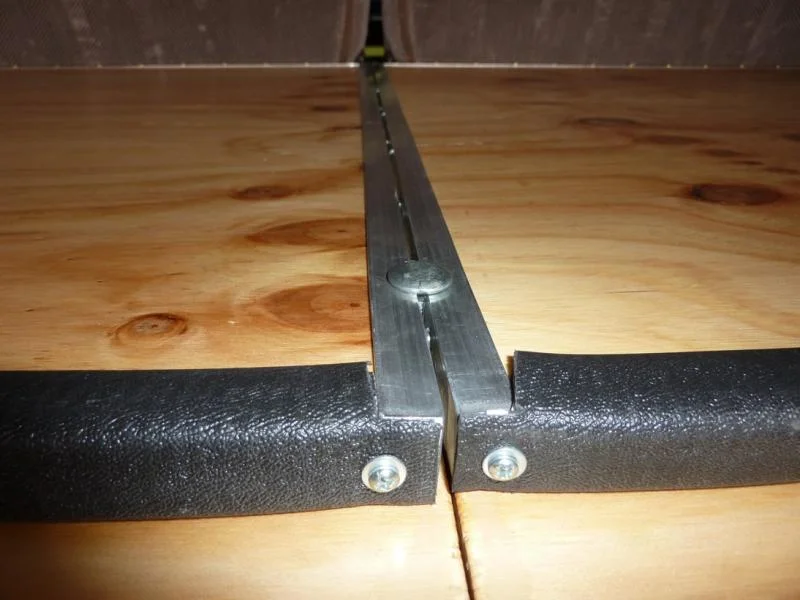

    The hinge I used. The carriage bolt I used to hold down the hinged extensions (so they don't rattle).
    P1070161.jpg cruiserbed_7.jpg P1070162.jpg

  4. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    As you can see in the pic. I had to drill 4 holes in the side panels to access the seat belt bolt nuts. Then 2 holes in the floor. That was the extent of the modifications to the vehicle. Cutting the wood to match the shape of the side panels was definitely the hardest part for me. I practiced on some cheap plywood first.

    I'm 5'11" and the bed is still a hair short; definitely doable but my legs will have to bent slightly. The limitation is that the hinged part has to clear the headliner, therefore limiting it's length.

    Last edited: Feb 20, 2011
  5. Cannon88

    Cannon88 In the duck blind...

    Messages:
    1,909
    Likes Received:
    1,126
    Joined:
    Dec 7, 2009
    Location:
    Ft. Worth, TX
    Great job!!

  6. Enigma

    Enigma

    Messages:
    8,314
    Media:
    7
    Albums:
    2
    Likes Received:
    911
    Joined:
    Jan 21, 2005
    Location:
    Pitt Meadows,BC
    And if you want drawers, you could easily just slide in some of those rubbermaid underbed type storage units.

    Looks great.

  7. rain76king

    rain76king Wicked Pissah Cruisah Haulah a NLC.

    Messages:
    2,774
    Media:
    1
    Albums:
    1
    Likes Received:
    132
    Joined:
    Feb 3, 2008
    Location:
    South Shore, MA
    That is quite sexy! It would be cool if there was a way that you could temporarily keep the extensions over the 2nd row in an upright position incase of a unexpected passenger during a trip.
    Great work!

  8. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho

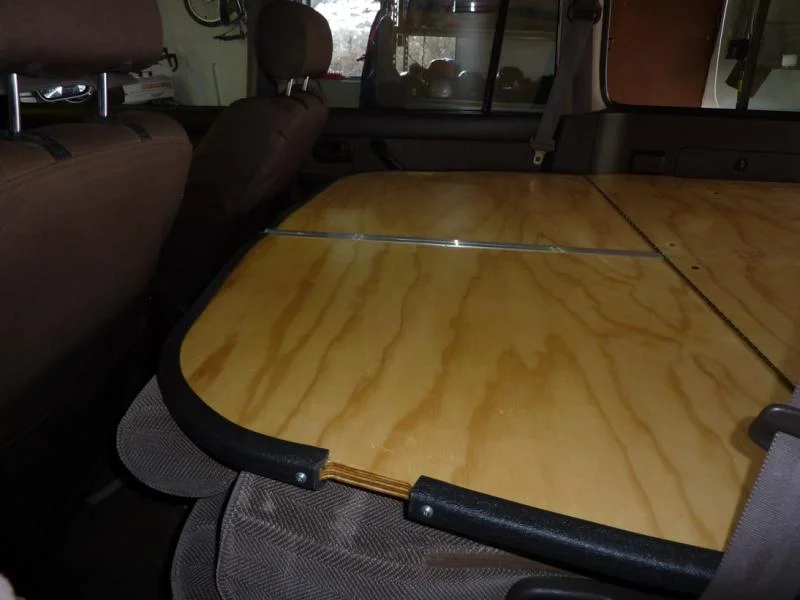

    Here's another one showing the necessary notch in the side of the extension that allows it to move past the seat belt anchor in the side pillars.

  9. bigredmachine

    bigredmachine

    Messages:
    1,481
    Likes Received:
    515
    Joined:
    Aug 22, 2010
    Location:
    Jersey, 07740
    whats the clearance between the platform and the floor of the truck? looks like it could be loaded up with a good amount of stuff.

  10. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    The frame underneath the platform is the limiting factor...there's about 12 3/4" between it and the floor. I think it's enough for the small Rubber Maid Action Packers...

  11. bigredmachine

    bigredmachine

    Messages:
    1,481
    Likes Received:
    515
    Joined:
    Aug 22, 2010
    Location:
    Jersey, 07740
    its a nice system and it looks great. can it be removed easly if you had to move a large item such as furniture?

  12. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    It'll come out but it's not necessarily quick and easy. It will be a permanent fixture for me unless I decide I just don't need it some day. I have a trailer for hauling duties...

  13. bigredmachine

    bigredmachine

    Messages:
    1,481
    Likes Received:
    515
    Joined:
    Aug 22, 2010
    Location:
    Jersey, 07740
    bet its goingto be nice and comfortable, now its just time to get a good mattress for the truck. you could use an outdoor furniture cushion, you could find one here Outdoor Cushions | HomeDecorators.com or get creative and and make one to fit the size of the platform.

  14. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    Thanks for the link! I've started looking for a mattress or pad but haven't decided on anything yet.

  15. bigredmachine

    bigredmachine

    Messages:
    1,481
    Likes Received:
    515
    Joined:
    Aug 22, 2010
    Location:
    Jersey, 07740
    go with the furniture cushion, i have one and love it. very durable and most are water and uv resistant fabrics so no worrys about what happens to it. if it ever gets dirty, hose it off in the back yard, low matainance.

  16. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    I can probably thank the 'sexy' comments to the 2 coats of polyurethane and aluminum trim which I saw on someone else's system.

    What kind of unexpected passenger are you thinking? Animal?

  17. Darl Bundren

    Darl Bundren

    Messages:
    157
    Likes Received:
    0
    Joined:
    Feb 6, 2011
    Location:
    WNC
    That look great. Plus, it'll serve as a security cover for stuff in the back.

    Where did you get the black edging? That's a nice touch.

  18. mmuthart

    mmuthart

    Messages:
    310
    Likes Received:
    5
    Joined:
    Oct 17, 2008
    Location:
    Boise, Idaho
    McMaster-Carr. McMaster-Carr

    It's called Quick Edge; nice stuff.

  19. jynx

    jynx Turd Herder SILVER Star

    Messages:
    7,804
    Likes Received:
    3,617
    Joined:
    Apr 24, 2010
    Location:
    Eagleville, TN
    Man, very nice work. Is that 1"x1" tubing?

    I especially like the clean flush fit with the tailgate.

  20. shermantank55

    shermantank55 SILVER Star

    Messages:
    494
    Likes Received:
    154
    Joined:
    Jun 16, 2006
    Location:
    Pleasant Hill, CA
    Very nice work. I really like how it's tied into the body. Thanks for the pix and write up.
    Also, Costco has some memory foam mattress toppers that might work well in there.
    Greg
