Show me your (Clean) V8 Engine Bay! (1 Viewer)
- Thread starter RWBeringer4x4
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Texican
s-Moderator
SEVERAL OF MY CONVERSIONS
5.3 LS
5.7 TBI
4.3 VORTEC
454
5.3 LS
5.7 TBI
4.3 VORTEC
454
heres mine
That looks clean and man do I like that blue
Thanks. The PO used the color that Gordon Trucking puts on their fleet. Close to Sky Blue, but not exact.
You guys killing me....

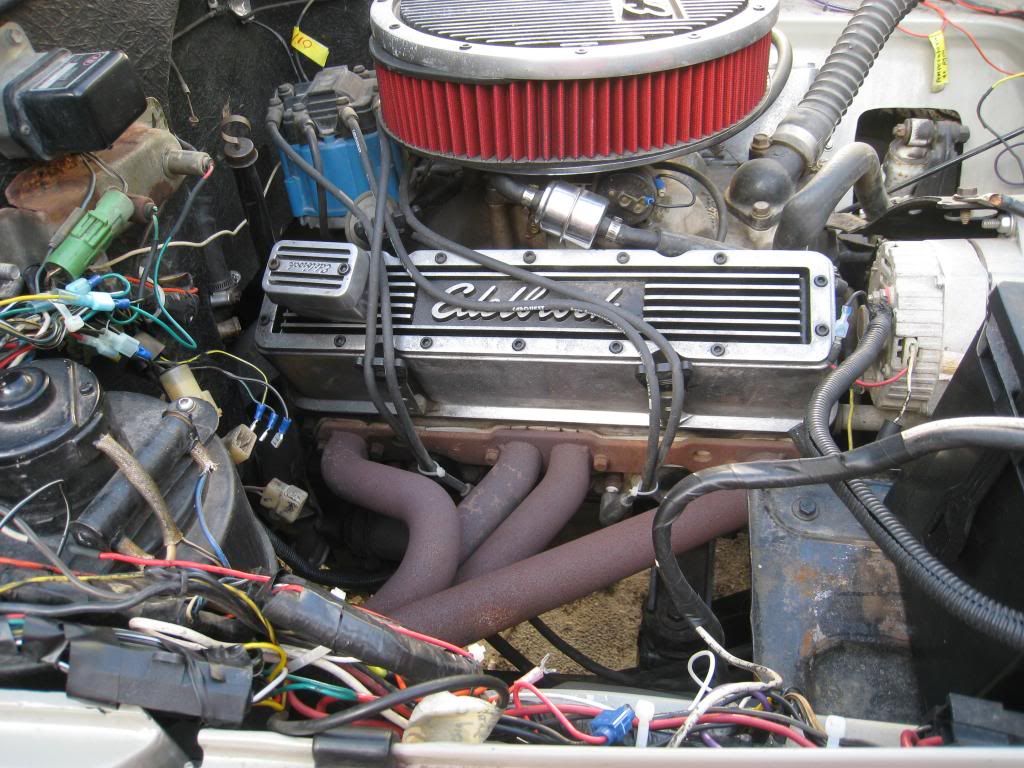

This is what I have to deal with, check out the bird-nest wiring job! PO bought nice valve covers and everything else sucks!
Thanks for the motivation though
This is what I have to deal with, check out the bird-nest wiring job! PO bought nice valve covers and everything else sucks!
Thanks for the motivation though
You guys killing me....
This is what I have to deal with, check out the bird-nest wiring job! PO bought nice valve covers and everything else sucks!
And a fancy air cleaner cover that doesn't sit straight!
I'm totally not worthy, Ken.
Do folks here know you were featured in the March/April issue of 4WD Toyota Owner? Page 8...
Here's mine, not the cleanest, but it will probably be the only Ford that shows up in this thread!
And a Panorama shot:
You can see my overflow bottle at the bottom left. I bought a cheapy one online, I think it was 25 bucks. Works great. I don't believe a 1970 came with an overflow, just dumped to the street, at least that was how mine was setup when I first bought it.
And a Panorama shot:
You can see my overflow bottle at the bottom left. I bought a cheapy one online, I think it was 25 bucks. Works great. I don't believe a 1970 came with an overflow, just dumped to the street, at least that was how mine was setup when I first bought it.
Mine
Ken, That's Purdy, Nice Work. Here's mine. Just beginning to breathe life again. Looms and various other organizers soon to follow after the tub is ready to be bolted on.
Ken, That's Purdy, Nice Work. Here's mine. Just beginning to breathe life again. Looms and various other organizers soon to follow after the tub is ready to be bolted on.
cruiserkreutz
SILVER Star
RWBeringer4x4, thanks for starting this thread. I was thinking about organizing some of my mess under the hood on my 40 this winter, so I am definitely subscribed and plan on referring to this when the time comes. One question I have is some of the wires in my engine bay are to short to really group a bunch together and organize. Is it "poor form" to splice in some new wire to lengthen the existing wire? Obviously I'm not talking about spark plug wires, more like horn wiring and the like. Overall I think my wiring is in good working order (everything works except the e-brake light) so I don't belive a new harness is needed, it's just messy.
Mine started out looking much like yours, though I think your spark plug wires are better than mine were originally.
As for an expansion tank, I didnt have one either. Found http://www.speedwaymotors.com/15-Inch-Stainless-Steel-Expansion-Tank,7302.html which worked perfectly. I just fabbed a couple brackets so the tank attaches to the right side of the radiator. Mounts with the same bolts that hold the radiator to its mount. Cant see it in the pics, the radiator is getting rodded out at the moment.
You guys killing me.... ************
This is what I have to deal with, check out the bird-nest wiring job! PO bought nice valve covers a
http://i242.photobucket.com/albums/ff165/orangeblue2000/IMG_1430_zps45e2b8a3.jpg
Thanks for the motivation though
Interesting.... you seem to have the same strange headers I do.... that requires cutting the fenders and, at least on mine, goes over the frame rails...... I can't tell from your pic but it looks the same as mine.
Mine was most likely built in the late 70's / early 80's then sat for forever....
Yup, the driver side requires the fender to be cut out and it wraps around the manual steering pump. Not sure how it has survived, but so far it has!
Each side goes over the frame rail to cherry bomb mufflers, then out before the the rear wheel.
I have a pair of Ram horns waiting in the wings to go in.
I'm totally not worthy, Ken.
Do folks here know you were featured in the March/April issue of 4WD Toyota Owner? Page 8...
thanks and for those of you that think it does not get dirty, look at the pictures on the pages.
Last edited:
Mine was swapped with saginaw... so that hasn't been an issue for me yet..
However I hadn't seen any others like it.
Is your passenger side cut out as well? I'm pretty sure mine is... the entire rig is in pieces.
Also - have you had yours off yet to determine if your heads are round or square port? I'm intrigued.... you headers look identical... I found square ports on the motor that came off (double camel hump heads... this thing is leaning towards a 327 that was in there)but round ports on the 350 going in.... so I'm a tad concerned there. I'd like to hear if these headers work for round ports as well.
as a side note.... it appears these are considered aftermarket Jeep SBC "fenderwell" headers....
good to know we can still get them for $130+ from SummitRacing.
good to know we can still get them for $130+ from SummitRacing.
- Thread starter
- #39
Wow, this was quite the conversation starter! Glad others found use/inspiration out of it. It's crazy how many different ways essentially identical engines can be set up.
Thanks for the heads up on the overflow bottle! I'll have to work something similar out. Right now the radiator is slightly crooked, and too far forward, so I can't mount the grille mesh - once I get it all adjusted I will probably add an overflow bottle as well.
I've got rams horns but they've been through the ringer. Hoping electrolysis will bring them back. Then, just add wire looms, right?!
Thanks for the heads up on the overflow bottle! I'll have to work something similar out. Right now the radiator is slightly crooked, and too far forward, so I can't mount the grille mesh - once I get it all adjusted I will probably add an overflow bottle as well.
I've got rams horns but they've been through the ringer. Hoping electrolysis will bring them back. Then, just add wire looms, right?!
murf
Lifer
5.7 TPI w/ PS and A/C
