Rear leafspring HELP!

Joined
Mar 29, 2011
Messages
117
Location
Puerto Rico
Hey guys,

I need some help here.

I'm installing a new suspension to my FJ60 (1986 late model). The front part went in with no issues.

Now, the rear leafsprings in my Cruiser are not as pictured in my Haynes Repair Manual (I know, not the best manual, but is what I have... and you fellow mudders :) ).

I'll pay a visit to my local dealership tomorrow morning, but I want to be informed beforehand.

I need to know if this rubber pads that sit on top/bottom of the rear leafsprings are OEM Toyota and if they are available for purchase. Please confirm.

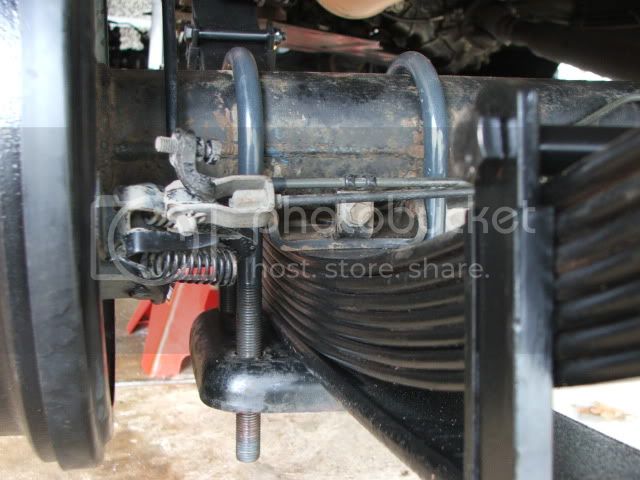

This is how it looks without the rubber pads installed. It obviously appears these parts play an important function.




Please advise.


klinetime574

TLCA #27404
SILVER Star
Joined
Jul 23, 2006
Messages
5,793
Location
Chicagoland, IL
Those spring isolators were a factory part and are not necessary to install with a lift kit.

I left mine off. The spring pin keeps the spring centered.

Also they are not deep enough for the new springs so it would look funny. Don't worry about it.

Joined
Mar 29, 2011
Messages
117
Location
Puerto Rico
Those spring isolators were a factory part and are not necessary to install with a lift kit.

I left mine off. The spring pin keeps the spring centered.

Also they are not deep enough for the new springs so it would look funny. Don't worry about it.

Spring pin diameter is lower than the spring seat/ axle base hole. Too much play.

Please advise.


Cruiserdrew

On the way there
SILVER Star
Joined
Mar 15, 2003
Messages
15,928
Location
Sacramento, CA
They are a stock component and you need them to make the spring pain diameter to match. However, OME themselves sell a spacer that is just the perfect thing for doing that job if your rubber isolators are shot.

I got a set from Kurt at Cruiseroutfitters and then ended up re-using the isolators. I may be able to find them if you would want them, but can't look until after this weekend.

Joined
Mar 29, 2011
Messages
117
Location
Puerto Rico
Ok, so there is a spacer kit... good news!

Now, if I get the spacers, do I need to install the metal part on top of the leafspring?

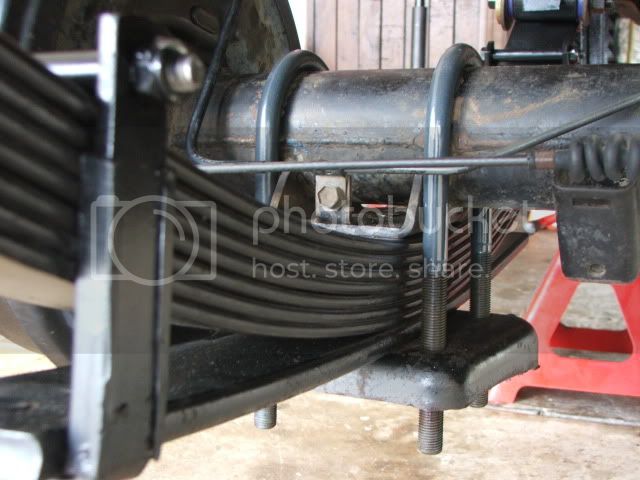

Or just add the spacer to the top of the leafspring pin (just as pictured).

Joined
Mar 29, 2011
Messages
117
Location
Puerto Rico
OK, Im confused.

If I get the leafspring pin spacers, there is no need for the rubber spring isolators...

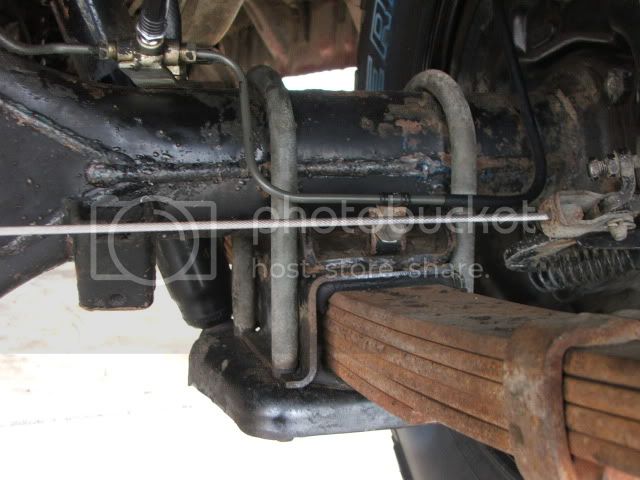

...but, what about this metal part (right on the next picture)? Is it needed?


Joined
Dec 11, 2008
Messages
2,015
Location
Whidbey Island, WA
The spacer is no more than a bushing that fits around the spring pin to center it in the axle. If you cut apart that rubber piece in the middle you would find the bushing encased in the rubber. No need to use any of those parts in the pic. I have run my wagon this way for years. There is a pic in the suspension write up on our website Here is the link The Wagon Way But it is important to use a spacer/bushing if you leave those parts out. As someone mentioned it centers the spring pack on the pad. I think I got my spacer/bushing from Man-a-fre. Poor mans solution would be to cut the bushing out of the rubber pad.

The reason you need a bushing is that the hole in the spring pad on the axle housing is larger than the spring pin.

Can't say exactly what Toyota used those parts for but it has had no effect on my wagon to leave them off. Picture is slightly different than your front pic as I have ubolt flip kits installed on mine.

Tony

Last edited:
Joined
Mar 29, 2011
Messages
117
Location
Puerto Rico
Thanks Tony!

Your page is awesome indeed.


I'll need 2 spacers, just 1 for each leafspring, correct?

Last edited:

cruiseroutfit

Supporting Vendor
Moderator
Joined
Jan 9, 2003
Messages
10,497
Location
Utah
Website
www.cruiseroutfitters.com
As noted the spacer eliminated the need for the rubber/metal spring isolator. It has the ID of the OME spring pin and the OD of the hole in your axles spring pad. Any OME dealer should have access to them and in fact should offer them to you when you buy a OME suspension on a 60 Series. If you need a set, give us a ring... we can ship them as soon as tomorrow.

Joined
May 23, 2010
Messages
707
Location
Near Charlottesville, VA
Im glad I am reading this post. Man A Fre told me that when I put in my aal's that I needed to remove all of what was pictured in order for everything to work right. I have been driving several months with not even a bushing. I am installing new springs within a few weeks so I will go ahead and get bushings for the spring pins.

Joined
Sep 29, 2004
Messages
2,197
Location
Houston, the lower bowel of TX
My $0.02, I did not re-use the stock bracket and rubber spacer on my OME install. Those items are sized to fit the stock spring anyway...they are a non-issue on bigger aftermarket springs like the OME's.

I did get the big spacer "washers" for the spring pins from Kurt at C.O...they are needed.

Minor hijack here.....As a side note, the only problem I had installing my springs was that the spring pin hole in the bottom stock u-bolt plate wasn't big enough to let the OME pin through. I had to enlarge the hole with a step drill...I had never read about this before on Emu installs.

Ok, one other problem with my install was the crowbar slipping and center punching my forehead when it was late and I'm getting the last rear shackle to slide together......D'OH! :wrench::hillbilly:
