My door pins were bent and the bushings were wore out and I was looking for a solution and came up with the Quik Hinges.
So I ordered a set of quick hinges from Mud Member @69LC Quik Hinges available

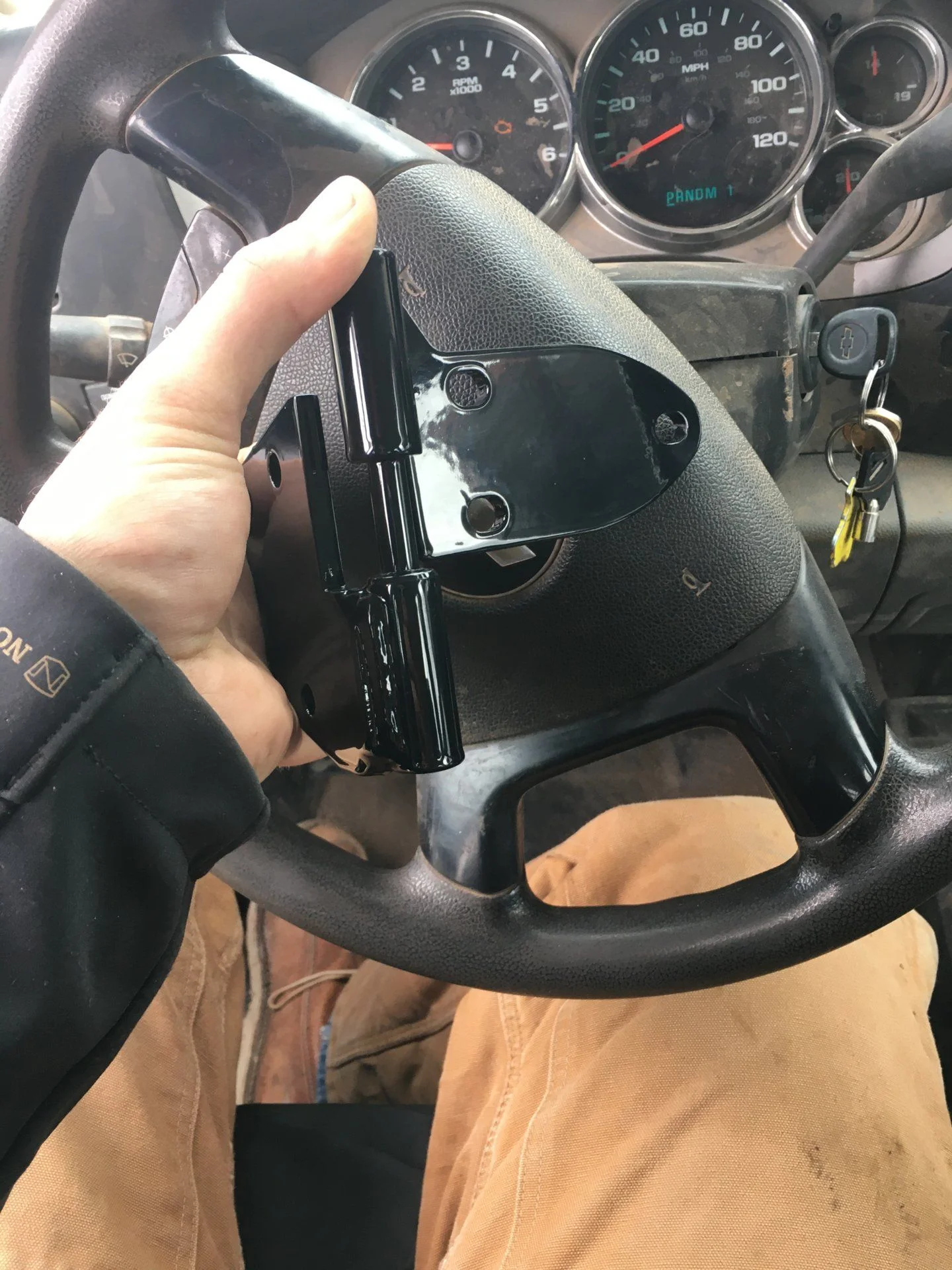

I sent them to Armor Coatings in Utah to have them powder coated black.


Be sure that when you paint them or powder coat them you tape off the pin portion, I didn't and the shop powder coated them so I had to carefully wire wheel and sand off the coating and it sucked.
One thing about this install is that its easiest to remove the doors, then take out the hinge half that's on the body first. Also, be prepared to be flexible and have agile fingers!
!

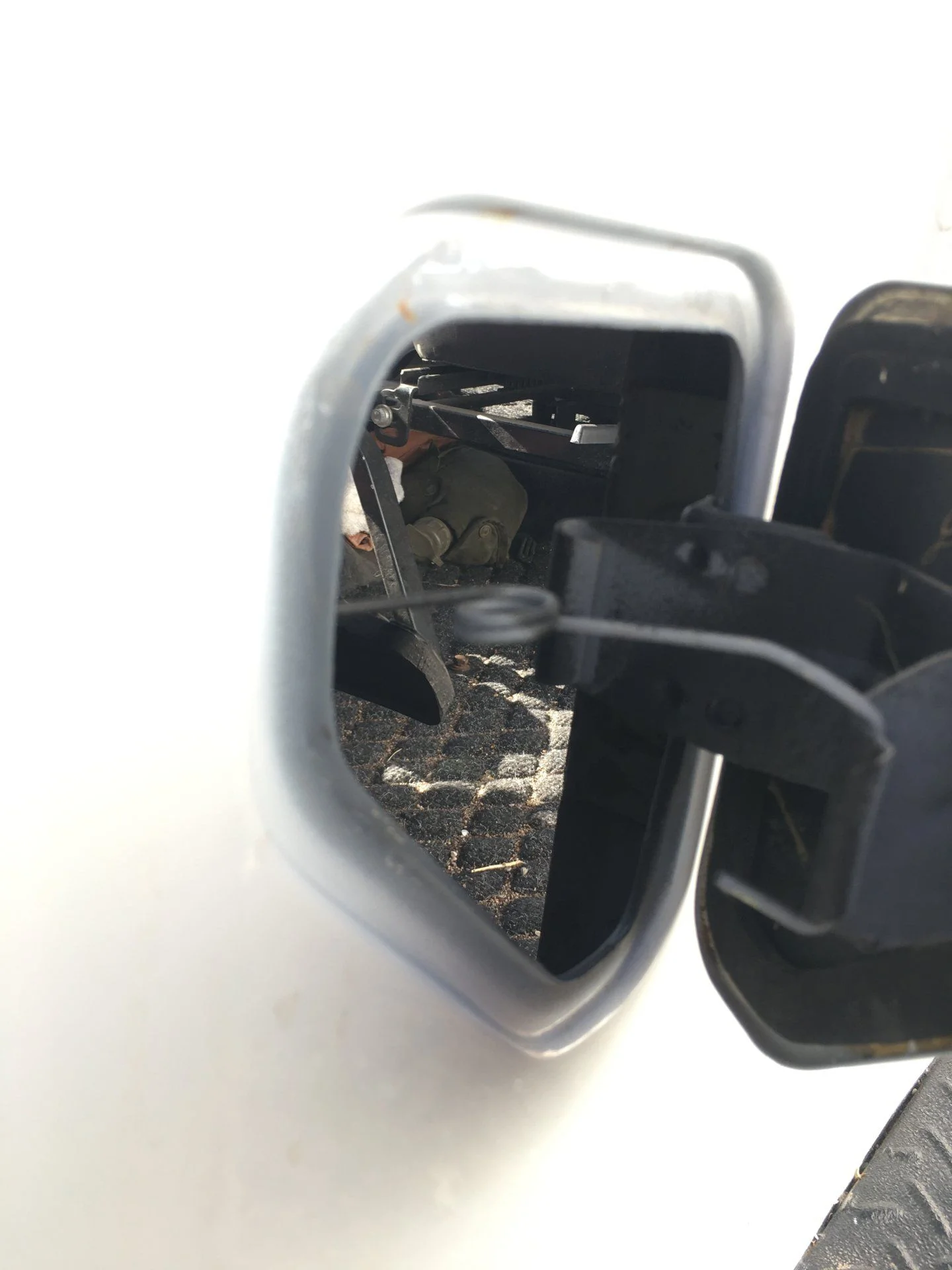

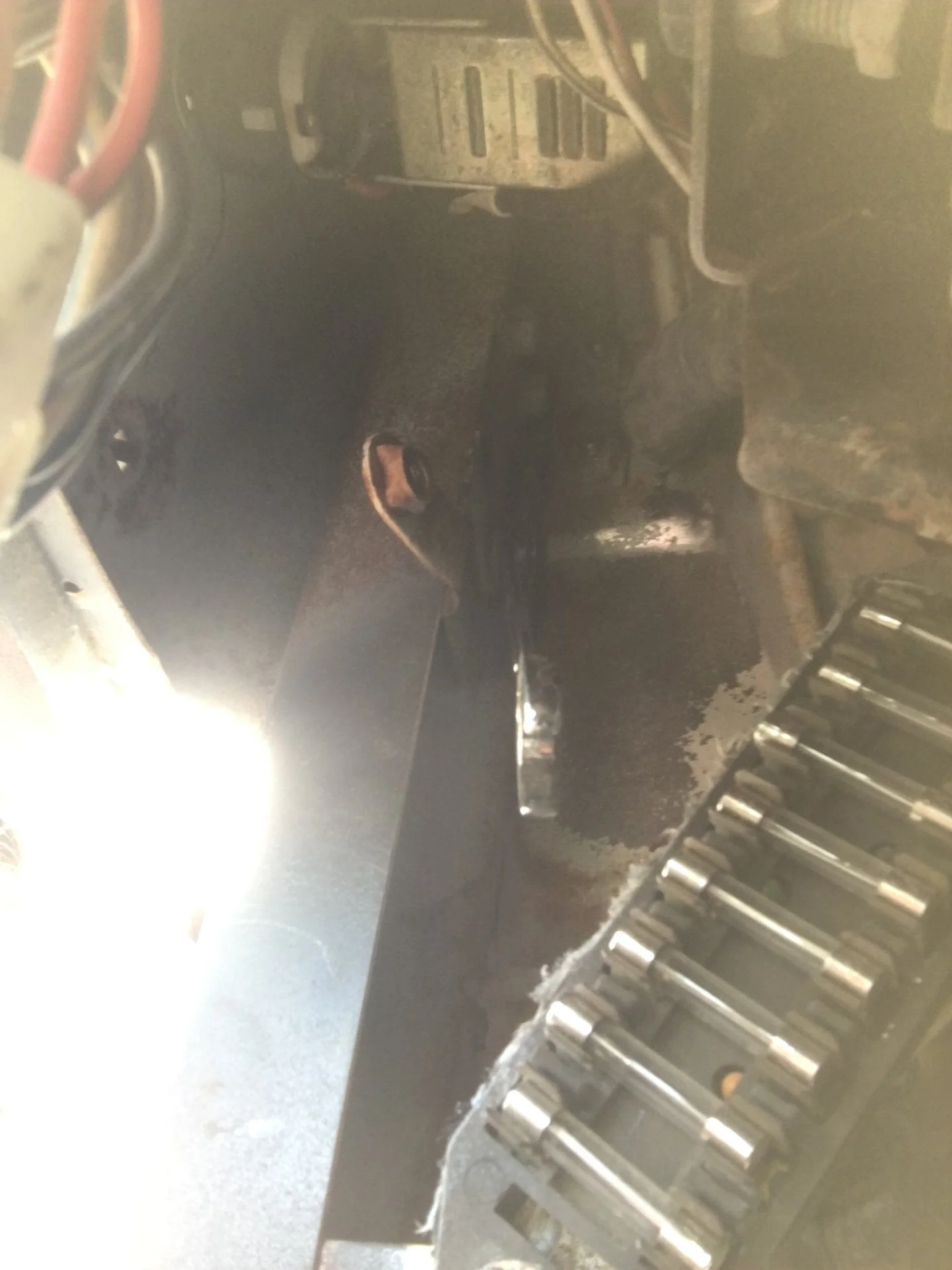

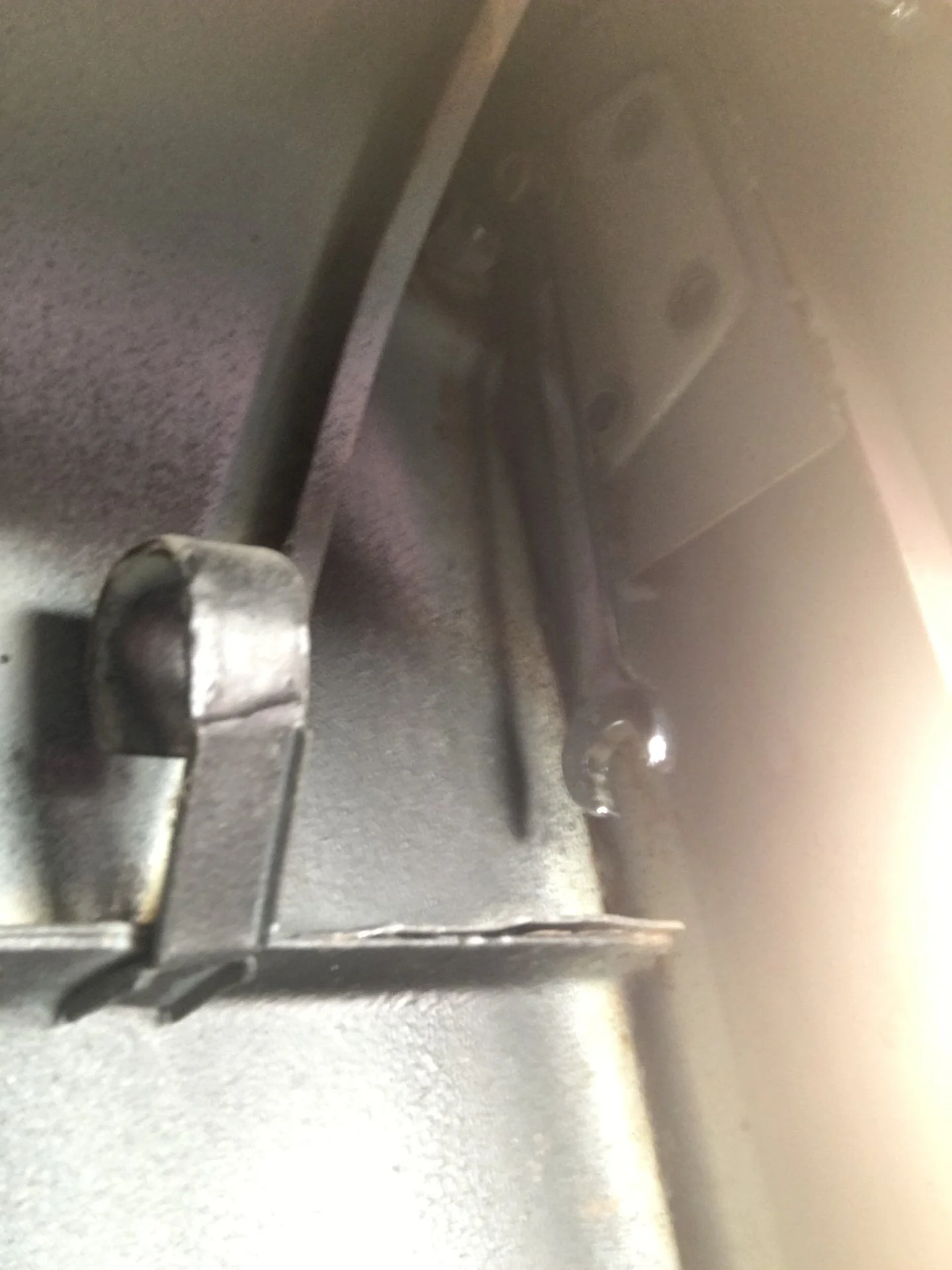

I opened my kick plate so I could see the bottom hinge bolts and it was a lot nicer that way. I used a 12mm open ended wrench and set of sockets. The removal of the bottom hinge was easy. The upper hinge on both sides wasn't fun. they are in a tight area that I was only able to get the opened ended wrench on and it was 1/3 of a turn at a time so it was slow moving. I found that on the driver side upper hinge unbolting the top of the fuse box and pulling it down out of the way helped tremendously in making room. I also unbolted the dash and pulled it out and out of the way so I could thread my arm in through the hole.

Reassembly isn't all that hard you just have to remember to leave the bolts a little loose for movement on both sides of the hinges so you ca properly line up the doors and body lines then tighten up. Having someone to help when you first bolt them in is nice because then one can hold the door where needed while the other tightens. It defiantly is nice to have the doors that don't rattle and can be taken off for cruising in the nice weather. I highly recommend these hinges.

Last edited:
Joined
Nov 29, 2019
Messages
58
Location
Marfa TX
Be sure when bolting the dash back on that everything is connected. Now my speedo and fuel gage don’t work

Joined
Jan 12, 2008
Messages
3,088
Location
West MI near GVSU
Yes, anything you might disconnect while during removal for access must be reconnected.

I never had to pull the speedo cable or wires, but we all do it our own way!
