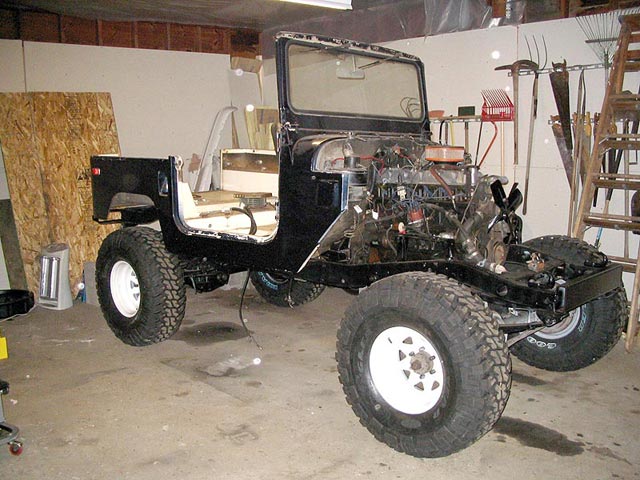

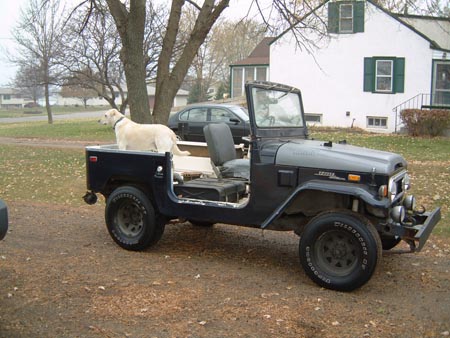

    Ok, I think this buildup thread is pretty long overdue. I bought my 40 in October 2002 for $2,500. It had a fiberglass body and fenders, but everything else was pretty much total crap. At this point, I really only knew how to change my oil and install shocks, but it got my foot in the door with my wife. Two weeks later I started disassembling it, just because I wanted to get the rust off and find out all the weird things the PO did, and there were tons of them. I figured I would have it done and back together by summer, cause I wouldn't have to do that much. Obviously we're coming up on October 2006 and its not done yet. :) Here are some pictures from shortly after I bought it - some disassembly had already begun.

    [​IMG]

    [​IMG]

    [​IMG]

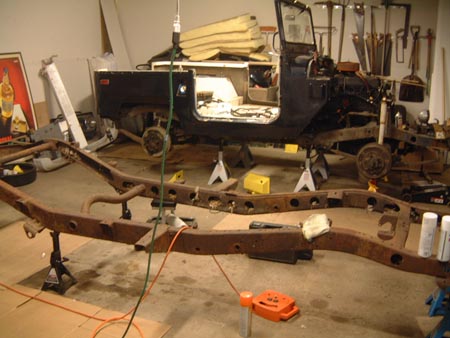

    I quickly discovered that the frame was shot around the rear spring hangers. Coincidentally, Shreg had a frame frame he was going to take to the junkyard, so I took it off his hands. It was already set up for a springover with thru-the-frame shackle reversal and rear hangers moved for 55 springs. And it is at this point that the blame rests entirely with him for what happened after that. At most, this was supposed to be a stock 40 with a 4" spring lift and 33-35's. Once I got this frame, things changed.

    [​IMG]

    Last edited: Sep 22, 2009
  2. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US

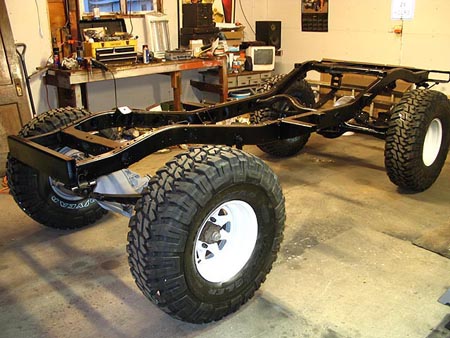

    First thing I did was sandblast his frame and buy some 35" MTRs, because I knew once I had the tires, there would be no going back. And I could just tell my wife that these tires won't fit a stock truck - I "had" to do the springover. What she doesn't know, right?

    [​IMG]

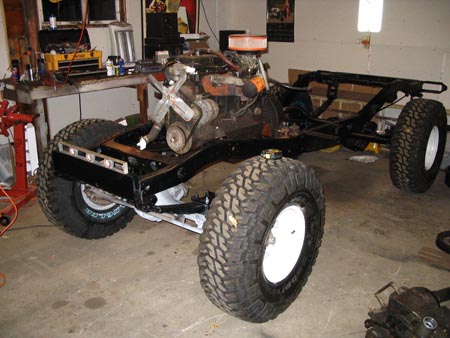

    So I slowly started transferring stuff over to the new frame from the old, cleaning things up as I went. Except for the engine - I don't know jack about engines so I just left it all disgusting for the time being.

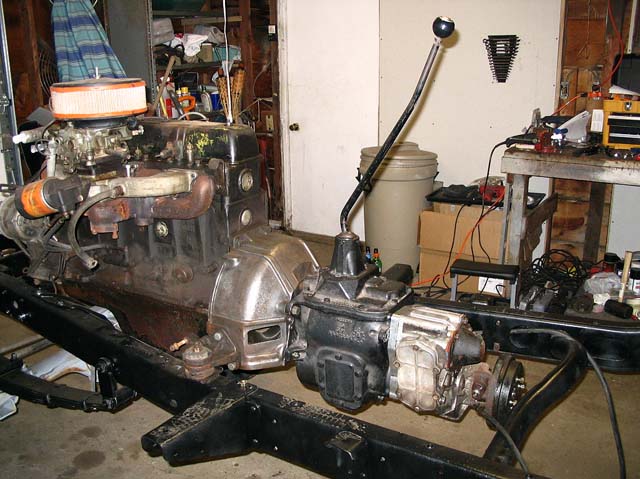

    I also put in an sm420 with adapters from Extreme Bends.

    [​IMG]

    [​IMG]

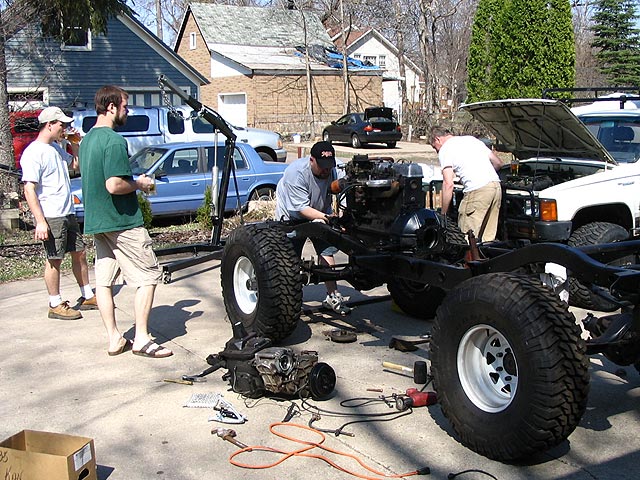

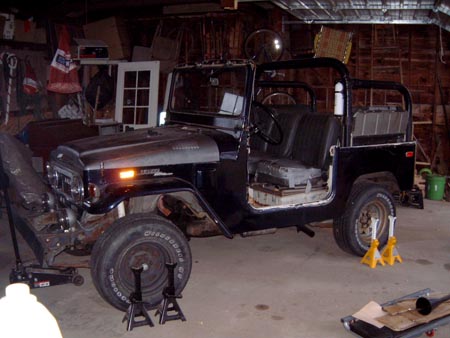

    After a couple years, we decided to sell our house, so I had to temporarily put the body back together to move it. It was extremely motivating to see it like that and, of course, heartbreaking when I had to disassemble it again.

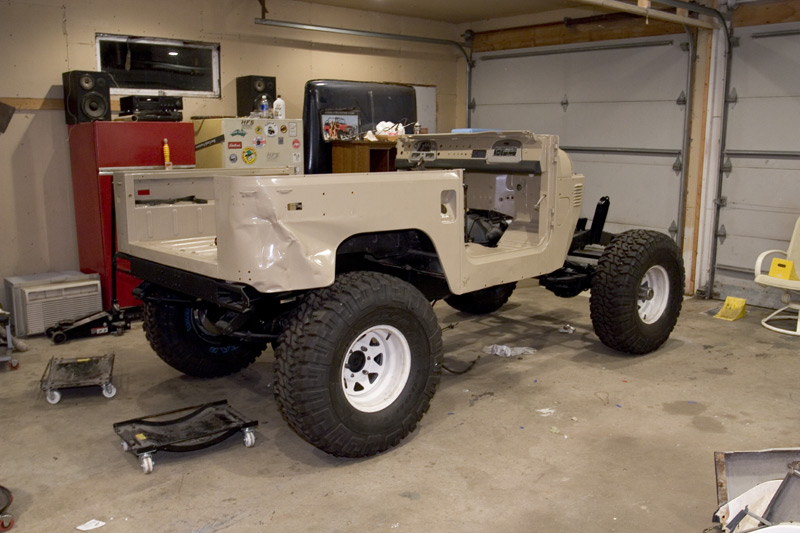

    [​IMG]

    [​IMG]

    In the new garage:
    [​IMG]

    Last edited: Sep 22, 2009
  3. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US

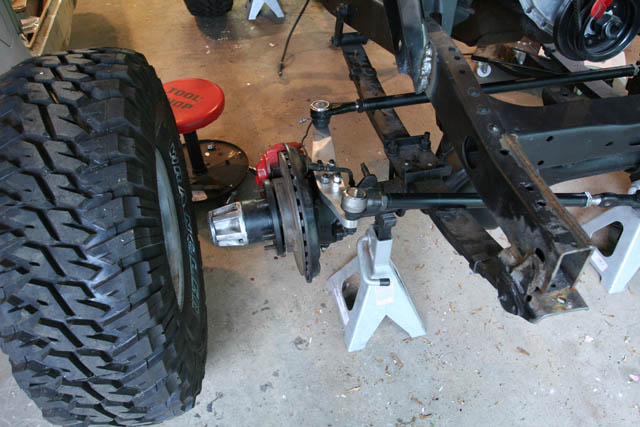

    Once I had it disassembled, I installed front discs and birfields, bought a power steering plate, saginaw box and pump and got to work. I also got the front housing cut and turned by Cruiser Outfitters.

    [​IMG]

    [​IMG]

    [​IMG]

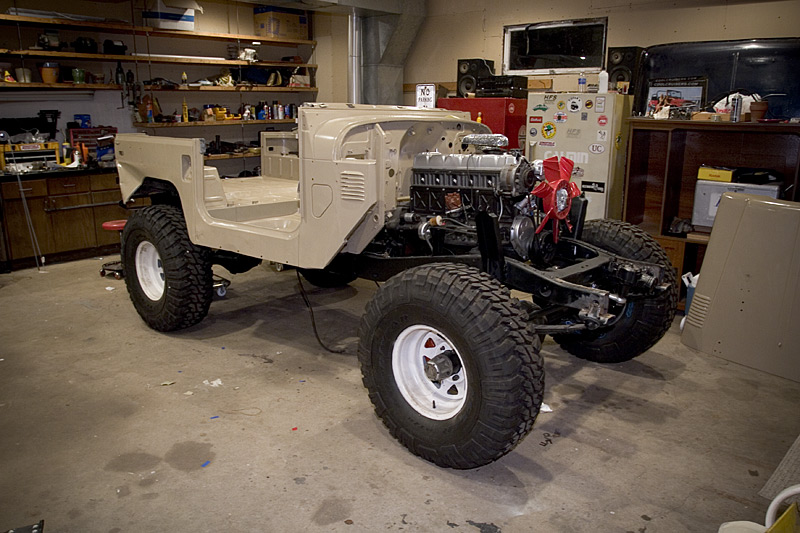

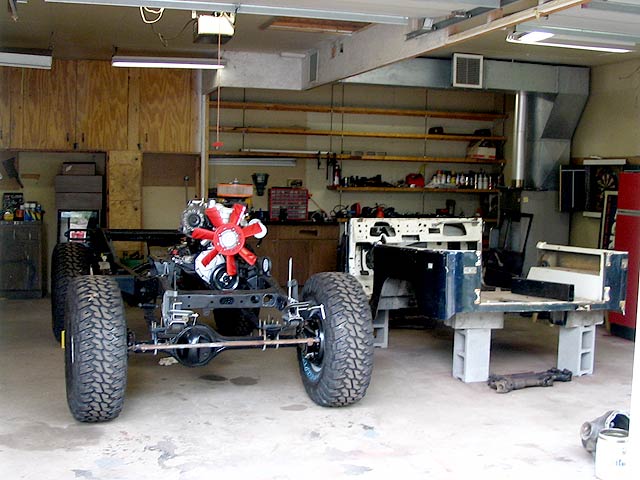

    However, that was around the time the housing market started to go downhill around here. We bought our house before selling our other house, so we were paying two mortgages for about 15 months. That puts a damper on all kinds of projects - probably the main reason this turned into a 3 year project. So during the tie that I couldn't afford to buy any of the parts I needed, I decided to beautify the engine. I also learned how to weld, and do all kinds of stuff I never thought I'd know. No one that knows me can believe I'm doing something like this, but I feel pretty confident in it now. Tons and tons and tons of research on Mud helped immeasurably. So here are some pictures of the engine cleanup. It ran fine before I took it apart, so I didn't disassemble too much, but I did replace timing cover seals and gaskets, side cover gasket, rear main, waterpump, etc.

    Last edited: Sep 22, 2009
  4. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

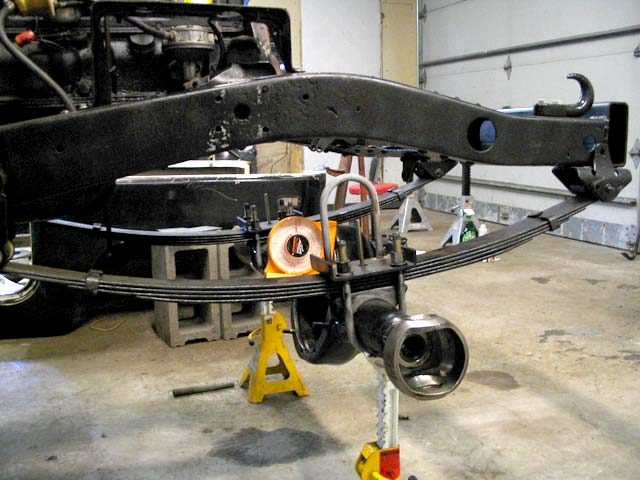

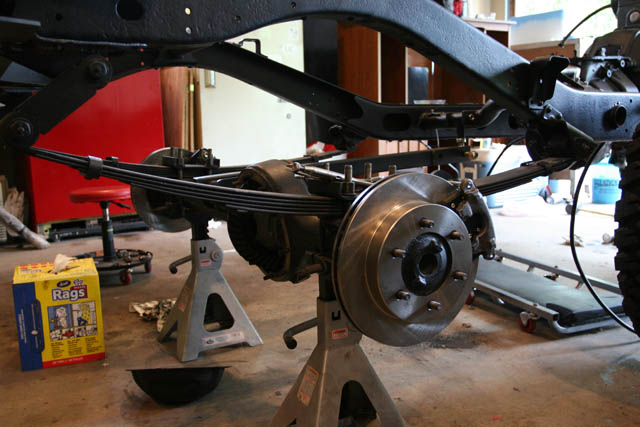

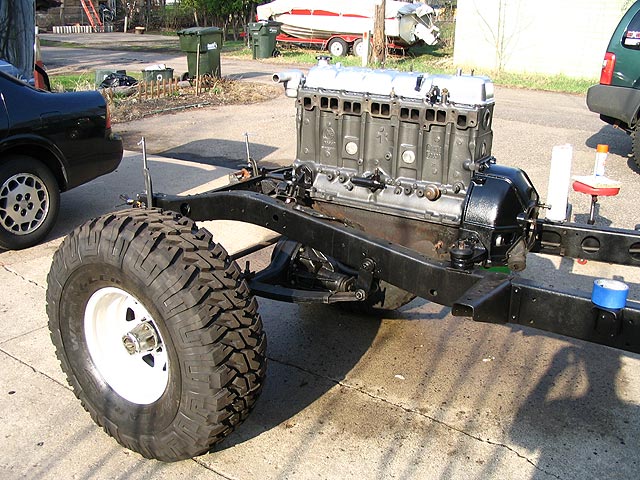

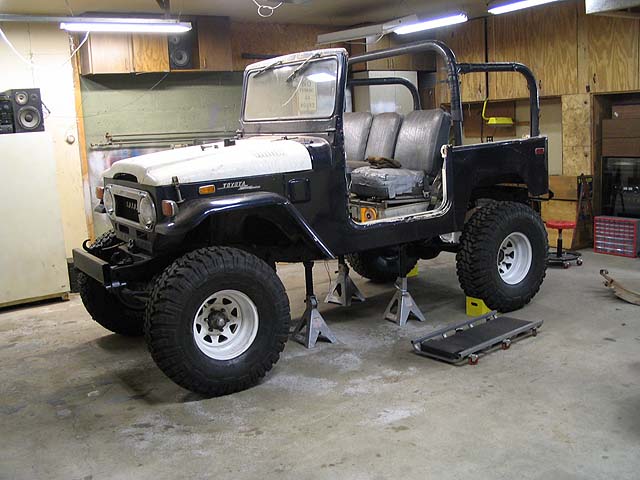

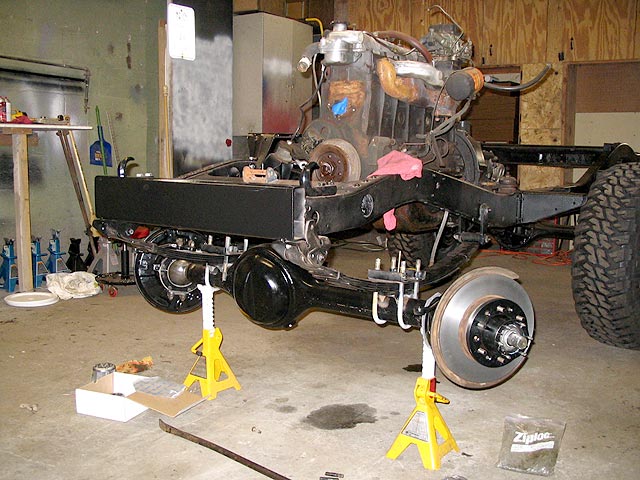

    And there it sat for about a year. Mocking me. BUT...our house sold this April and I have slowly been catching up on bills, etc., and have started buying parts. In the past couple of months I have installed a rear traction bar, rear discs (with Poser's brackets), 4x4 Labs hysteer and a few other things.

    Last edited: Sep 22, 2009
  5. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Sep 22, 2009
  6. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US

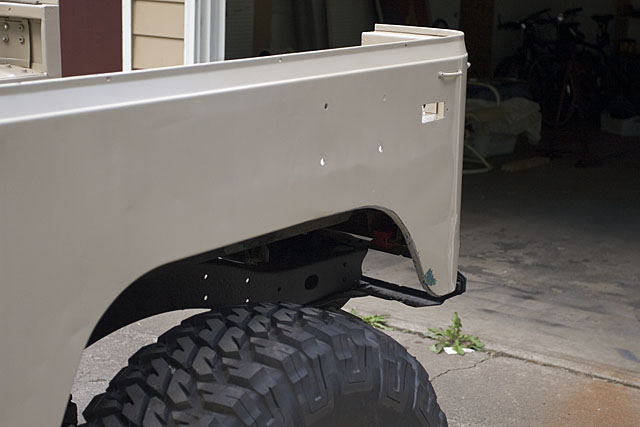

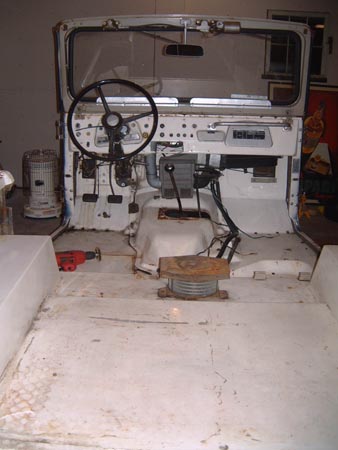

    I forgot to mention that I really wanted a steel tub, so I sold my glass tub and bought a fairly rust-free tub. It just had a dented rear quarter panel and one small rust spot on each rocker. Lately I've gotten sooooo tired of waiting for this thing to be done, I decided to forgo sandblasting the tub and just sand it myself and rattlecan it. I know it seems wierd after all the work and time I put into the rest of the truck, but I do plan on taking it out and doing hard stuff. Stuff I could never do before, and I don't want to worry about a new paint job. I also left the quarter panel - that way it won't traumatize me nearly as bad when I get that first dent myself.

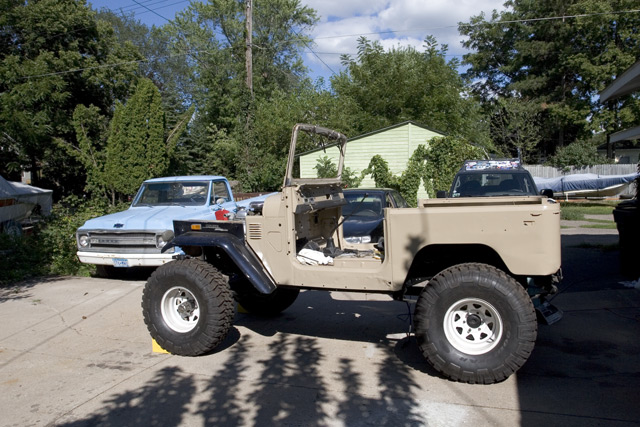

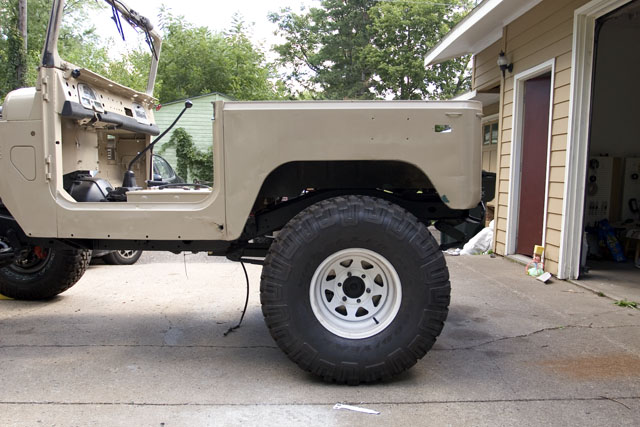

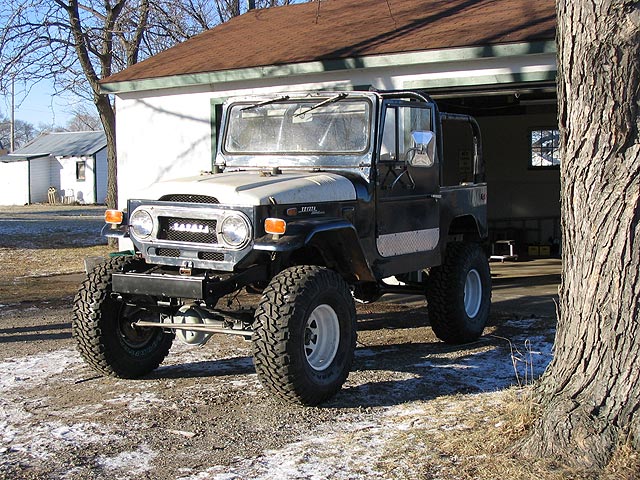

    I personally think the paint job looks pretty good. I used the Krylon paint that dries in 12 minutes, so it avoids a lot of runs. So that's where it is right now. The body is back on with new poly mounts, and I'm slowly putting all the firewall stuff back on. I'm picking up a new oil pan tomorrow and I'll probably start wiring it soon. I think I can have it done by the end of September. A friend of mine came over last weekend and helped me cut the wheelwells and then roll the lip. I think it looks damn good.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Quick specs on the truck:

    1972 body
    1978 frame
    '72 F engine
    Holley carb w/edelbrock intake
    sm420 mated to 3 spd. t-case
    Spring over - reversed stock springs in front, fj60 springs in rear - 100" wheelbase
    saginaw power steering

    Aussie locker in the front
    35" Goodyear MTRs on 2.5" BS wagon wheels
    Front disc brakes from a '76
    Rear disks w/monte carlo calipers
    Longfields
    4x4 Labs hysteer
    traction bar
    metaltech profile cage w/frame tie ins (needs to be welded)

    Last edited: Sep 22, 2009
  7. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    I can't check this board at my new job, so I might not respond to posts right away. Hope you enjoy the build. I'll update it as things progress.

  8. my64fj40

    my64fj40

    Messages:
    1,646
    Likes Received:
    2
    Joined:
    Aug 6, 2005
    Location:
    Corpus Christi/Austin, Texas
    So your just going to leave the mangled rear quarter panel the way it is??

    Maybe it's just not as bad as it looks in the pics




    Real nice cruiser by the way :cheers:

  9. Poser

    Poser Oh...Durka Durka Durka. s-Moderator Supporting Vendor

    Messages:
    20,263
    Media:
    17
    Albums:
    1
    Likes Received:
    548
    Joined:
    Oct 1, 2003
    Location:
    MN
    Looks great Tim man!


    See you tomorrow... ;)



    End of September eh?



    Going on a kruze again this year, or you going to be at Gilbert? ;)

  10. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    Actually, I was SUPPOSED to be in Europe that weekend, but that fell through. So now I get to go to Oktoberfest AND Gilbert. I will definitely be there - I heard too much about it when I missed it last year. I would love to take the 40 up there, even if it stays on the mild trails until I work out the kinks. I think the only thing that's really going to hold me up is the wiring - I already have all the funds I need for the rest of my parts.

    64FJ40 - Yep, I'm leaving the quarter panel. I think it gives it character. :) Also, I can't afford a body shop, and I already tried pounding it out. Shreg tried too. That's some thick steel on those early tubs! I'll get a pic of it in a little bit. I really don't mind it though - I can always fix it later. Right now I'm just concerned with getting it running.

    Last edited: Sep 22, 2009
  11. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    Boy, did I say end of September? I can't give any more dates or it will just get pushed back even more. It's "very" close now though. As of this weekend, it's alive.

    Last edited: Sep 22, 2009
  12. awp_cruiser

    awp_cruiser

    Messages:
    302
    Likes Received:
    0
    Joined:
    Jan 18, 2005
    Location:
    Seattle
    Looks good. Keep it coming!

    I did see something in the close-up of the front end pics...

    I think the TRE on the drag link is supposed to go on the tie rod and the TRE on the tie rod is supposed to go on the drag link. The ones you have on the tie rod are the later year TRE that have a greater working angle. At droop you might get some binding at the drag link ends if you don't swap those.

    I know a lot of guys on here don't like corners, but I don't mind them. Might be an easy fix for that rear. Just cover it up.

  13. Cuerno Largo

    Cuerno Largo SILVER Star

    Messages:
    927
    Media:
    3
    Albums:
    1
    Likes Received:
    162
    Joined:
    Apr 20, 2004
    Location:
    Lakehouse

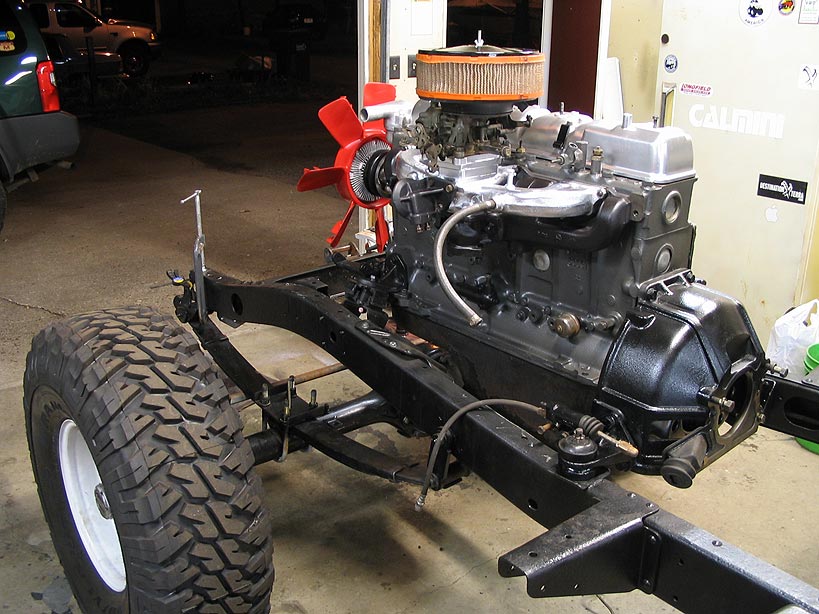

    Nice pics. Lets me realize that mine might be finished one day. Engine went from looks like crap to looks good. What specifics did you do. My engine has 60K original miles, but is covered in crap. How did you get yours so clean?

  14. Cothran

    Cothran

    Messages:
    158
    Likes Received:
    0
    Joined:
    Mar 3, 2003
    Location:
    US
    Awp_cruiser - thanks for noticing the tre's. I actually switched them this weekend because the rear ones didn't fit in the tapered arms and I couldn't figure out why.

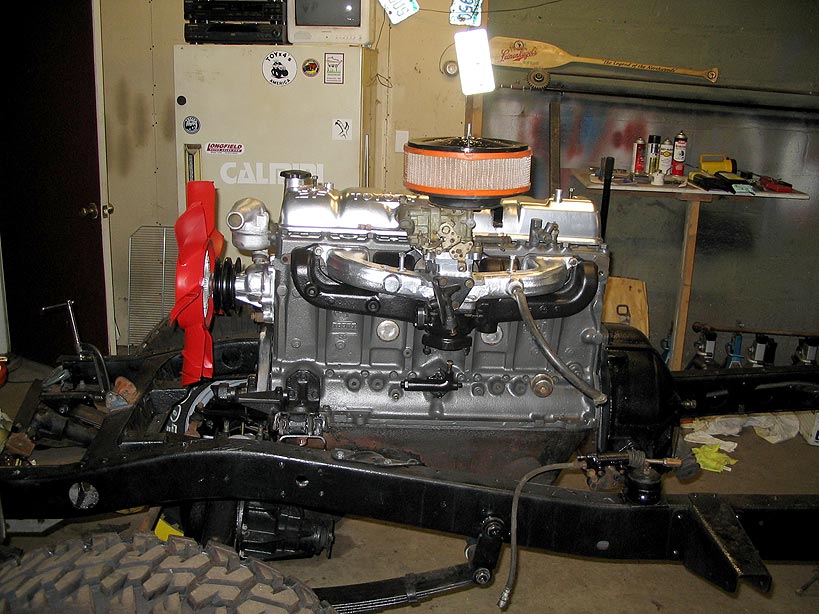

    Burling, I basically used that Gunk orange citrus engine degreaser to get the initial grime off, then I went to town with a bottle of Simple Green and a nylon brush. The simple green works wonders. It really only took half a day to thoroughly clean it. The rest of the stuff like the manifolds and pulleys were wirewheeled.
