Pilot Bearing Wear (1 Viewer)

Joined
Dec 25, 2019
Messages
10
Location
Melbourne
G'day all,

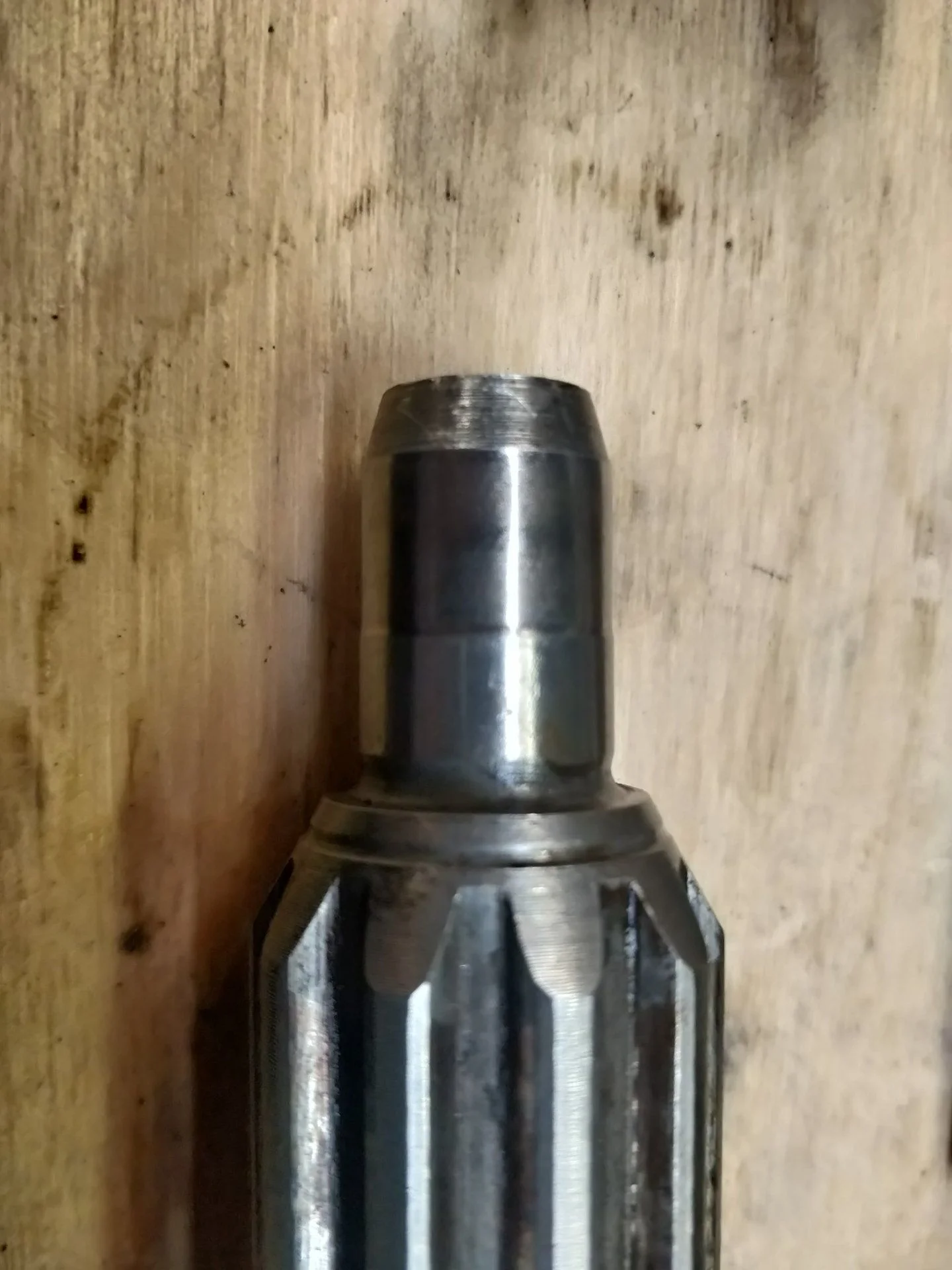

Going through the paces of rebuilding an H55F for my wagon, new parts arrived today, I test fitted the pilot bearing on the input shaft and boy howdy is it loose, it looks like the old one failed years ago and has worn away the surface of the shaft. Is there any sort of fix for this other than replacing the whole input shaft?

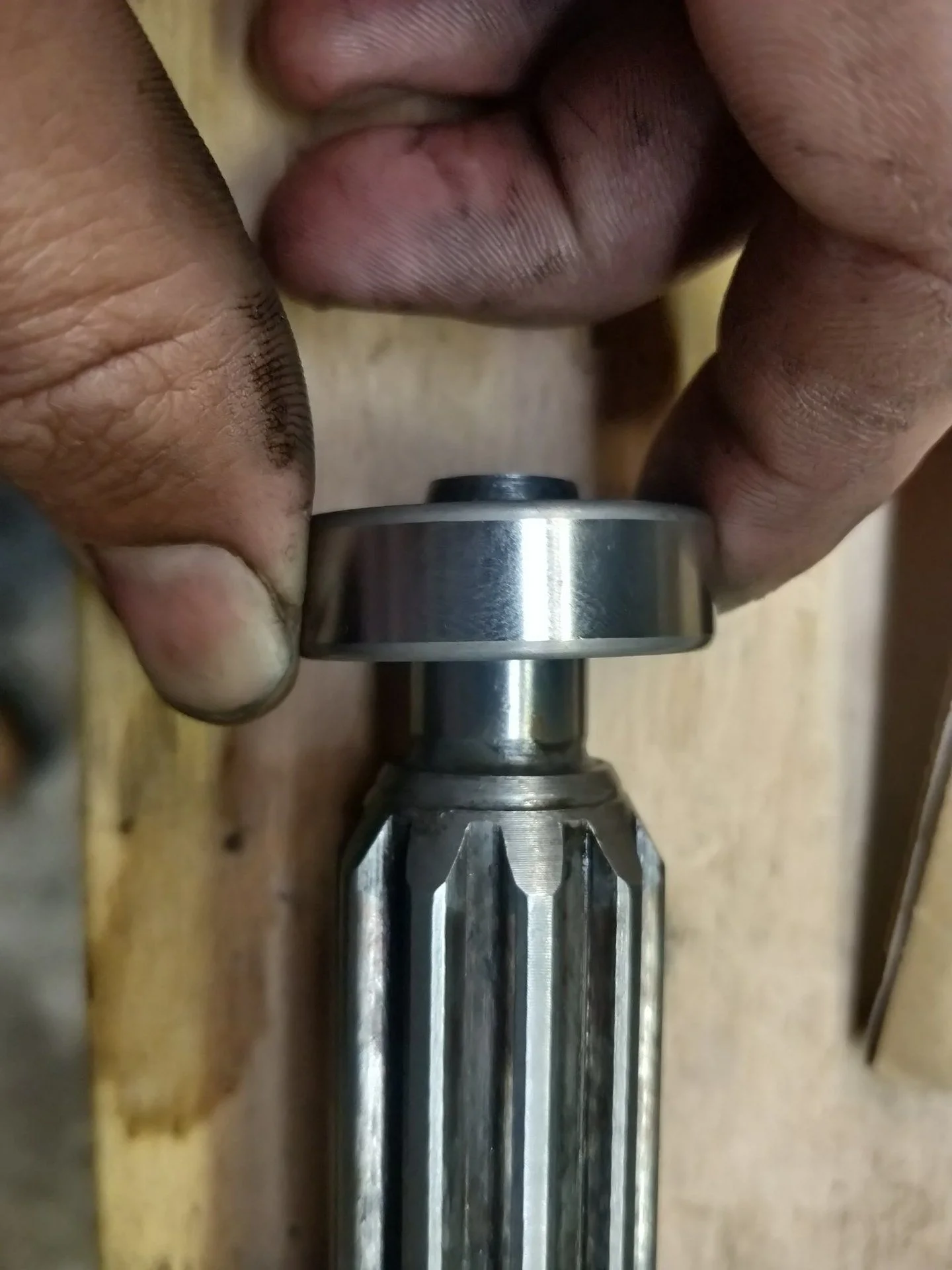

Or (hopefully) the bearing is supposed to sit further back closer to the splines and I'm okay. I'm not sure as I don't have a comparison pic. Not sure how visible the amount of wobble is through the pic but it's definitely what caused my input shaft bearing to turn to slop.
Cheers for the help!





OSS

Joined
Jun 30, 2017
Messages
3,315
Location
Oblivion
^ that^

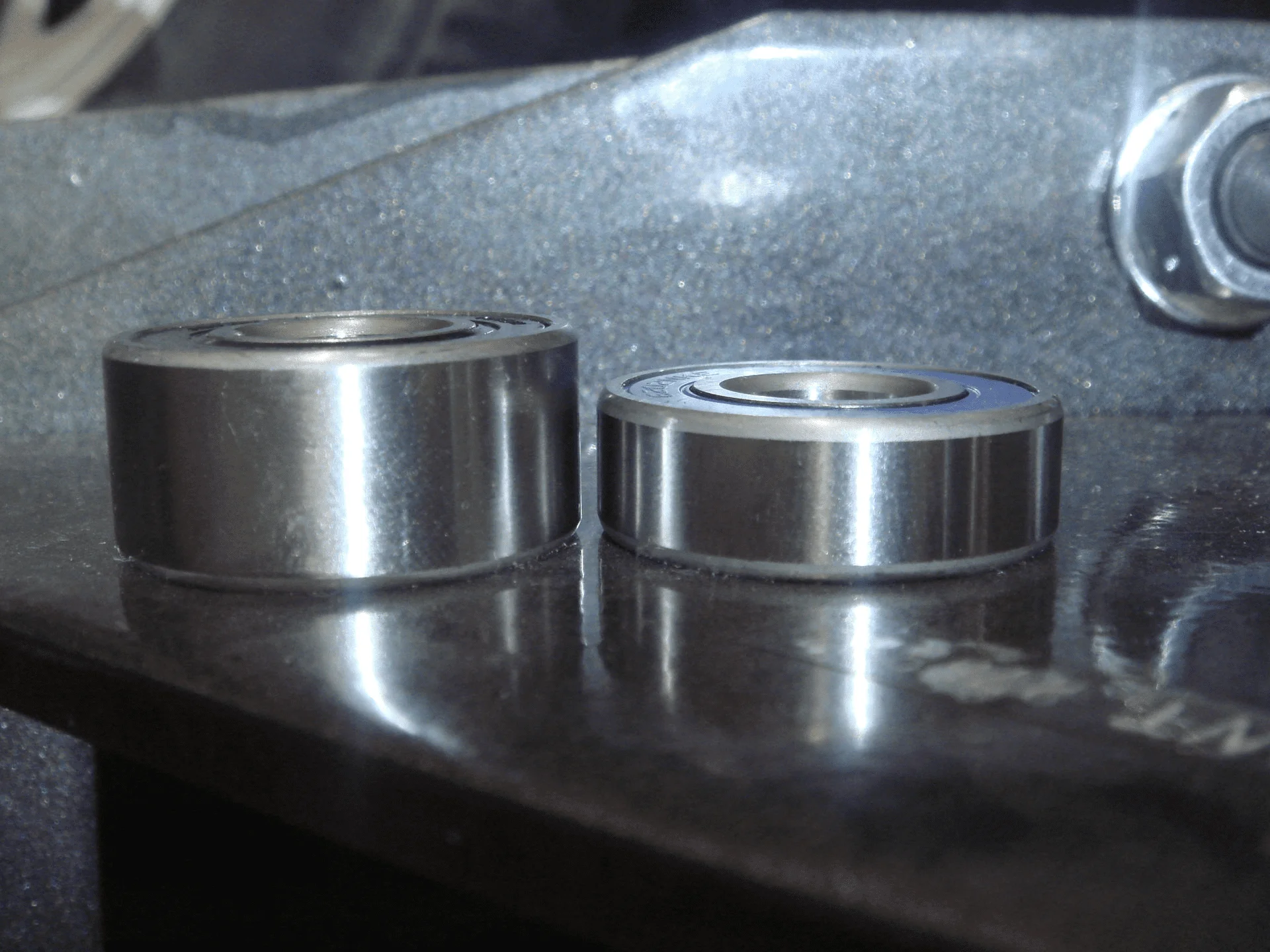

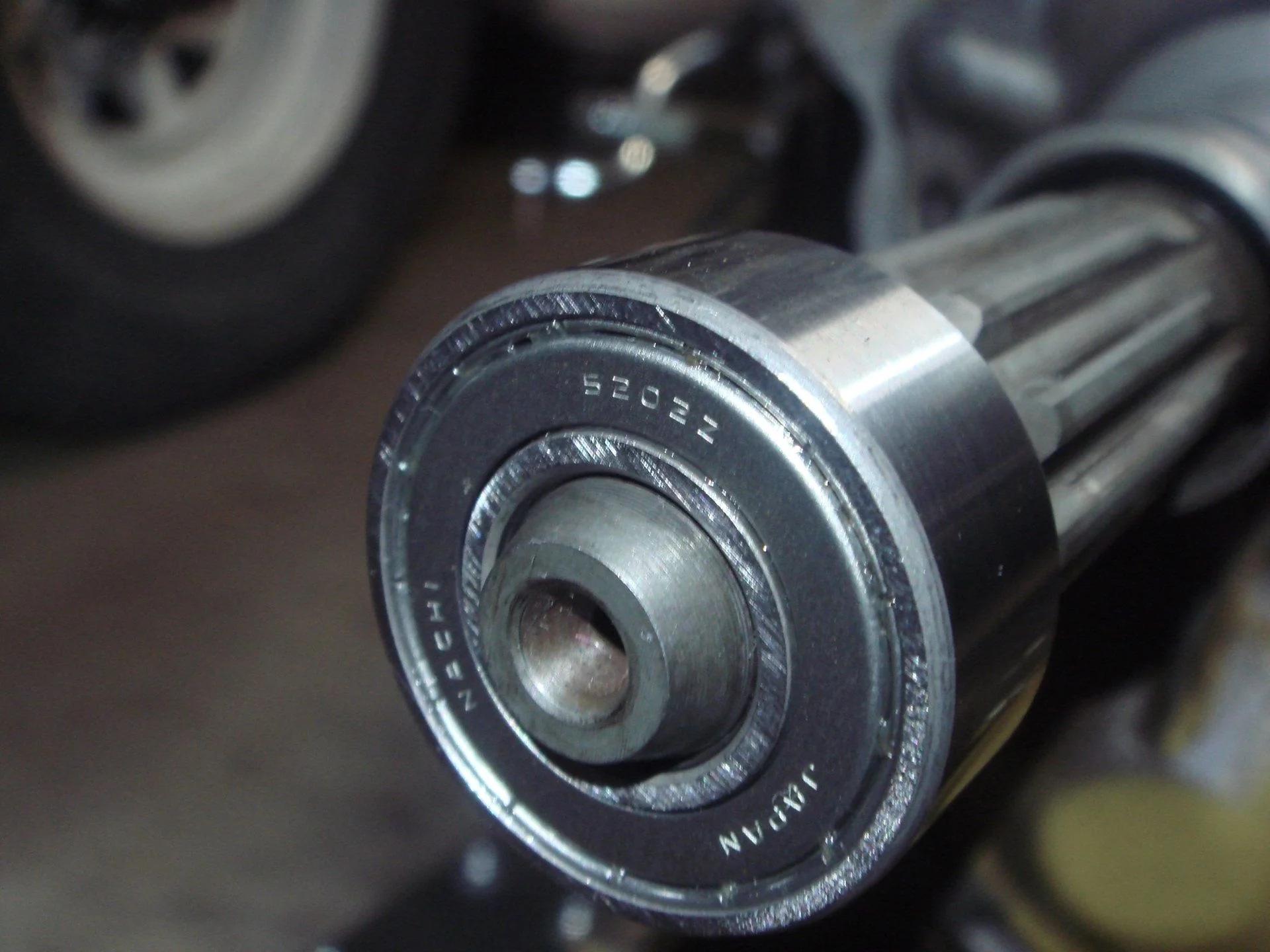

Use a Nachi 5202Z double row shielded roller bearing



Spook50

My daughter likes Stitch
Supporting Vendor
Joined
Feb 16, 2005
Messages
6,276
Location
Spokane, WA
^ that^

Use a Nachi 5202Z double row shielded roller bearing

I wonder how they compare to the OEM pilot bearing for longevity.

@Twoheadtas were you able to source a rebuild kit, or did you have to piece out all together?


Spook50

My daughter likes Stitch
Supporting Vendor
Joined
Feb 16, 2005
Messages
6,276
Location
Spokane, WA
I sourced my parts individually on Megazip, just replacing a couple of items plus seals & gaskets. Rebuild kits are way too pricey here and none of it is OEM.
Sadly that's what I've been seeing too with what little I've looked at this point. When I do mine it'll be bearings seals and synchro rings. Probably gonna be a decent sized Partsouq order there. Wanting to do my tcase at the same time plus a couple modifications, so it's gonna be a big project considering it'll be my first time doing either of those.

Joined
Dec 25, 2019
Messages
10
Location
Melbourne
Sadly that's what I've been seeing too with what little I've looked at this point. When I do mine it'll be bearings seals and synchro rings. Probably gonna be a decent sized Partsouq order there. Wanting to do my tcase at the same time plus a couple modifications, so it's gonna be a big project considering it'll be my first time doing either of those.

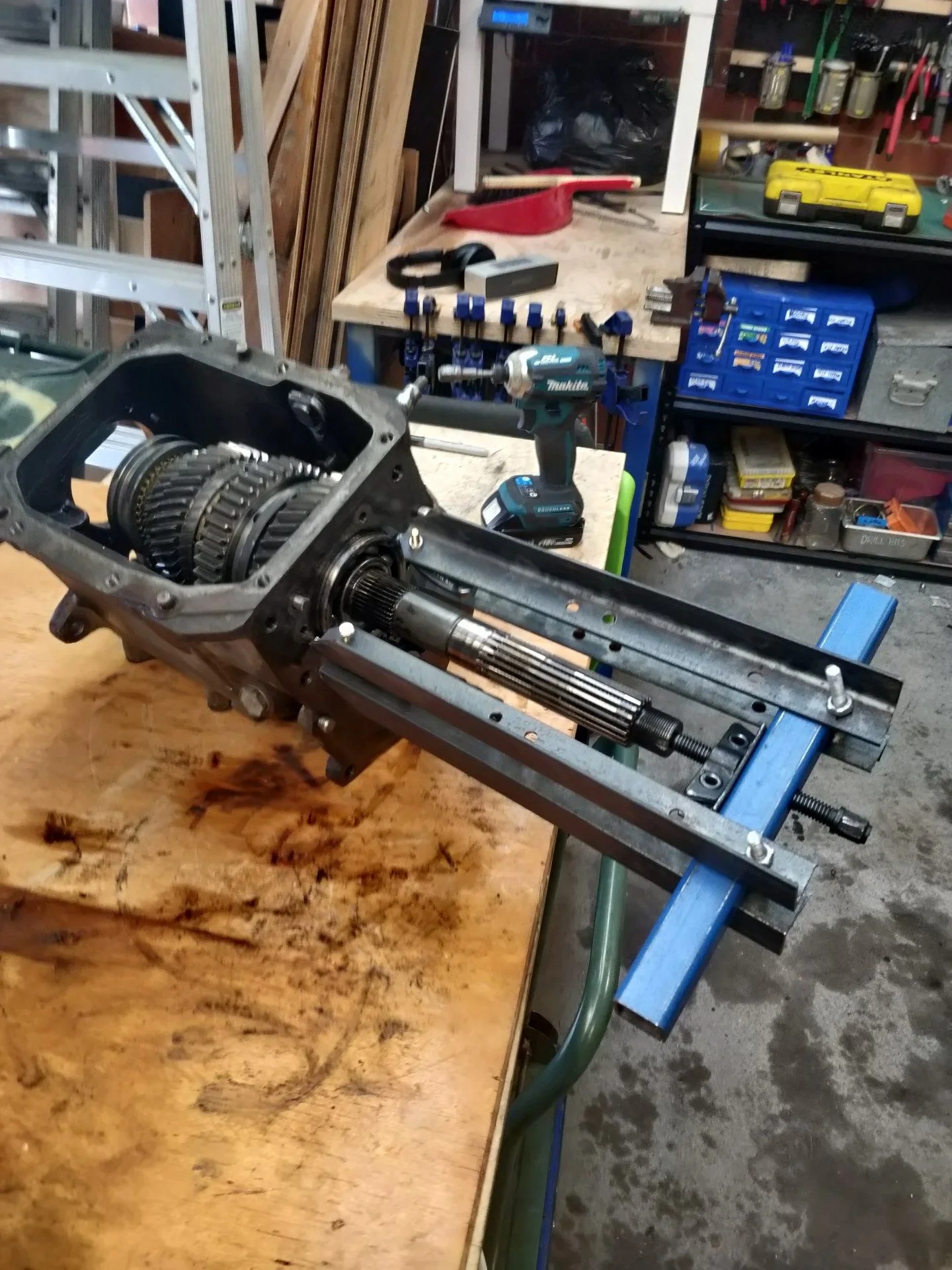

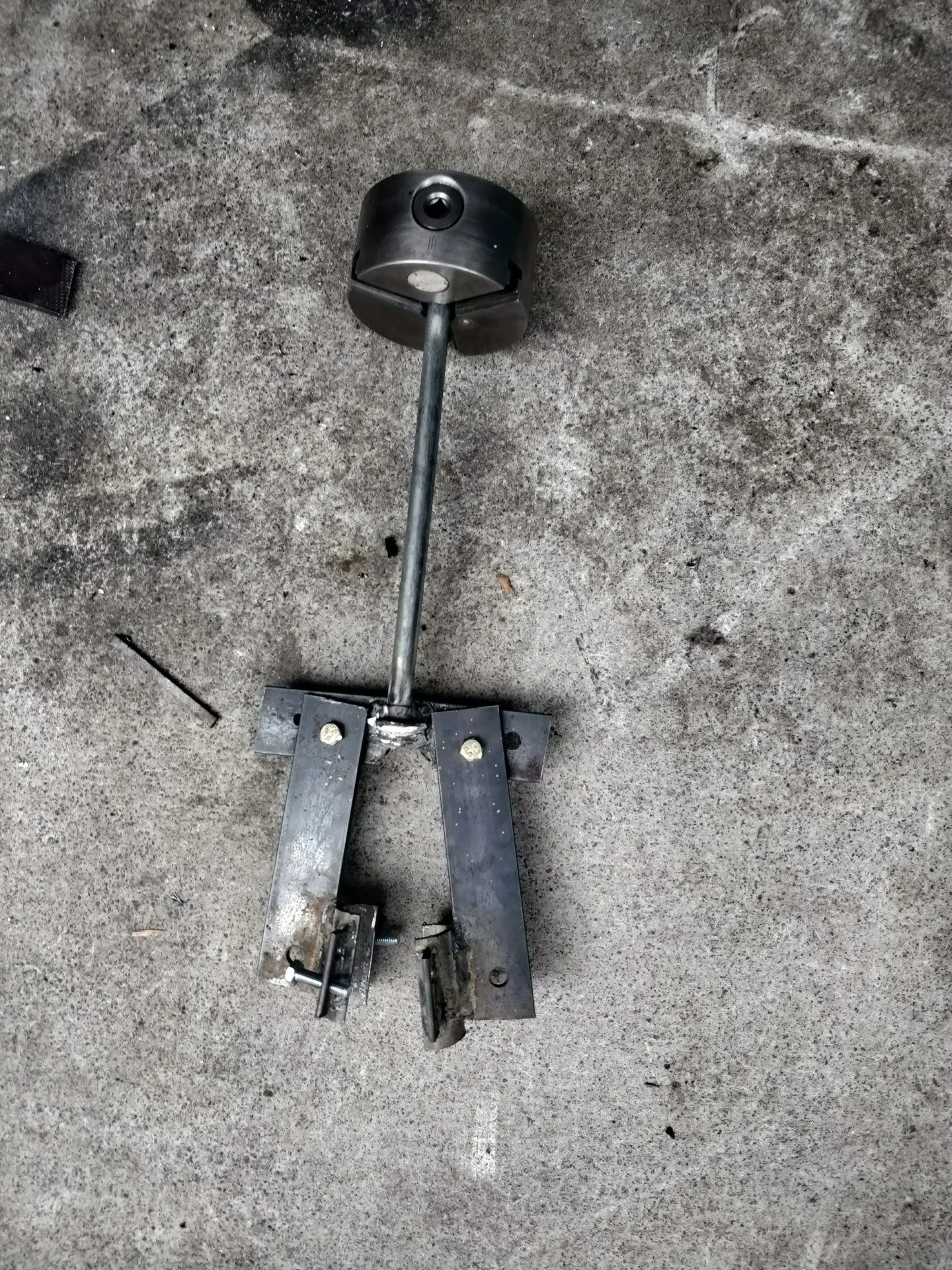

If you're not in a rush tear down them before ordering parts, ive had to make 3 orders for parts so far, just saves shipping costs and makes it more like Christmas when they arrive! Make sure you've got pullers for the job, I made my own here, broke them about 3 times trying to get the main shaft centre bearing out. (Yes that is a lathe chuck as a slide hammer slug, I'm very much doing this bush style)





Spook50

My daughter likes Stitch
Supporting Vendor
Joined
Feb 16, 2005
Messages
6,276
Location
Spokane, WA
If you're not in a rush tear down them before ordering parts, ive had to make 3 orders for parts so far, just saves shipping costs and makes it more like Christmas when they arrive! Make sure you've got pullers for the job, I made my own here, broke them about 3 times trying to get the main shaft centre bearing out. (Yes that is a lathe chuck as a slide hammer slug, I'm very much doing this bush style)

View attachment 2646500

View attachment 2646501
Good thing I finally got myself a 20 ton press....
