Pics of my first Fab work - 8274 Bumper (1 Viewer)

Joined
May 24, 2005
Messages
3,565
Location
NE Indiana



I did some work with my Lincoln 140 welder, it made me want for more so I just finished my first project with my new Lincoln 215XT. This was the most fun project I've ever done! Can't wait to draw up a rear bumper. I'd like to do one with a swing away spare tire carrier and a swing away cooler carrier and incorporate this with a beefy drop tailgate.
As far as material on this 8274 bumper, I made the mounting brackets and the winch mounting plate out of .375", everything else is .250" plate, no tubing. I made it so that I could keep my old school brush guard for mounting a CB antenae and the Hi-Lift, plus I like the look. The bumper is 40" long, I think it kind of keeps the old school look.

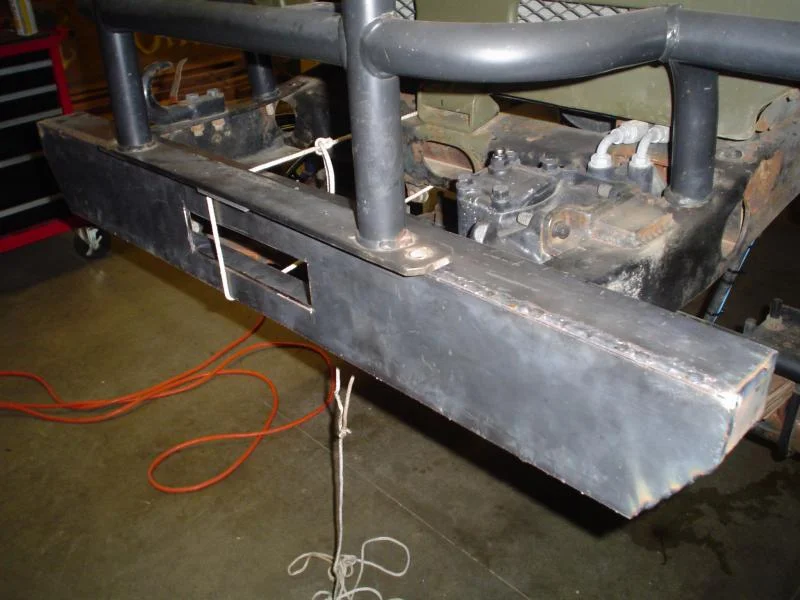

Welded up before doing any grinding and no brackets yet.
8274 Bumper 001.jpg

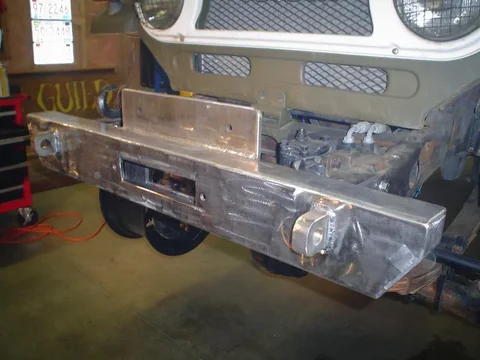

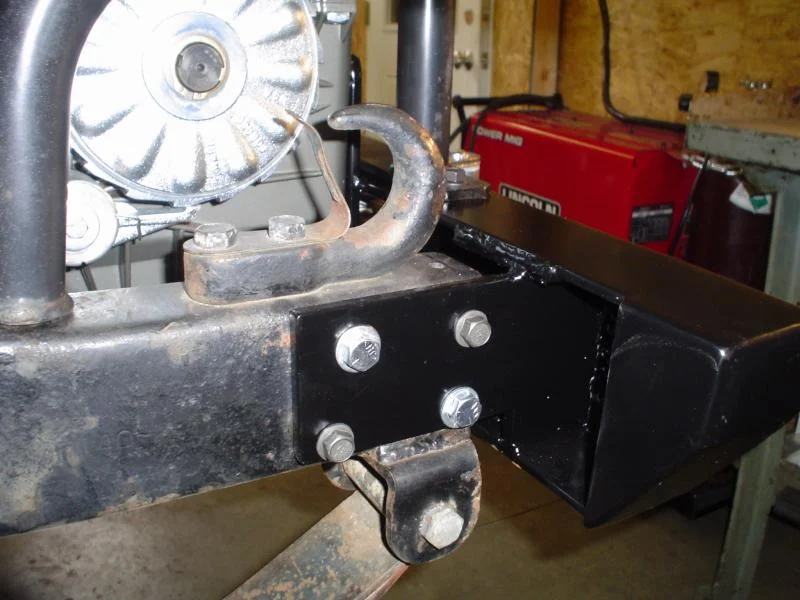

Checked for fit.
8274 Bumper 006.jpg

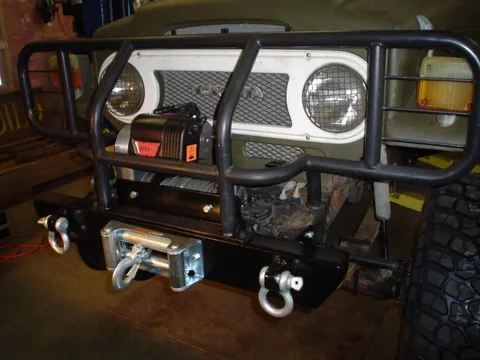

Powdercoated and finished.
8274 Bumper 010.jpg
8274 Bumper 001.jpg
8274 Bumper 006.jpg
8274 Bumper 010.jpg

Last edited:
Joined
May 10, 2008
Messages
293
Location
Spokane Wa.
Looks Good

Did you use Flux core wire on that? Or Flux core and Gas? Or just hardwire and gas?

How much did the powder coat job run you. I am thinkin about powdercoating mine also.

Joined
May 24, 2005
Messages
3,565
Location
NE Indiana



Did you use Flux core wire on that? Or Flux core and Gas? Or just hardwire and gas?

How much did the powder coat job run you. I am thinkin about powdercoating mine also.
.035 hardwire with gas.

I haven't seen the powder coat bill yet, I had a guy do it that I have a very good business relationship with and totally trust him and didn't even ask the cost because I know he will be fair.


Awl_TEQ

Supporting Vendor
Joined
Aug 27, 2008
Messages
3,904
Location
Calgary Alberta


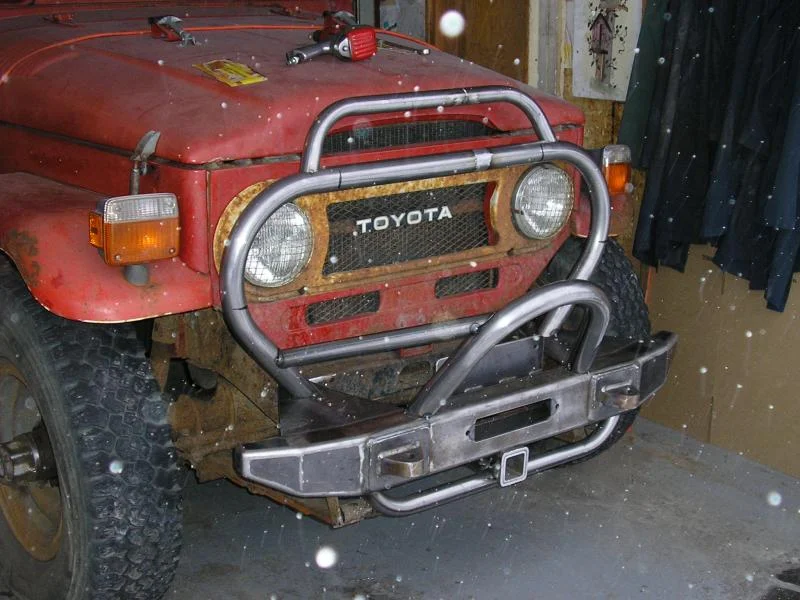

Very nice work - I like the tubing, old school look. I'm thinking of re-doing mine and dropping the small stinger. I'm doing the rear bumper and sliders next weekend so I'll wait and see what it all looks like together.

Joined
Jan 14, 2006
Messages
70
Location
Durango, CO
Gappy,

Really nice work! I like the look.

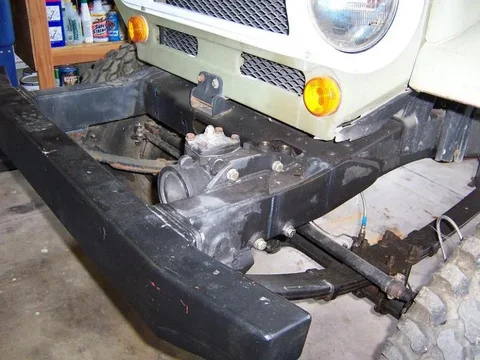

I noticed that you replaced your saginaw mounting system as well. Did you fab your own mount for the pump?
It looks similar to the mount that Luke with 4x4 Labs sells.

Joined
May 24, 2005
Messages
3,565
Location
NE Indiana



Gappy,

Really nice work! I like the look.
I noticed that you replaced your saginaw mounting system as well. Did you fab your own mount for the pump?
It looks similar to the mount that Luke with 4x4 Labs sells.
The steering was like that when I bought it, not sure of the history there.

Joined
Apr 1, 2007
Messages
2,573
Location
Peoples Socialist Republic of Chicago
Holy Schnikies! Nice work Tom!! You have a real talent there!

Gappy,

Really nice work! I like the look.
I noticed that you replaced your saginaw mounting system as well. Did you fab your own mount for the pump?
It looks similar to the mount that Luke with 4x4 Labs sells.
It looks like the mount sold by Downey. Downey Off-Road about 2/3rds down the page.


pjohnson

SILVER Star
Joined
Jan 15, 2003
Messages
2,199
Location
Idaho



Very nice work. I'm planning to use my Lincoln 215 for a similar project this summer on the rear. It's nice to have the power of the bigger welder.

One suggestion, you might want to figure out a way to secure your winch from theft. It looks like the four mounting bolts are easily accessible and standard hex head. There are bolts with a special head that requires a specific tool to remove that might work. Probably other ways to do it also.

Phil
