Pat's WVO thread

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
Disclaimer: I don't know what the heck I'm doing.

With that, here's my build thread. I am primarily seeking assistance and advice with my project; this thread is, by no means, a how to.

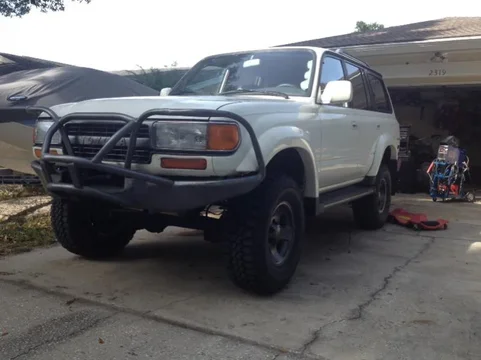

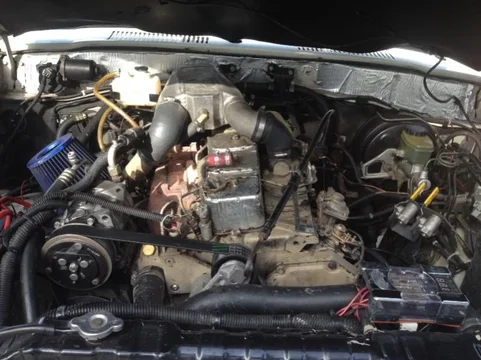

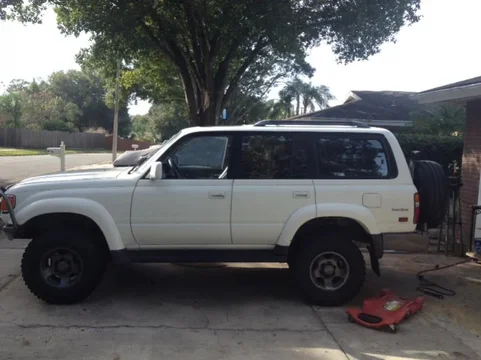

Here's the vehicle- a 93 80 series: image-2791718605.jpg image-1825218938.jpg Powered by a 95 Cummins 4BTA with a VE injector pump. image-408821409.jpg Pat

Last edited:
Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida

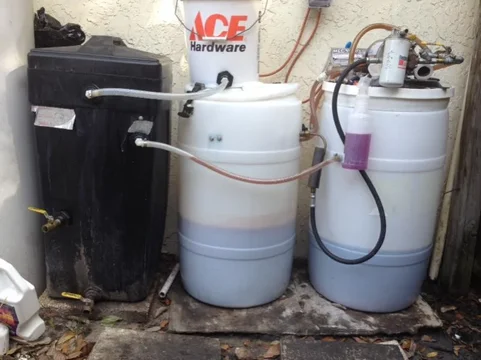

Here's the cool part- my WVO processor: image-35573689.jpg

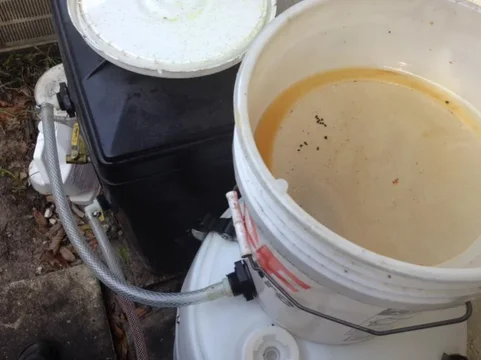

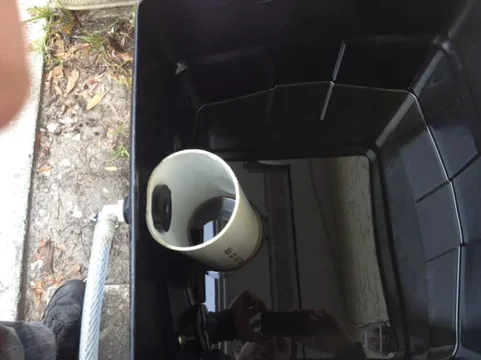

I start by pouring my oil through a 100 micron screen filter, which then flows into a "John Galt" style upflow settling container.

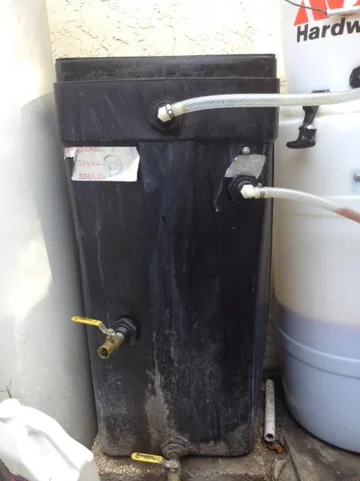

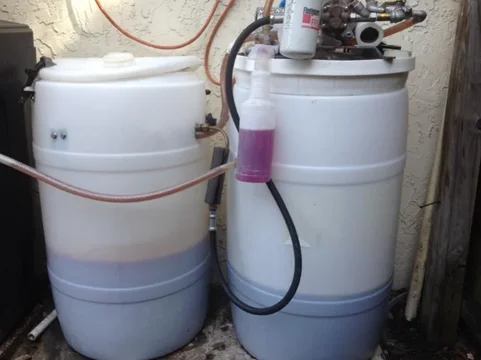

That container then overflows the cleanest oil into, what I call, the supply drum. image-2171670776.jpg image-3452404216.jpg

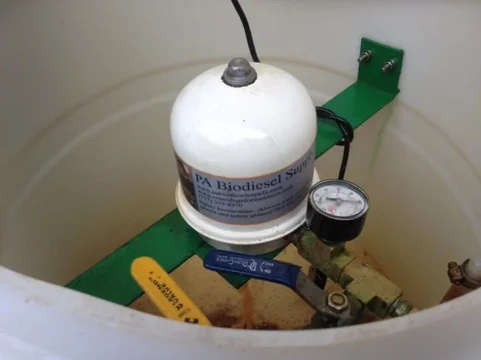

Using a series of 3-way valves, I pump from the supply barrel to a dieselcraft style centrifuge, the clean oil then falls into a third barrel, what I call the polishing barrel. With the 3-way valves, I circulate the oil in this barrel until the oil is clean and dry. image-1935674009.jpg

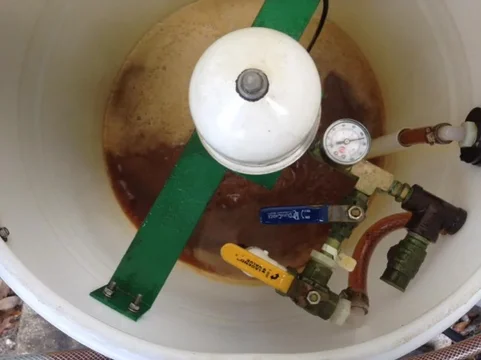

I centrifuge at about 90-100 psi, which I adjust with a bypass valve. The bypassed oil is fed through an irrigation sprinkler head for drying. Here is the system in action. The sprinkler head makes a nice fan spray. image-2966489673.jpg image-2228244807.jpg

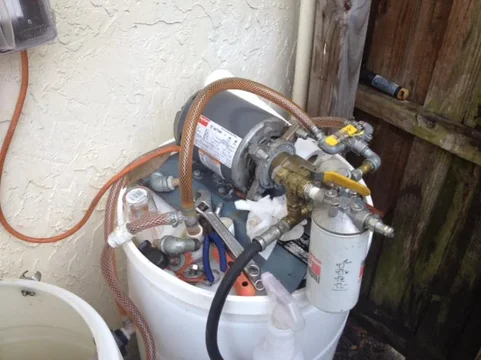

Here's the motor and pump; nothing really special there. image-3974586599.jpg


Attachments

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
Today I installed an old aluminum marine fuel tank into the spare tire space. The tank itself still needs a bit of work, but at least it's installed. I can install or remove it in about 5 minutes, so that's cool! I'm thinking I will use HOH fuel line ( heater hose and fuel line in the same sleeve) to heat the VO on its way to the engine compartment. Any thoughts on this? Would this be enough heat? I live in central Florida, so I wouldn't have the cold veggie challenges many others have.


Attachments

Last edited:
Joined
Dec 10, 2003
Messages
492
John's right.
HOH and other line heating is useful but not on it's own. coolant heat exchangers should be the center piece of all heating systems. Consider a heater fuel pick up and FPHEs first and build the rest around that.
I've been doing it for 10 years or so.

Joined
Jul 13, 2008
Messages
1,380
Location
Coldest N. America
I agree with mag. Also in a balmy climate like Florida a heated fuel pick-up may not be needed if 3/8 PEX fuel line is used. It will depend on how much PHO and fat is in the UVO. Put a sample in the fridge overnight to see how thick it gets.

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
I agree with mag. Also in a balmy climate like Florida a heated fuel pick-up may not be needed if 3/8 PEX fuel line is used. It will depend on how much PHO and fat is in the UVO. Put a sample in the fridge overnight to see how thick it gets.
PEX fuel line? Are we talking about the same stuff used in plumbing? What advantage does it have over aluminum (other than being significantly less expensive) ?

Pat

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
It will depend on how much PHO and fat is in the UVO. Put a sample in the fridge overnight to see how thick it gets.
Ok, Mr Galt. I did like you said and put a sample in the fridge overnight. It gelled pretty solid, but began to liquify minutes after removing it. There was no layering. What does this mean?

This pic is me holding the glass horizontal. It was slowly starting to run.


Attachments

Last edited:
Joined
Jul 13, 2008
Messages
1,380
Location
Coldest N. America
I would use ½" PEX tube and Gates barricade biofuel hose. [available by the ft at most NAPA stores.]
PEX fittings are inexpensive and work with both. Use sections of hose at the ends to connect to appliances. To join tube and hose use a brass PEX coupler with a screw clamp on the hose side and a compression ring crimped on the tube. Insulate the tube and hose with ½ foam pipe insulation.

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
This is my valve system I put together. Basically 2 three way valves mounted parallel to each other and will be actuated by a push/pull cable i stole from my boat. You may notice in the last two pics that I will have my WVO return looped into the WVO supply. Is this going to be ok, or should I return it to the tank?


Attachments

FL cruiser



Joined
Jul 22, 2004
Messages
1,664
Location
St Petersburg, Florida
Hi Pat,
Just now saw your thread.

A temp gauge with a sender T'd in somewhere on your veggie supply line close to the engine will always keep you informed what your veggie temp is. An electrical water temp gauge works fine with a 1/4 or 3/8 pipe T for the sender.

The looped idea is a simple and effective way to help increase the veg temp, but it will slow down purge times. I prefer run the return line back to the tank. If extra heating is needed, an extra heat exchanger can be installed.

The manual valves are a super reliable trouble free way to switch tanks, the closer to the engine your tank switch is, the faster the purge times. It appears you have your valves under the hood which is good.
Quick purge times means switching to diesel 5 min before get home. Slow purge times mean switching to diesel 15 min before you get home.

Last edited:
Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
Thanks for your response, Steve. I meant to send you a PM asking you to follow this thread. At some point, I red to see you set up.

Just to clarify, the looped fuel line is only on the veggie side. On diesel, the return is plumbed to the diesel tank.

Pat

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
I've made some pretty good progress over the holidays.

I have the fuel line ran. I used the 3/8 PEX hose with stainless steel barb fittings. I read in another forum that you could heat the PEX and then slide the barb fittings into the PEX; the PEX then shrinks as it cools, forming a seal around the fitting. It seems to work well.

I also have the mods completed on the tank and have it ready to install. The only issue is that I do not have a check valve installed in the fuel line. Without a check valve, do I risk introducing air into the fuel system when I switch fuels?

Pat


FL cruiser



Joined
Jul 22, 2004
Messages
1,664
Location
St Petersburg, Florida
Are you running separate fuel pumps for each fuel system or the same pump?

If your running separate pumps and an electric on the veggie, most stock pumps and electric pumps have the check valve built in.

If you're using an electric pump, where is it located?

Joined
Feb 16, 2008
Messages
926
Location
Pinellas County Florida
For now, I will only use the factory mechanical lift pump. I'm trying to keep my setup as simple and "stock" as possible. I realize I may end up having to add an electric pump for the veggie.... We'll see how it works. If I do add one though, it'll be at the tank so the entire fuel system is under pressure, rather than vacuum.

I ordered a check valve to install in the tank on the pickup straw. My concern is that the veggie will flow backward while sitting, filling the entire (11 foot) fuel line with air- which would then get sucked into the filter, IP, etc.

Pat
