Hi folks. I'm looking for someone in this community with intimate knowledge of the HF2AV transfer case. I want you to tell me "You don't have to take your t-case apart again to install this. It's an over-engineered part designed by lawyers, and is not needed."
Here's the story. I installed a part time kit over the weekend, including Asin hubs and a spool in my LX450 HF2AV transfer case. The kit included a polymer bushing that wasn't mentioned in the documentation, and doesn't appear in this installation demonstration video:
I was running out of time and couldn't see any obvious place for the bushing, so I just followed the video.

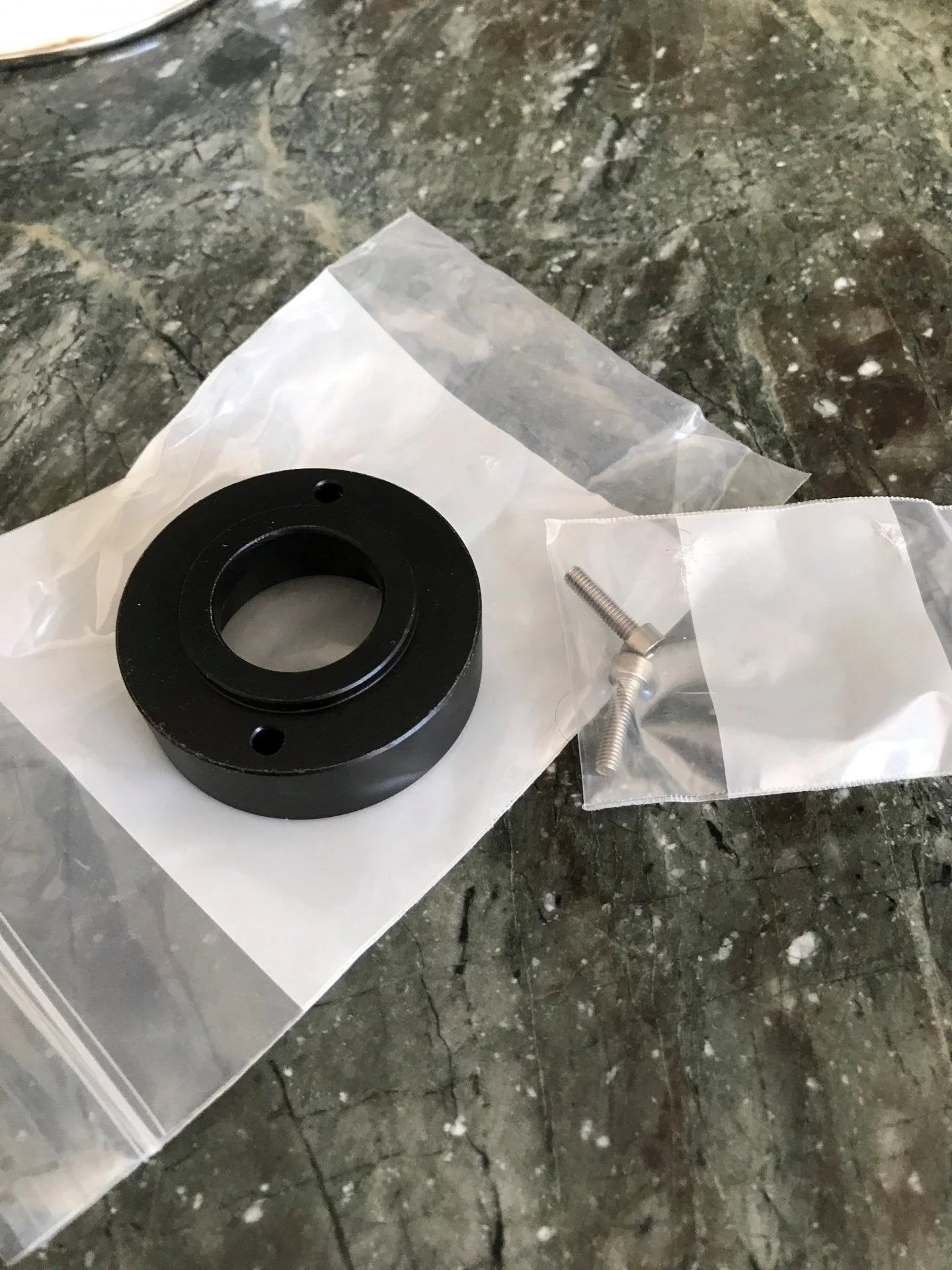

Here's the bushing:
Here's the explanation I received after I "finished" my install and buttoned up the t-case:
"This is the old instructions.
http://sleeoffroad.com/installation/91-97_part_time_kit.pdf
See page 5 of 7 – On the bottom photo it shows the spool with a brass spacer. Your spool should look look like this with that piece bolted to it, but they piece is nylon and not brass."
So, that bushing obviously fills the space formerly taken by the spider gears and the other gear that was on the inside of the now-replaced front-to-back differential assembly. Without the bushing, will the shaft the spider gears used to turn eventually walk back, fall out, and catastrophically detonate my transfer case? Probably. I should just install it. Never mind. I'll leave this here as a warning to others.
