Part number thread.

[WristPin]

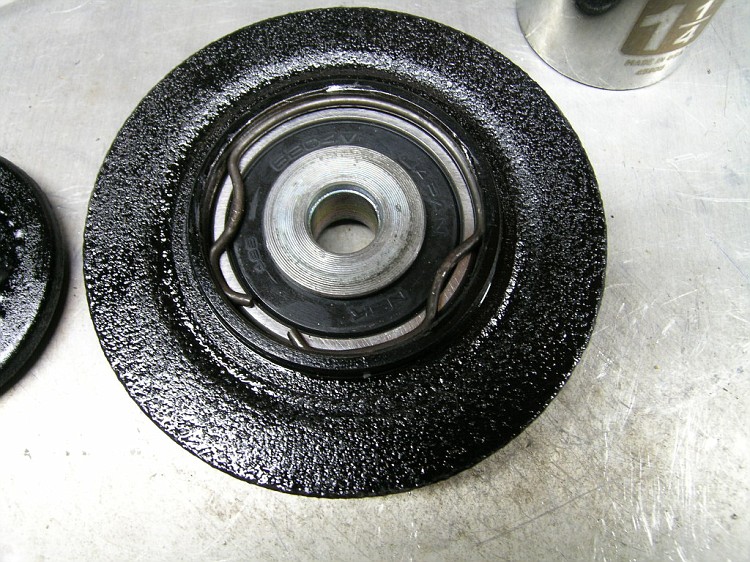

22RE Idler pulley replacement bearing.

Timken part# 204PP

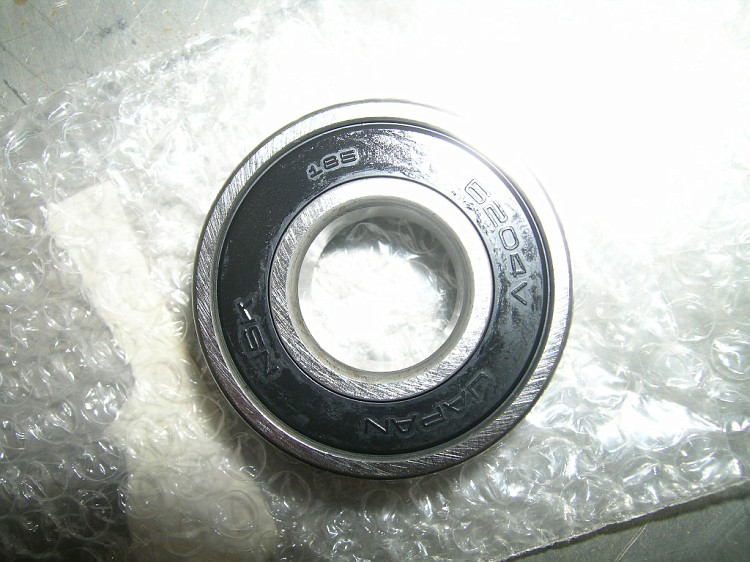

odd the OE bearing # is a NSK 6204

which at NAPA does not cross to thier #

so this timken bearing number crosses to a SKF 62042RSJ

Odd huh? thier number is similar to the OE number

also, that (2) in the SKF P/N designates the two sided seal. with out that 2 in the P/N its a single sided sealed bearing



[Joe_E]

odd the OE bearing # is a NSK 6204

which at NAPA does not cross to thier #

so this timken bearing number crosses to a SKF 62042RSJ

Odd huh? thier number is similar to the OE number

also, that (2) in the SKF P/N designates the two sided seal. with out that 2 in the P/N its a single sided sealed bearing

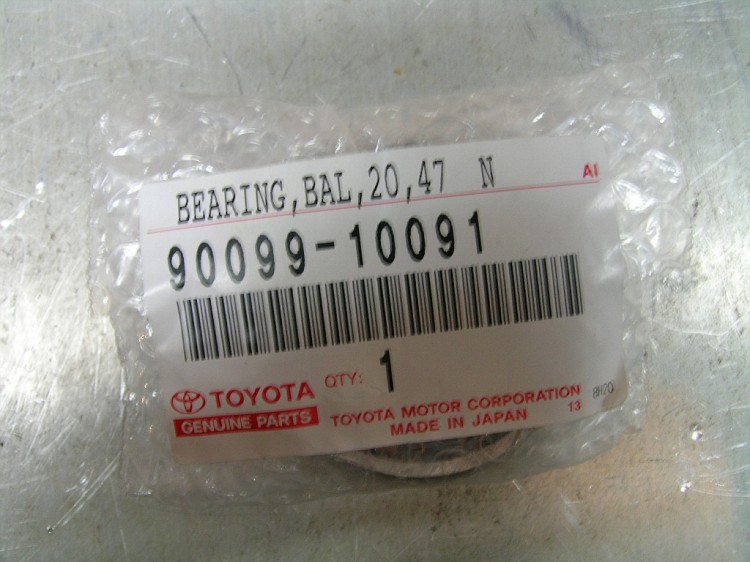

PS pump idler pulley bearing is Toyota 90099-10091 on my 92 w/ 22RE



[2ndGenToyotaFan]

This thread seems a little superfluous thanks to this site: ToyoDIY.com



[NorCalBorn]

This thread seems a little superfluous thanks to this site: ToyoDIY.com

Thanks, I'll take that as a thumbs up for posting it. IMHO it's not superflous in the least. I just figured we could also use the link. Keep posting stuff in here should for any reason the site go into failure and you need something then and there.

Duplication is never unnecessary, it's called foresight.



[WristPin]

i use the faq for stuff here and there. when i need some info, i always look here first. even tho that toydiy site is out there, its still fun to check mud first



[Joe_E]

Today's delivery from Cruiser Dan
1992 PU 4X4 22RE

Front Shocks- 48511-39807
RR shock- 48531-80666
RR shock- 48541-39247
Dryer Reciever (R12)- 88471-16050
No.1 Liquid Tube (line w/sightglass) - 88716-89162



[KLF]

PS pump idler pulley bearing is Toyota 90099-10091 on my 92 w/ 22RE

OK, my idler is squeeling now. Can anybody confirm this number? Both the toydiy website and my EPC say this part number doesn't exist.



[raydouble]

OK, my idler is squeeling now. Can anybody confirm this number? Both the toydiy website and my EPC say this part number doesn't exist.

1st Toyota parts has it, must be good.



[raydouble]

Do you have a bearing house close to you?



[KLF]

I got nuthin' near me. I'll give that part number a try at the closest dealer, see what I get. I know the bearing in there now came from NAPA, it didn't seem to last very long.



[raydouble]

I got nuthin' near me. I'll give that part number a try at the closest dealer, see what I get. I know the bearing in there now came from NAPA, it didn't seem to last very long.

Damn that sucks, was it sealed on both sides?

This is probably the closest Kaman to you
[FONT=Arial, Helvetica]KAMAN - MANCHESTER
Kaman Industrial Technologies
3 PERIMETER ROAD
MANCHESTER, NH 03103
Phone: (603) 669-6105

Wonder if they would ship to you? Might be faster then the dealership.........
The Timken replacement that I've got is on par with Nachi or Koyo as far as quality.
[/FONT]



[Joe_E]

OK, my idler is squeeling now. Can anybody confirm this number? Both the toydiy website and my EPC say this part number doesn't exist.

Yes it exsists.



[KLF]

PS pump idler pulley bearing is Toyota 90099-10091 on my 92 w/ 22RE

Just confirming this part number is correct, it fit perfectly on my '87 (finally got it installed yesterday).

Edit: Crap. Didn't help. I think the alternator belt was loose.



[NorCalBorn]

Not really tech but I figure this can go in here anyhow.

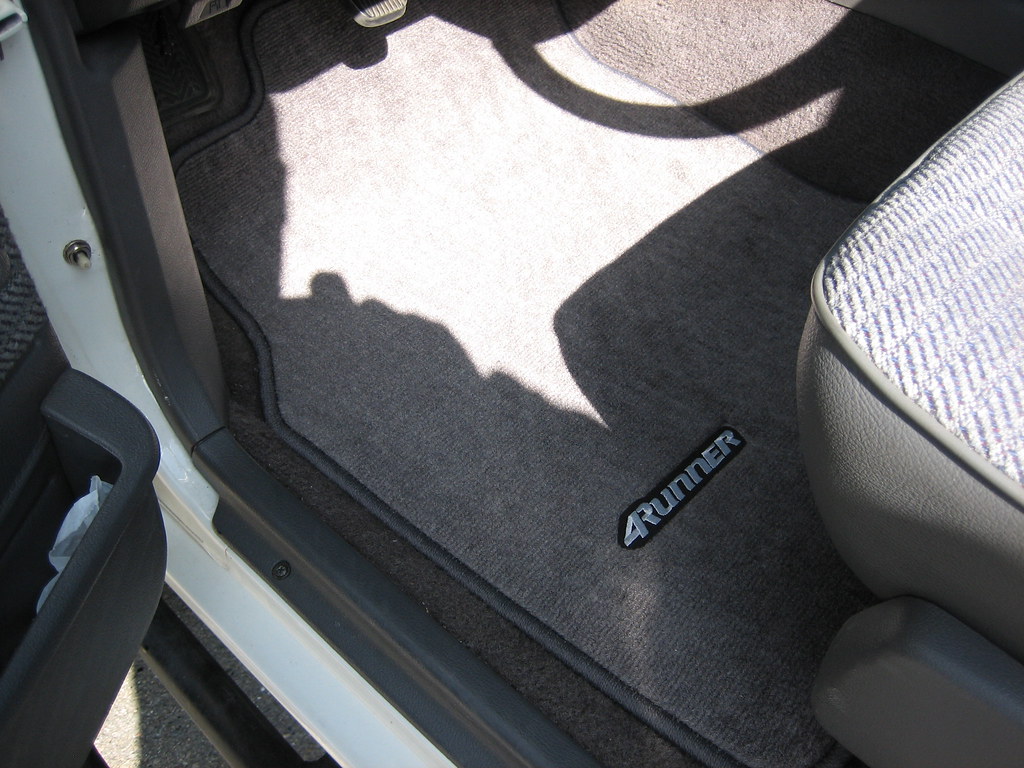

Factory Carpeted Floormats, picked them up today. Newer part number and the last two signify the color of the set.



[NorCalBorn]

1990-1995 Factory JDM TOKICO SHOCKS.

Old #'s: TO48531-80510, TO48511-80025

New #'s: 48531-80507, 48511-80025

Need these verified since they were a special order situation but the TOKICO part #'s are also on the shock cans pictured, but slightly different.



[NorCalBorn]

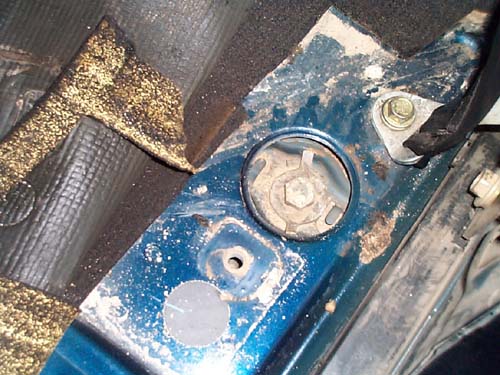

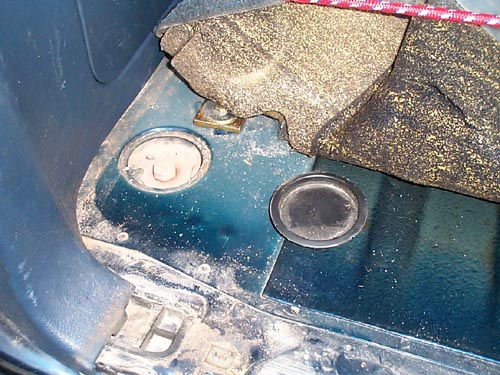

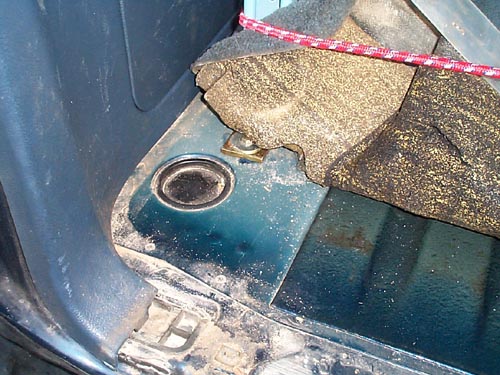

I'll have to pull up the part numbers I got for the body mounts, but here are the numbers for the little plastic hole covers that cut down the road noise and creaks from the body mounts:

90950‑01234 Rearward 4Runner Floor Cab Body Mount Hole Covers
90950‑01086 Forward 4Runner Floor Cab Body Mount Hole Covers

**PIC(S) BORROWED FROM http://www.toyotasurf.asn.au**



[OGBeno]

1990-1995 Factory JDM TOKICO SHOCKS.

Old #'s: TO48531-80510, TO48511-80025

New #'s: 48531-80507, 48511-80025

Need these verified since they were a special order situation but the TOKICO part #'s are also on the shock cans pictured, but slightly different.

New numbers are good and live.



[NorCalBorn]

New numbers are good and live.

Glad to help Onur. Out of curiosity, what do they spec for these days? In other words, like the HD Coil Spring trick, are they for a FJ-C or something or just still 2nd-Gen 4Runner-SURF?



[OGBeno]

Showing a number of suppersessions before they get to your "new" numbers.

4WD Japan production 4 Runners.
