[OR] HZJ75 UTE (1 Viewer)

[Wyattlv]

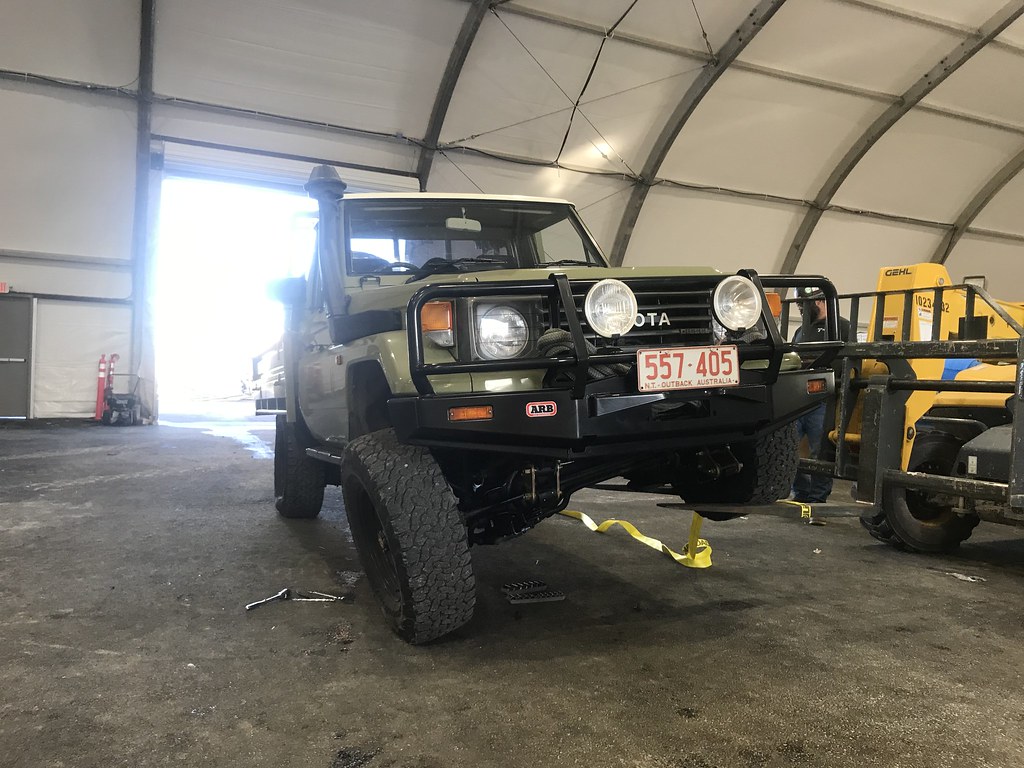

Specs on the lift:
Dobinson medium up front, standard in the rear
Dobinson shackles and OEM rubber bushings all around
Pulled the shocks and disconnected the sway bar to measure for travel
Front is 17" compressed and 24" extended

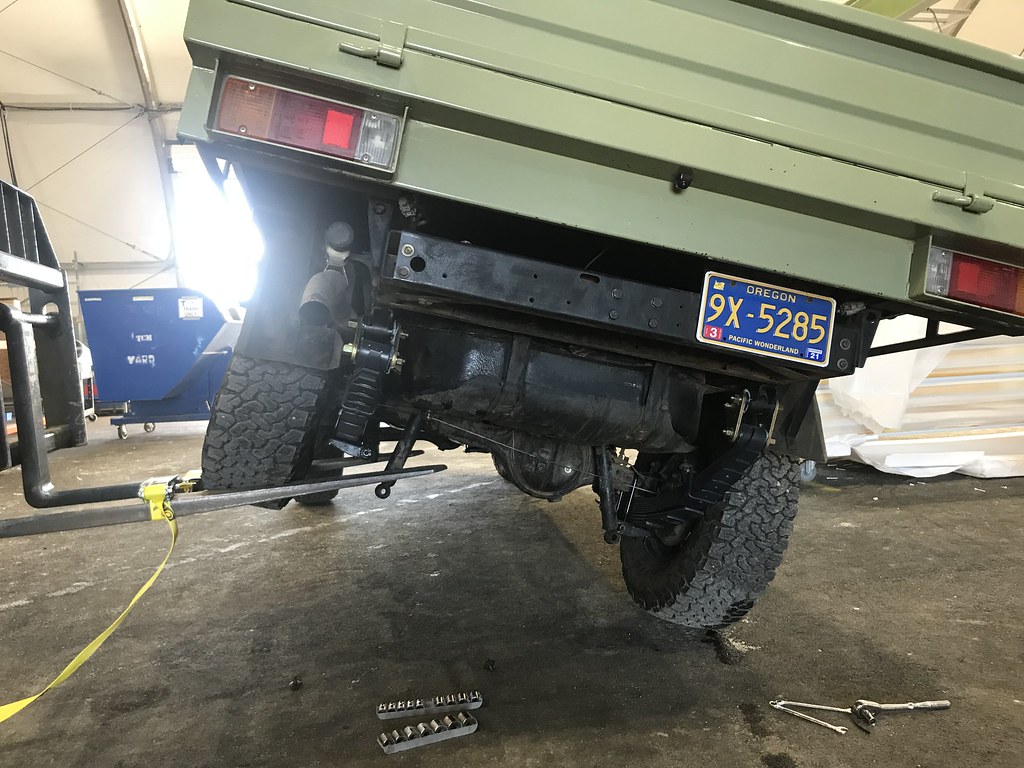

Rear hardly flexes at all. 21-1/2 to 24" with no load

7220D526-034B-4845-B4EC-52BD62C759E1 by W_burden, on Flickr

5744009B-2A19-4D0C-A467-7CD6F619426D by W_burden, on Flickr



[Wyattlv]

This ought to be the last audio upgrade. The plan was to delete the obsolete 6 disc changer it came with and utilize the space for something more relevant: Alpine PWE-S8 powered subwoofer.

This little unit clears the seat and does a pretty nice job of complimenting the dash and door speakers in such a small cab.

The only complaint is the mounting hardware it came with requires drilling 8 new holes in the truck which was hard to stomach for this sort of mod. So I nutserted the existing holes and made a mounting plate to utilize them. 3M Dual Lock secures the sub to the plate but allows for deliberate removal.
